Ogee 3 Bit Raised Panel Cabinet Door Router Bit Set with Vertical Panel Raiser - 1/4" Shank - Yonico 12334q
Ogee Rail and Stile with Vertical Panel Raiser Bit
Click images below to enlarge
| Brand: Yonico | Brand New |
| Item#: 12334q | Ships Fast |

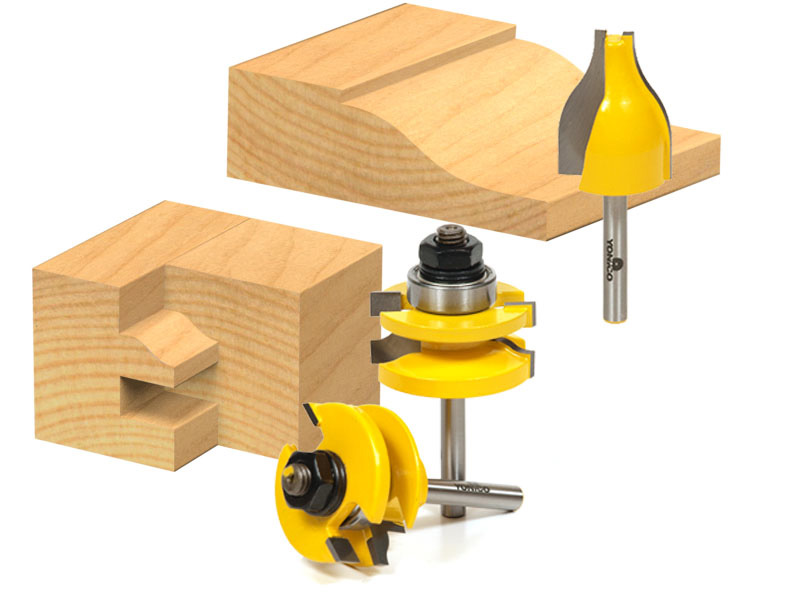

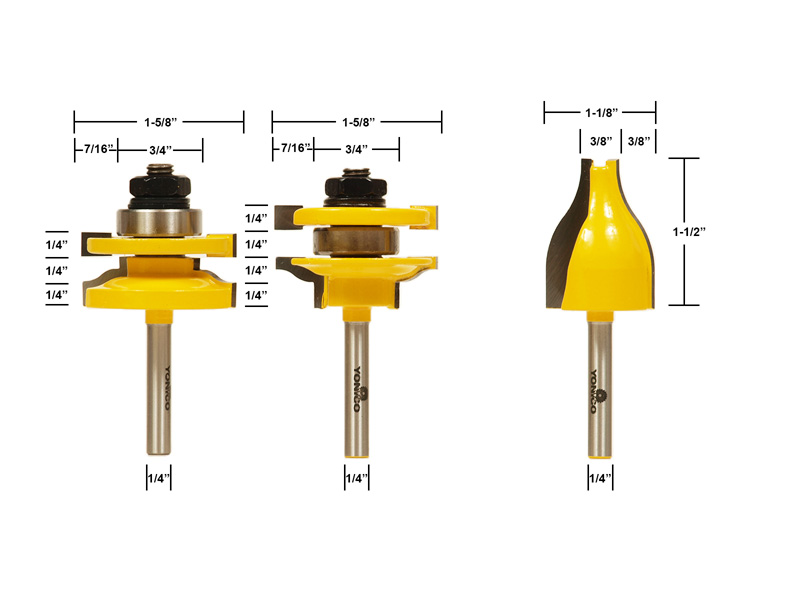

The Yonico 12334q Door Construction Router Bit Set includes matched 1/4" ogee rail and stile bits and a 1/4" vertical ogee panel raiser. Use with up to 1" stock. Bit shanks are 1/4". Router Bit Measurements: • Rail & Stile - 1-5/8" diameter, 1" cutter height, 3" overall height, 3/8" depth of cut, 7/8" bearing diameter • Vertical Panel Raiser - 1-1/8" diameter, 1-1/2" cutter height, 3" overall height, 3/8" depth of cut, 3/8" bearing diameter Rail and stile bits create a perfectly matched rail and stile door frame. The ogee vertical raised panel router bit puts a classic edge on the central panel of your door. Ball bearing guides allow you to make precise cuts without the use of a fence. The Yonico 12334q router bit set comes in a solid wood storage case.
| Number of Bits | 3 |
| Shank Diameter | 1/4" |
| Radius | |
| Degrees | |
| Cutting Diameter | |
| Cutting Depth | |
| Cutting Length | |
| Largest Diameter | |
| Overall Length | |
| Number of Flutes | 2 |
| Bit Construction | Tungsten Carbide |
| Design | Ogee |
| Application | Cabinet Door |
| Coating | |
| Flute Angle | |
| Mortising Height | |
| Minimum Stock Thickness | |
| Maximum Stock Thickness | |
| Bearing Height | 9/32" |
| Bearing Inner Diameter | 5/16" |
| Bearing Outer Diameter | 7/8" |
Description
Rail and stile door construction has been around for centuries and is the most common way to build doors for cabinets and furniture. Our rail and stile router bits will enable you to create your own frame-and-panel doors. Cope the ends of your rails with one bit, and then switch to the second bit to route the inside edge profile in all your door parts. The included panel raiser cuts the artistic profile on the center panel which reduces the panel's thickness to properly fit in the door frame's groove.
