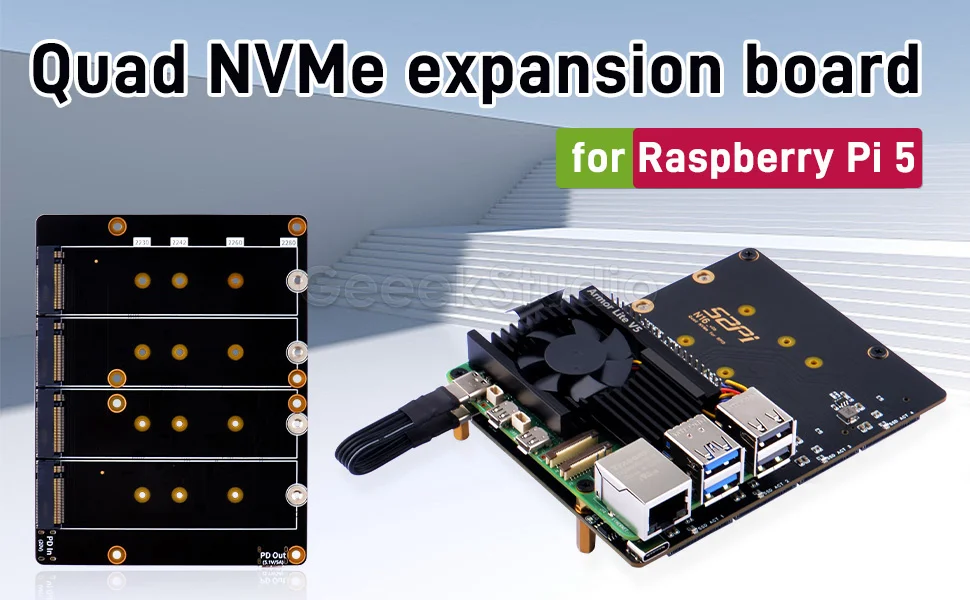

Product Description

The Raspberry Pi 5 Expansion Board is a versatile accessory designed to enhance the capabilities of the Raspberry Pi 5 through a PCIe interface. This board not only provides a power conversion solution but also serves as a high-speed storage expansion device. It is equipped with a 20V Power Delivery (PD) input that converts the power supply to a stable 5.1V/5A output, ensuring reliable operation of the Raspberry Pi 5. The board requires a 20V PD-compatible power source for activation and can power both the Raspberry Pi and attached storage devices.


Product Features

  • Power Delivery Support: It supports from 9V-20V PD and will automatically read the user's power supply PDO.

  • Dual-Purpose Power Supply: Powers both the Raspberry Pi 5 and connected storage devices.

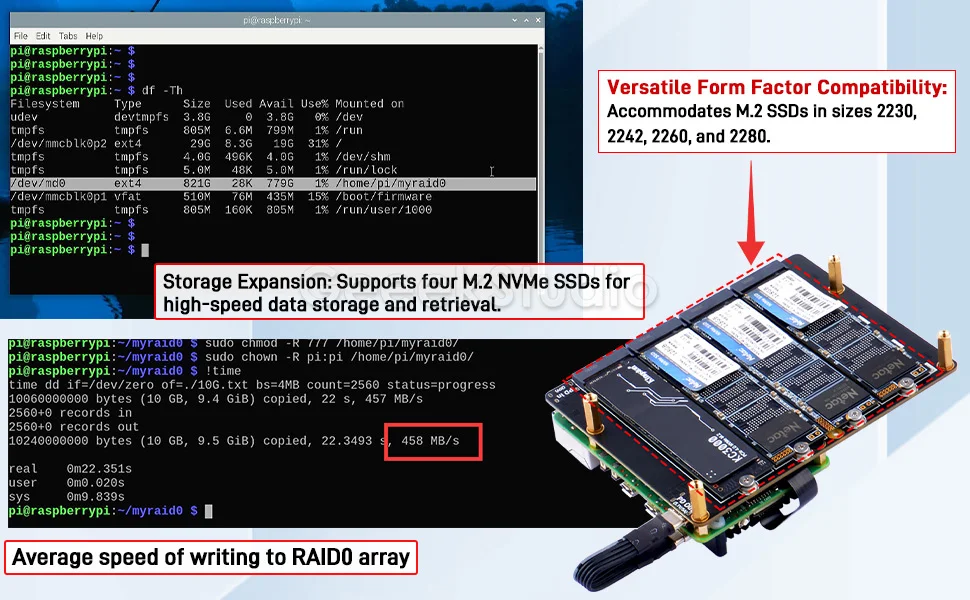

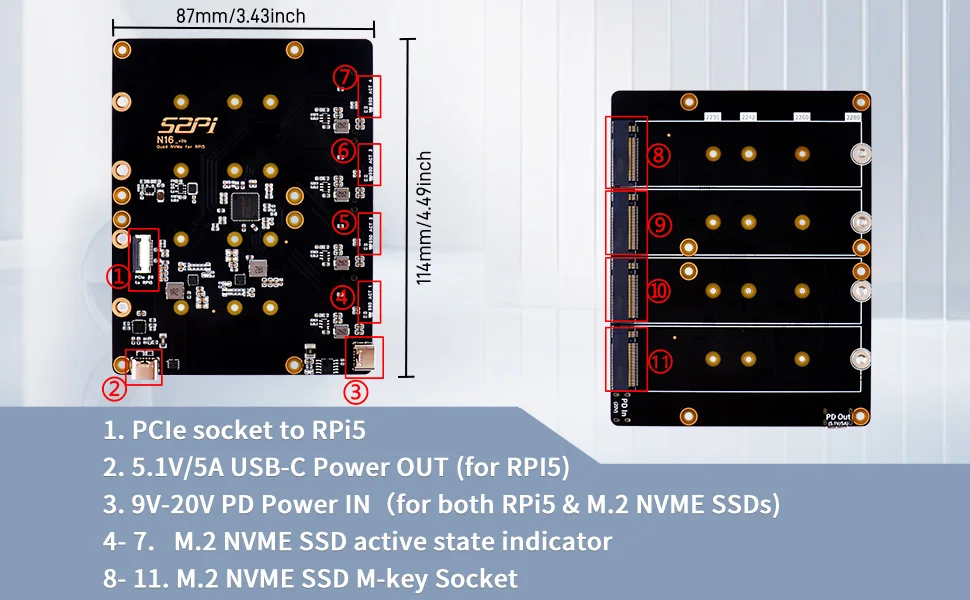

  • Storage Expansion: Supports four M.2 NVMe SSDs for high-speed data storage and retrieval.

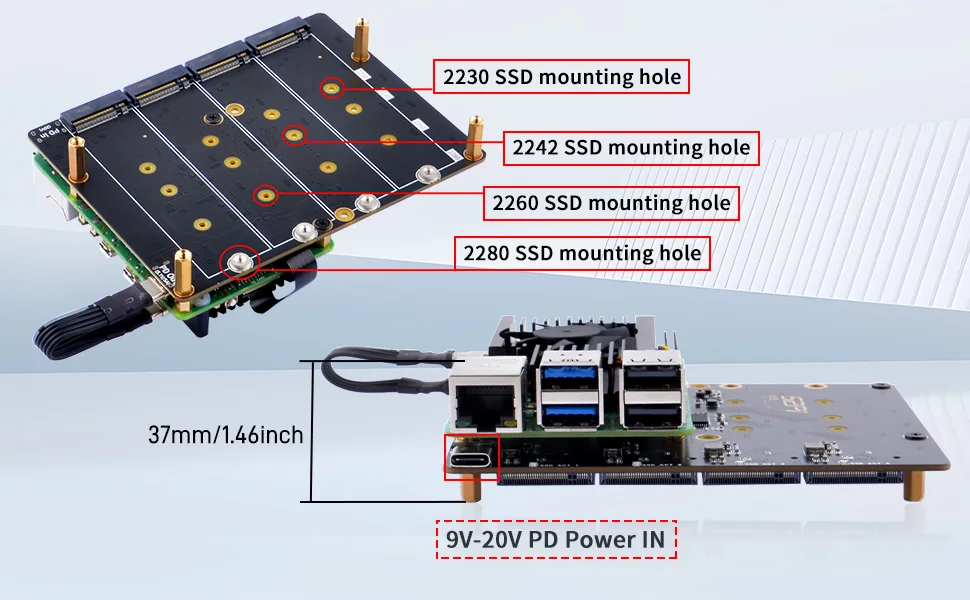

  • Versatile Form Factor Compatibility: Accommodates M.2 SSDs in sizes 2230, 2242, 2260, and 2280.

  • Application Flexibility: Ideal for use in Samba file systems or NAS setups, providing a robust disk expansion foundation.

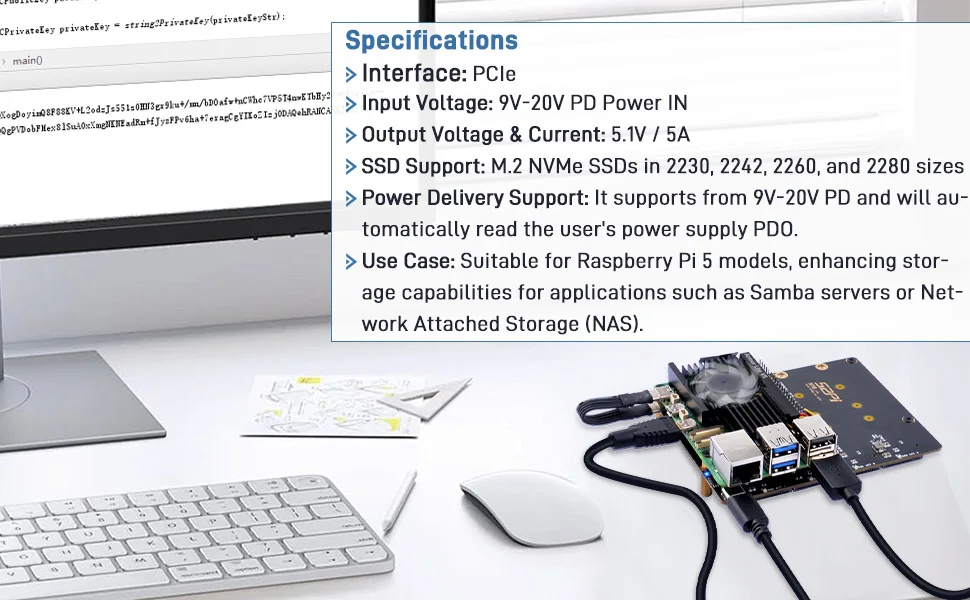

Specifications

  • Interface: PCIe

  • Input Voltage: 9-20V Power Delivery (PD)

  • Output Voltage & Current: 5.1V / 5A

  • SSD Support: M.2 NVMe SSDs in 2230, 2242, 2260, and 2280 sizes

  • Power Requirement: Must be powered by a 20V PD-compatible power source to initiate operation.

  • Use Case: Suitable for Raspberry Pi 5 models, enhancing storage capabilities for applications such as Samba servers or Network Attached Storage (NAS).

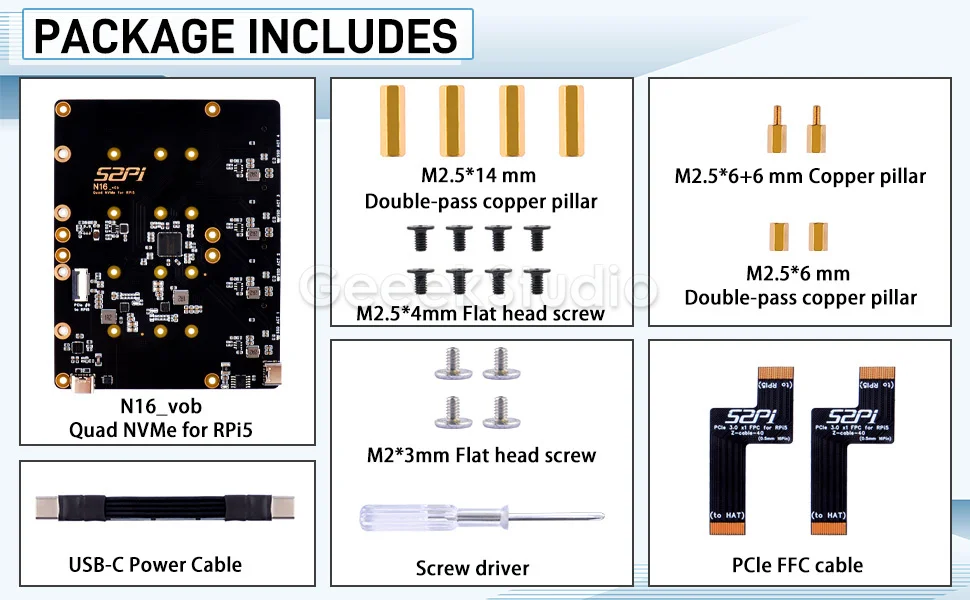

Package Includes

NOTE: Not include Raspberry Pi board
