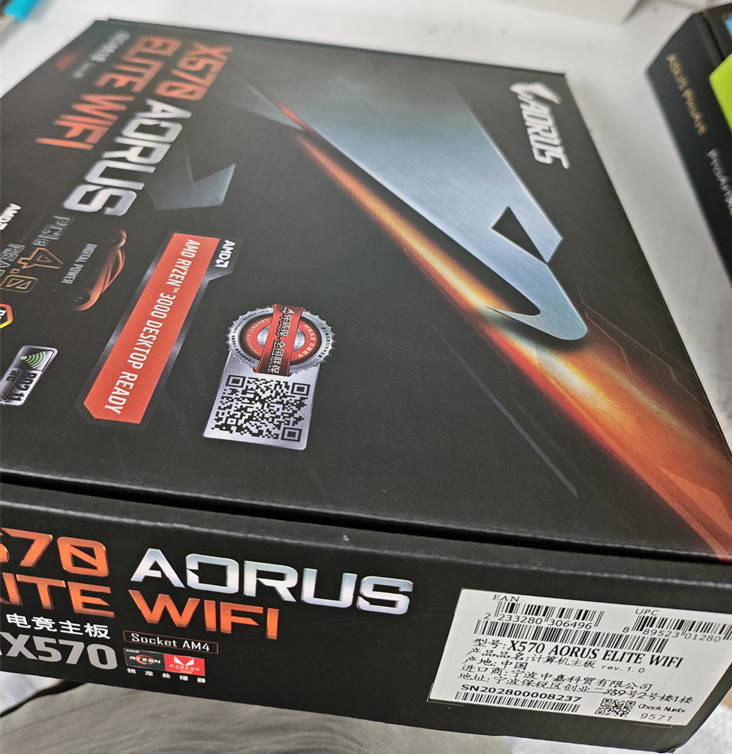

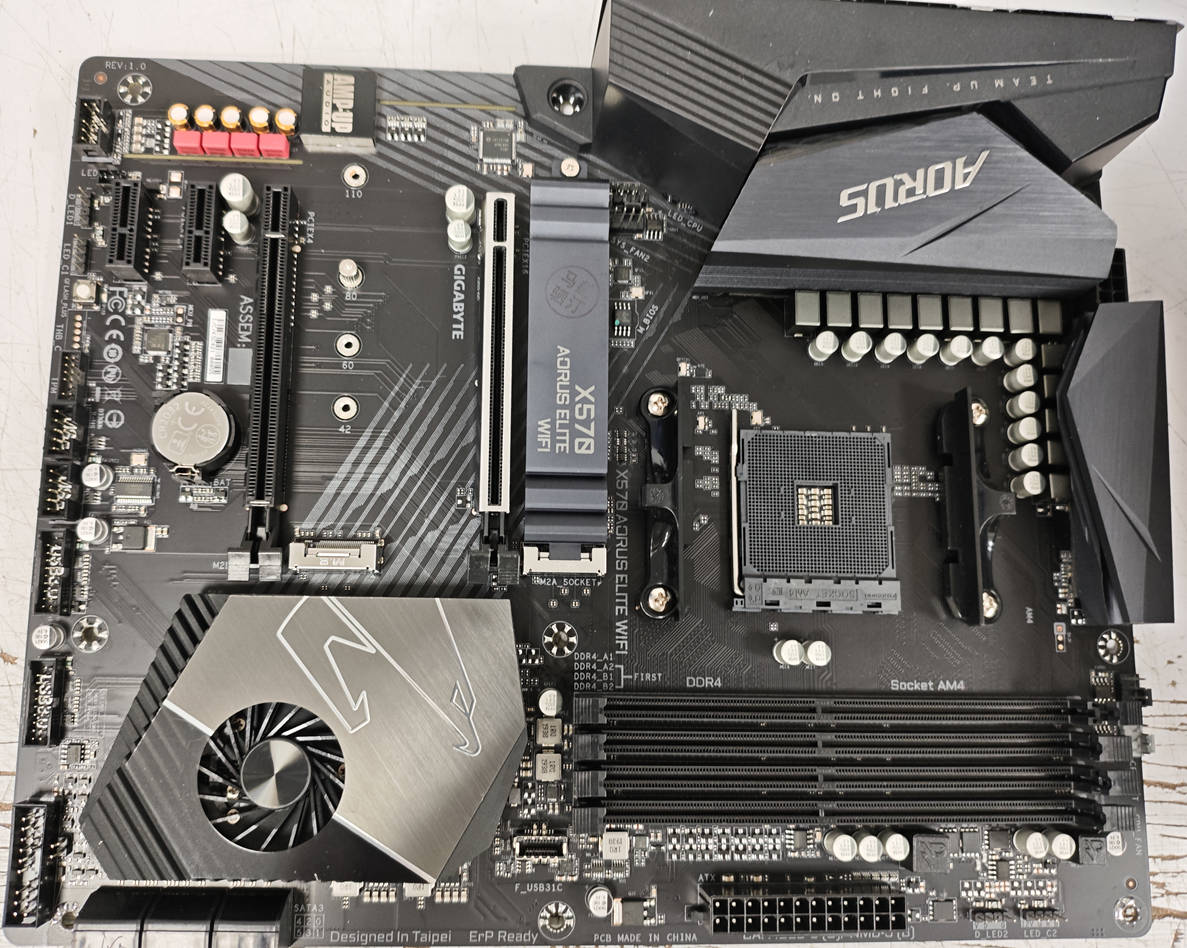

GIGABYTE X570 AORUS ELITE WIFI AMD Ryzen 3000 PCIe 4.0 SATA USB 3.2

Central Processing Unit (CPU)
1. AMD AM4 socket supports: AMD Ryzen 5000 series / 3rd Gen Ryzen / *Gen Ryzen / 3rd Gen Ryzen™™™™ Integrated Radeon™ Vega Graphics / *Gen Ryzen™™ Integrated Radeon™™ Vega Graphics Processors
(Please refer to the GIGABYTE website for a list of processors that are supported by the GIGABYTE website.)
Chipset
1. AMD X570
memory
1. AMD Ryzen 5000 Series Processors/3rd Gen AMD Ryzen™™ Processors:
  DDR4 4400 (O.C.) / 4000 (O.C.) / 3866 (O.C.) / 3800 (O.C.) / 3733 (O.C.) / 3600 (O.C.) / 3466 (O.C.) / 3400 (O.C.) / 3333 (O.C.) / 3300 (O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
2. 3rd Gen AMD Ryzen™ Integrated Radeon™ Graphics Processors:
  Supports DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz
3. *Gen AMD Ryzen Processors/*Gen AMD Ryzen Integrated Radeon™ Vega Graphics Processors/AMD Ryzen™™™ Integrated Radeon™™™ Vega Graphics Processors:
  Supports DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz
4. 4 DDR4 DIMM slots, supporting up to 128 GB (single slot supports 32 GB capacity)
5. Dual-channel memory technology is supported
6. ECC Un-buffered DIMM 1Rx8/2Rx8 memory is supported
7. Supports non-ECC un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
8. Extreme Memory Profile (XMP) memory is supported
(Please refer to the GIGABYTE website for the list of supported memory modules.)
Display features
Based on a processor with display function:
1. 1 HDMI port for resolutions up to 4096x2160@60 Hz
  * HDMI 2.0, HDCP 2.2 and HDR supported.
Support for *shared graphics memory*16 GB

*Only AMD Ryzen Integrated Radeon™ Vega Graphics Processors/AMD Ryzen™™ Integrated Radeon™™™ Vega Graphics Processors support this feature.
sound effect
1. Integrated Realtek ALC1200 chip®
2. High Definition Audio is supported
3. Support 2/4/5.1/7.1 channels
4. Support S/PDIF output
Internet
1. Integrated Intel GbE network chip (10/100/1000 Mbit)®
Expansion slots
CPU Based (PCIEX16/PCIEX8):
1. 3rd Gen AMD Ryzen™ Processors:
  1 PCIe x16 slot supports PCIe 4.0 and x16 operating specifications
2. *Gen AMD Ryzen™ Processors:
  1 PCIe x16 slot supports PCIe 3.0 and x16 operating specifications * To get the most out of your graphics card
  *, be sure to install *PCIEX16 slot when installing a graphics card.
3. *AMD Ryzen Integrated Radeon Vega Graphics Processors/AMD Ryzen™™ Integrated Radeon™™™ Vega Graphics Processors:
  1 PCIe x16 slot supports PCIe 3.0 and x8 operating specifications
Based on chipset (PCIEX4/PCIEX1):
1. 1 PCIe x16 slot supports PCIe 4.0 (Note 2) / 3.0 and x4 (PCIEX4)
  * This feature is only supported on 3rd Gen AMD Ryzen™ processors.
2. 2 PCIe x1 slots support PCIe 4.0*/3.0
  * This feature is only supported by 3rd Gen AMD Ryzen™ processors.
Multi-display technology
1. Supports AMD Quad-GPU CrossFire and 2-Way AMD CrossFire™™ technology
This feature is only supported by 3rd Gen AMD Ryzen™ processors/*Gen AMD Ryzen™ processors.
Storage device interface
Based on CPU (M2A_SOCKET):
1. 3rd Gen AMD Ryzen™ Processor:
  1 M.2 slot supports Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD
2. *Gen AMD Ryzen Processors/*Gen AMD Ryzen Integrated Radeon™ Vega Graphics Processors/AMD Ryzen™™™ Integrated Radeon™™™ Vega Graphics Processors:
  1 M.2 slot supports Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD
Based on Chipset (M2B_SOCKET):
1. 1 x M.2 slot supports Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD
  * This feature is only supported by 3rd Gen AMD Ryzen™ processors.
2. 6 SATA 3.0 ports
3. RAID 0, RAID 1 and RAID 10 functions are supported
USB
CPU-based:
1. 4 USB 3.2 Gen 1 ports in the rear window IO
Based on the chipset:
1. 1 USB Type-C™ port, supporting USB 3.2 Gen 2, needs to be connected from the USB port in the motherboard via a cable
2. 2 USB 3.2 Gen 2 Type-A ports (red) in the rear window IO
3. The four USB 3.2 Gen 1 ports need to be connected from the USB port in the motherboard via a cable
Based on chipset + 2 x USB 2.0 Hub:
1. 8 USB 2.0/1.1 ports (4 for rear window IO, 4 for USB port via cable)
Plugged into an outlet
1. 1 x 24PIN motherboard power outlet
2. 1 x 8PIN CPU power outlet
3. 1 x CPU fan header
4. 1 x CPU water cooling fan header
5. 2 system fan headers
6. 2 programmable LED strip power outlets
7. 2 RGB LED strip power outlets
8. 1 x Cooling Fan Strip / RGB LED Strip Power Outlet
9. 2 M.2 SSD slots
10. 6 SATA 3.0 ports
11. 1 x Motherboard jumper socket
12. 1 x Front audio outlet
13. 1 x USB Type-C™ socket with USB 3.2 Gen 2 support
14. 2 x USB 3.2 Gen 1 sockets
15. 2 x USB 2.0/1.1 sockets
16. 1 x Secure Encryption Module (TPM) socket (2x6 pin, GC-TPM2.0_S only)
17. 1 x Clear CMOS data pin
18. 1 x Q-Flash Plus button
* *The integrated fan headers on the motherboard all support all-in-one water pumps, standard water pumps and high-performance fans, providing up to 2 amps/12 volts combined and 24 watts output.
The rear panel device is connected to the socket
1. 4 USB 2.0/1.1 ports
2. 1 HDMI port
3. 4 USB 3.2 Gen 1 ports
4. 2 USB 3.2 Gen 2 Type-A ports (red)
5. 1 RJ-45 network cable interface
6. 1 digital optical output
8. 5 audio interfaces
I/O controllers
1. Integrated iTE I/O controller®
Hardware monitoring
1. Voltage detection
2. Temperature detection
3. Fan speed detection
4. Flow rate detection of water cooling system
5. Overtemperature warning
6. Fan failure warning
7. Smart Fan Control Whether
  or not you support the Smart Fan Control feature will vary from fan to fan.
BIOS
1. 1 x 128 Mbit flash
2. Use an authorized AMI UEFI BIOS
3. PnP 1.0a、DMI 2.7、WfM 2.0、SM BIOS 2.7、ACPI 5.0
Additional Utilities
1. Support for APP Center * The programs supported by APP Center
  may vary depending on the motherboard; The functions supported by each program will also vary depending on the specifications of the motherboard.
  @BIOS
  EasyTune
  Fast Boot
  Game Boost
  ON/OFF Charge
  RGB Fusion
  Smart Backup
  System Information Viewer
2. Q-Flash Plus is supported
3. Q-Flash is supported
4. Xpress Install is supported
Comes with free software
1. Norton Internet Security (OEM version)®
2. cFosSpeed
operating system
1. Support Windows 10 64-bit
PCB Specifications
1. ATX Specification; 30.5 cm x 24.4 cm
