Description

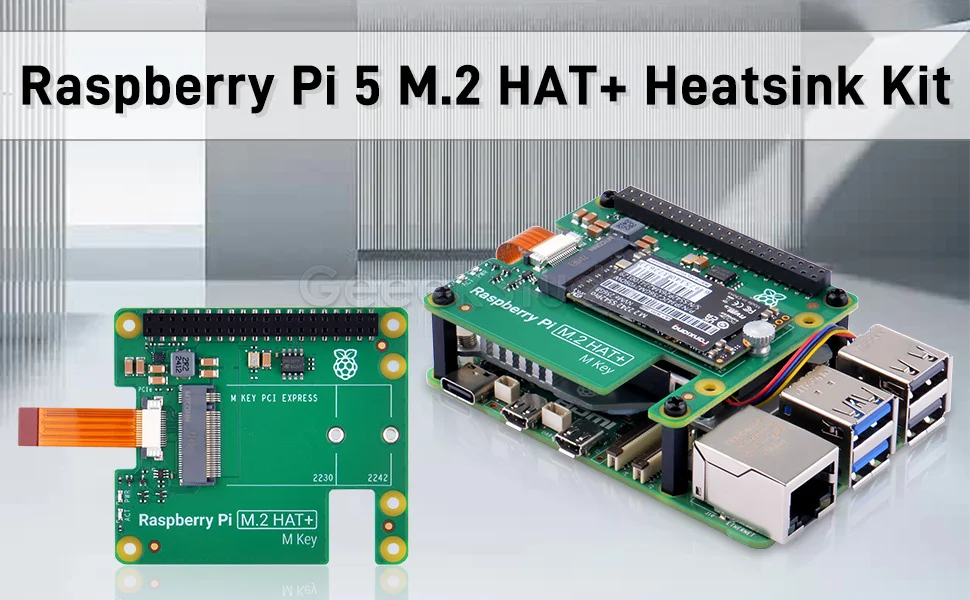

This kit contains Raspberry Pi M.2 HAT+ and Raspberry Pi Active Cooler for Raspberry Pi 5. The Raspberry Pi M.2 HAT+ M Key enables you to connect M.2 peripherals such as NVMe drives and other PCIe accessories to Raspberry Pi 5’s PCIe interface.

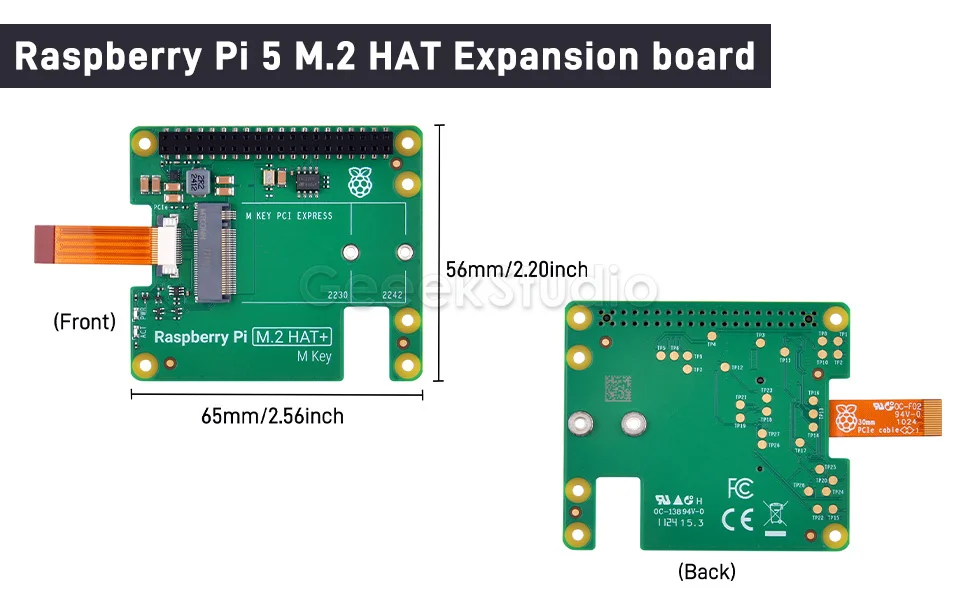

The M.2 HAT+ adapter board converts between the PCIe connector on Raspberry Pi 5 and a single M.2 M key edge connector. You can connect any device that uses the 2230 or 2242 form factors. The M.2 HAT+ can supply up to 3A of power.

The M.2 HAT+ uses Raspberry Pi’s HAT+ specification, which allows Raspberry Pi OS to automatically detect the HAT+ and any connected devices.

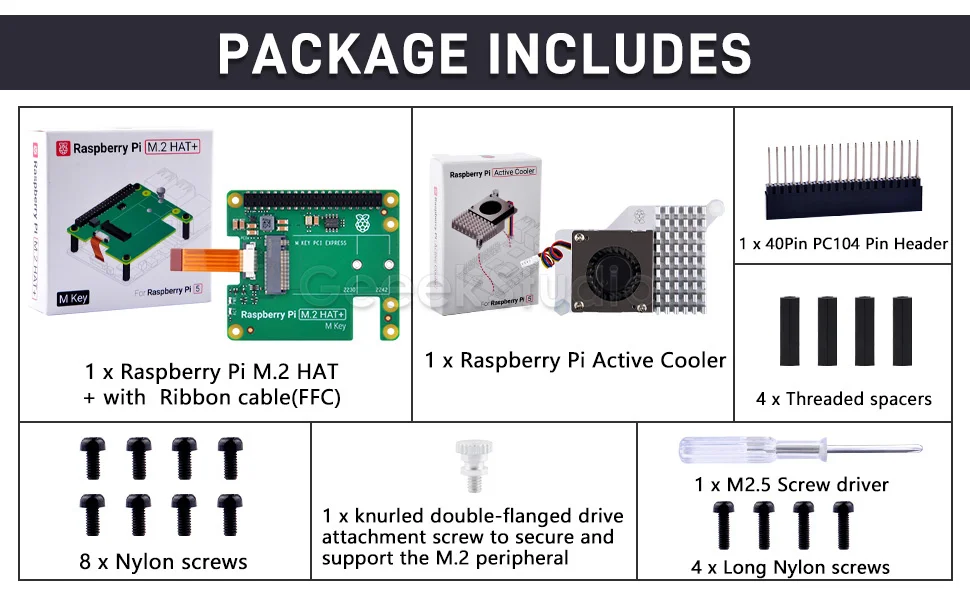

The included threaded spacers provide ample room to fit the Raspberry Pi Active Cooler beneath an M.2 HAT+.

The M.2 HAT+ is only compatible with the Raspberry Pi Case for Raspberry Pi 5 if you remove the lid and the included fan.

The Raspberry Pi Active Cooler for Raspberry Pi 5 is a dedicated clip-on cooling solution for Raspberry Pi 5. It combines an aluminium heatsink with a temperature-controlled blower fan to keep your Raspberry Pi 5 at a comfortable operating temperature, even under heavy loads.

Product Features

About the Raspberry Pi M.2 HAT+ M Key

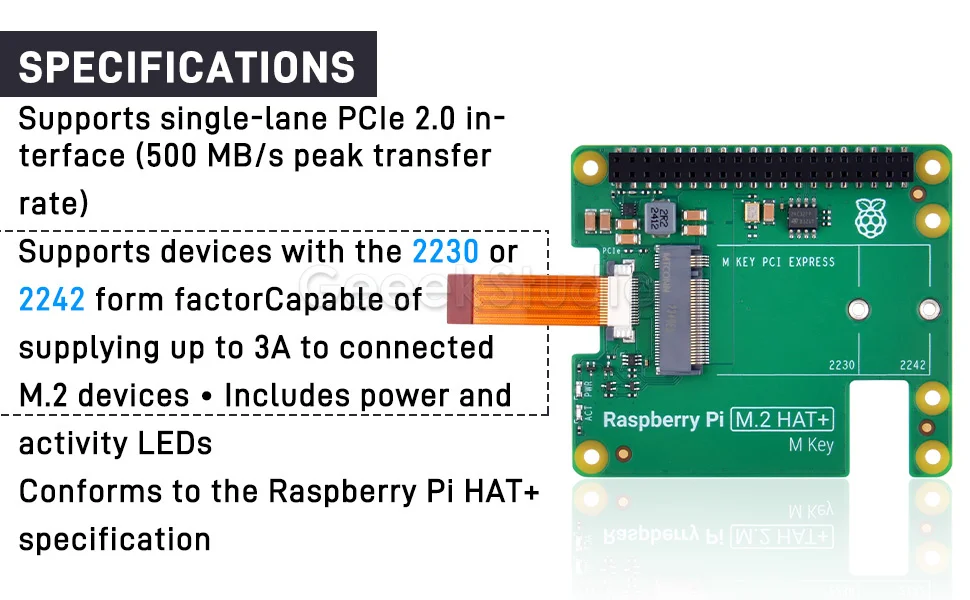

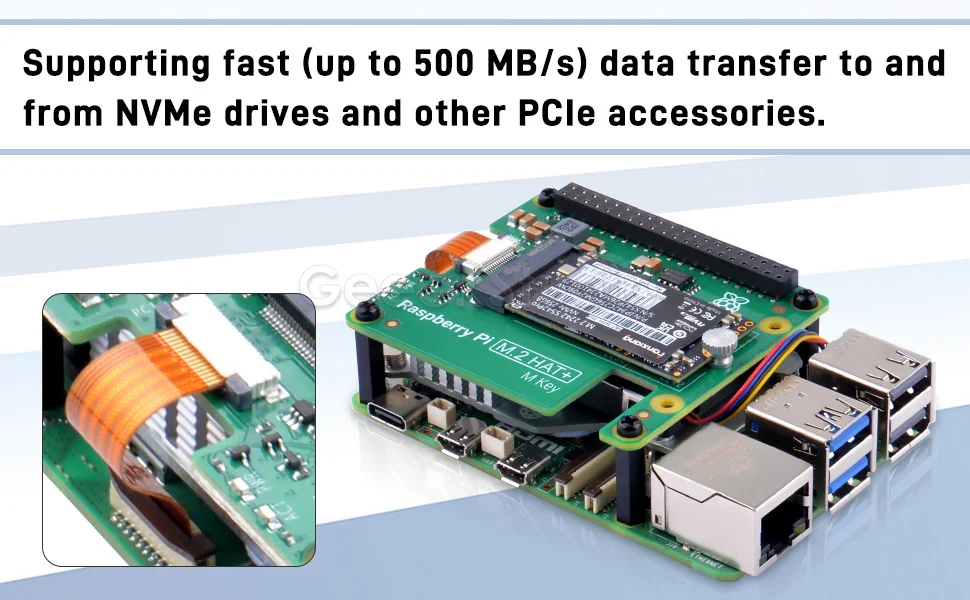

• Single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)

• Supports devices that use the M.2 M key edge connector

• Supports devices with the 2230 or 2242 form factor

• Supplies up to 3A to connected M.2 devices

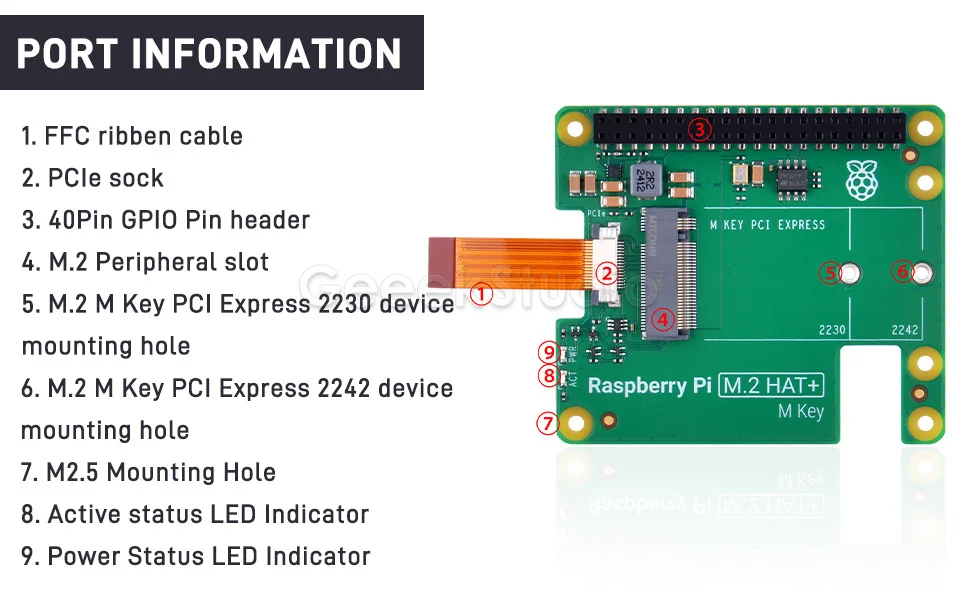

• Power and activity LEDs
