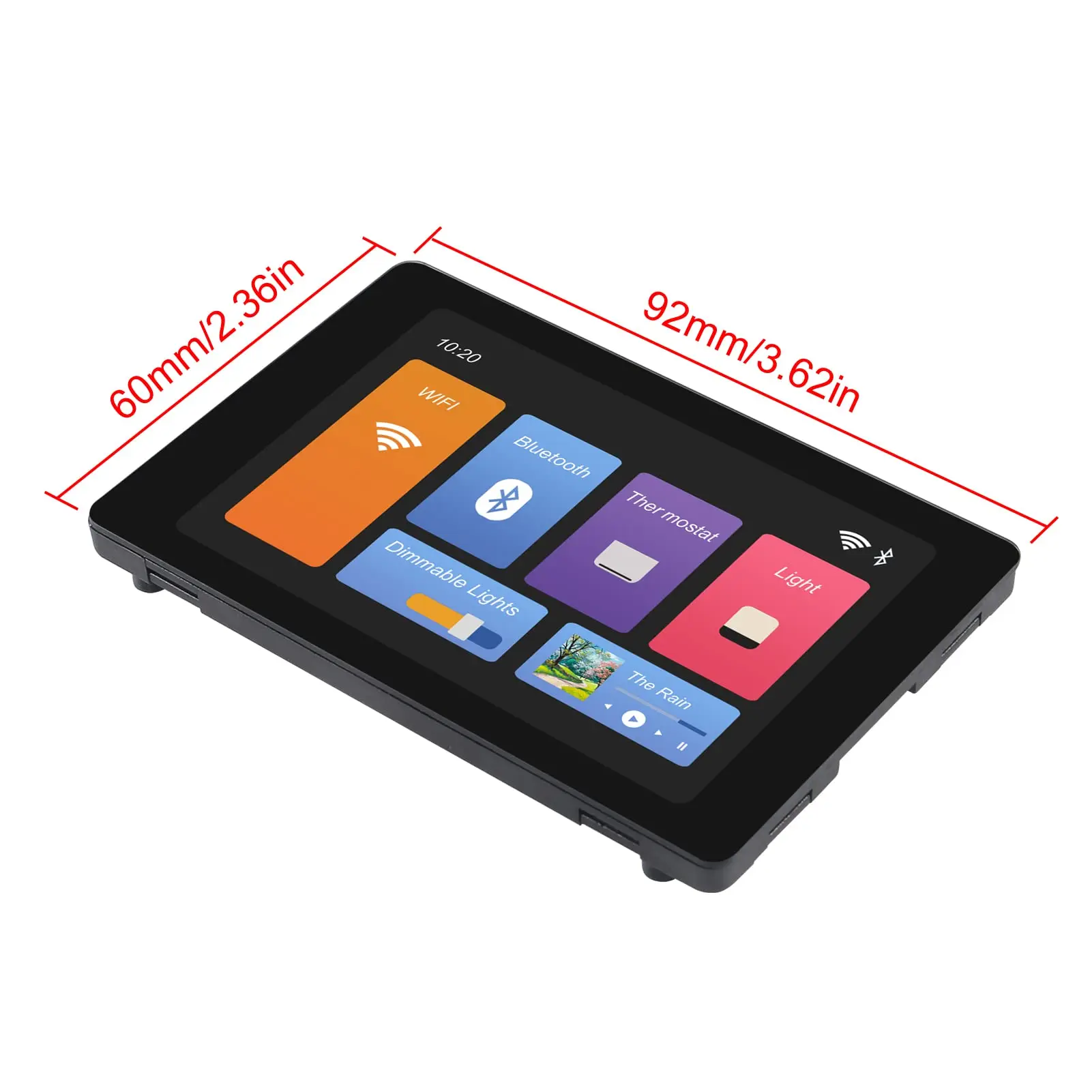

WT32-SC01 PLUS 3.5 inch 320X480 Capacitive Multi-Touch LCD Screen Module


  • ESP32 development board WT32-SC01 Plus with 3.5-inch multi-touch IPS screen, with GUI firmware 8MB PSRAM, WiFi, BT, BLE MCU module.
  • WT32-SC01 is an ESP32 development board with a 3.5-inch (approximately 8.9 cm) color touch screen. The touch screen gives the ESP32 a whole new look. The board comes with Graphical User Interface (GUI) firmware that supports graphical drag-and-drop programming and helps users develop custom control platforms

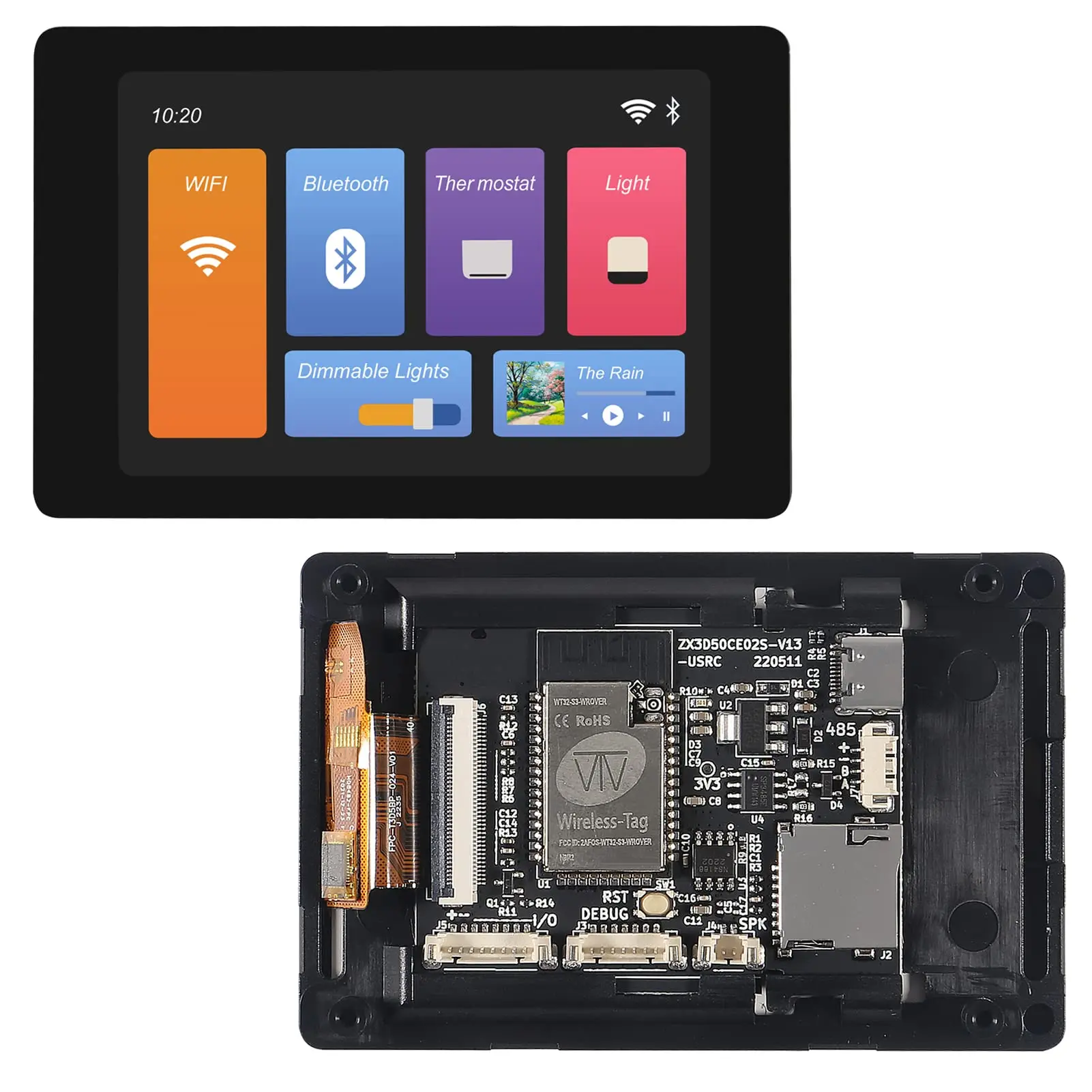

  • The WT32-SC01 development board uses the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI flash memory and 8MB PSRAM.
  • CPU: Dual-core Xtensa 32-bit LX6 MCU; 2-point touch, capacitive touch screen: size 3.5 inches; resolution -320*480; power supply: DC 5V/2A; operating temperature: -20~85°C
  • Applications: Home automation, smart home control panels, 86 boxes, wearable electronic devices, gateways with screens

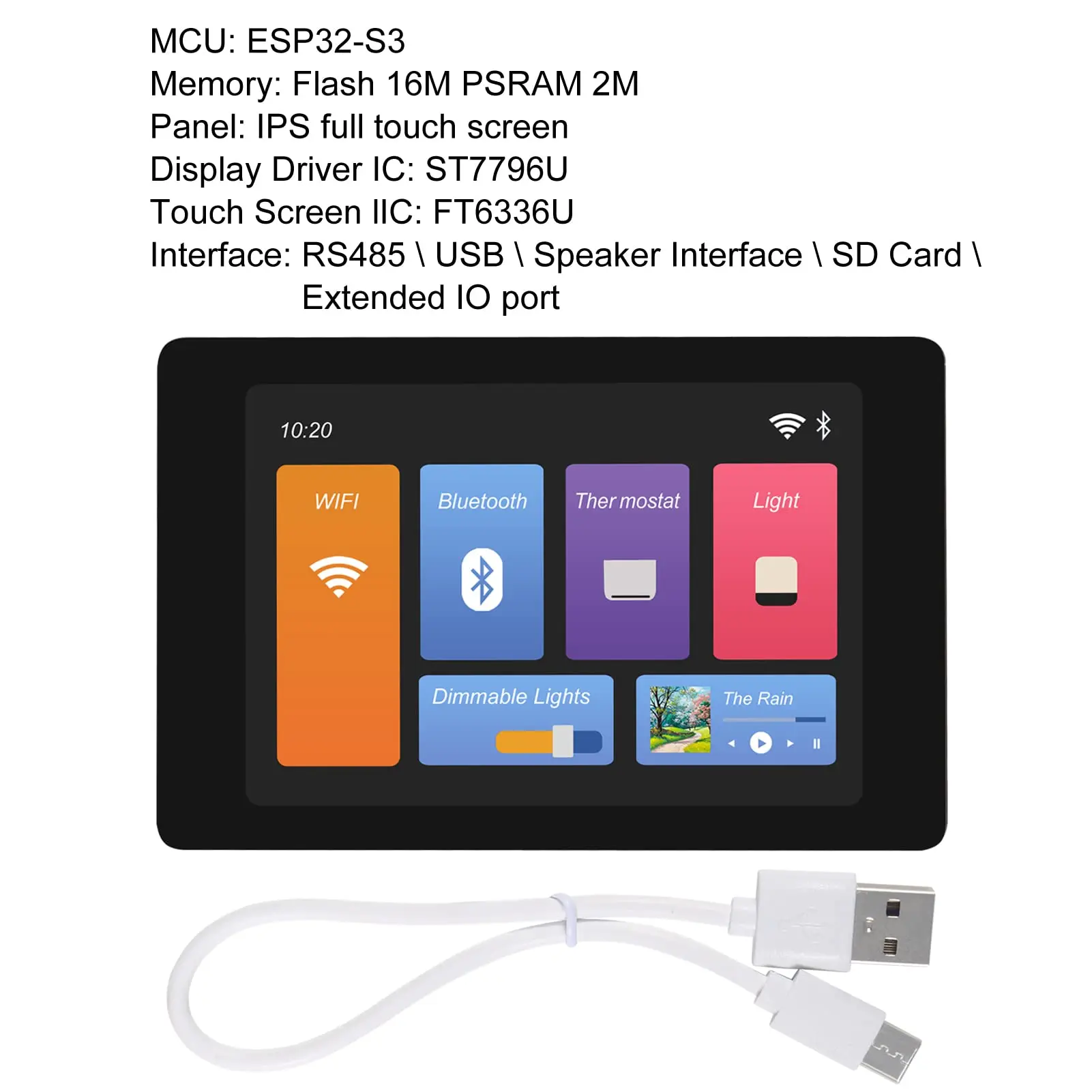

  • 1pc x WT32-SC01 PLUS ESP32 Development Kit
