- ESP32-C6 is a low-power, cost-effective Wi Fi and Bluetooth dual-mode chip.
- The ESP32-C6 is equipped with a Risc V 32-bit processor, with a main frequency of up to 160MHz.
- Supports the latest WiFi 6 (802.11ax) standard, integrating 2.4GHz WiFi 6 and Bluetooth 5 (LE), Zigbee 3.0 wireless communication function.
- ESP32-C6 can be developed using the ESP-IDFv5.1.0 development framework.
- ESP32-C6 is a leading integrated wireless communication solution suitable for fields such as the Internet of Things, smart homes, sensor networks, etc. It has good scalability and rich software support.
Features:
- Protocol: Supports Thread and Zigbee protocols
- Processor: Equipped with RISC-V 32-bit single core processor
- Main frequency: up to 160MHz
- Bluetooth: 2.4GHz WiFi 6
- Communication function: Integrated with 2.4 GHz Wi Fi 6 and Bluetooth 5 (LE), Zigbee 3.0 wireless communication function
- ESP32-C6 built-in 320KB ROM, 512KB, SRAM, 16KB low-power SRAM
- Support software development: C/C+/Esp IDF/Vscore
- By combining ESP32-C6 with other SoCs, other Matter solutions can also be built, such as Thread boundary routers, Matter gateways, and Zigbee bridges.
- ESP32-C6 supports slave mode, and users can use ESP-AT and ESP-Hosted SDK to use ESP32-C6 as a coprocessor for external hosts.

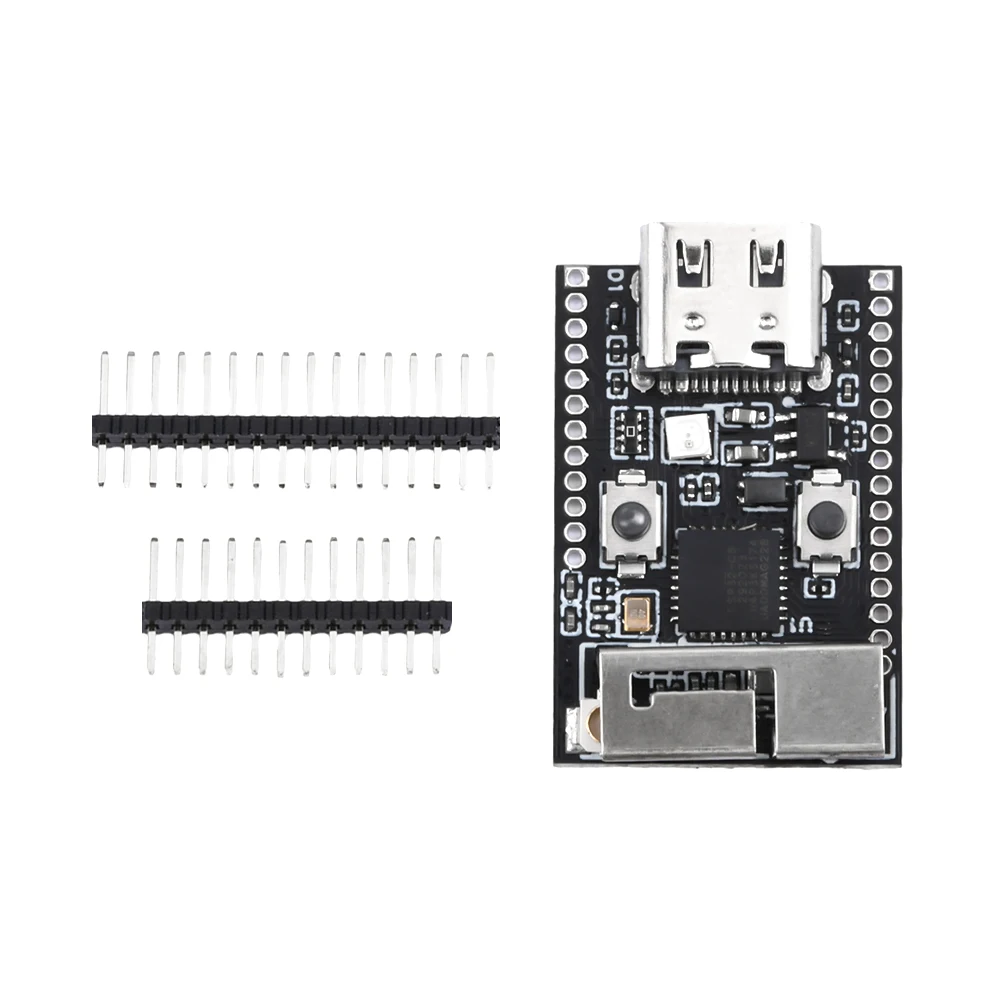

- 5pcs x WiFi6 ESP32-C6 Development Board
