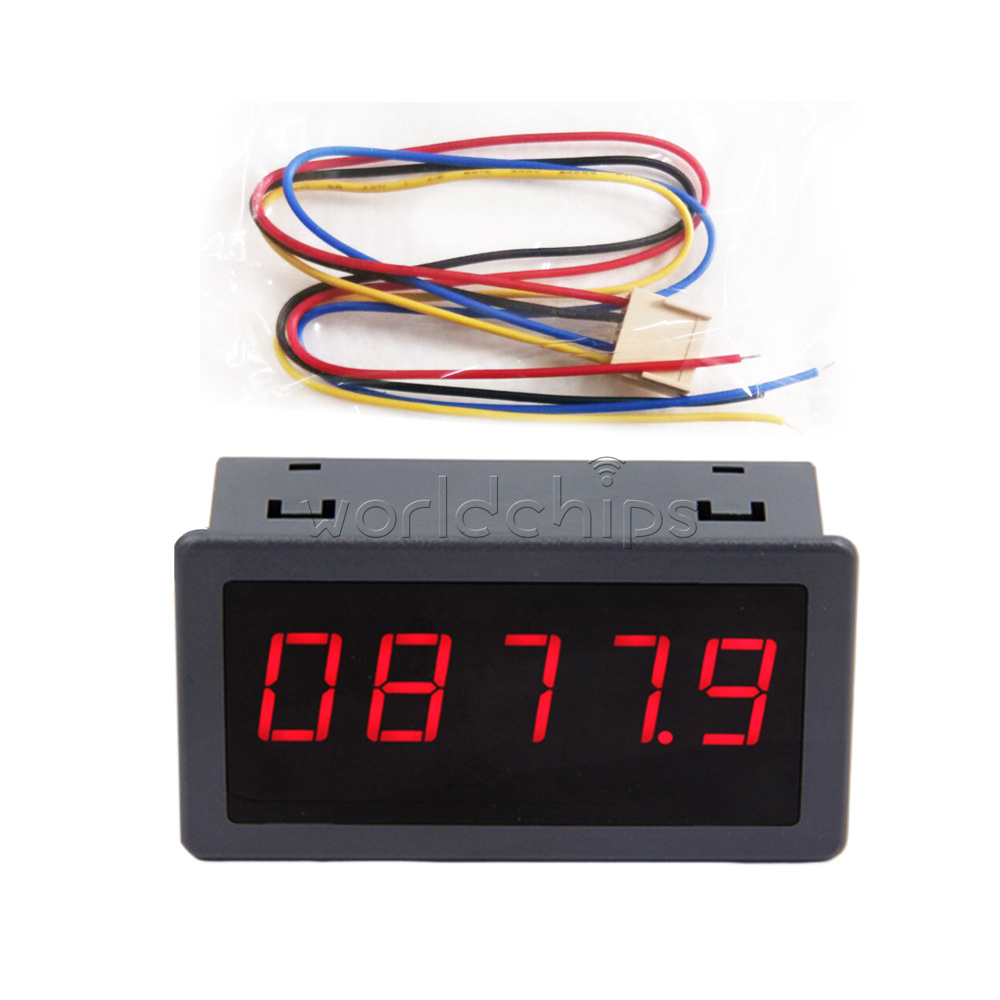

Overview
5166FR series frequency/tachometer is characterized by high reliability, strong anti-interference ability, wide measurement range and high measurement accuracy. The system breaks through the traditional period measurement and pulse counting measurement methods in frequency measurement, and integrates the advantages of these two measurement methods and adopts the advanced full-synchronous period measurement method, which makes the meter achieve a qualitative leap in measurement range and measurement accuracy. Therefore, this series of instruments can be widely used in various industries where high precision frequency measurement is required.
Features
1. High accuracy of frequency measurement, up to 0. 01% at 25 degrees Celsius, resolution up to 0. 001HZ
2. Wide range of frequency measurement, 0.15HZ-100KHZ. can also be customized ultra-low frequency measurement 0.01HZ-100HZ
3. Range automatic switching, from 00. 000Hz (R/M0 to 000. 00KHz (KR/ID)
4. Key switchable working mode, including frequency and speed two working modes, working mode power down to save
5. The key can be used to set the crossover frequency value, the crossover frequency value can be 1- 9999 and 0.0001 a 9. 9999 file, the crossover frequency value power down to save
6. Beautiful appearance, excellent technology, easy to use
1. High accuracy of frequency measurement, up to 0. 01% at 25 degrees Celsius, resolution up to 0. 001HZ
2. Wide range of frequency measurement, 0.15HZ-100KHZ. can also be customized ultra-low frequency measurement 0.01HZ-100HZ
3. Range automatic switching, from 00. 000Hz (R/M0 to 000. 00KHz (KR/ID)
4. Key switchable working mode, including frequency and speed two working modes, working mode power down to save
5. The key can be used to set the crossover frequency value, the crossover frequency value can be 1- 9999 and 0.0001 a 9. 9999 file, the crossover frequency value power down to save
6. Beautiful appearance, excellent technology, easy to use
Specification

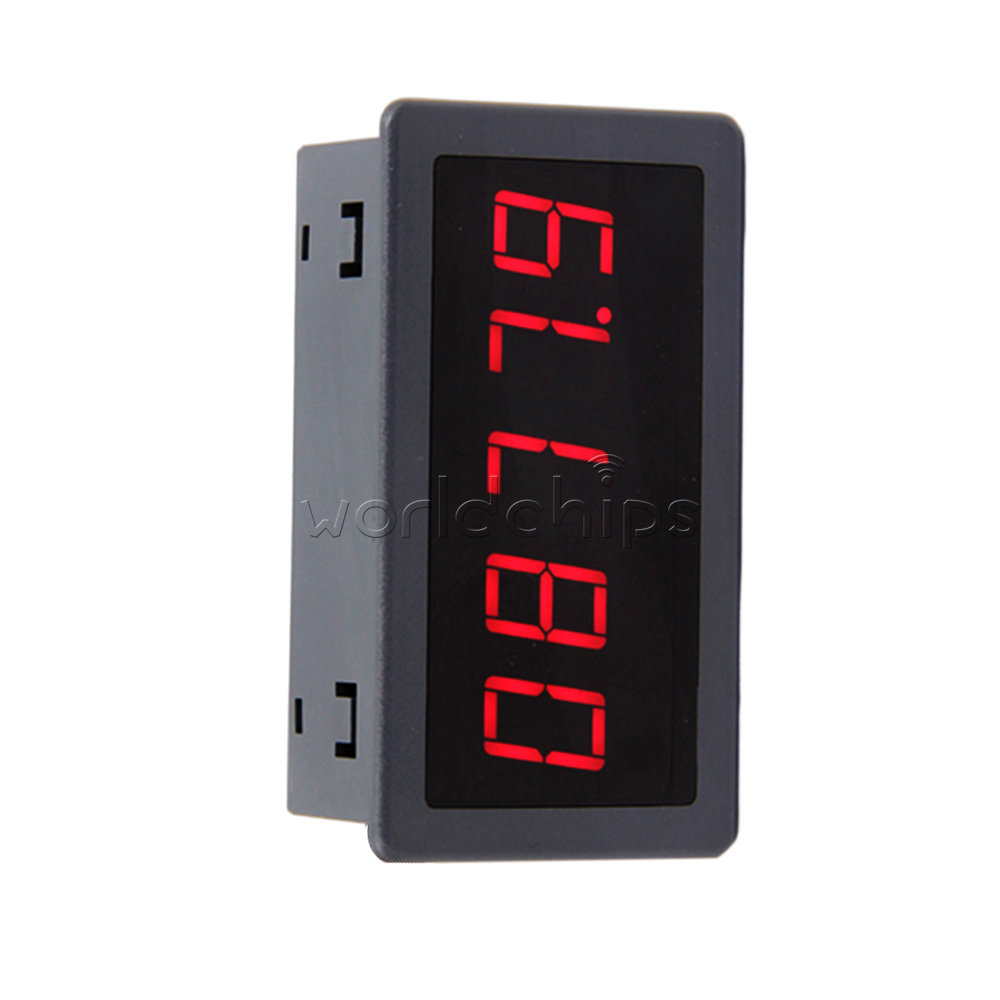

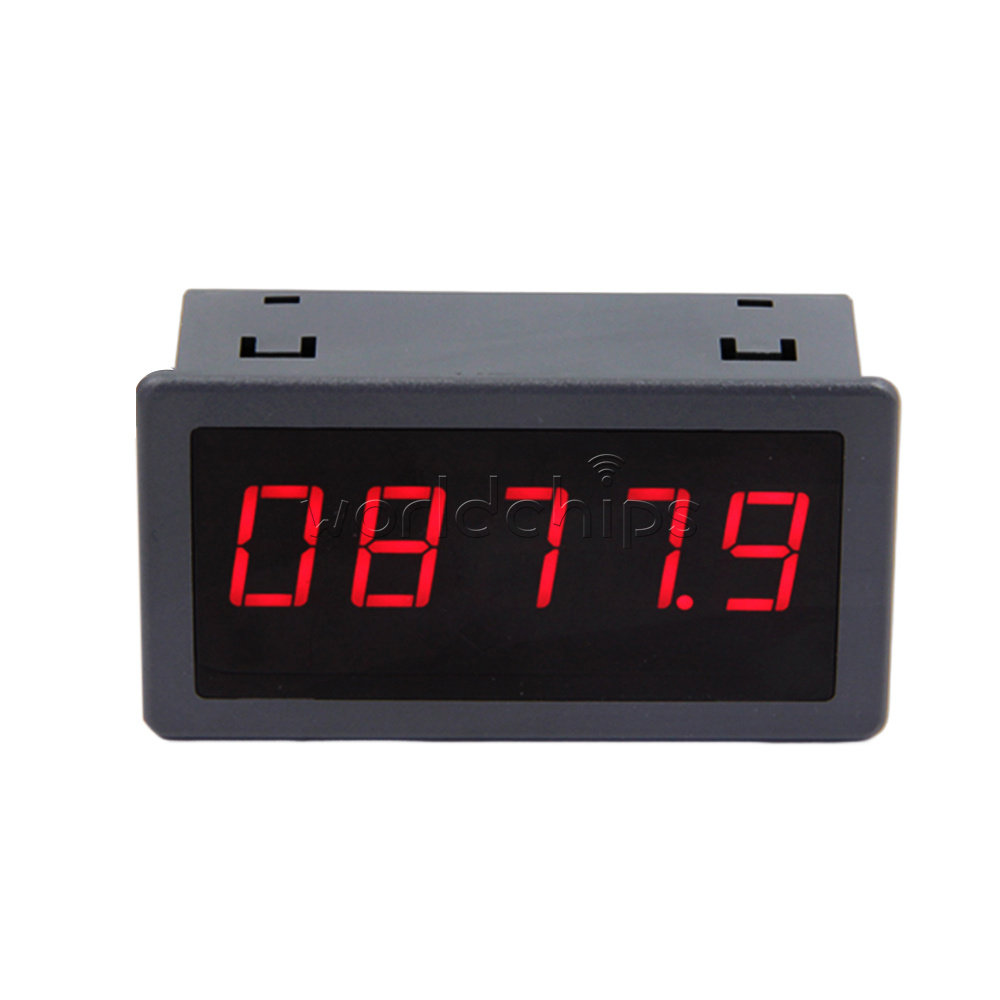

Display digits: 5-digit LED digital tube (0.56, )
Display refresh rate: signal frequency > 3HZ: 3 times/sec: signal frequency ≤ 3HZ: approximately equal to the signal frequency.
Overflow display: -----
Measurement accuracy: 0. 1% Shi 1digit or 0.01% at 25C
Measurement range: 0. 15HZ- -100KHZ9 work a 999. 99Kr/m

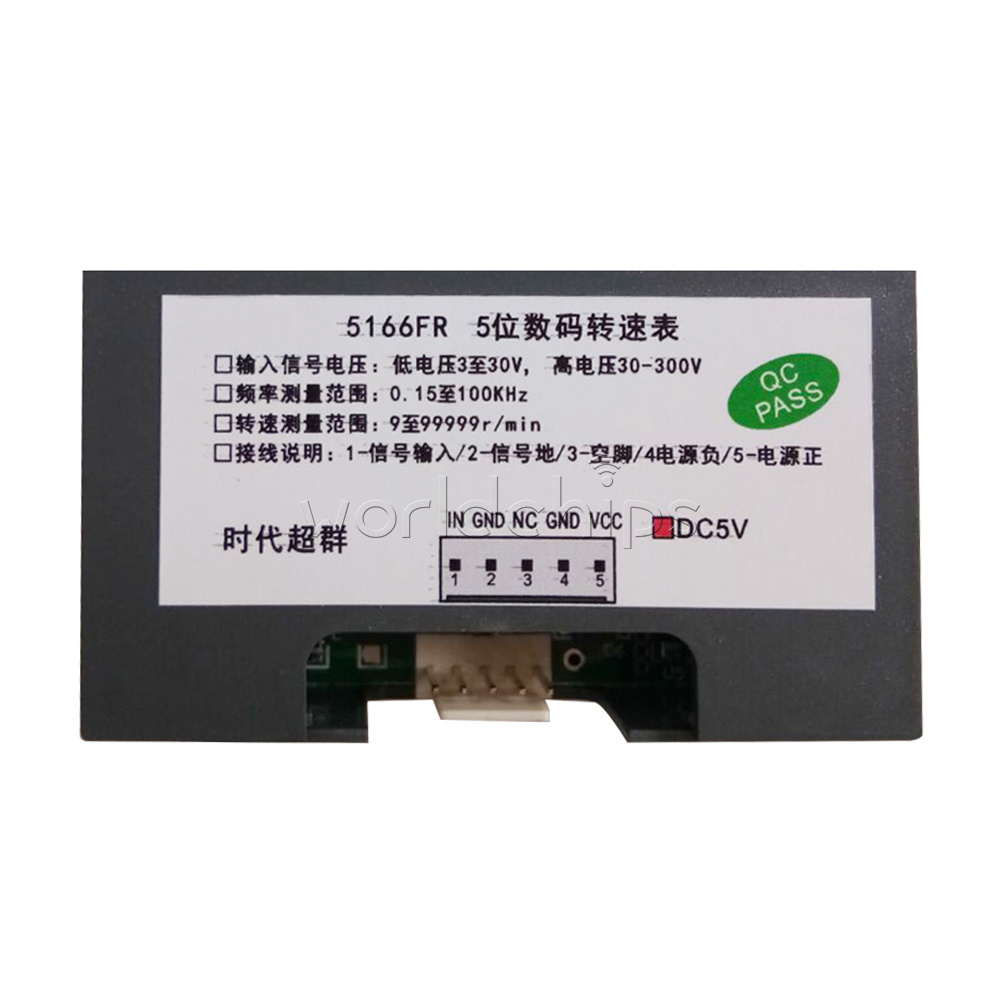

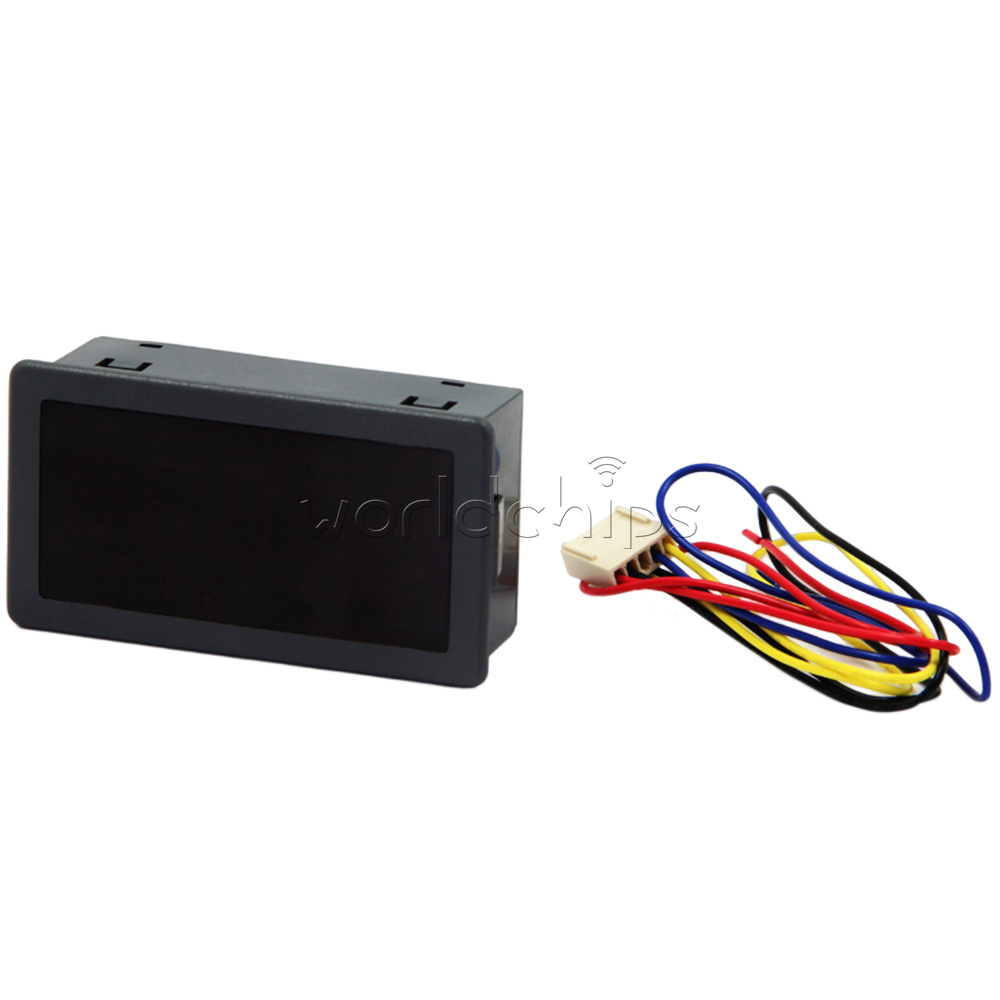

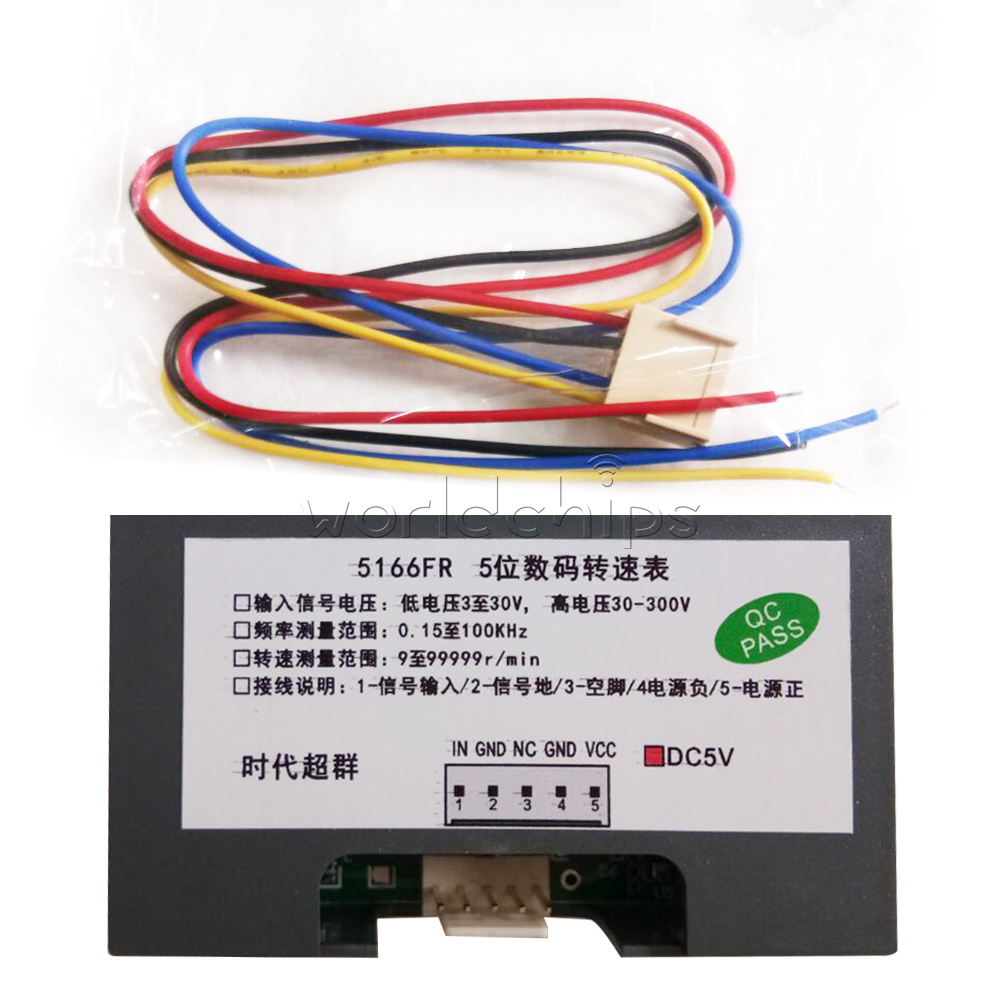

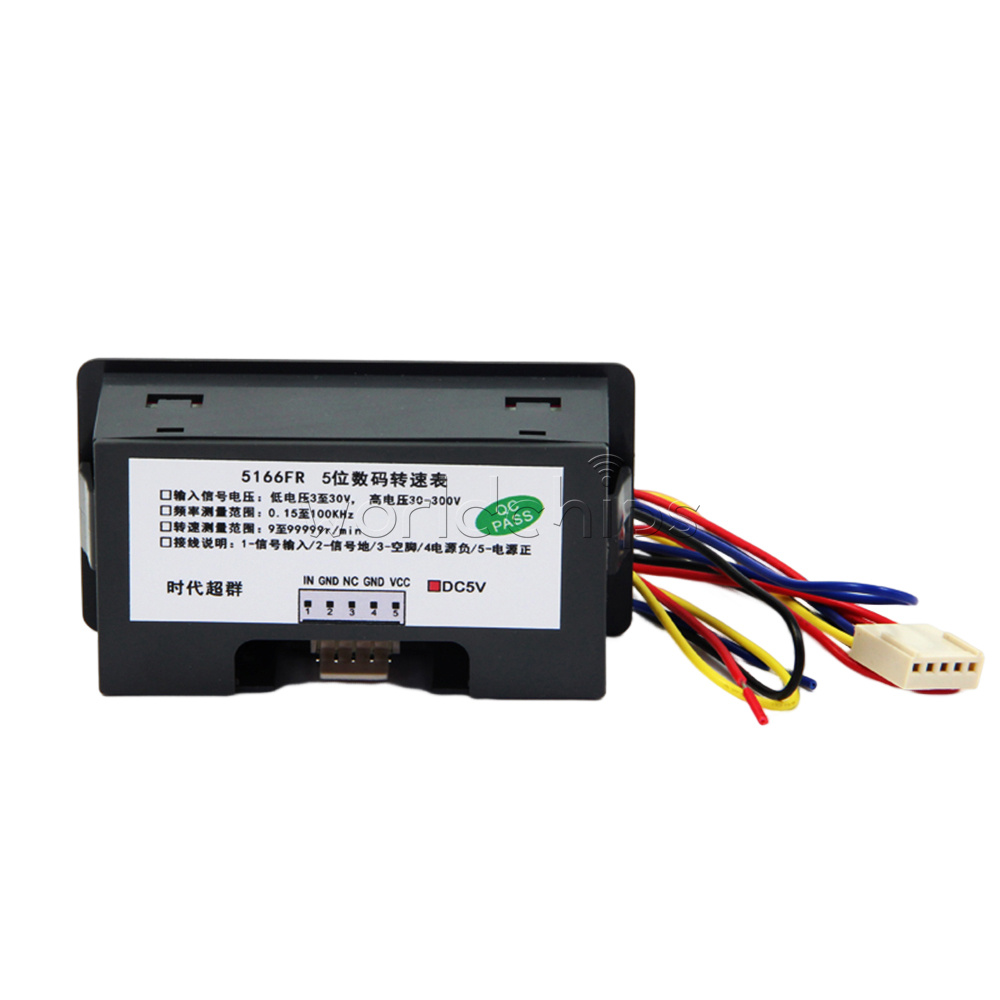

Input signal
Type: dry contact, PNP, NPN, pulse
Magnitude: 3 a 30V and 30-300V two grades, short circuit risk switching
Measurement method: full synchronous cycle measurement method
Input resistance: 100K9/resistive
Power supply: DC5V/DC7-12V/DC24V/AC6V/AC9V/AC12V 30mA Order need to specify
Withstanding voltage: AC2000V 1min between external terminal and housing
Vibration resistance: vibration number: 10- 55HZ, acceleration 50m/s2 X, Y, Z direction each 5minX10
Operating environment (temperature and humidity): temperature 30C-+ 70C relative humidity 25-85% (no condensation)
Storage temperature: a 40C-1080C (no condensation)
Dimension (mm): 79X43X25 (LXWXH)
Opening size (mm): 75X39.5
Display digits: 5-digit LED digital tube (0.56, )
Display refresh rate: signal frequency > 3HZ: 3 times/sec: signal frequency ≤ 3HZ: approximately equal to the signal frequency.
Overflow display: -----
Measurement accuracy: 0. 1% Shi 1digit or 0.01% at 25C
Measurement range: 0. 15HZ- -100KHZ9 work a 999. 99Kr/m
Input signal
Type: dry contact, PNP, NPN, pulse
Magnitude: 3 a 30V and 30-300V two grades, short circuit risk switching
Measurement method: full synchronous cycle measurement method
Input resistance: 100K9/resistive
Power supply: DC5V/DC7-12V/DC24V/AC6V/AC9V/AC12V 30mA Order need to specify
Withstanding voltage: AC2000V 1min between external terminal and housing
Vibration resistance: vibration number: 10- 55HZ, acceleration 50m/s2 X, Y, Z direction each 5minX10
Operating environment (temperature and humidity): temperature 30C-+ 70C relative humidity 25-85% (no condensation)
Storage temperature: a 40C-1080C (no condensation)
Dimension (mm): 79X43X25 (LXWXH)
Opening size (mm): 75X39.5
Instructions for use

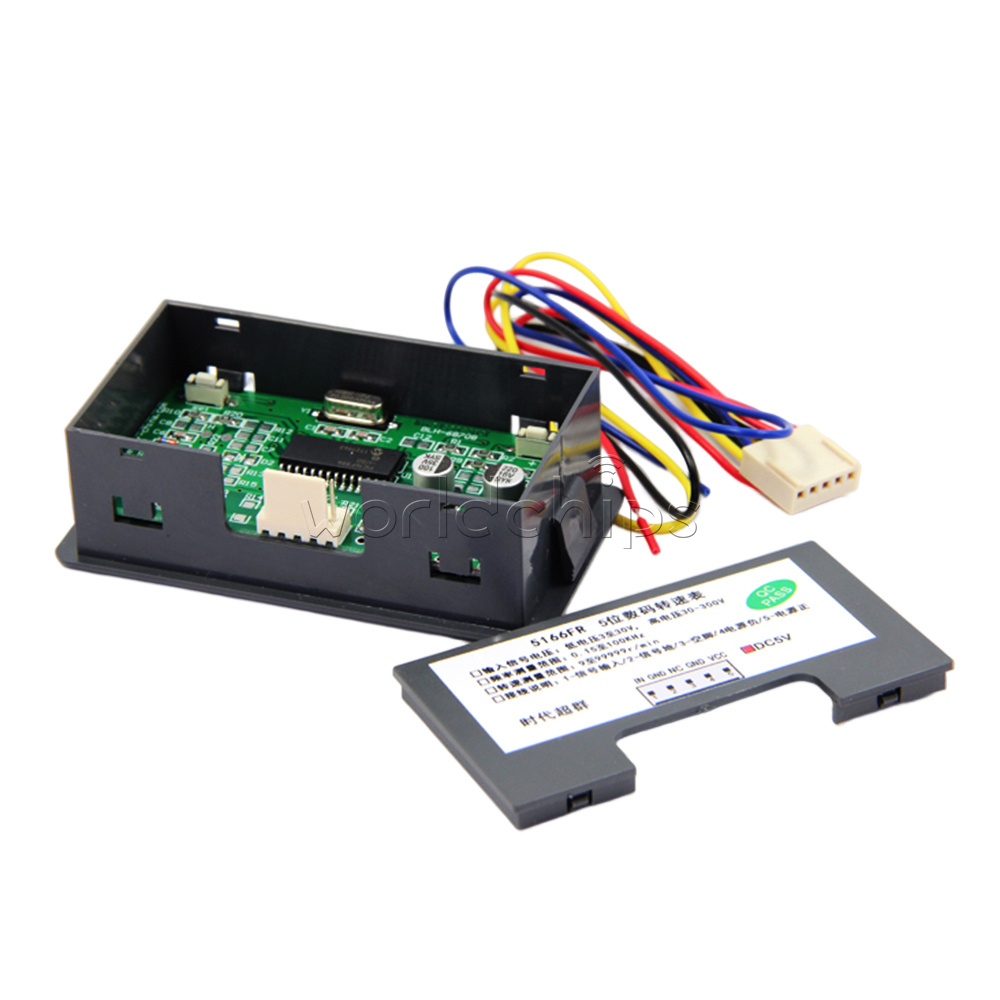

1, speed frequency display switch (when the external high voltage signal this operation needs to disconnect the signal): (open the back cover, press the "S2" key, "0" for the frequency display plus filter, "1" for the speed display plus filter, "2" for the frequency display without filter, "3" for the frequency display without filter, "4" for the frequency display without filter, "5" for the frequency display without filter. "2" for frequency display without filter, "3" for speed display without filter, press "S1" key to switch. No exit key, wait 10 seconds to automatically return to the measurement state, or power off and restart to return to the measurement state.
2, crossover value setting (when the external high voltage signal, this operation needs to disconnect the signal): open the back cover, press the "S1" key, enter the crossover value setting interface, enter the interface, "S1" key is the shift key, "S2" key is the value plus key, the crossover value of the key. After entering the interface, "S1" key is the shift key, "S2" key is the value plus key, the crossover value must be set in 1-99999 or 0.0001-9.9999 numbers, other values are invalid, after setting the required crossover value by "S1" and "S2", wait 10 seconds to return to the measurement state automatically, or power off and restart to return to the measurement state. The measurement status is automatically returned after waiting for 10 seconds or restarted after power failure. Frequency division concept: the number of signals taken by one rotation of the gear. For example, the gear - turn to take 20 pulse signal, the crossover value that is set to 20 can be.
3, high and low voltage signal input switching (when the external high voltage signal, this operation needs to disconnect the signal): the factory signal input are set to low-voltage input, if you need a high-voltage input, you need to open the back cover to "L" at the short-circuit cap off. Note! When the short circuit is not disconnected and the high voltage input will cause damage to the instrument, and this damage is not covered by the warranty, please operate with caution. If you have any questions
If you have any questions, please consult the factory technology or distributor.
1, speed frequency display switch (when the external high voltage signal this operation needs to disconnect the signal): (open the back cover, press the "S2" key, "0" for the frequency display plus filter, "1" for the speed display plus filter, "2" for the frequency display without filter, "3" for the frequency display without filter, "4" for the frequency display without filter, "5" for the frequency display without filter. "2" for frequency display without filter, "3" for speed display without filter, press "S1" key to switch. No exit key, wait 10 seconds to automatically return to the measurement state, or power off and restart to return to the measurement state.
2, crossover value setting (when the external high voltage signal, this operation needs to disconnect the signal): open the back cover, press the "S1" key, enter the crossover value setting interface, enter the interface, "S1" key is the shift key, "S2" key is the value plus key, the crossover value of the key. After entering the interface, "S1" key is the shift key, "S2" key is the value plus key, the crossover value must be set in 1-99999 or 0.0001-9.9999 numbers, other values are invalid, after setting the required crossover value by "S1" and "S2", wait 10 seconds to return to the measurement state automatically, or power off and restart to return to the measurement state. The measurement status is automatically returned after waiting for 10 seconds or restarted after power failure. Frequency division concept: the number of signals taken by one rotation of the gear. For example, the gear - turn to take 20 pulse signal, the crossover value that is set to 20 can be.
3, high and low voltage signal input switching (when the external high voltage signal, this operation needs to disconnect the signal): the factory signal input are set to low-voltage input, if you need a high-voltage input, you need to open the back cover to "L" at the short-circuit cap off. Note! When the short circuit is not disconnected and the high voltage input will cause damage to the instrument, and this damage is not covered by the warranty, please operate with caution. If you have any questions
If you have any questions, please consult the factory technology or distributor.
Note
1. The instrument should be used in the normal operating environment.
2. Select the correct working mode according to the actual use requirements.
3. Set the frequency division value correctly.
4. The input signal should meet the requirements of impedance matching, and impedance transformation is appropriate for signals with large internal resistance.
5. Pay attention to operational safety when inputting high-voltage signals, do not set the instrument with signals.
6. Please do not touch the crystal and chip directly with your hands, human static electricity will damage the device and reduce performance.
1. The instrument should be used in the normal operating environment.
2. Select the correct working mode according to the actual use requirements.
3. Set the frequency division value correctly.
4. The input signal should meet the requirements of impedance matching, and impedance transformation is appropriate for signals with large internal resistance.
5. Pay attention to operational safety when inputting high-voltage signals, do not set the instrument with signals.
6. Please do not touch the crystal and chip directly with your hands, human static electricity will damage the device and reduce performance.
List
1 x Tachometer
1 x Tachometer
