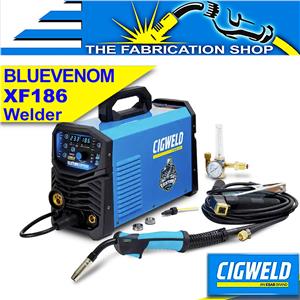

Cigweld BlueVenom XF186 Multi Welder
Includes
| -1 x Blue Venom XF186 Multi Process Welder, W1400186 |
| -1 x MIG Gun 3m- Euro quick connector |
| -1 x Work Clamp with 3m Lead |
| -1 x Twist Lock Electrode Holder with 3m Lead |
| -2 x Feed Rolls: 0.8/0.9mm Gasless, 0.8/0.9mm Solid Wires (Fitted). • 2m Argon Gas Hose and Gas Regulator/Flowmeter |
| -*Includes Nylon Inlet Guide for use on Soft Alloy Wires |
| -1 x Operating Manual |
Price: AU $729.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | Cigweld |
| Part Number: | W1400186 |
| Power Supply (Voltage): | Single-Phase 230V/240V +/- 15% |
| Australian Standard: | AS 60974.1:2020 |
| Nominal Supply Frequency: | 50/60Hz |
| Supply Lead and Plug supplied: | 10 Amp |
| Minimum Single Phase Generator Recommendation: | 10kVA (at 0.8 Power Factor) at Max Amps |
| Amperage Range (MIG): | 30 – 186A |
| Voltage Range (MIG): | 15.5 - 26.0V |
| MIG (GMAW) Duty Cycle @ 40°C, 10 minutes: | 185 Amps @ 9% 72 Amps @ 60% 56 Amps @ 100% |
| STICK (MMAW) Duty Cycle @ 40°C, 10 minutes: | 160 Amps @ 10% 65 Amps @ 60% 50 Amps @ 100% |
| TIG (GTAW) Duty Cycle @ 40°C, 10 minutes: | 186 Amps @ 10% 76 Amps @ 60% 59 Amps @ 100% |
| Nominal DC Open Circuit Voltage in MIG Mode: | 52V |
| Open Circuit Voltage (VRD On) STICK Mode: | <35V |
| Weight of Power Source: | 10kg |
| Power Source Dimensions: | L: 465 x W: 190 x H: 340 (mm) |
| Weight of Full Package: | 16.6kg |
| Full Package Dimensions: | L: 530 x W: 295 x H: 345 (mm) |
| Protection Class: | IP21S |
| Warranty: | 2-Year |
Product Details
The BlueVENOM XF186 is an ideal solution for DIY projects around the home, workshop, worksite or light fabrication, maintenance and repairs! Although simplistic in design, CIGWELD have still included “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls. The BlueVENOM XF186 delivers a maximum output of 186 Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 0.6mm up to 10mm. In STICK mode the machine is capable of welding metals from 1.2mm up to 12mm in thickness.
The BlueVENOM XF186 is an ideal solution for DIY projects around the home, workshop, worksite or light fabrication, maintenance and repairs! Although simplistic in design, CIGWELD have still included “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls. The BlueVENOM XF186 delivers a maximum output of 186 Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 0.6mm up to 10mm. In STICK mode the machine is capable of welding metals from 1.2mm up to 12mm in thickness.
-The BlueVENOM XF186 is an ideal solution for DIY projects around the home, workshop, worksite or light fabrication, maintenance and repairs!
-Although simplistic in design, CIGWELD have still included “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
-Suitable for 100mm and 200mm Diameter Spools
-2 x Roll All-Driven (top & bottom) Wire Drive system, Robust fold down handle
-Synergic MIG with Plate Thickness selection / MIG Manual / STICK / LIFT TIG • MIG Wire Inch button

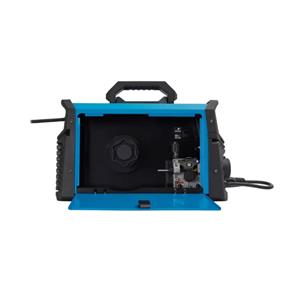

-MIG Gas Purge Button, MIG Side door wire installation, side loader, MIG Spool Gun Compatible
-STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
-TIG Foot Control Compatible, TIG Dial Remote Torch Compatible.
-This Synergic 3-in-1 predator takes the guesswork out of welding with its pre-defined QuickSet plate thickness selection settings-simply select your gas (if you’re using it), wire diameter and your plate thickness-then arc away!
-With a simplistic, no frills control panel, and glove-friendly easy-press buttons, the XF186 is a 10 Amp ‘Plug n’ Weld’ unit delivering refined arc characteristics through its ‘Opti-Start’ arc technology.
-MIG Gasless and MIG Gas Shielded
-Blue LED metres for clear viewing, Fine tuning of Pre-Set Wire Speed & Volts.
-Full control over manual settings, Welding wire size selection.
-Spool Gun compatible, great for Aluminium (sold separately)
-Recommended MIG & TIG welding thickness range 0.6mm – 10mm
-Recommended STICK welding thickness range 1.6mm – 12mm
-Weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze
-CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230V/240V x 10A power.
-The BlueVENOM XF186 is an ideal solution for DIY projects around the home, workshop, worksite or light fabrication, maintenance and repairs!
-Although simplistic in design, CIGWELD have still included “Opti-Start”, a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
-Suitable for 100mm and 200mm Diameter Spools
-2 x Roll All-Driven (top & bottom) Wire Drive system, Robust fold down handle
-Synergic MIG with Plate Thickness selection / MIG Manual / STICK / LIFT TIG • MIG Wire Inch button
-MIG Gas Purge Button, MIG Side door wire installation, side loader, MIG Spool Gun Compatible
-STICK with Voltage Reduction Device (VRD) built-in for Safe Welding
-TIG Foot Control Compatible, TIG Dial Remote Torch Compatible.
-This Synergic 3-in-1 predator takes the guesswork out of welding with its pre-defined QuickSet plate thickness selection settings-simply select your gas (if you’re using it), wire diameter and your plate thickness-then arc away!
-With a simplistic, no frills control panel, and glove-friendly easy-press buttons, the XF186 is a 10 Amp ‘Plug n’ Weld’ unit delivering refined arc characteristics through its ‘Opti-Start’ arc technology.
-MIG Gasless and MIG Gas Shielded
-Blue LED metres for clear viewing, Fine tuning of Pre-Set Wire Speed & Volts.
-Full control over manual settings, Welding wire size selection.
-Spool Gun compatible, great for Aluminium (sold separately)
-Recommended MIG & TIG welding thickness range 0.6mm – 10mm
-Recommended STICK welding thickness range 1.6mm – 12mm
-Weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze
-CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230V/240V x 10A power.
