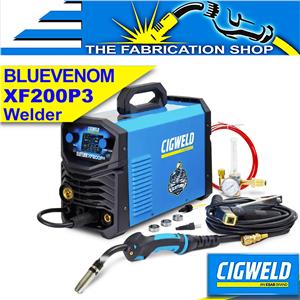

Cigweld BlueVenom XF200P3 Multi Welder
Includes
| - 1 x BlueVENOM XF200P3 Multi Process Welder, W1400200 |
| - * + FREE CIGWELD
ARC TROLLEY – S, W4011502 |
| - 1 x CMGBZ24E3 MIG Gun 3m Euro quick connector set up with an Aluminium Liner, plus a spare Steel liner is supplied for hard wires |
| - 1 x Work Clamp with 3m Lead |
| - 1 x Twist Lock Electrode Holder with 3m Lead |
| - 3 x Feed Rolls: 0.8/0.9mm Gasless, 0.9/1.0mm U-Groove for Soft Wires (Fitted), 0.8/0.9mm Solid Wires. |
| - 1 x 2m Argon Gas Hose and Gas Regulator/Flowmeter |
| - *Includes Yellow Nylon Inlet Guide for use on Soft Alloy Wires and a Spring Steel Inlet Guide for Hard Wires |
| - 1 x Operating Manual |
Price: AU $1595.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | Cigweld |
| Part Number: | W1400200 |
| Power Supply (Voltage): | Single-Phase 230V/240V +/- 10% |
| Australian Standard: | AS 60974.1:2020 |
| Nominal Supply Frequency: | 50/60Hz |
| Supply Lead and Plug supplied: | 15 Amp |
| Minimum Single Phase Generator Recommendation: | 12kVA (at 0.8 Power Factor) at Max Amps |
| Amperage Range (MIG): | 30 – 200A |
| Voltage Range (MIG): | 15.5 - 24.0V |
| MIG (GMAW) Duty Cycle @ 40°C, 10 minutes: | 200 Amps @ 15% 100 Amps @ 60% 77 Amps @ 100% |
| STICK (MMAW) Duty Cycle @ 40°C, 10 minutes: | 195 Amps @ 10% 80 Amps @ 60% 62 Amps @ 100% |
| TIG (GTAW) Duty Cycle @ 40°C, 10 minutes: | 200 Amps @ 15% 100 Amps @ 60% 77 Amps @ 100% |
| Nominal DC Open Circuit Voltage in MIG Mode: | 67V |
| Open Circuit Voltage (VRD On) STICK Mode: | <35V |
| Weight of Power Source: | 13.4kg |
| Power Source Dimensions: | L: 495 x W: 220 x H: 335 (mm) |
| Weight of Full Package: | 21.7kg |
| Full Package Dimensions: | L: 580 x W: 310 x H: 395 (mm) |
| Protection Class: | IP 21S |
| Warranty: | 2-Year |
Product Details
The BlueVENOM XF200P3 is the machine for the serious welding enthusiast, tradesperson or professional who needs to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process. The BlueVENOM XF200P3 delivers a maximum output of 200 Amps DC in MIG and TIG Modes, which means the machine is capable of welding metals from 0.6mm up to 12mm. In STICK mode (195A) the machine is capable of welding metals from 1.2mm up to 16mm in thickness.
-The BlueVENOM XF200P3 is the machine for the serious welding enthusiast, tradesperson or professional who needs to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process.
-Suitable for use at maintenance departments, farm/home workshops, job sites and marine repair/service centres without compromising on price for excellent results!
-With the avid welder in mind, CIGWELD has introduced "Opti-Start", a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
-Suitable for 100mm and 200mm Diameter Spools
-2 x Roll All-Driven (top & bottom) Wire Drive system.
-MIG Single and Double Pulse, MIG Adjustable Wire Burnback & Inductance
-MIG Adjustable Soft & Hard Start (Opti-Start), MIG Wire Inch button | MIG Gas Purge Function.
-MIG Side door wire installation, side loader.
-MIG Anti de-spooling safety feature.
-MIG Spool Gun Compatible, STICK and STICK-PULSE, STICK with Voltage Reduction Device (VRD) built-in for Safe Welding.
-STICK Adjustable Hot Start | STICK Adjustable Arc Force | STICK Anti-Stick.
-TIG DC-Lift and TIG-PULSE DC-Lift, TIG Foot Control Compatible, TIG Dial Remote Torch Compatible, Thermal Overload Protection.
-The BlueVenom XF200P3 – a compact, robust mean machine with 3 x Pulse modes: Single & Double Pulse MIG, STICK Pulse and TIG Pulse!
-The XF200P3 also comes packed with the aluminium liner and inlet guide fitted with spare feed rollers and liner for hard (steel and stainless) wires as well.
-Recommended MIG & TIG welding thickness range 0.6mm – 12mm
-Recommended STICK welding thickness range 1.6mm – 16mm
-Spool Gun compatible, great for Aluminium (sold separately)
-Aluminium Pulse MIG Welding delivers excellent thin metal welding results that can be customised to allow adjustable "ripple spacing" (dimes) to achieve MIG-Welds that look like TIG-Welds!
-Produce terrific welding results from 230V/240V x 15A upgraded power.
-The BlueVENOM XF200P3 is the machine for the serious welding enthusiast, tradesperson or professional who needs to fabricate and weld light structures that require TIG-Like welds on Aluminium, Stainless Steel, Bronze or Steel projects, but need the welding speed and ease-of-use of the MIG Process.
-Suitable for use at maintenance departments, farm/home workshops, job sites and marine repair/service centres without compromising on price for excellent results!
-With the avid welder in mind, CIGWELD has introduced "Opti-Start", a feature that allows the user to customise their starting arc characteristics through Soft and Hard Start controls.
-Suitable for 100mm and 200mm Diameter Spools
-2 x Roll All-Driven (top & bottom) Wire Drive system.
-MIG Single and Double Pulse, MIG Adjustable Wire Burnback & Inductance
-MIG Adjustable Soft & Hard Start (Opti-Start), MIG Wire Inch button | MIG Gas Purge Function.
-MIG Side door wire installation, side loader.
-MIG Anti de-spooling safety feature.
-MIG Spool Gun Compatible, STICK and STICK-PULSE, STICK with Voltage Reduction Device (VRD) built-in for Safe Welding.
-STICK Adjustable Hot Start | STICK Adjustable Arc Force | STICK Anti-Stick.
-TIG DC-Lift and TIG-PULSE DC-Lift, TIG Foot Control Compatible, TIG Dial Remote Torch Compatible, Thermal Overload Protection.
-The BlueVenom XF200P3 – a compact, robust mean machine with 3 x Pulse modes: Single & Double Pulse MIG, STICK Pulse and TIG Pulse!
-The XF200P3 also comes packed with the aluminium liner and inlet guide fitted with spare feed rollers and liner for hard (steel and stainless) wires as well.
-Recommended MIG & TIG welding thickness range 0.6mm – 12mm
-Recommended STICK welding thickness range 1.6mm – 16mm
-Spool Gun compatible, great for Aluminium (sold separately)
-Aluminium Pulse MIG Welding delivers excellent thin metal welding results that can be customised to allow adjustable "ripple spacing" (dimes) to achieve MIG-Welds that look like TIG-Welds!
-Produce terrific welding results from 230V/240V x 15A upgraded power.
