This device has Manual mode and Remote Mode. User can use hands to operate it or use computer to control it. Also user can use Remote Mode to calibrate it.
TECH SPECS
Display: 3.95" Color LCD display
Resolution: 480 x 320
Serial Baud: 9600, 8, N, 1
Waveform: SineWave
Test Frequency: 20Hz, 50Hz, 100Hz and 200Hz (< +/-3%)
Test Voltage: 6V, 12V, 24V (p-p) (< +/-5%)
Device Power: 5V (Mini USB Connector)
Current: <200mA
Dimensions: 105 x 90 x 20 mm
Weight: 140g (4.8oz)
The device case is 3D printed to precise tolerance using high quality PLA.
WHAT'S IN THE ORDER
A Digital Curve Tracer Tester. USB cable not included.
This video show how to use it:

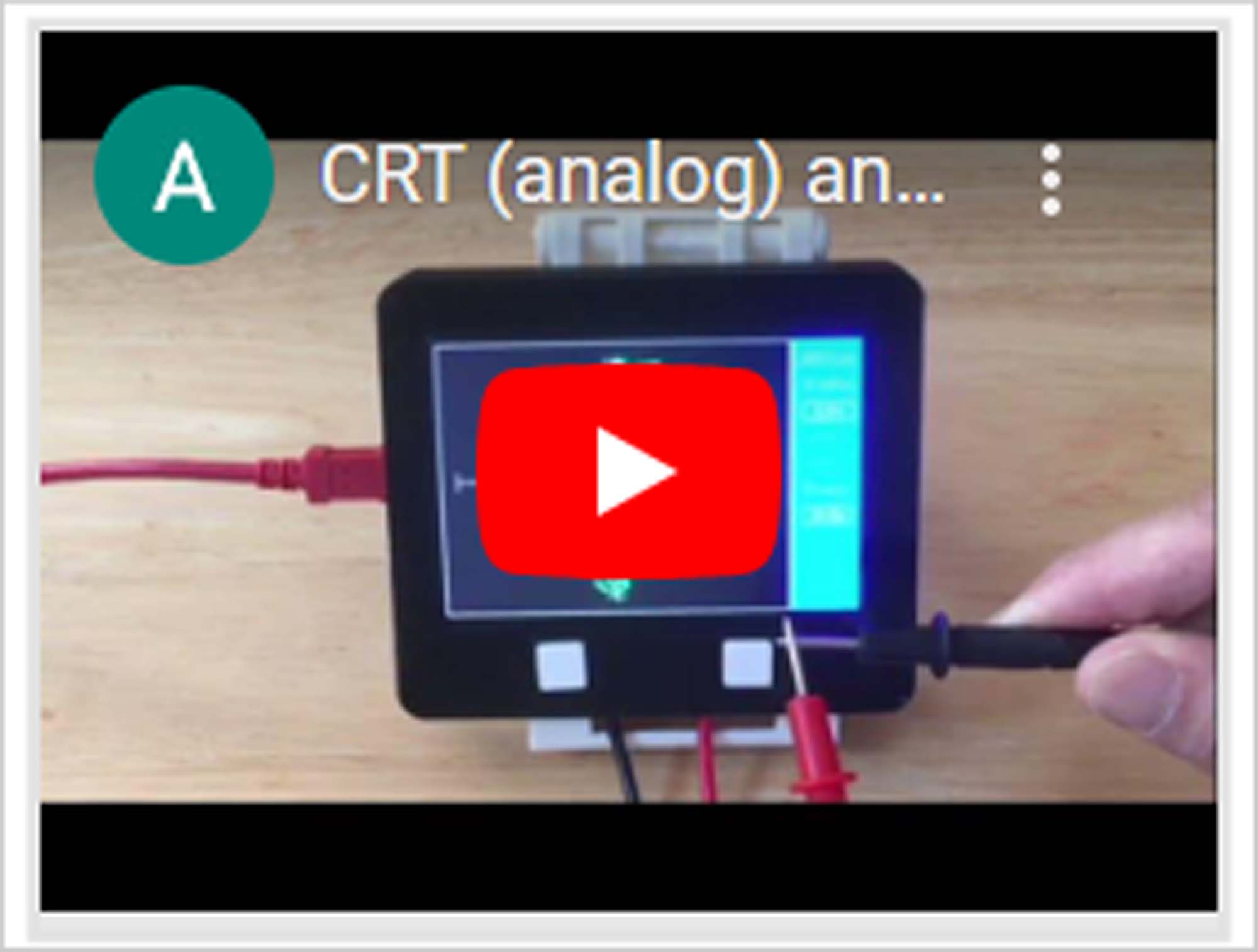

CRT (analog) and LCD (digital) Screen Noise Compare:
1) CRT is faster than LCD in response time. LCD is slower than CRT in response time. 2) The CRT display uses an electron beam to generate a picture, whereas the LCD uses MCU to generate an image on the screen.

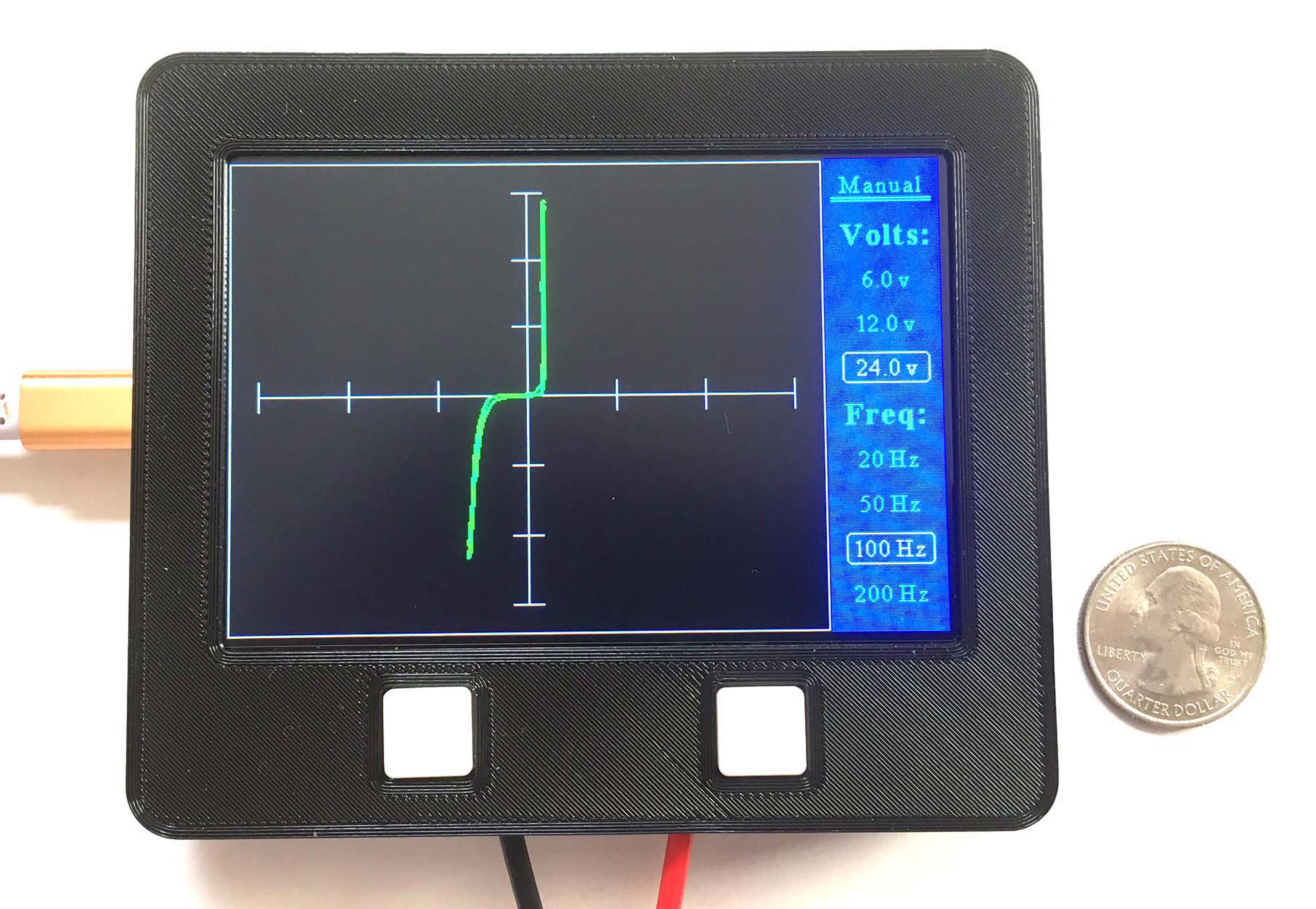

Alaonix Digital Curve Tracer Tester pictures
