Product Details

Full Gasket Set Pistons Bearings Fit 96-04 Chevrolet Isuzu GMC 4.3. Ultra performance premium grade aluminum alloy pistons. Minimizes fractures & cracks, no more gummed up oil and reduces engine failure. Reduce tension with better fuel economy, reduce cylinder wear. Replace Fel-Pro Part #: 12522850, 88894280, HS9354PT-6, CS9354-3

Full Gasket Set Pistons Bearings Fit 96-04 Chevrolet Isuzu GMC 4.3. A piston is a cylindrical piece of metal that moves up and down inside each cylinder, compressing the air-fuel mixture and capturing the force created by the combustion process. This force is then transferred to the crankshaft, via the connecting rod. Symptoms of a Bad or Failing Piston include engine misfire, excessive oil consumption, knocking or slapping noise from inside engine. The crankshaft, connecting rods and bearings are extremely important in every engine build, because they convert the reciprocating motion of the pistons into rotational torque. The longer the stroke, the greater the leverage effect and the greater the torque output of the engine. Time will come that your engine pistons, rings and bearings will wear out. Always remember, when your engine bearings fail, a replacement should immediately be installed. Be sure to have your engine pistons, rings, crankshaft bearings, and connecting rod bearings replace with our aftermarket replacement parts as soon as it starts to give you trouble.

Fits Following Models:
1996-2003 CHEVROLET ASTRO 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2005 CHEVROLET ASTRO 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-2003 CHEVROLET BLAZER 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2005 CHEVROLET BLAZER 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-1998 CHEVROLET C1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-2003 CHEVROLET EXPRESS 1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2006 CHEVROLET EXPRESS 1500 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-2003 CHEVROLET EXPRESS 2500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2005 CHEVROLET EXPRESS 2500 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-1998 CHEVROLET K1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-1999 CHEVROLET P30 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-2003 CHEVROLET S10 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004 CHEVROLET S10 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1999-2003 CHEVROLET SILVERADO 1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2006 CHEVROLET SILVERADO 1500 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-1998 GMC C1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-2001 GMC JIMMY 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-1998 GMC K1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-1999 GMC P3500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1996-2003 GMC SAFARI 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2005 GMC SAFARI 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-2003 GMC SAVANA 1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2006 GMC SAVANA 1500 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-2003 GMC SAVANA 2500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2005 GMC SAVANA 2500 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1999-2003 GMC SIERRA 1500 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004-2006 GMC SIERRA 1500 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
1996-2003 GMC SONOMA 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
2004 GMC SONOMA 4.3L 262CID V6 OHV, VIN CODE "X" - VORTEC
2000 ISUZU HOMBRE 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC
1997-1999 ISUZU HOMBRE 4.3L 4294CC V6 OHV, VIN CODE "W, X" - VORTEC
1996-2001 OLDSMOBILE BRAVADA 4.3L 262CID V6 OHV, VIN CODE "W, X" - VORTEC

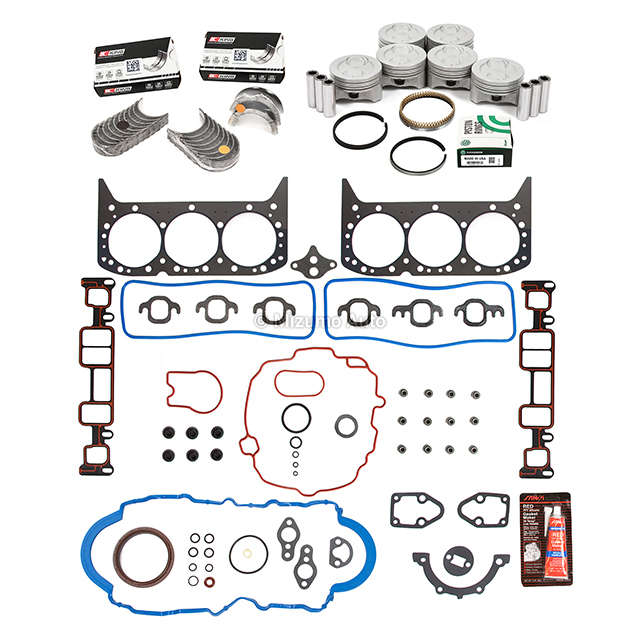

This item includes:

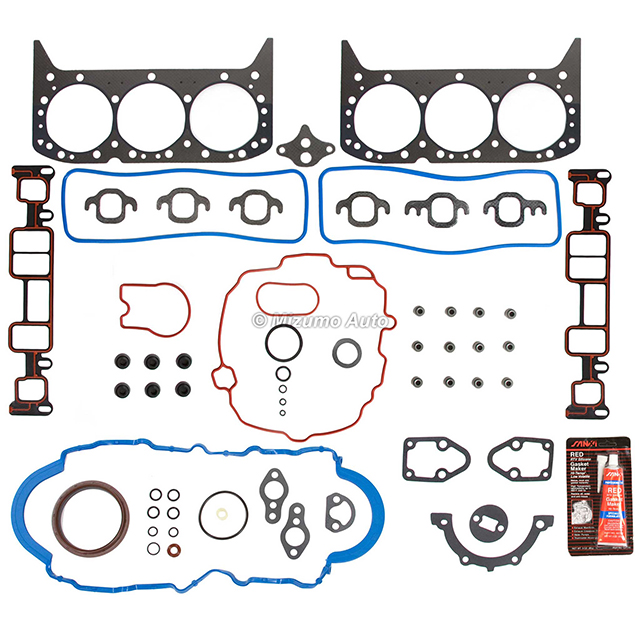

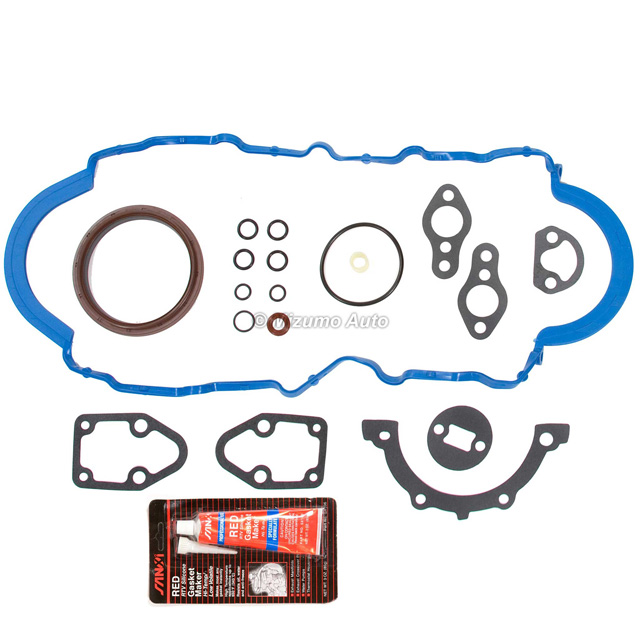

Full Gasket Set (Graphite Head Gasket, Valve Cover Gasket, Intake Manifold Gasket, Other Small Gaskets..., Lower Gasket Set, RTV Silicone)

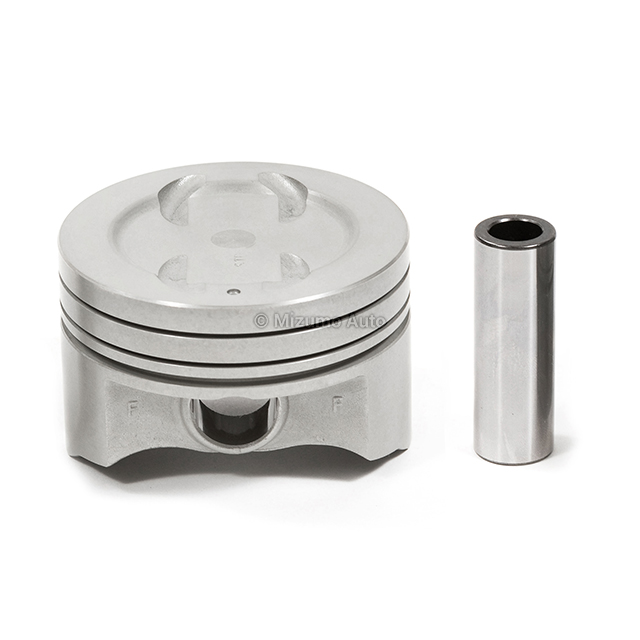

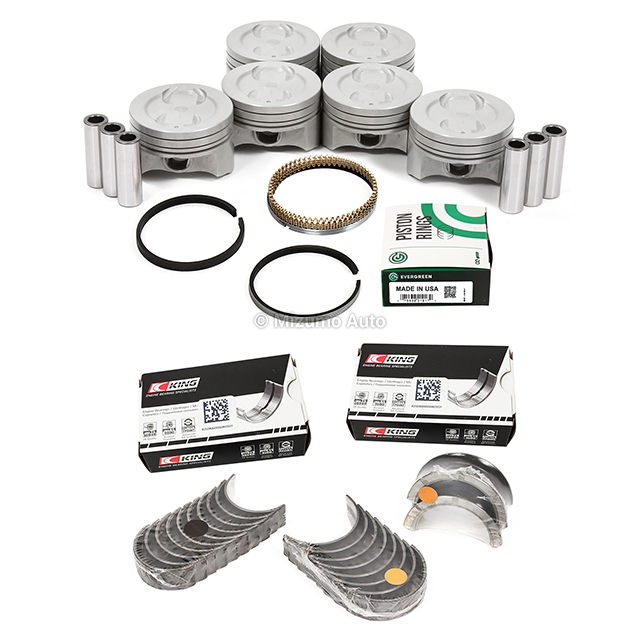

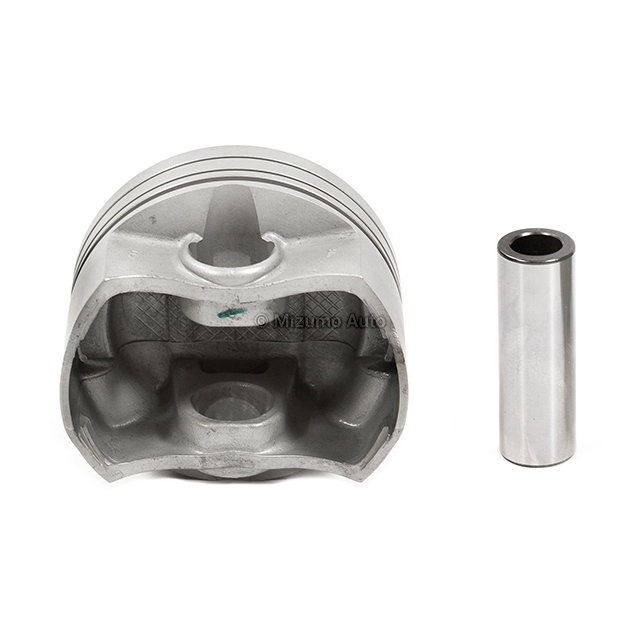

6 Pistons with Complete Ring Set (Sizes available: see option above)

Standard Bore Diameter: 101.60mm
1st Group: 1.50mm
2nd Group: 1.50mm
Oil Ring: 3.00mm

6 Piston Wrist Pins
Main Bearing Set (Sizes available: see option above)
Rod Bearing Set (Sizes available: see option above)

Remark: Please select pistons with rings sizes from the options above. For other oversizes please contact us for special order.

Piston Measurements

Piston Part #

UOM

STD

0.25

0.50

0.75

1.00

PS10306

101.600

101.850

102.100

102.350

102.600

4.000

4.010

4.020

4.030

4.039

Piston Ring Part#

Piston Information

RS10306

Specifications

Cylinder

Bore

101.600

4.000

Comp

39.400

1.551

Dist.	1	-
	2
	3

2.600

0.102

Length

66.000

2.598

Surface Treatment		Cir Clip
Head	Skirt
NONE	NONE
Remarks
Measure for CYL clearance	MM	IN	From Bottom of the Skirt
Measure for CYL clearance	12.000	0.472	From Bottom of the Skirt

Pin Length

69.700

2.744

Pin Diameter

23.560

0.928

1st

1.500

0.059

2nd

1.500

0.059

Oil Ring

3.000

0.118
