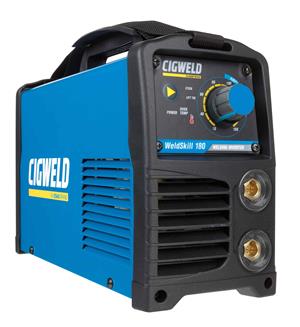

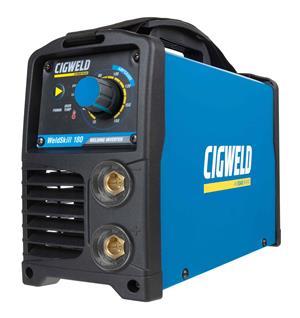

Cigweld WeldSkill 180 TIG & STICK Welder Bundle
Includes
- Cigweld Weldskill 180 Welder, W1008180 |
| - Cigweld Arcmaster XC10 Welding Helmet, Blax |
| - Heavy Duty Welding Gloves (Large), 646755 |
| - 4 Row Steel Wire Brush, 646363 |
| - WeldSkill GP 3.2mm, 1.0 kg = 1 Packet, WEG1032 |
| - Chipping Hammer Spring Handle, 646215 |
- Twistlock Electrode Holder with 4m Lead |
| - Operating Manual |
Price: AU $599.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | Cigweld |
| MPN: | W1008180 / PP.WS180S23 |
| Barcode: | 9310574062450 |
| Certification: | AS 60974.1-2006 / IEC 60974-1 |
| Height: | 220mm |
| Width: | 130mm |
| Diameter: | 340mm |
| Weight: | 5.8kg |
| Current Range: | 10-180A |
| Input Current: | 15A |
| Generator Requirement: | 7.6kW (9.5kVa @ 0.8 PF) |
| Current: | 33.8A |
| Frequency: | 240V AC +/10% |
| Voltage: | 78V |
| Processes: | Stick and Lift TIG |
| Protection Class: | IP23S |
| Supply Plug Lead: | 15A |
| Supply Voltage: | 50 / 60Hz |
| Phases: | Single Phase |
| Warranty: | 3 Year |
Product Details
- Power: 240 Volt, 15 Amp Supply Lead & Plug Fitted to Power Source
- Standard: Fully compliant to AS 60974.1-2006
- Electrode Type: Max. Electrode Size 4.0mm. Suitable for all electrode types except AWS E6010 cellulose
- Temperature Protection: Over Temperature Cut Out protection has been fitted to power Source
- Starting Features: Hot Start Improves the arc start characteristics of stick electrodes
- Anti Stick: Anti Stick helps to prevent the stick electrode from sticking to the work piece
- Arc Force: Arc Force assists when stick welding in a tight corner or joint fit-up
- Current Range: The current Range for this Power Source is 10A to 180A of DC Welding Output
- TIG Features: DC Lift TIG function provides smooth starting and running characteristics across a broad range of applications
- Casing: Rugged case with carrying handle and carry strap
- Electrode Holder: 4m Long Electrode Holder & Work Leads
- Locking: Twistlock Electrode Holder allows the electrode to be locked securely in place
