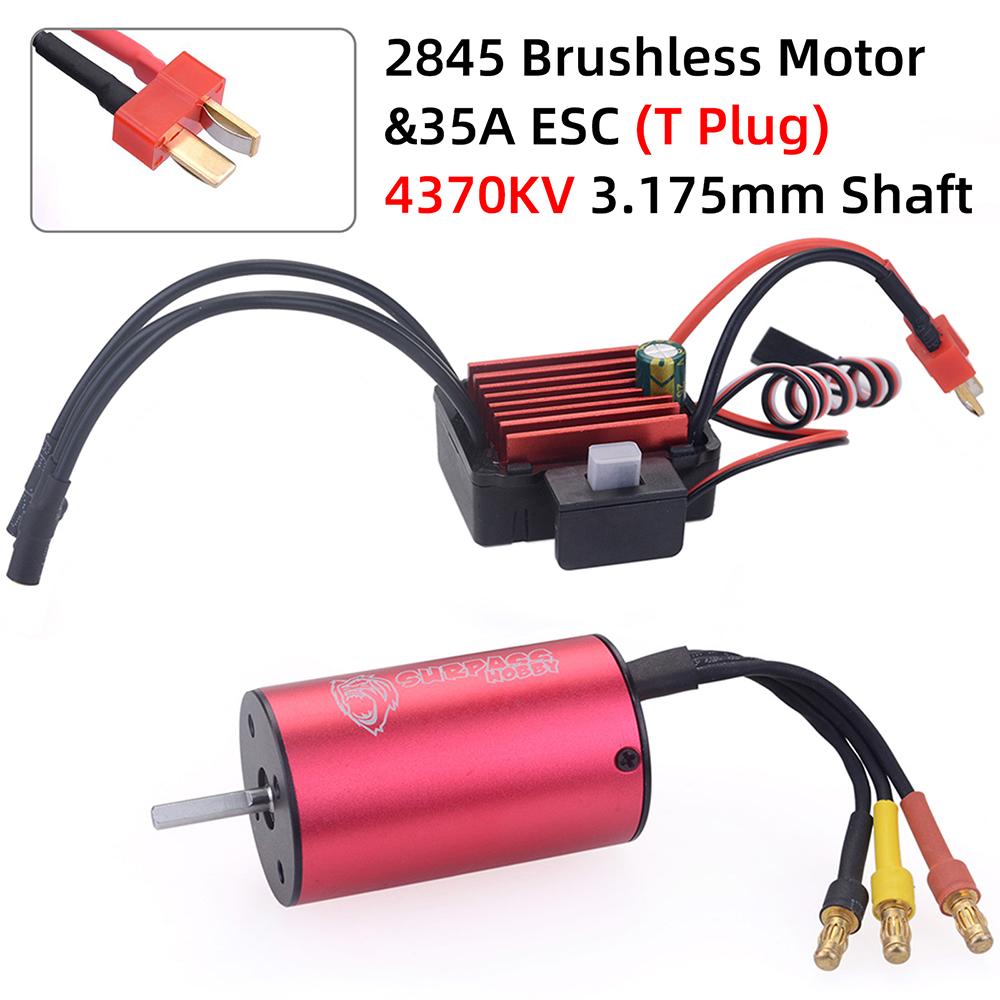

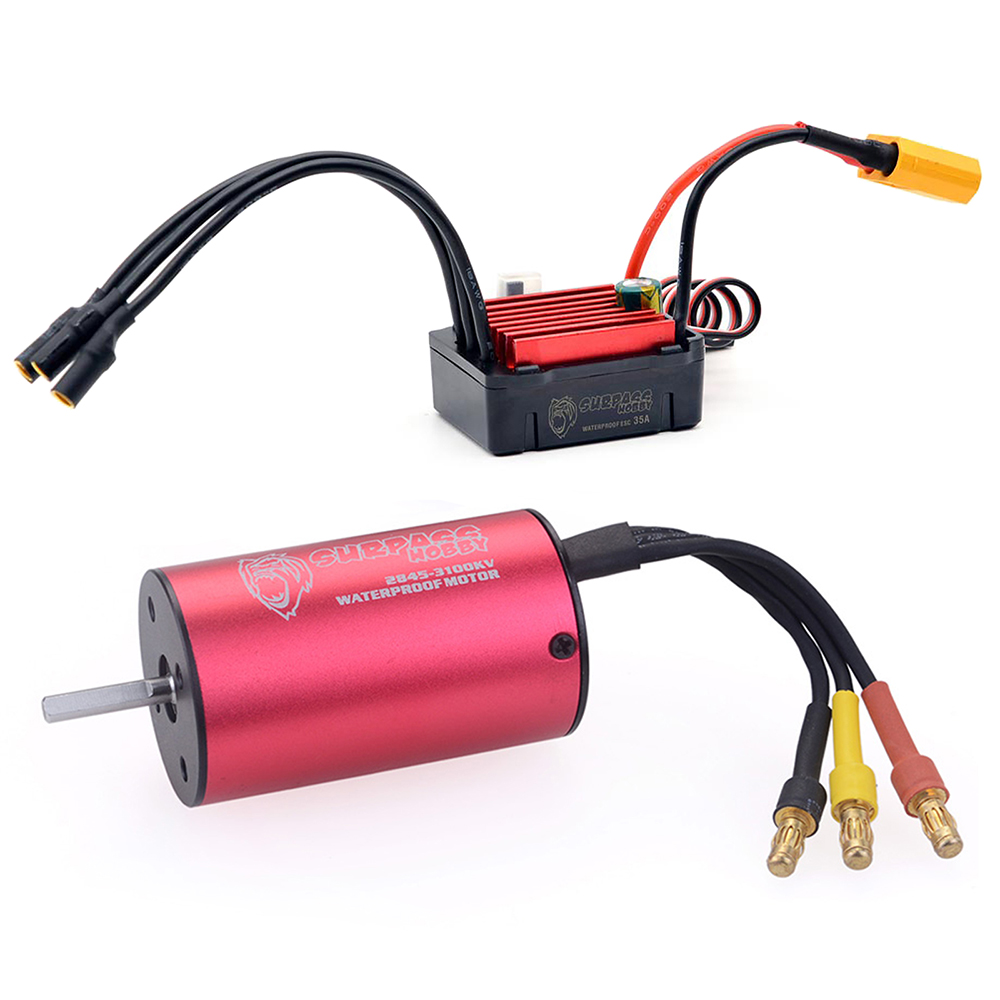

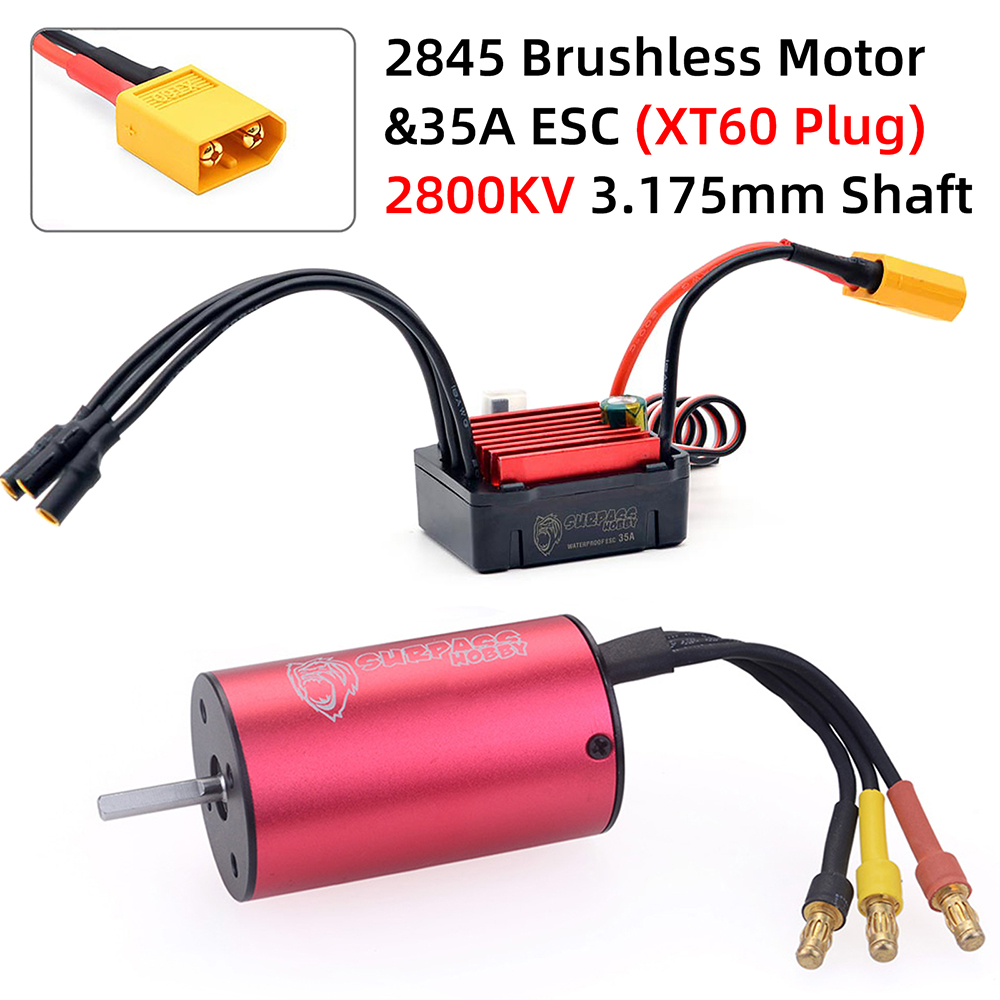

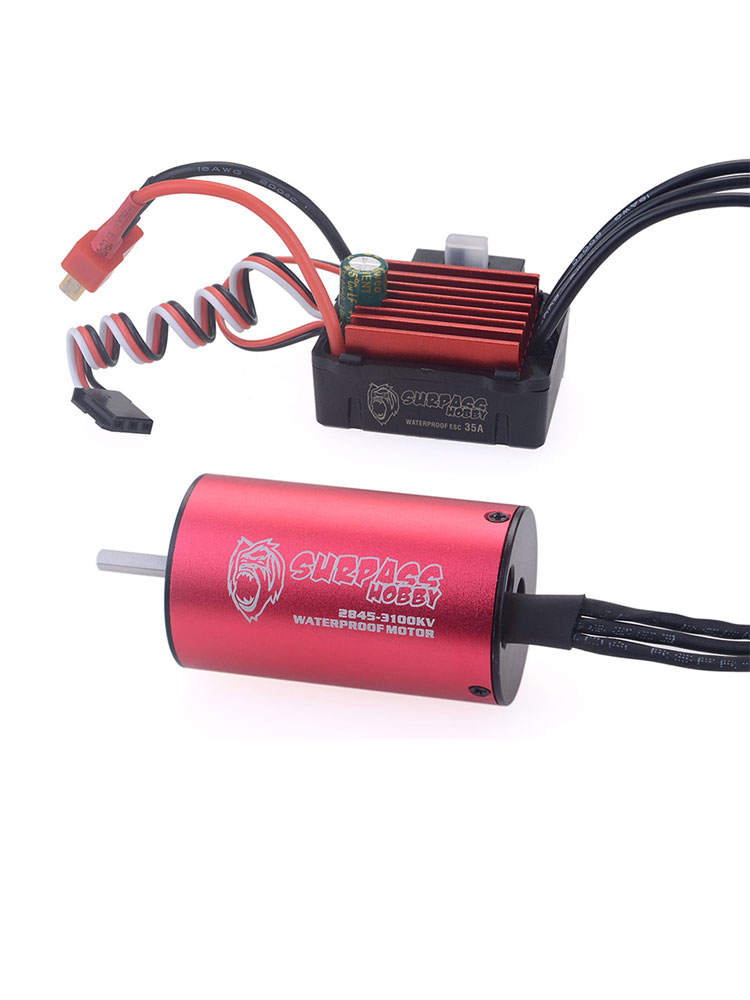

Surpass Hobby Waterproof 2845 Brushless Motor 35A ESC Combo Set für 1/12 RC Car
Surpass Hobby Waterproof 2845 Brushless Motor 35A ESC Combo Set für 1/12 RC Car

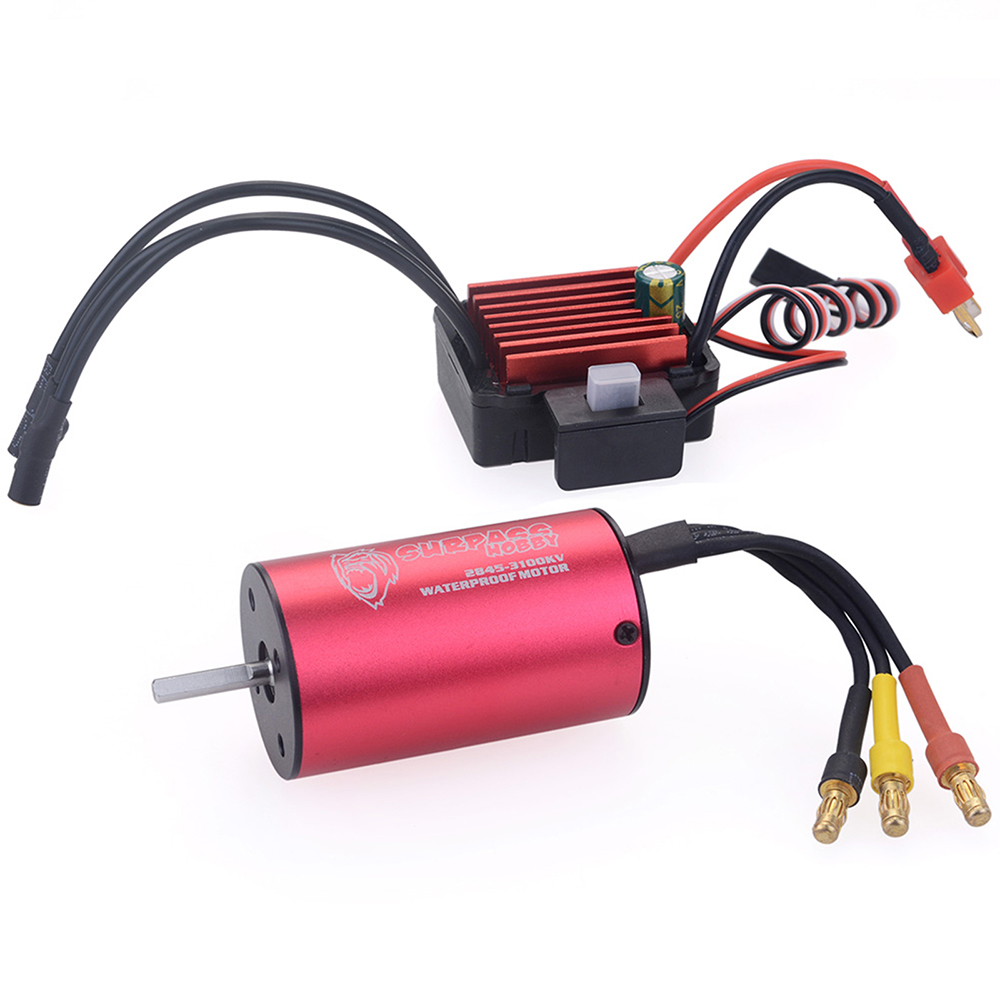

SURPASSHOBBY 2845 5900KV Waterproof Brushless Motor 35A ESC T Deans for Traxxas Trx4 HSP Monster Buggy Off-Road 1/12 RC Car

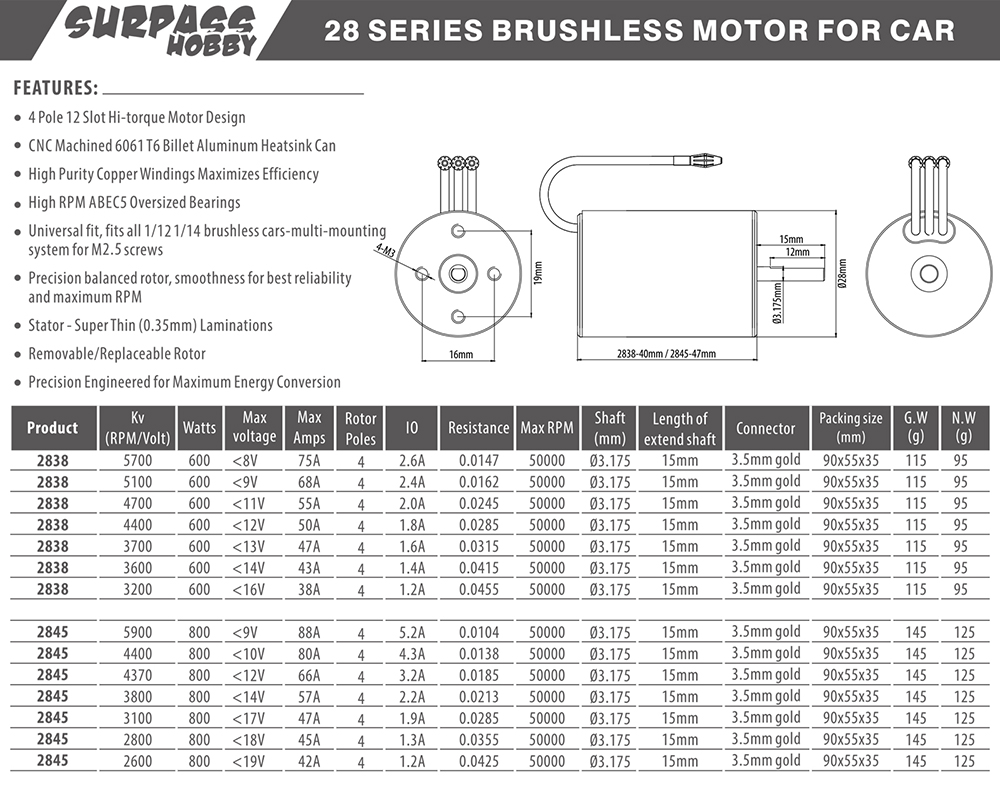

Features:
4 Pole 12 Slot Hi-torque Motor Design.High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
Universal fit, for all 1/12 2S RC car and 3S racing car.
Precision balanced rotor,smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) Laminations.
Removable/Replaceable rotor
Precision Engineered for maximum Energy Conversion

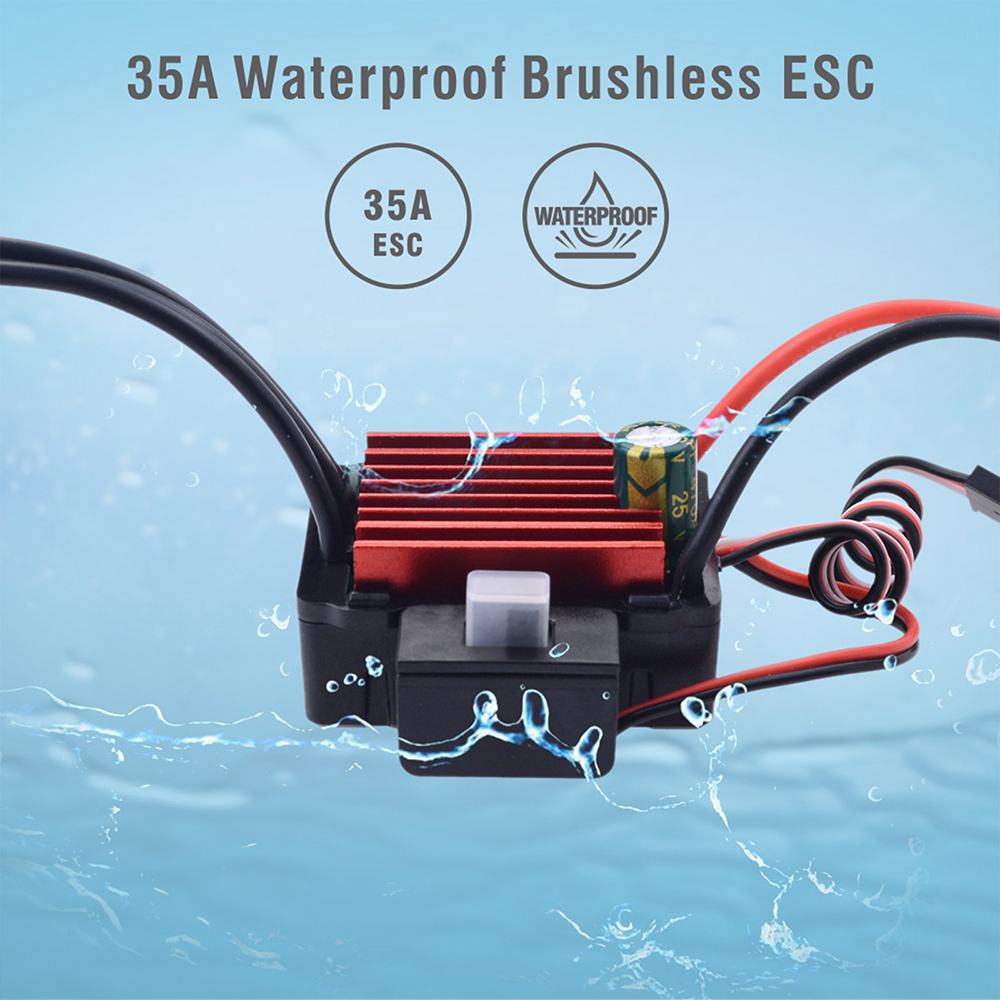

ESC Features:
1. Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use for avoiding the connectors get rusty.)
2. Specially designed for RC car with excellent start-up, acceleration and linearity features.
3. Compatible with sensorless brushless motor.
4. The strong resistant current capability, excellent heat dissipation.
5. Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
6. Easily programmed and compatible with pocket-sized program card.
Description:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully.
Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied.
We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.
Brand: SURPASSHOBBY
Series: KK

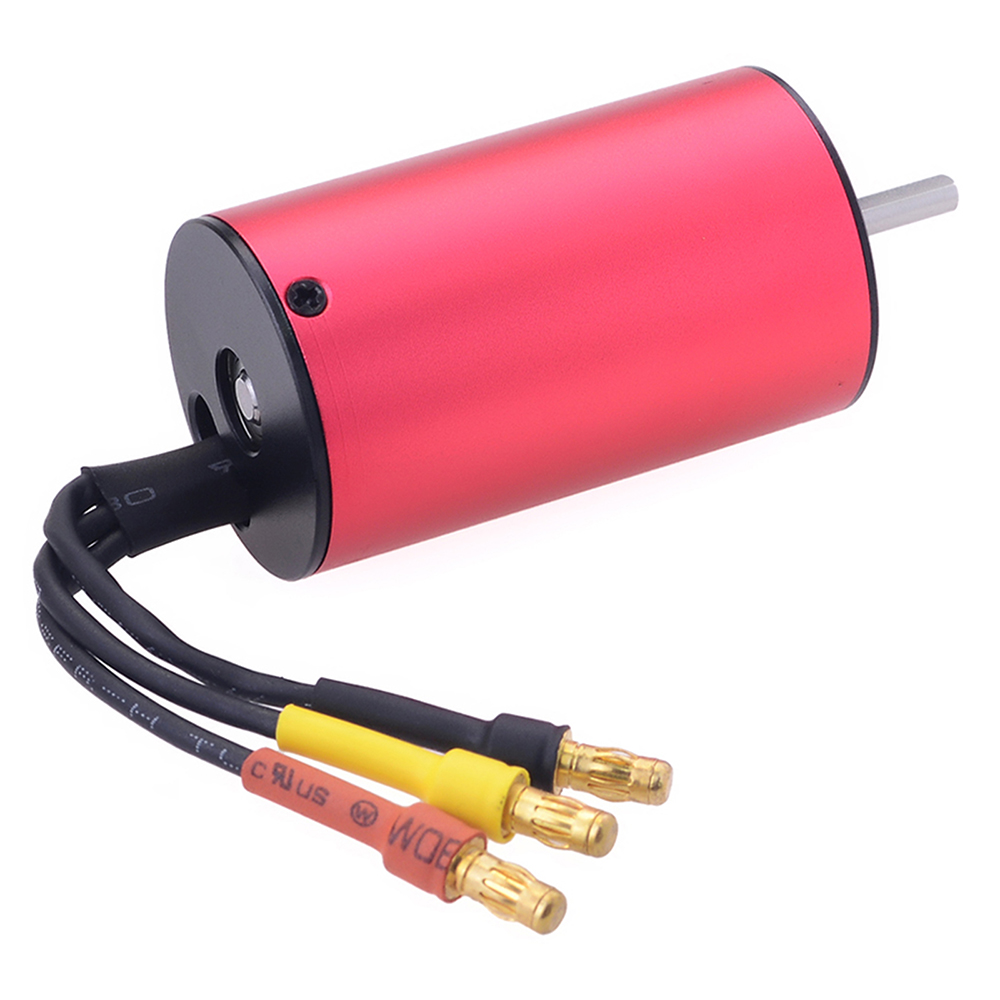

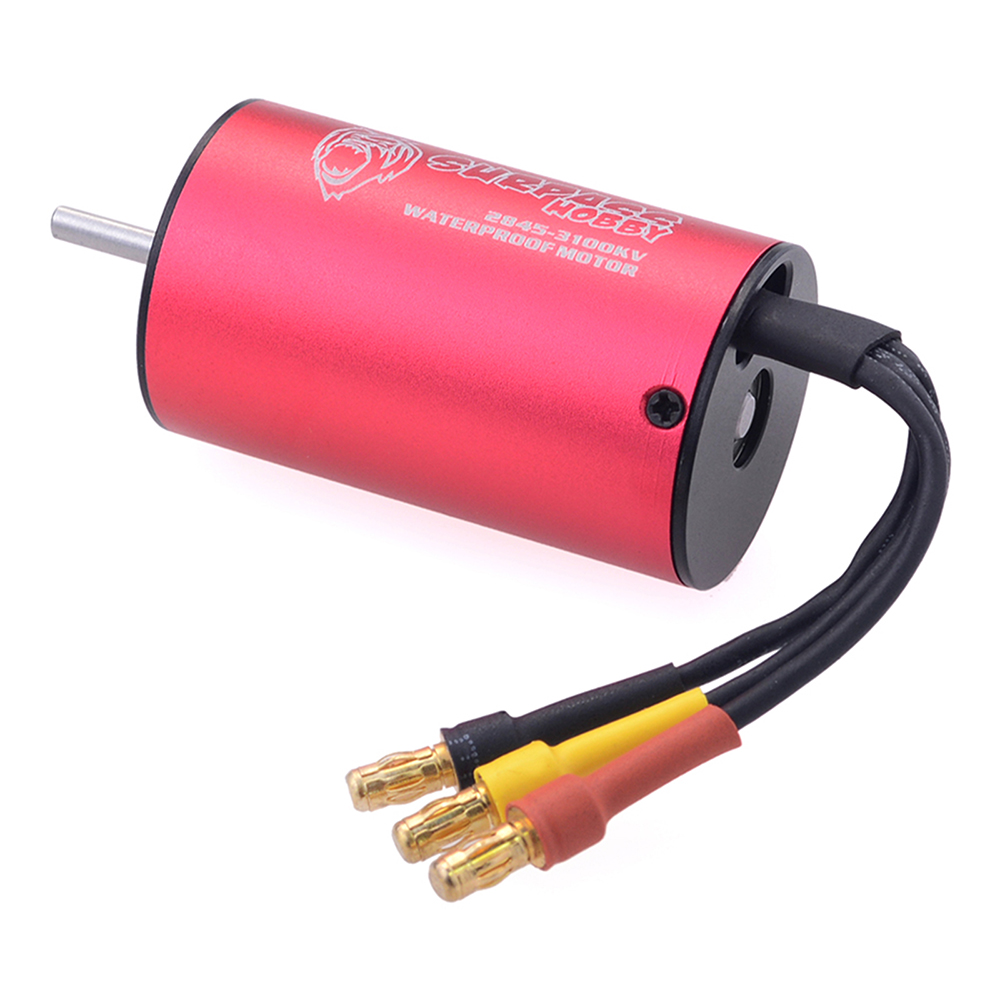

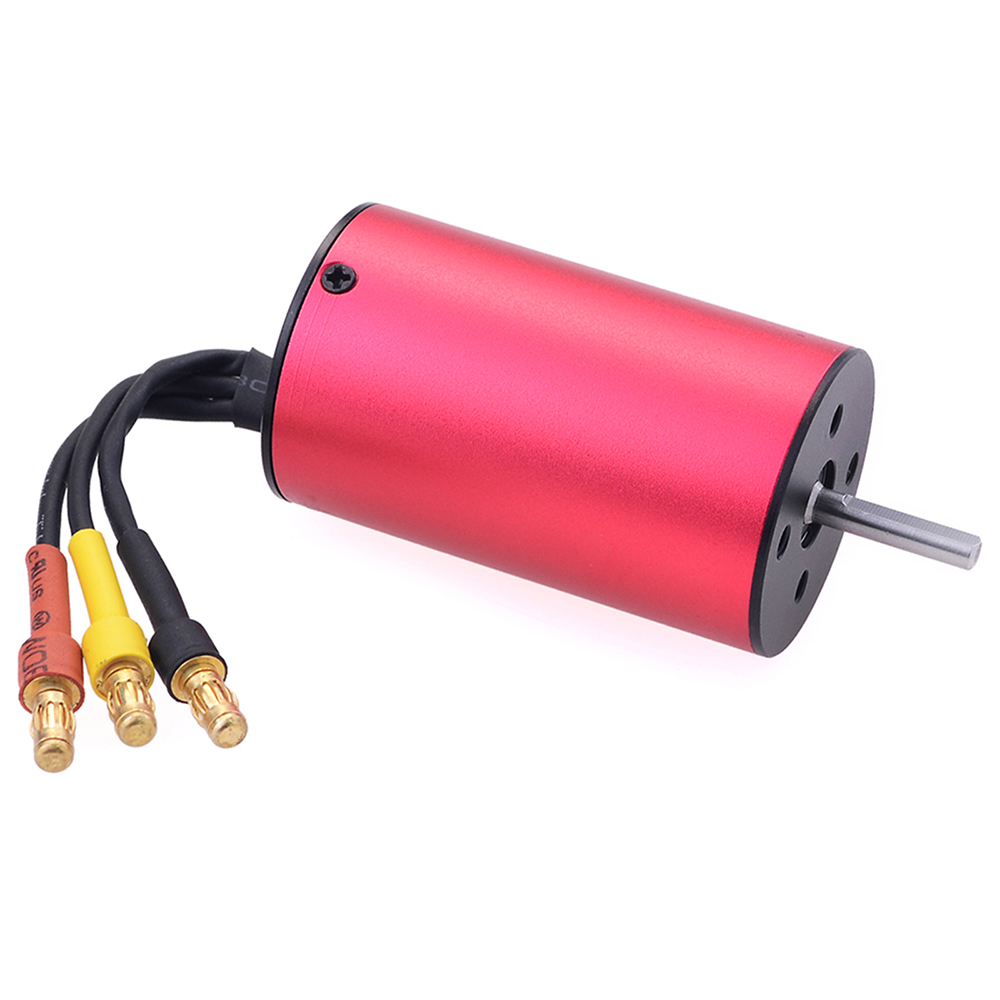

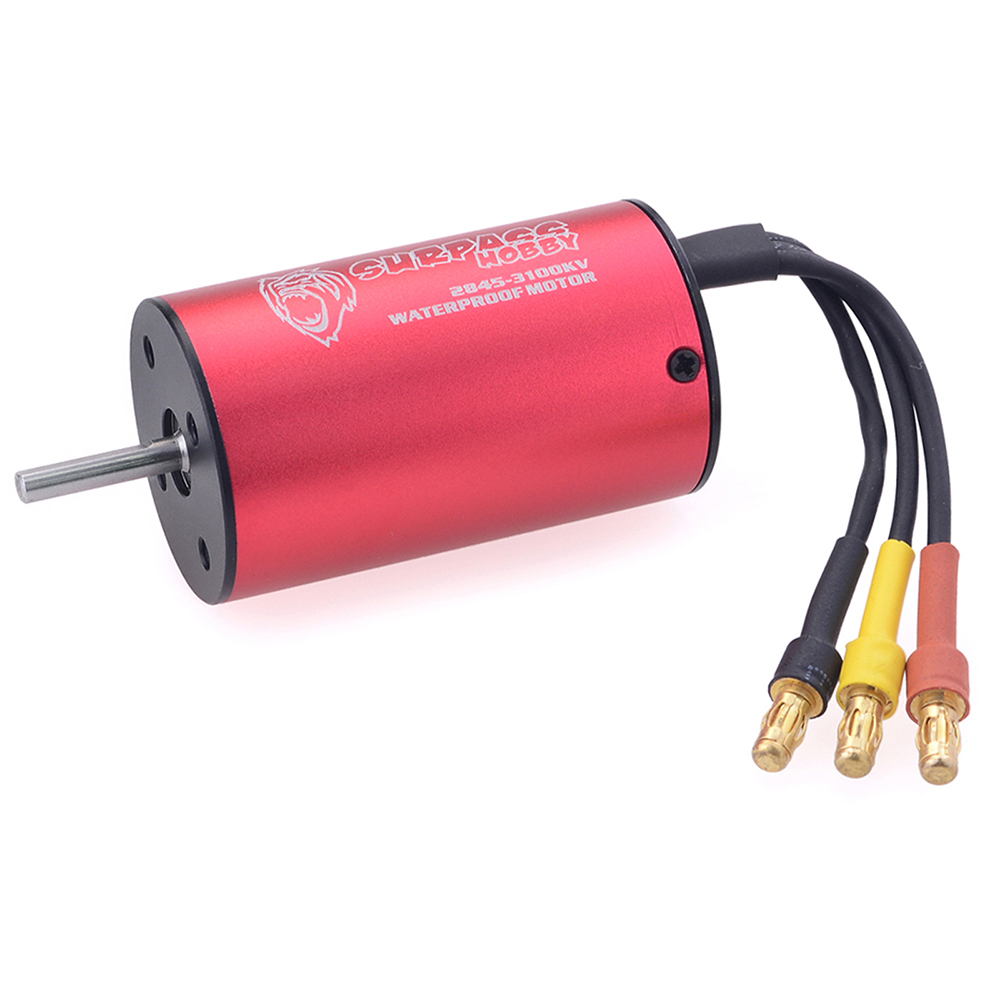

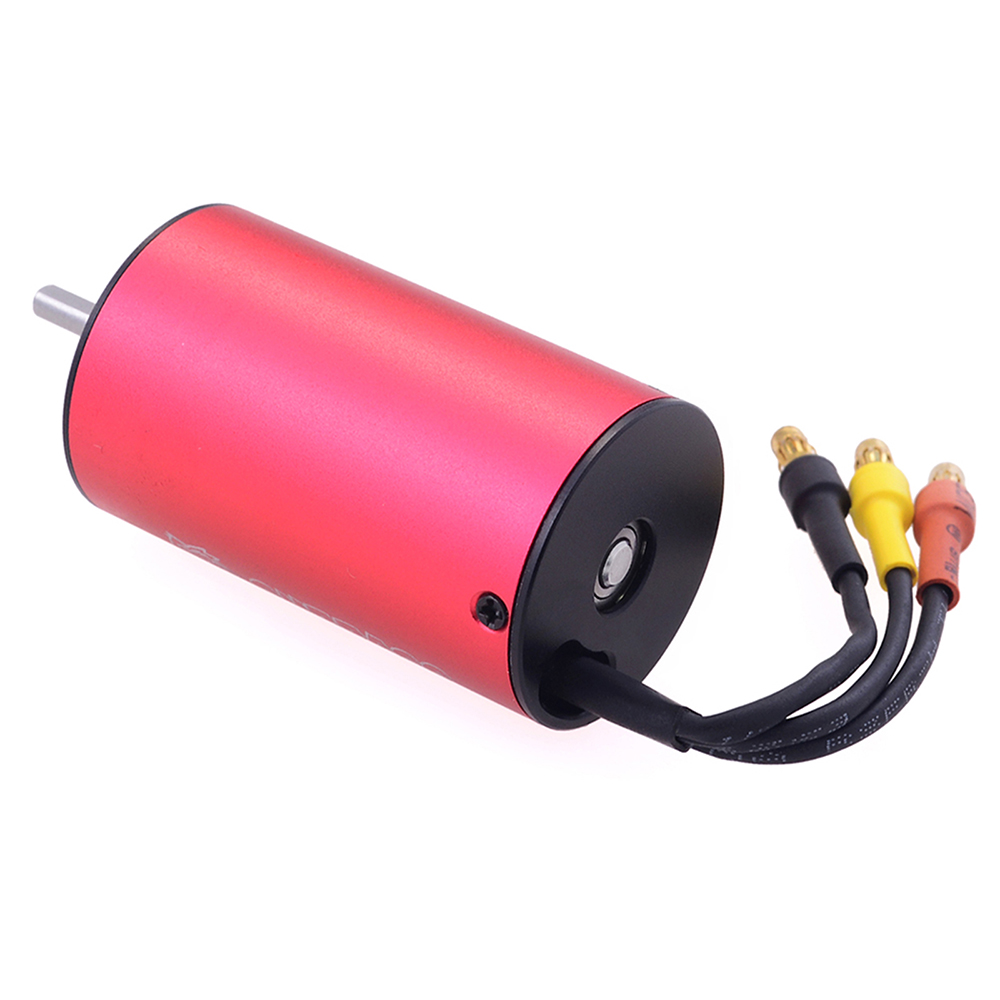

Name: 2845 RC Motor
Color: red
KV(RPM/Volt): 2600KV/2800KV/3100KV/3800KV/4400KV/5000KV/5900KV optional
Watt:800
Max RPM: 50000Rotor poles: 4

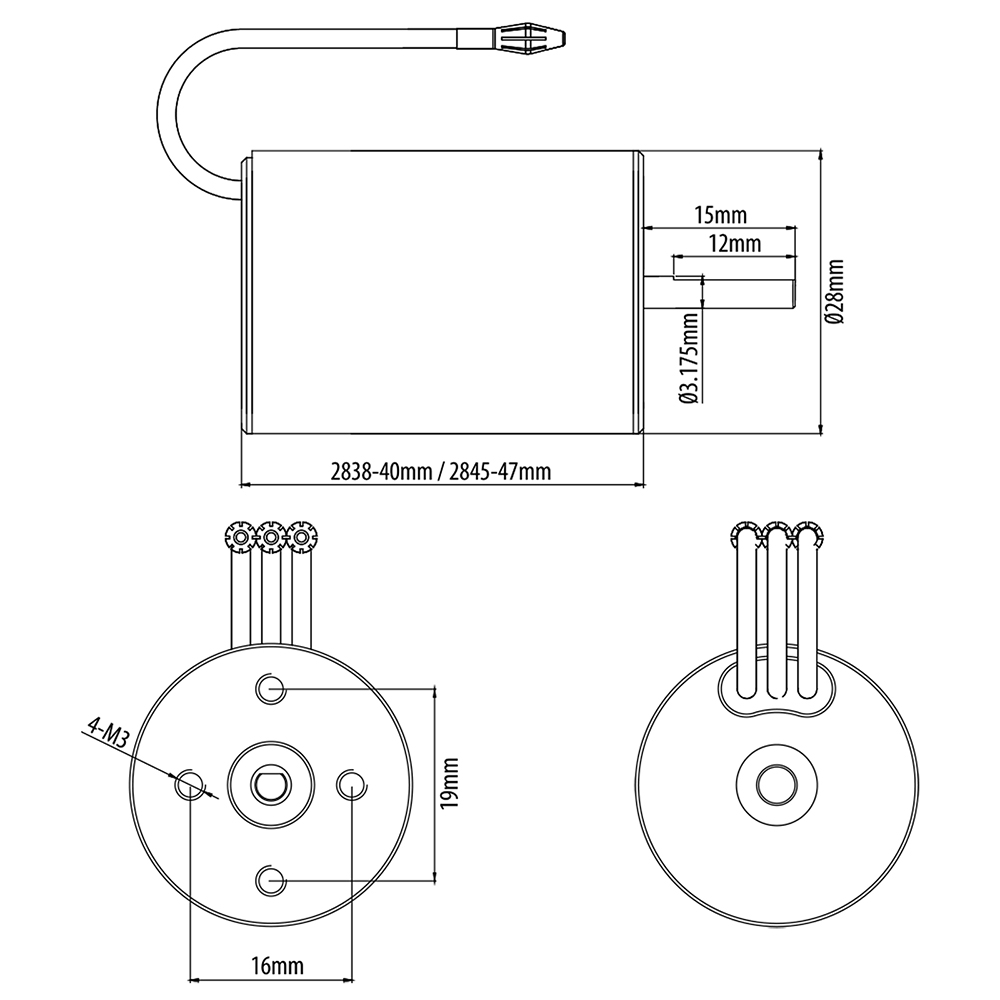

Diameter: 28mm
Length: 46.5mm
Shaft: 3.175mm
Shaft length: 15mm
Connector: 3.5mm gold
Weight:118g

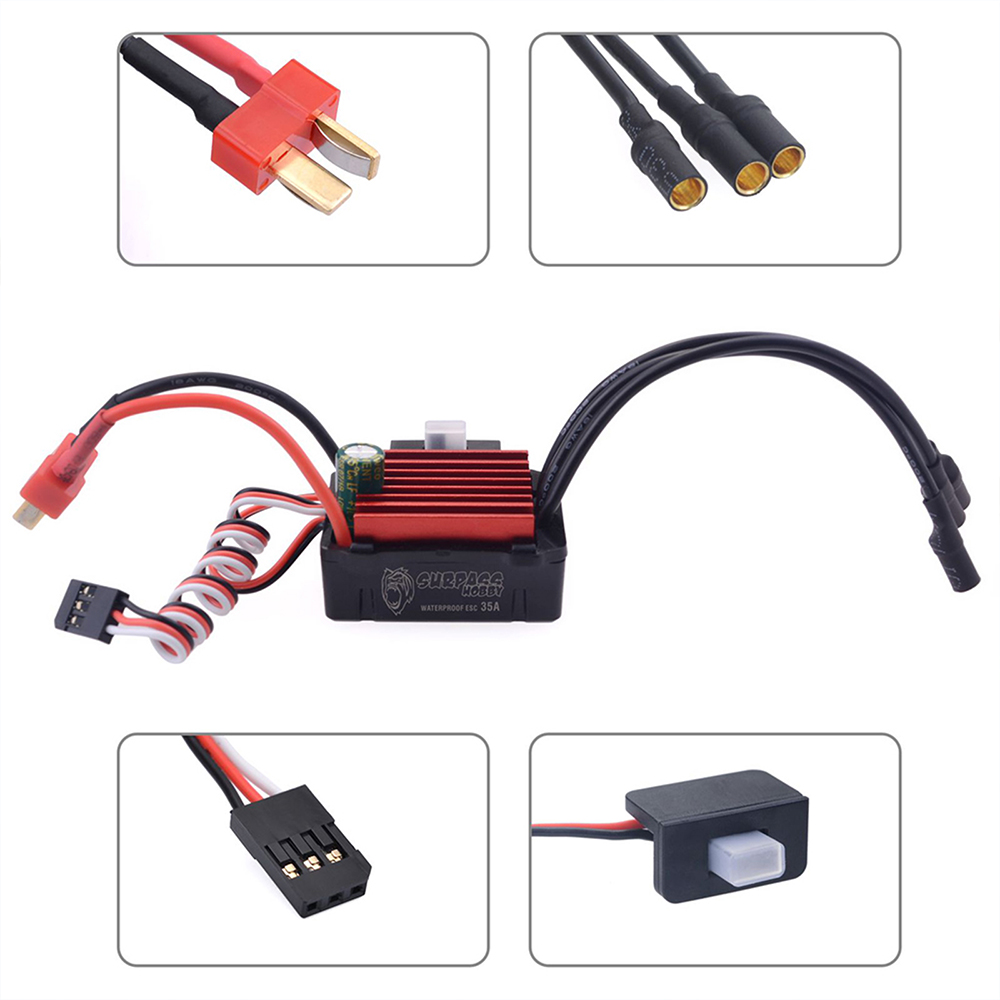

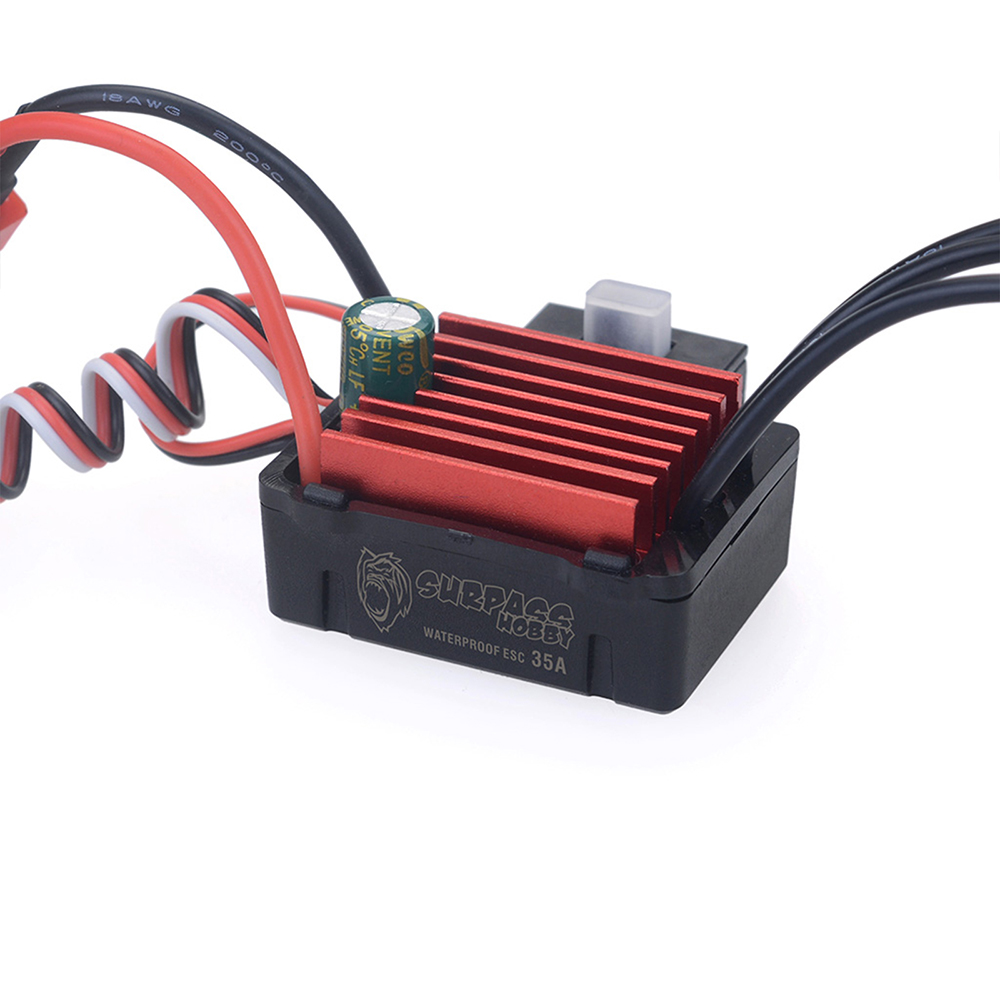

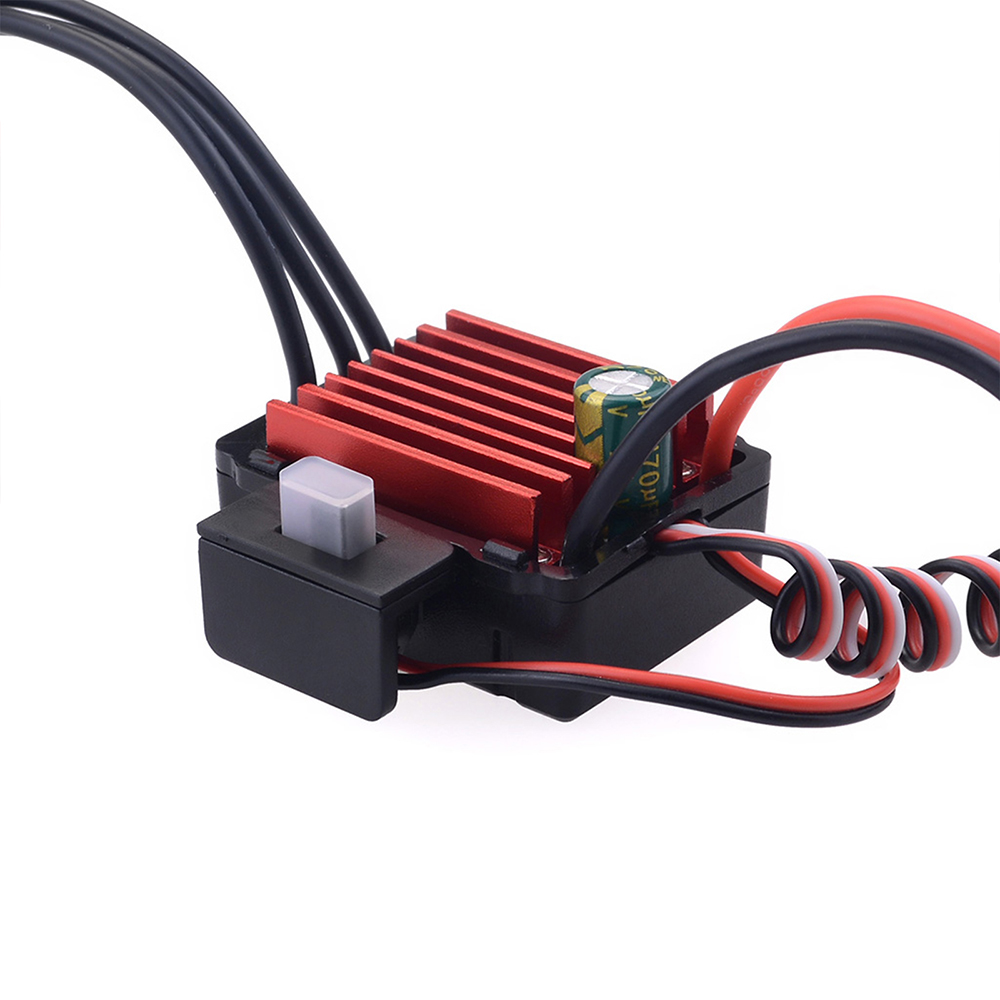

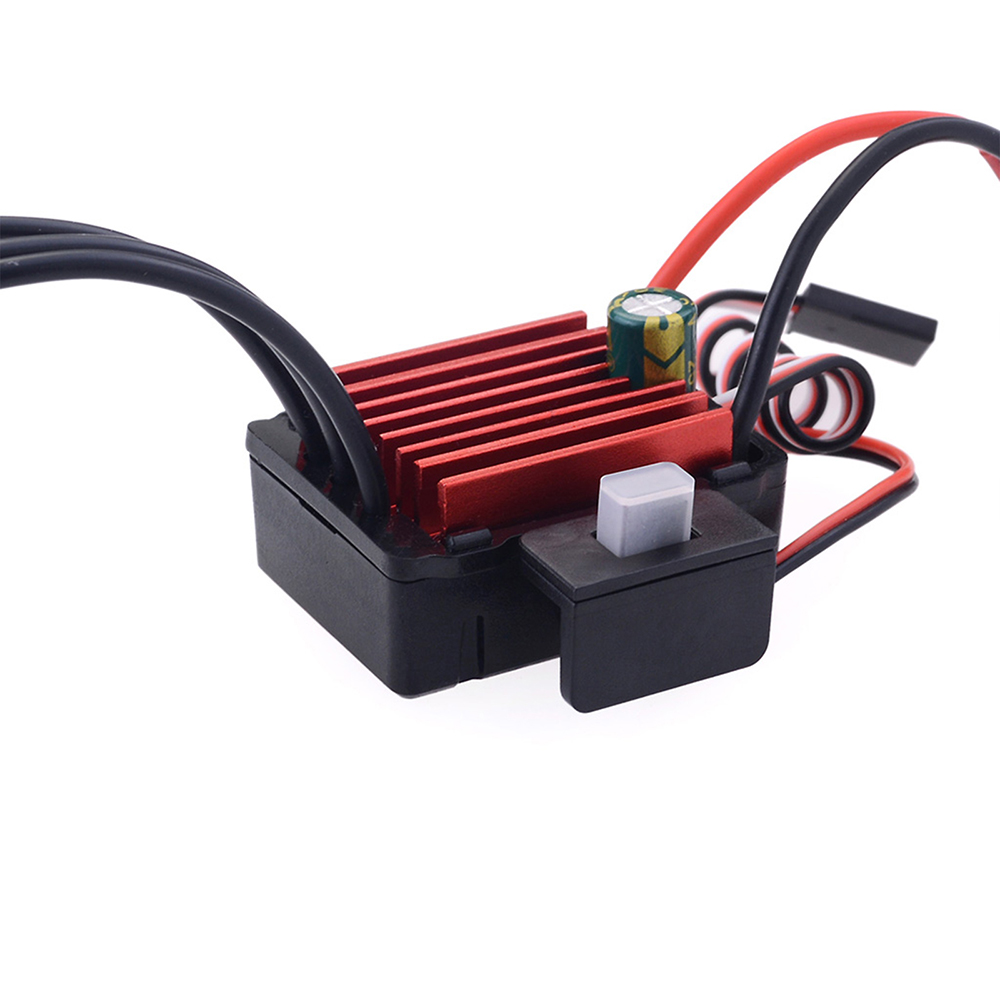

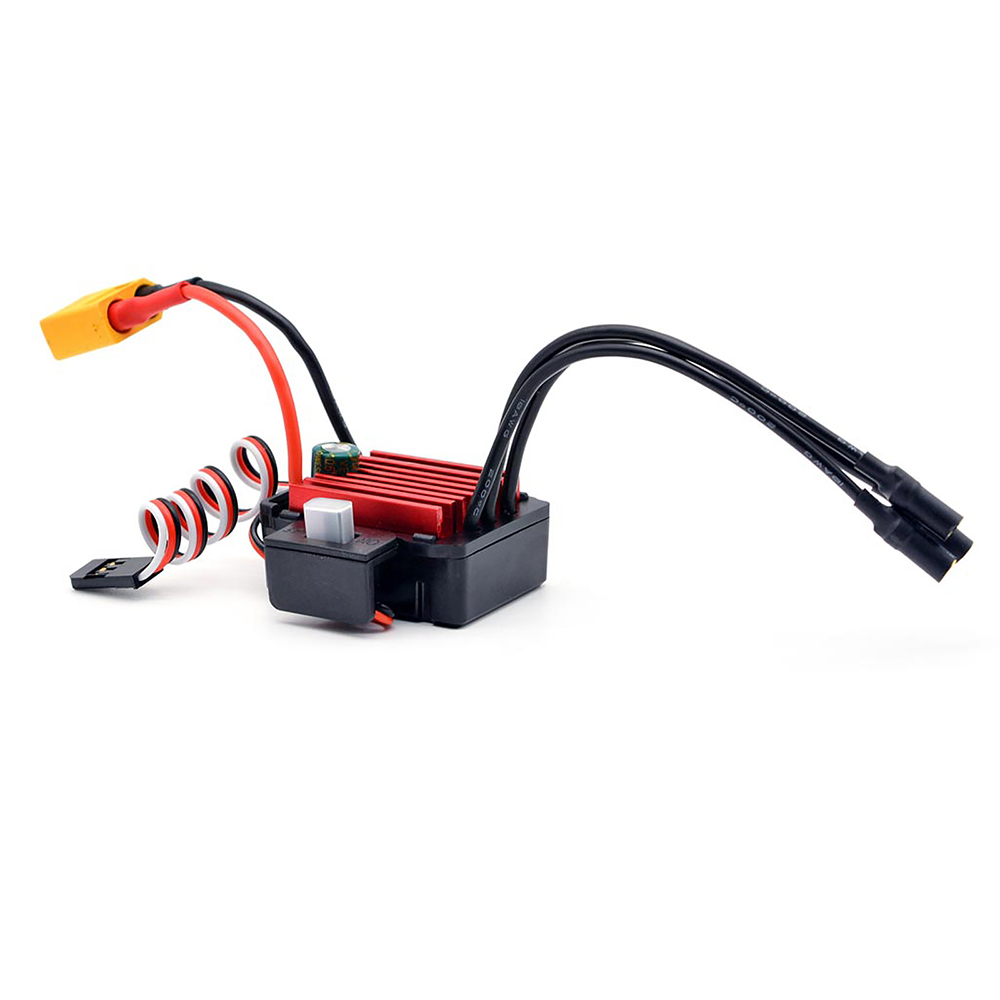

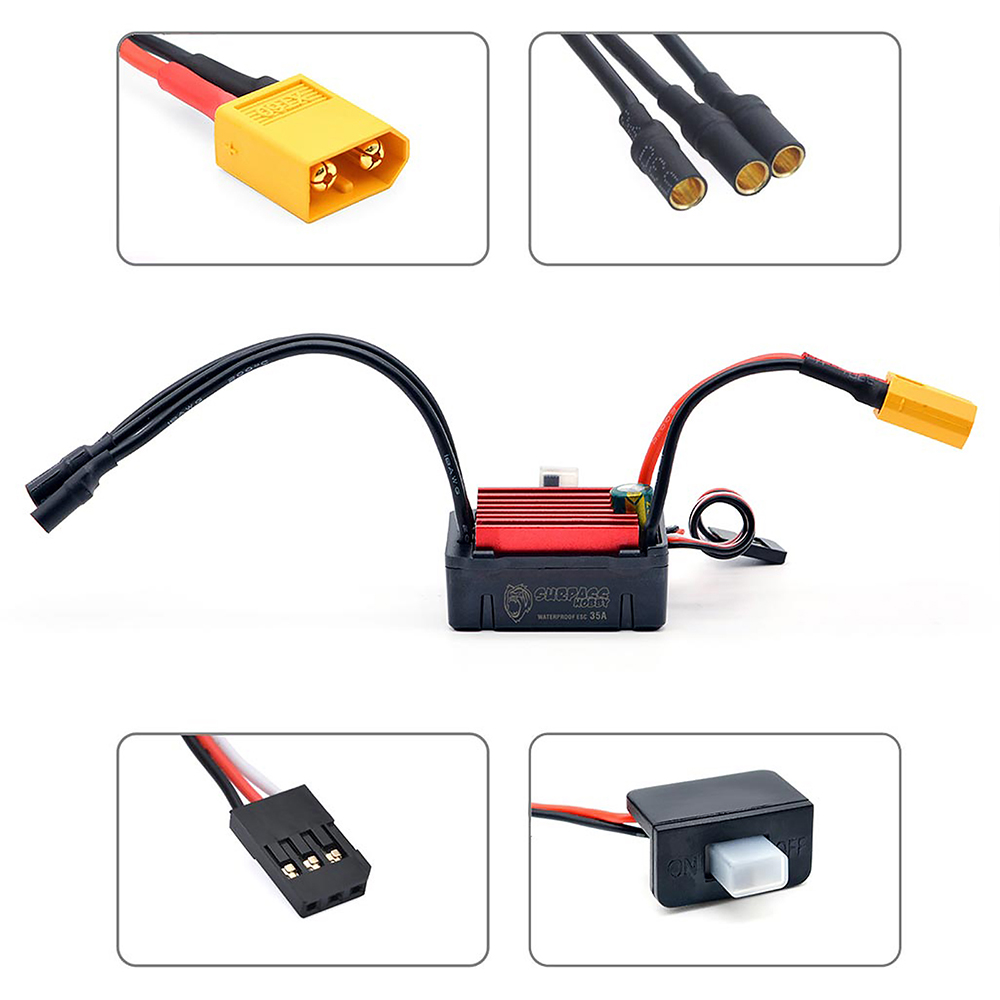

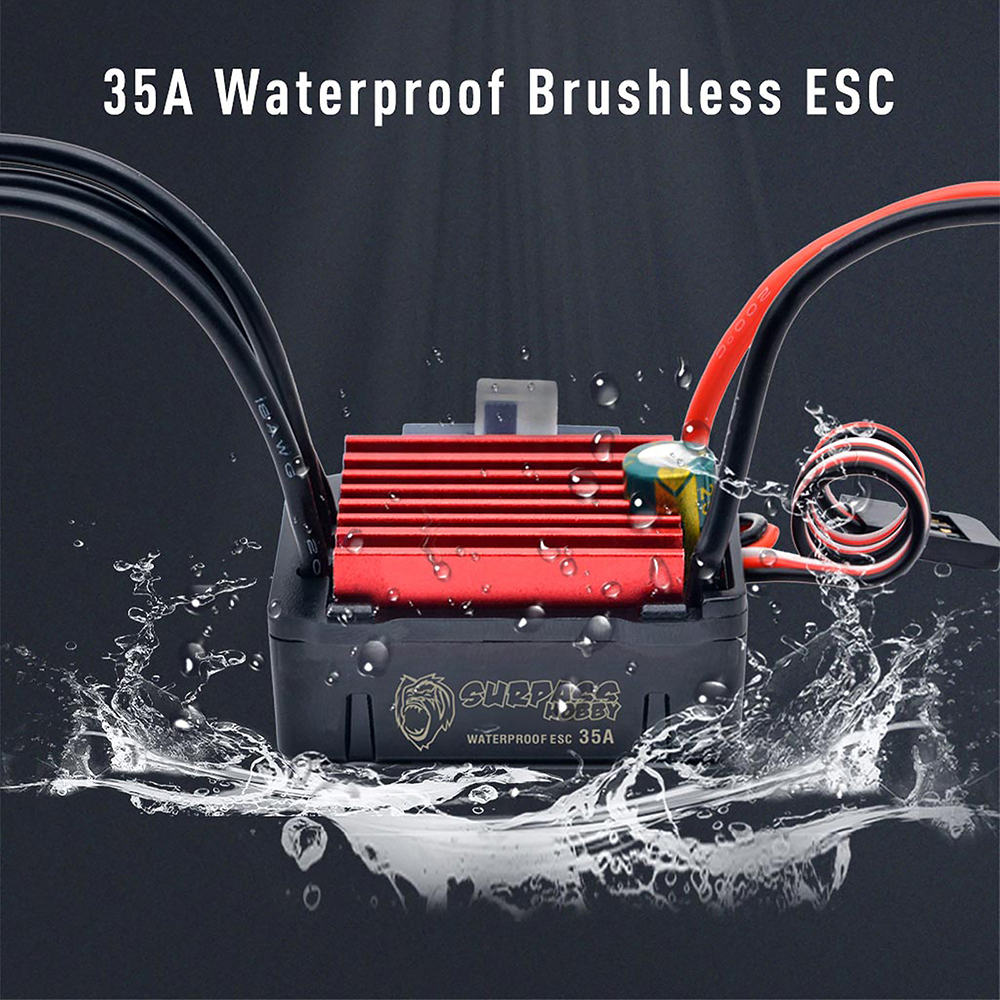

35A ESC
Specification:
Brand: SURPASSHOBBY
Name: KK 35A ESC
Cont.Current/Burst Current: 35A/120A
Motor Type: Sensorless Brushless Motor
For 2S Lipo or 6 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<6000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <4000KV
For 3S Lipo or 9 cells NiMH :
1. on-road: 28XX-Size or smaller motor with the KV<4000KV
2. off-road/Buggy/Monster: 28XX-size or smaller motor with the KV <3000KV
Suitable Car: 1/16 1/14 Car
Resistance: 0.0004ohm
Battery: 2-3S Lipo/4-9Cells NiMH
BEC Output: 5.0V/2A(analog mode)

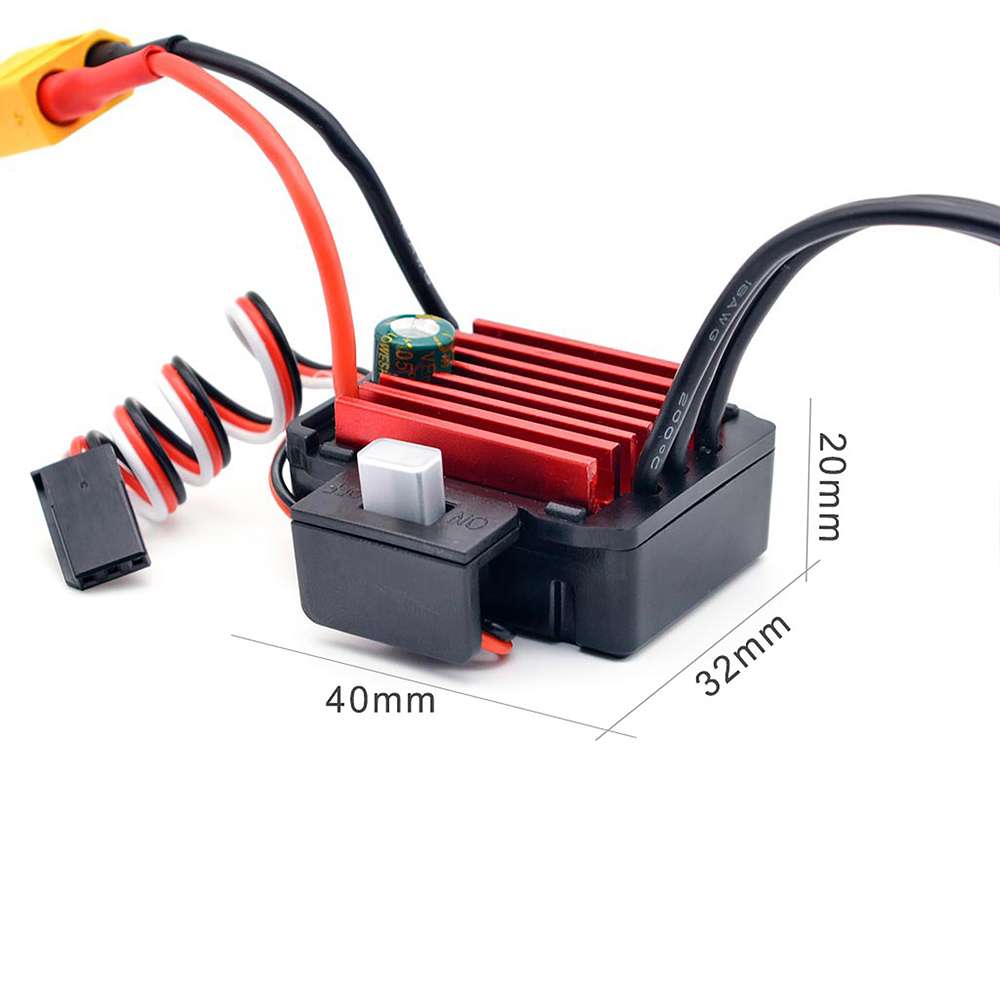

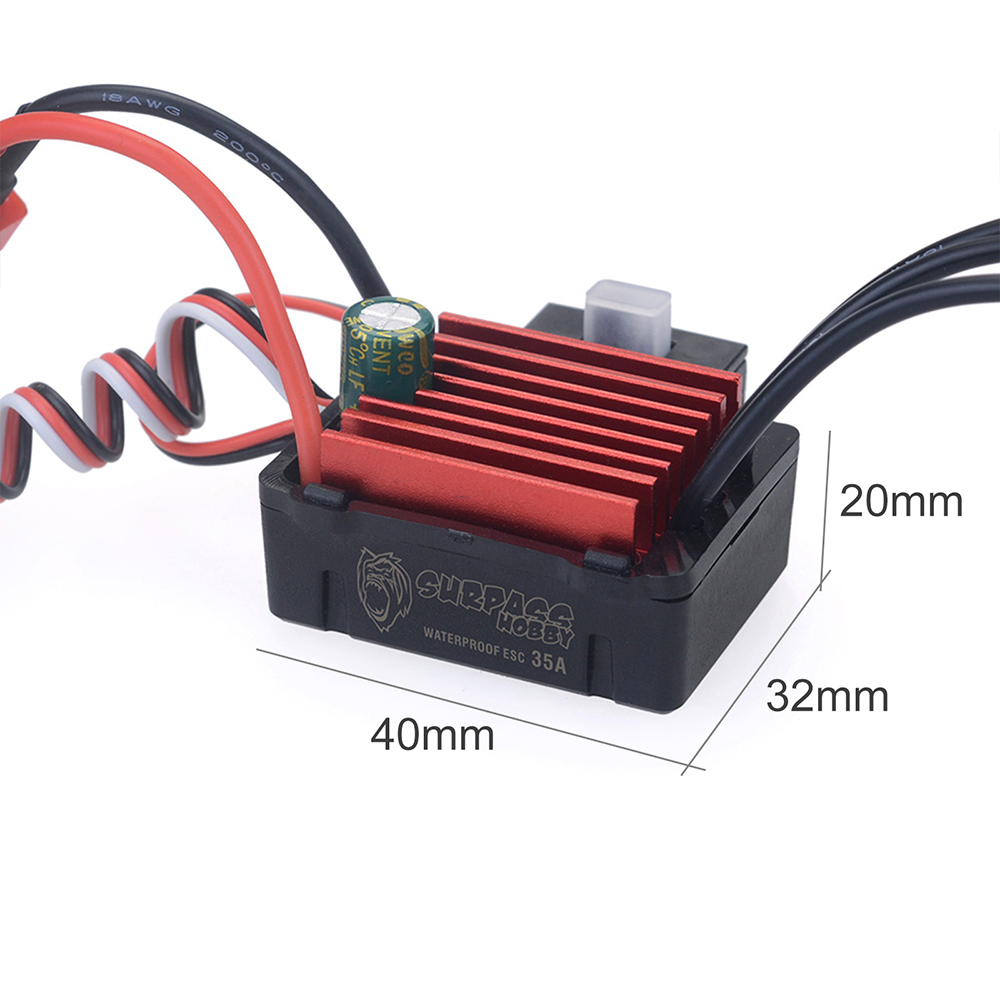

Dimensions/Weight: 40x32x20mm/37g

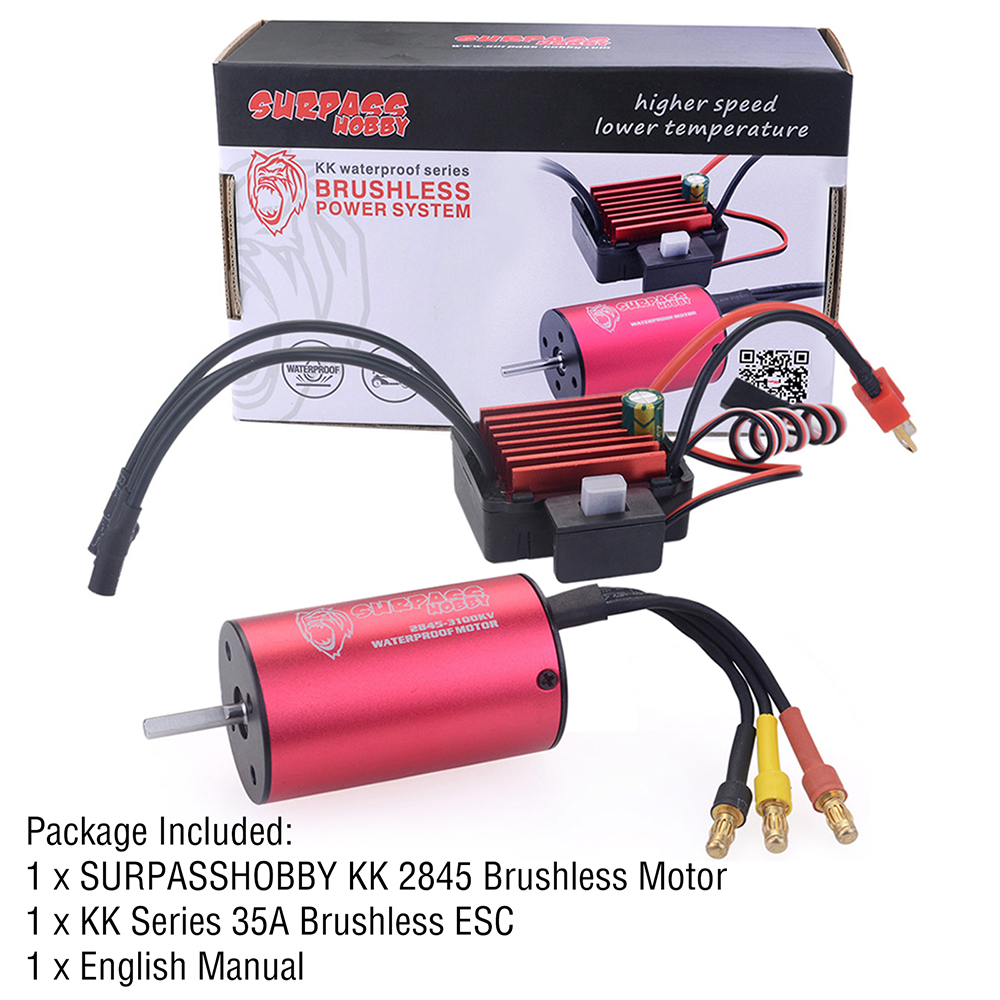

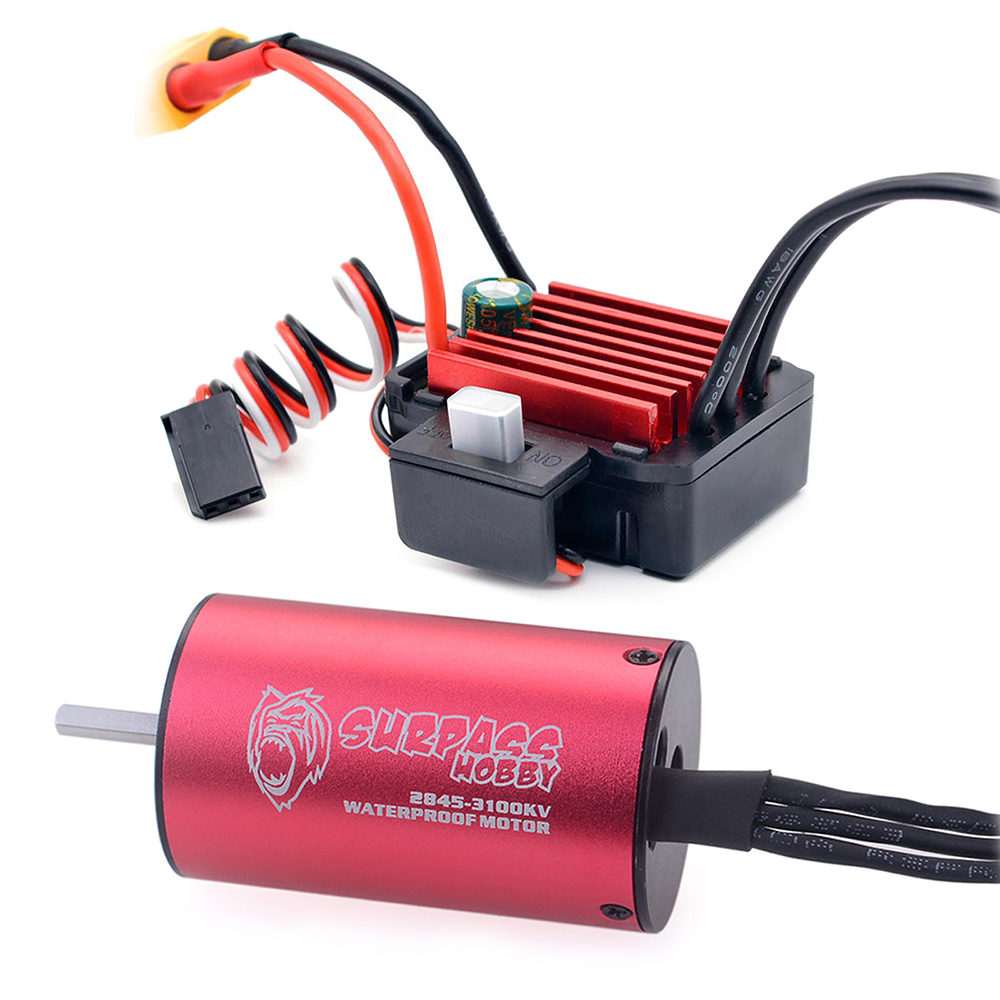

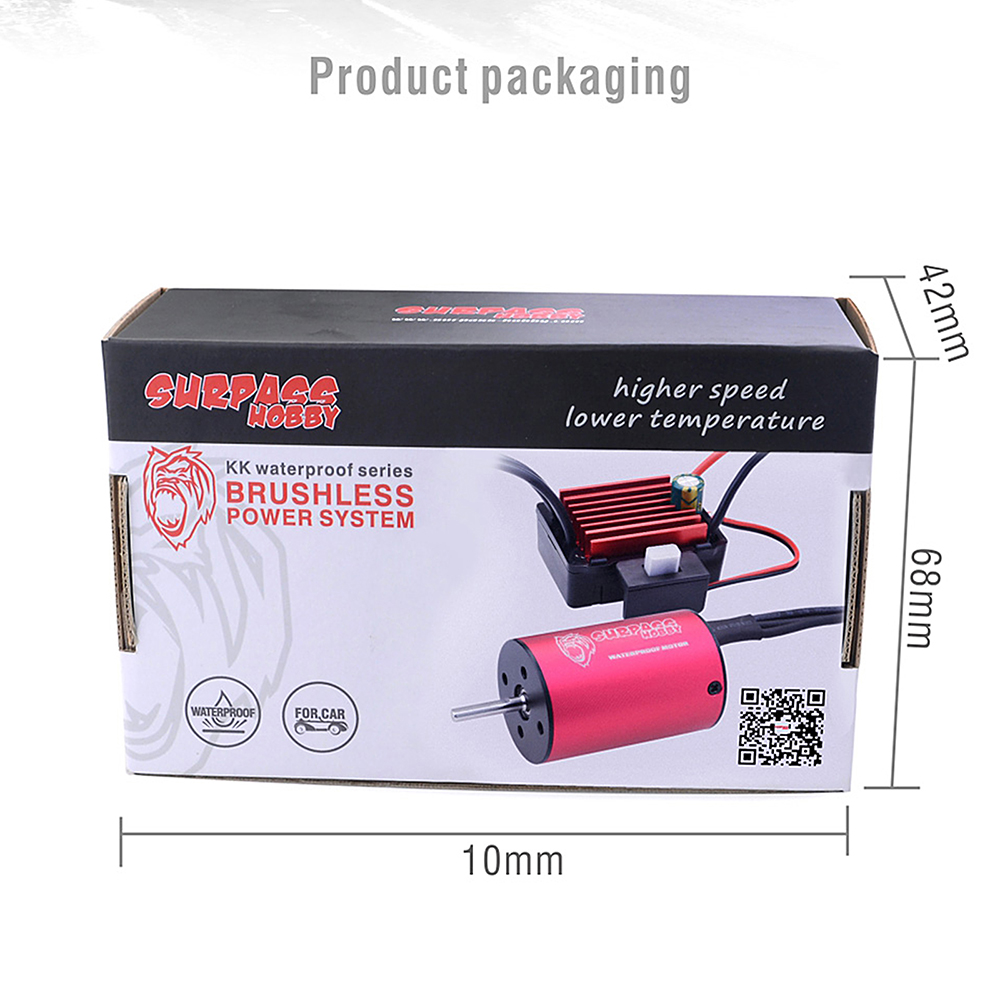

Package Included:
1 x SURPASSHOBBY KK 2845 Brushless Motor
1 x KK Series 35A Brushless ESC
1 x English Manual
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
