40W Laser Module Head for Engraver Wood Cutting CNC DIY Laser Tool Blue Light

Description
[Applicable materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Mirror stainless steel, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.

 [Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.


Feature:

1. Engraving Mirror Stainless Steel, no need to Paint Black.
2. Super Fast Engraving Speed: 23mm focal length, 5W output optical power engrave 304 stainless steel at speeds up to 800mm/min.
3. Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.
4. Magnetic eye protective cover: protect your eyes and easy to install without screws
5. Metal cutting air outlet: Which does not generate heat and can resist flames.



Specification:

Material: Aluminum alloy
Effect Output Power: 40W
Output Optical Power: 5W
Electric Power: 12V 1.8A(1.5A-2A)
Focus Length: 23mm
Interface: XH2.54-3P socket
Power Adjustable: Support 5V PWM modulation
Function: Engraving/Cutting
Module Size: 40*40*121mm
Module Weight: 240g

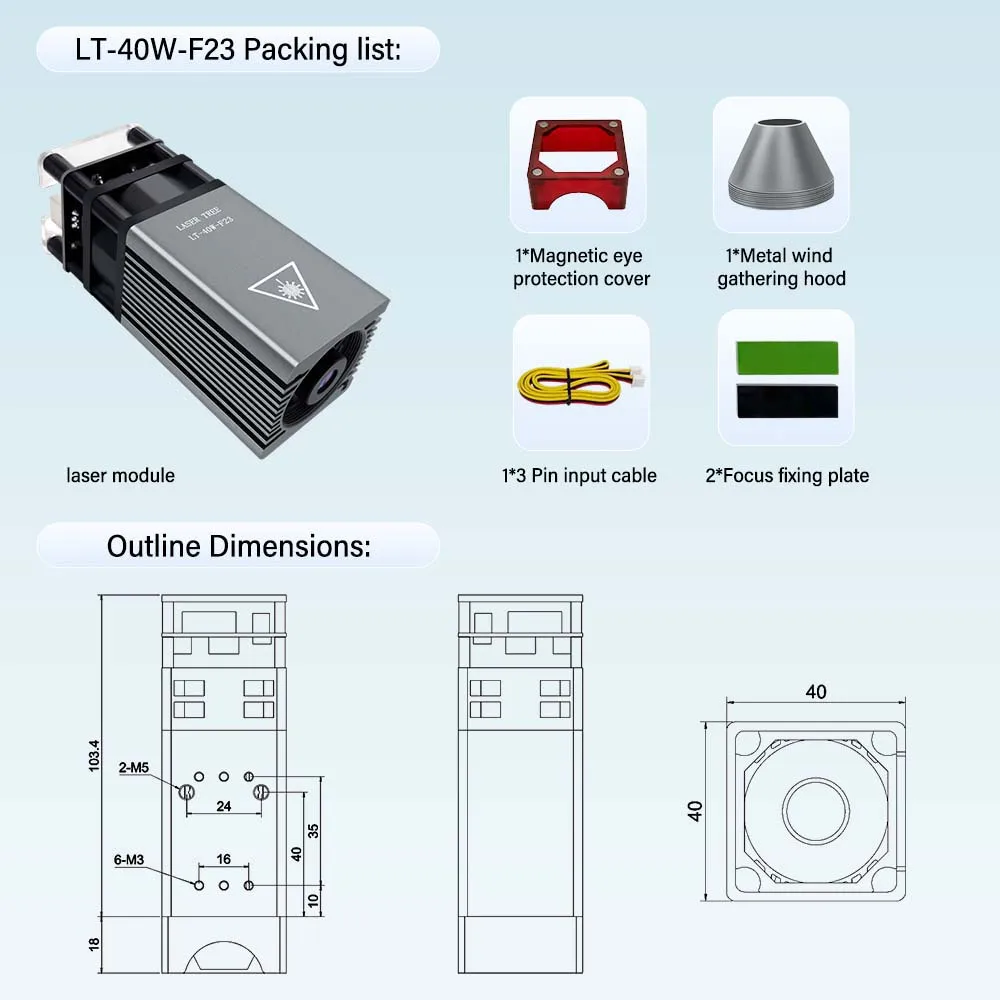

Packing list:

1 *Laser head
1*Eye protection cover
1*Spare protective window glass
1*3 Pin input cable
2*focus fixing plates



                                                                            Metal Wind Gathering Hood
                                                   Prevent flames from burning

                                                                            Magnetic Eye Protection Cover
                                      Watch laser engraving without wearing goggles

                                                                                   Beam Compressed Spot
                                                      More Precise with 5W Compressed Spot

                                                                    Extreme Engraving
                                     Ultra-fast engraving on stainless steel- 800mm/min


                                                                   Reference Setting for Engraving


                                                                             Good for Cutting
                                      Easily create more fabulous works

                                                   Reference Setting for Cutting

                                                                                Perfect Detail
                                          Ultimate detail design makes your creation easier



Engraving & Cutting



Various Available Materials
