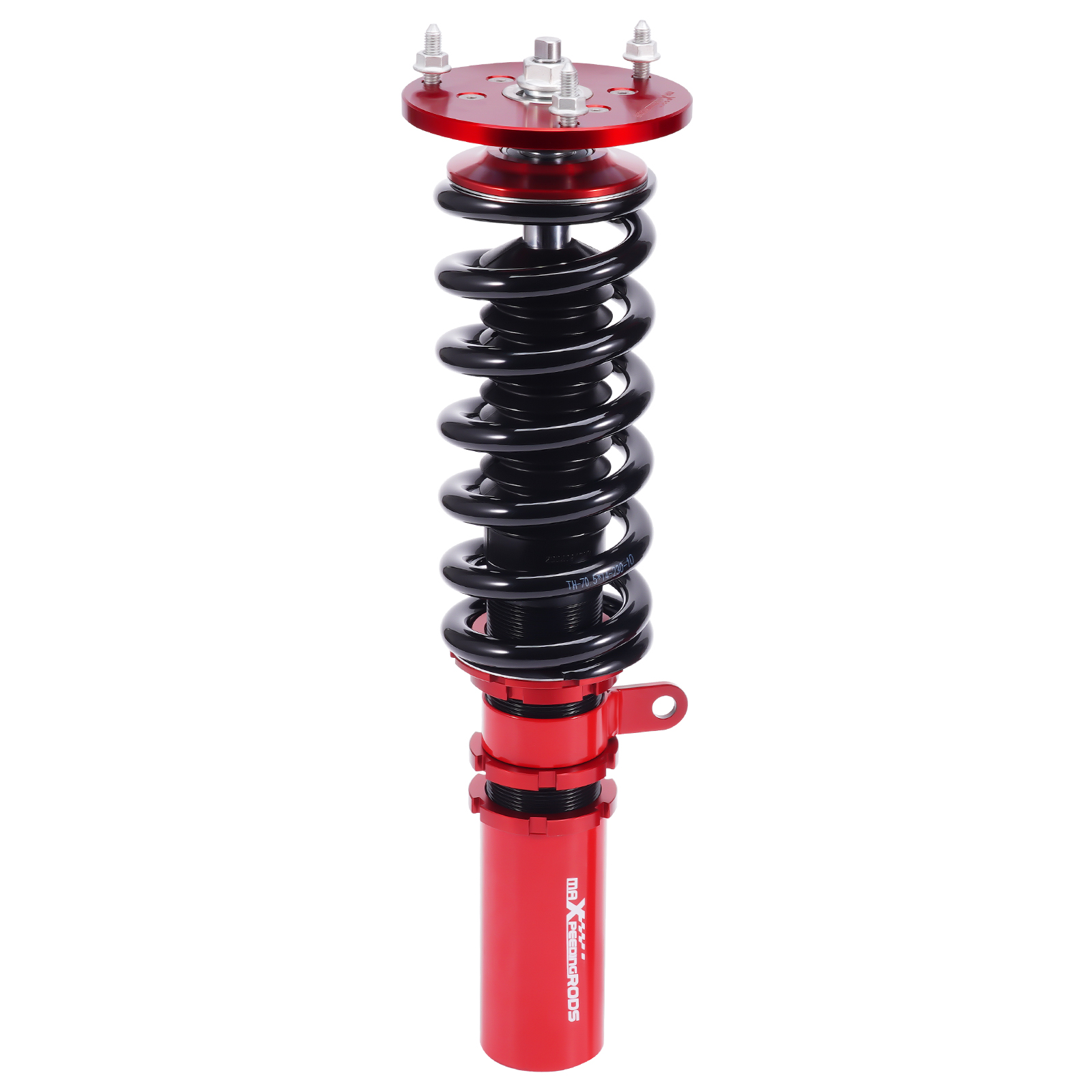

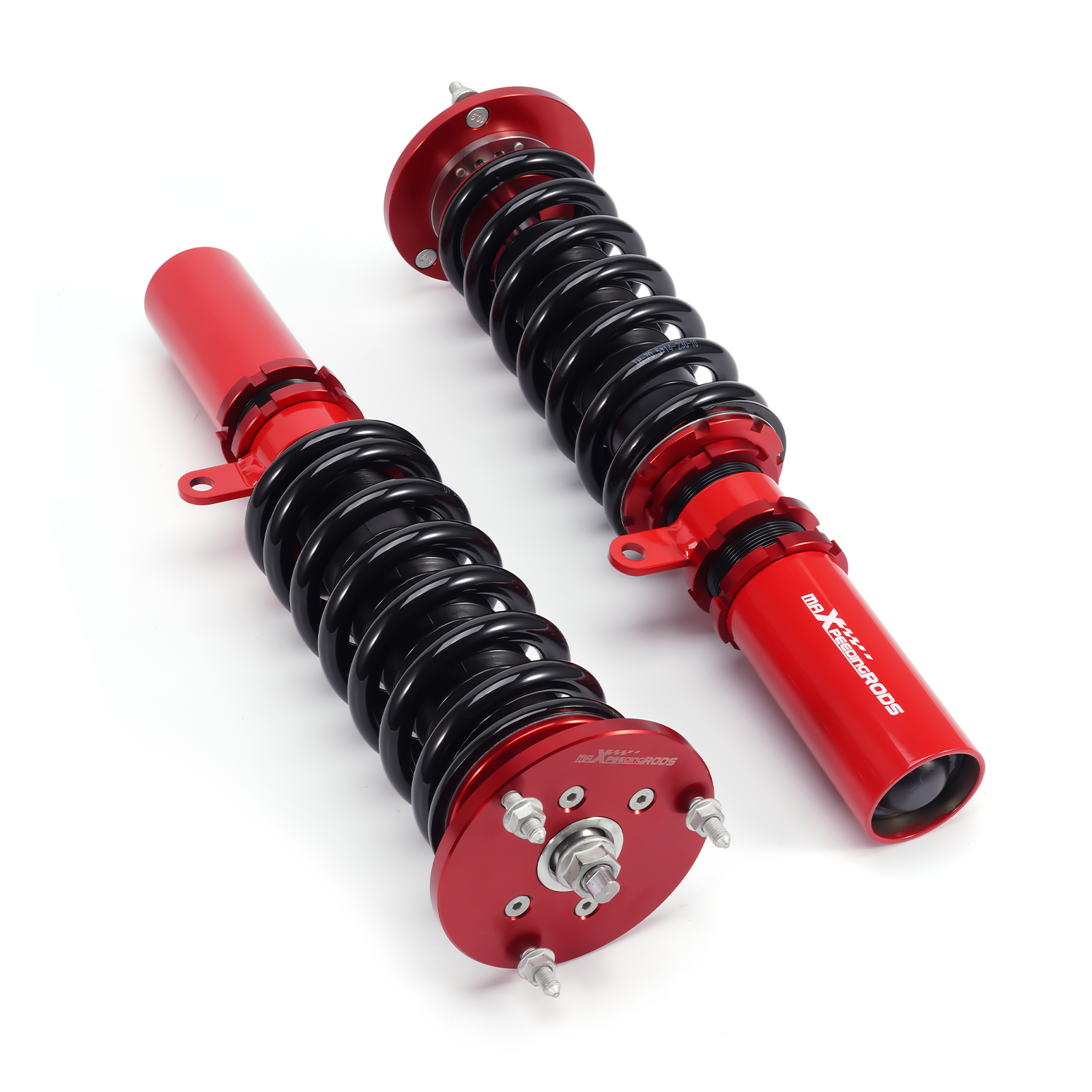

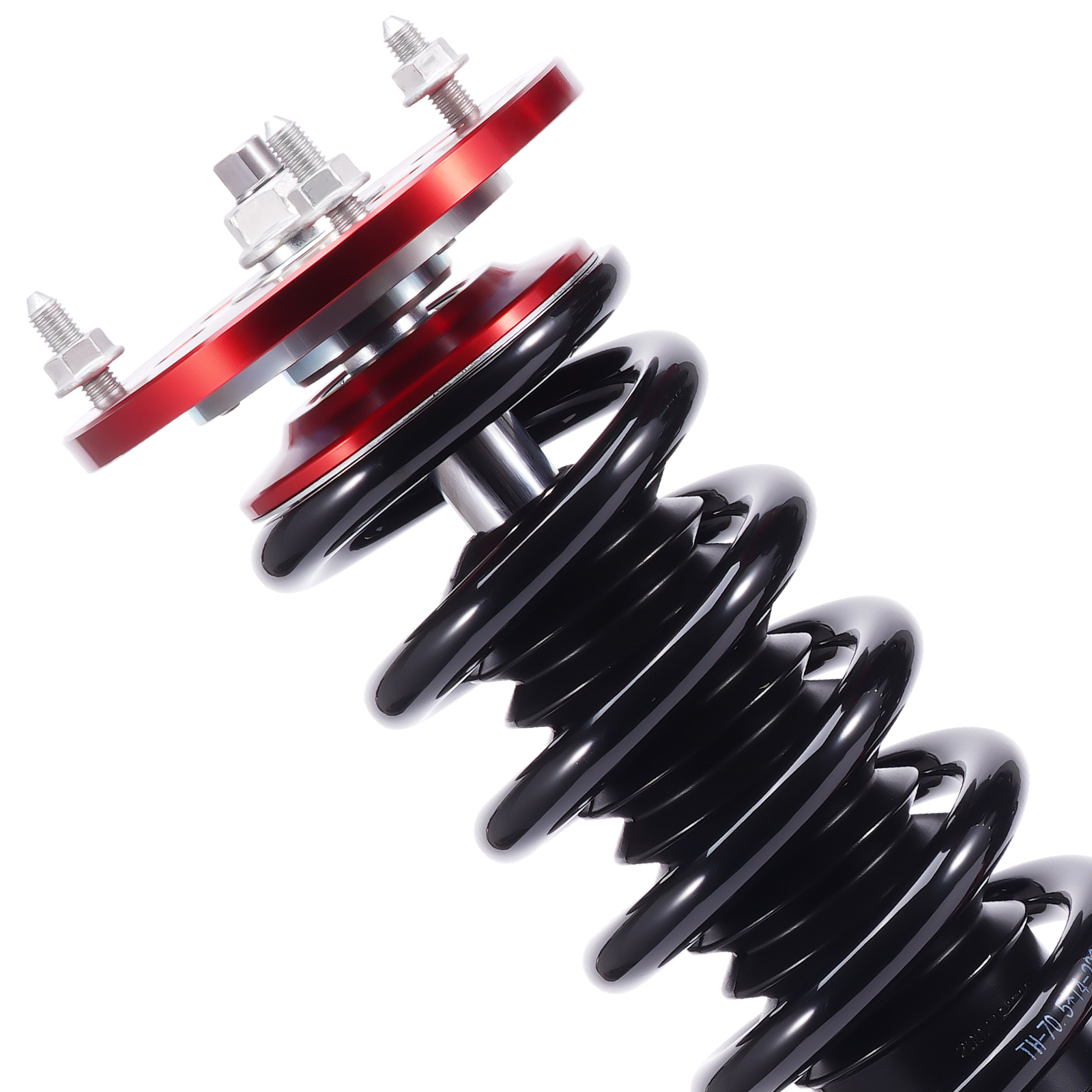

Coilover Shock Absorber For BMW 5 series E60 2004-2010 Sedan RWD 525i 528i 530i
Images
.jpg)
Notice:
Pick up service is not available.
| Toll IPEC Mine Zone Black List (The Parcel Cannot Reach) | ||||||||
| 6443 | 6215 | 6427 | 6230 | 6440 | 6225 | 6436 | 6646 | 6646 |
| 6233 | 6640 | 6612 | 6507 | 6642 | 6390 | 6435 | 6621 | 6415 |
| 6431 | 6438 | 6718 | 6999 | 6437 | 6426 | 6753 | 6639 | 6346 |
| 6537 | 6722 | 6754 | 6638 | 6714 | 6430 | 6751 | 6762 | 6555 |
| 6705 | 6330 | 6721 | ||||||
Introduction
MXR-B2 coil-overs are designed as entry-level for street use. It features height adjustable and adjustable camber plates (applicable for some vehicles), which offer you a lowered stance, and improved performance for your daily use vehicle.
Application
For BMW 5 series E60 2004-2010 Sedan RWD
Model: 520i,525i,528i,530i,535i,545i,550i,520d,525d,530d,535d
Note:
1. Will not fit M models.
2. The front damper knuckle insert diameter is 62mm.
Please verify the model and dimensions before purchasing to ensure compatibility.
Specifications
Damping adjustable: Not available
Camber adjustable: Not available
Front top mount: Pillow ball
Rear top mount: Standard rubber
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring Rate Front: 10 kg/mm(560 lbs/in)
Spring Rate Rear: 7 kg/mm(392 lbs/in)
Front spring inner diameter: 70.5 mm
Rear spring inner diameter: 70.5 mm
Spring length Front: 230 mm
Spring length Rear: 200 mm
Spring Preload advised: 7-10 mm
Color: Red body with black spring

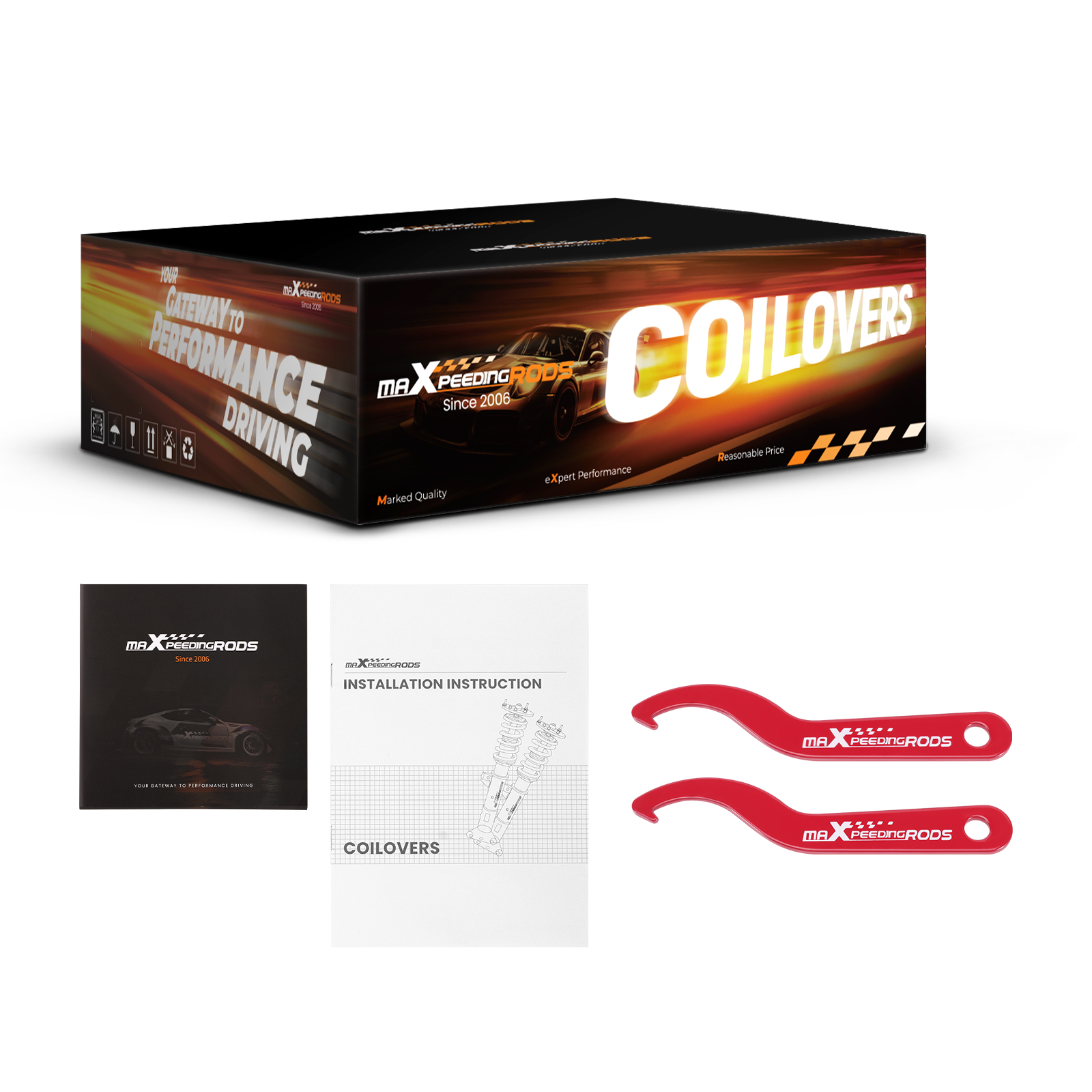

Package included

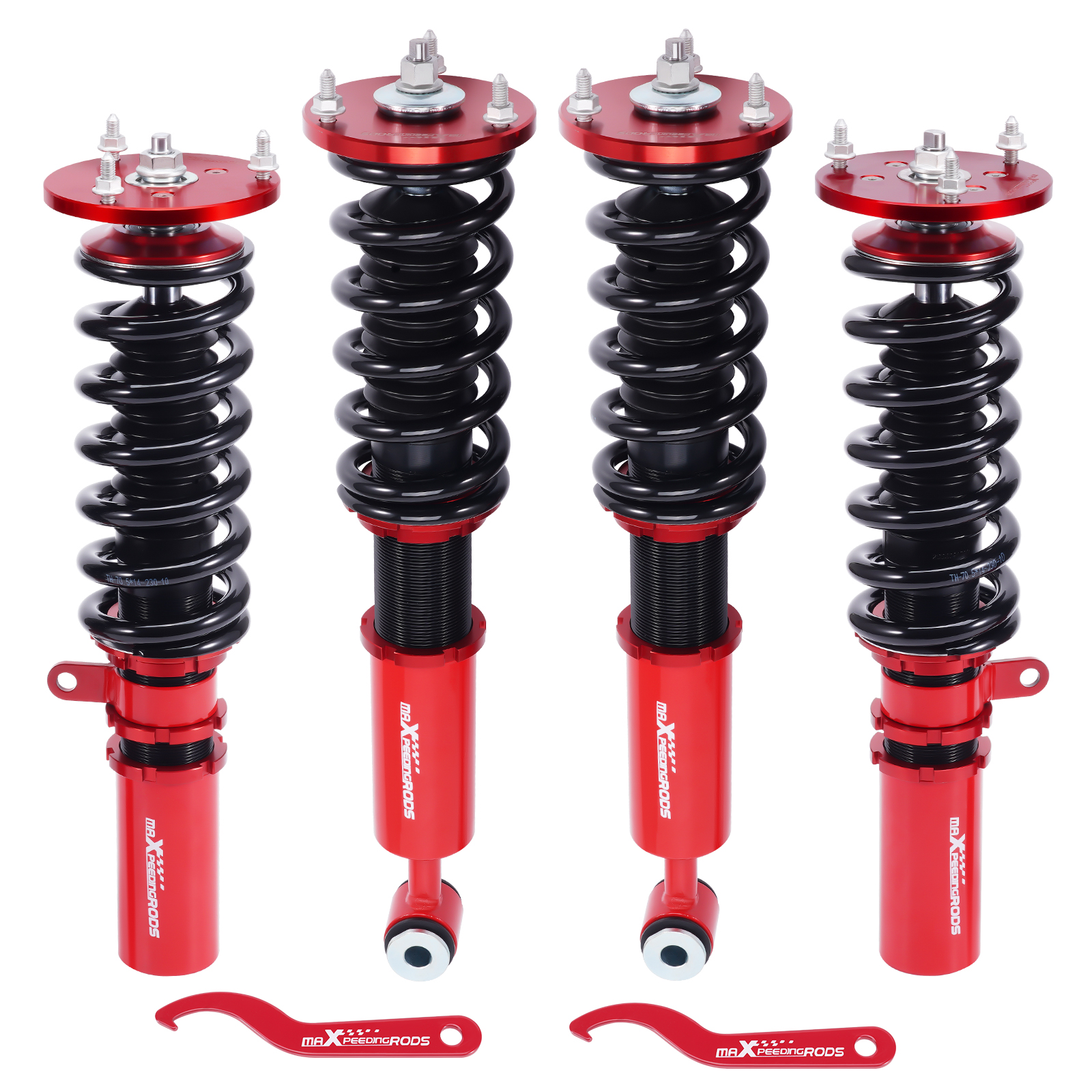

1 x Set of Coilover Spring Kit (2 Front + 2 Rear)
1 x Pair of wrenches for height adjustment
Dimension
Package size: 71*51*21 cm
Weight: 25420 g
Features
1. Lowered height adjustment from 25-75mm (depends on vehicle models)which allows a lower center of gravity and also add a more aggressive stance
2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

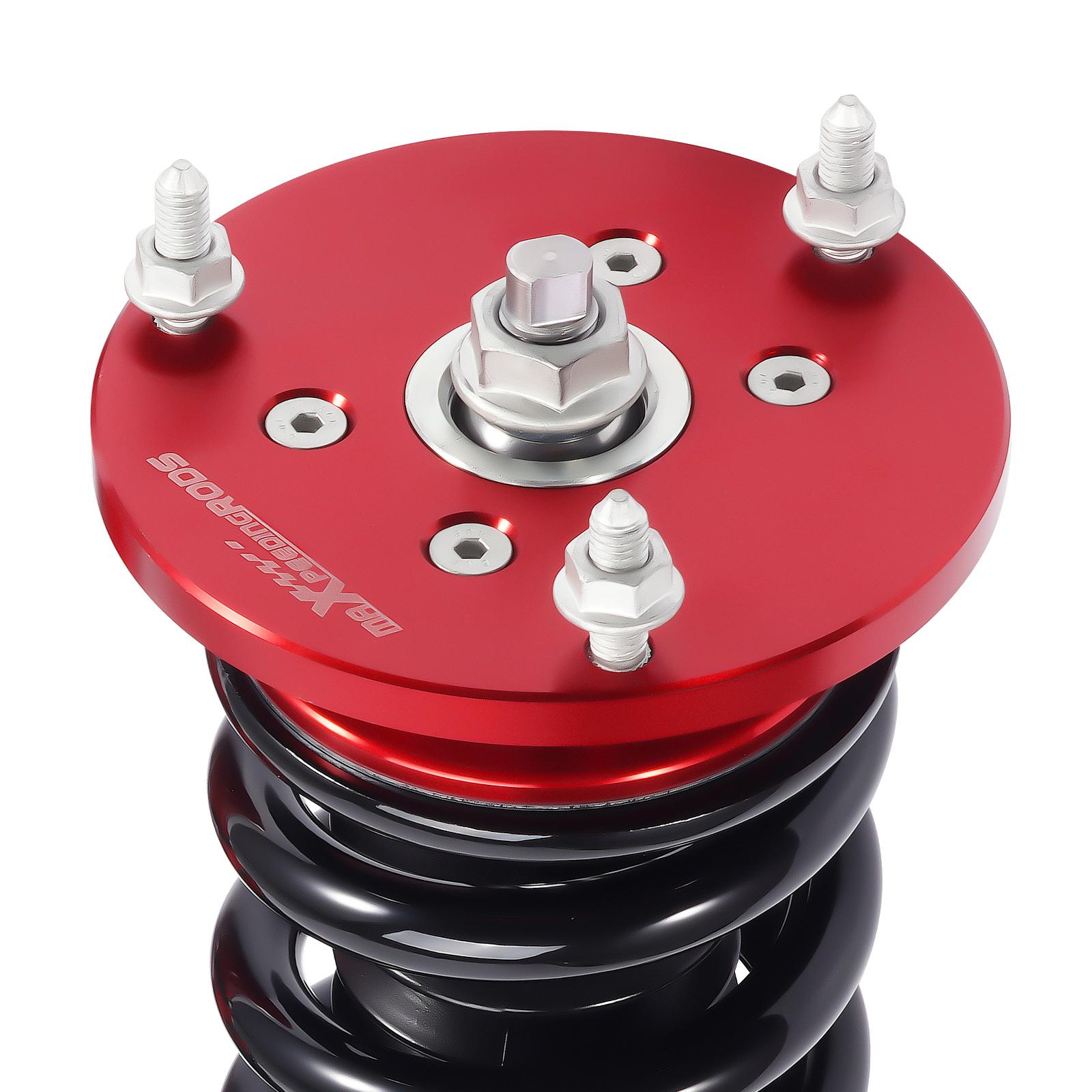

3. Adjustable Camber Plate and Pillow ball top mount for sharpening steering response.( for some models)
4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight
5. Heavy Duty Steel Lower Mounts--- Highly Durable & Reliable
6. High tensile spring--- 600,000 times continuously test to assure its high tensile strength.
7. All inserts come with fitted long rubber boots--- To protect the damper better and be durable.
8. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions
9. Corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts
Notice
1. Installation Requirement: Use spacers to prevent movement of rubber boots when installing eye-type coilovers.
2. Regular Inspection: Rubber boots typically last 1-3 years, depending on factors such as vehicle weight, road conditions, climate, and driving habits. Inspect them every six months or during routine maintenance, and replace them immediately if any damage or signs of aging are observed.
3. Warranty Coverage Notice: Normal wear and tear on rubber components is not covered by warranty.
