LED Screw Terminal Hat
Product Description
LED Screw Terminal Hat for Raspberry Pi is a GPIO expansion board which is for easy connecting to the 40-Pins GPIO of Raspberry Pi and it can be observing the Pin status via LED indicators, once the GPIO has level changed, the led indicator will be blinking.
Product Features
- Easy to assemble

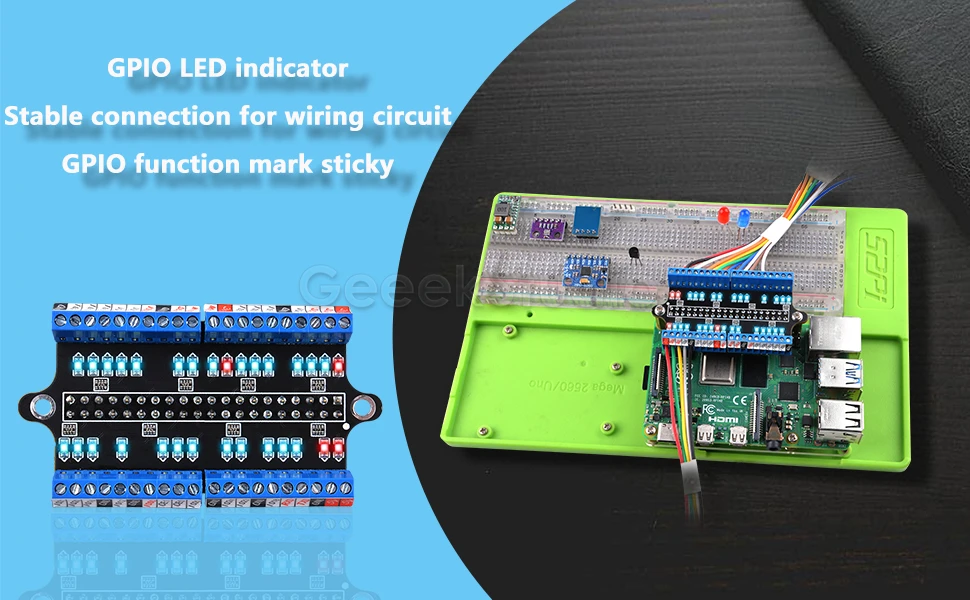

- GPIO LED indicator
- Screw terminal
- Stable connection for wiring circuit
- GPIO function mark sticky

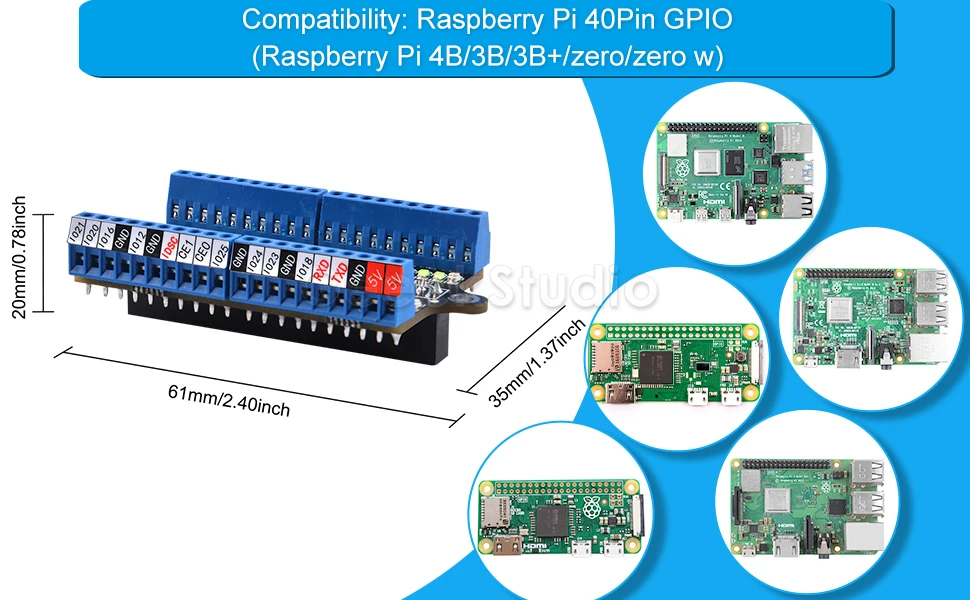

- Compatibility: Raspberry Pi 40Pin GPIO (Raspberry Pi 4B/3B/3B+/zero/zero w/zero 2w)
Specifications
- GPIO status LED and power 5V / 3.3V indication.
- GPIO output level high LED on, output level low LED off.
- 5V Red , 3.3V Red, GPIOs Light blue.
- The driving current of each LED is 4-6mA.
- Terminal block pitch 2.54mm/0.1", wire size range 28AWG to 18AWG, strip length 4.5mm, screw M1.6 steel, pin header and cage copper.
- 2x20 positions header connect to Raspberry Pi board
- FR-4 fiber glass PCB, dual copper layers.
- M2.5 Mounting Hole
- Dimension: 61mm x 35mm x 20mm

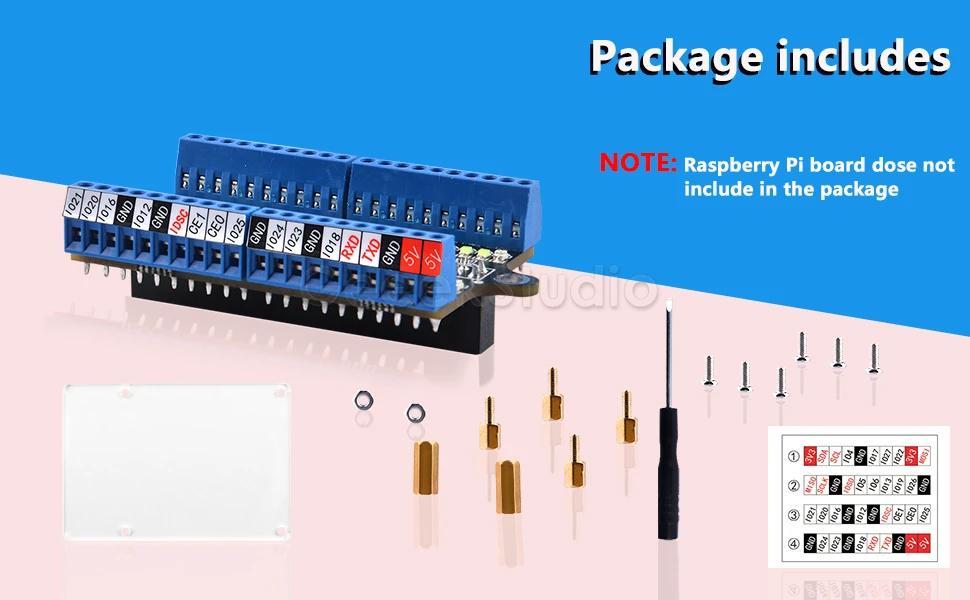

Package Includes
Raspberry Pi board is not included!
Technical Support
https://wiki.52pi.com/index.php?title=EP-0168
