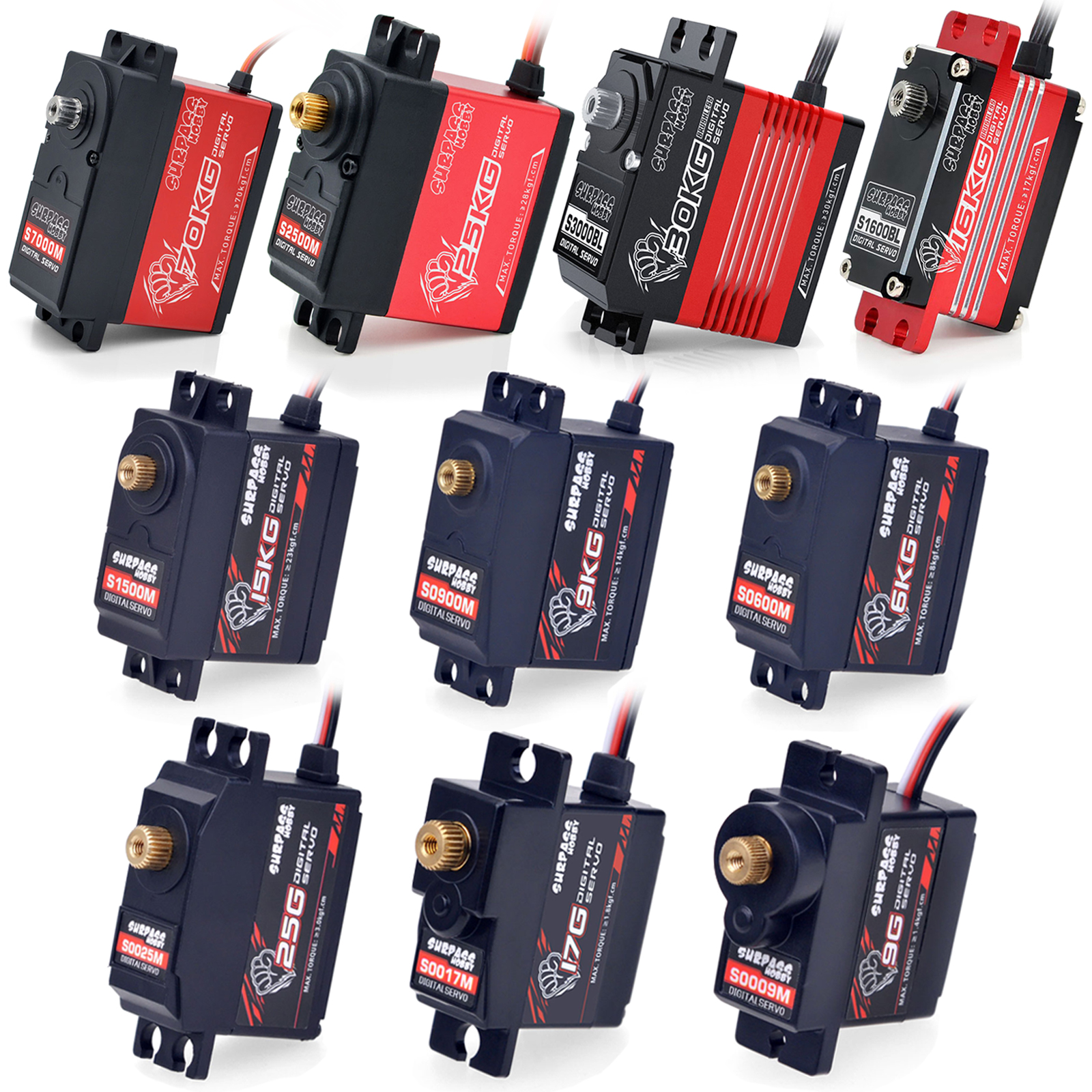

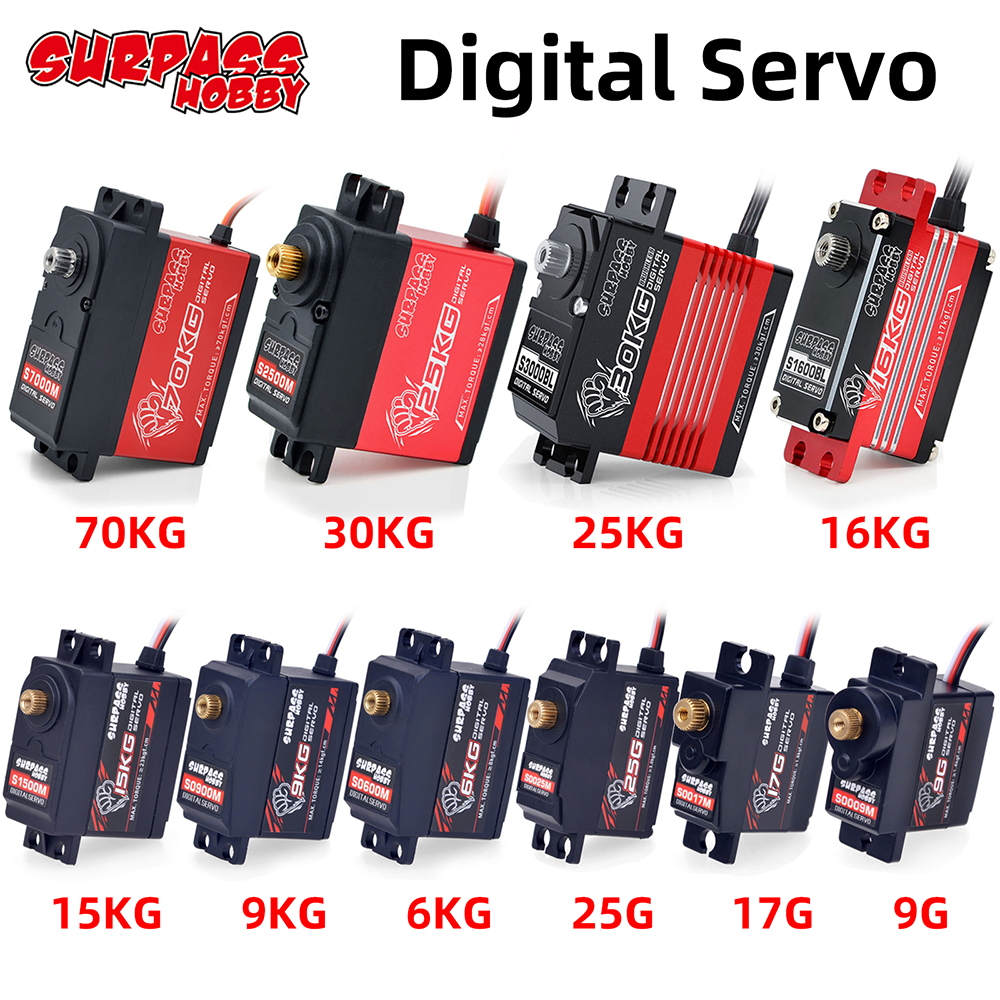

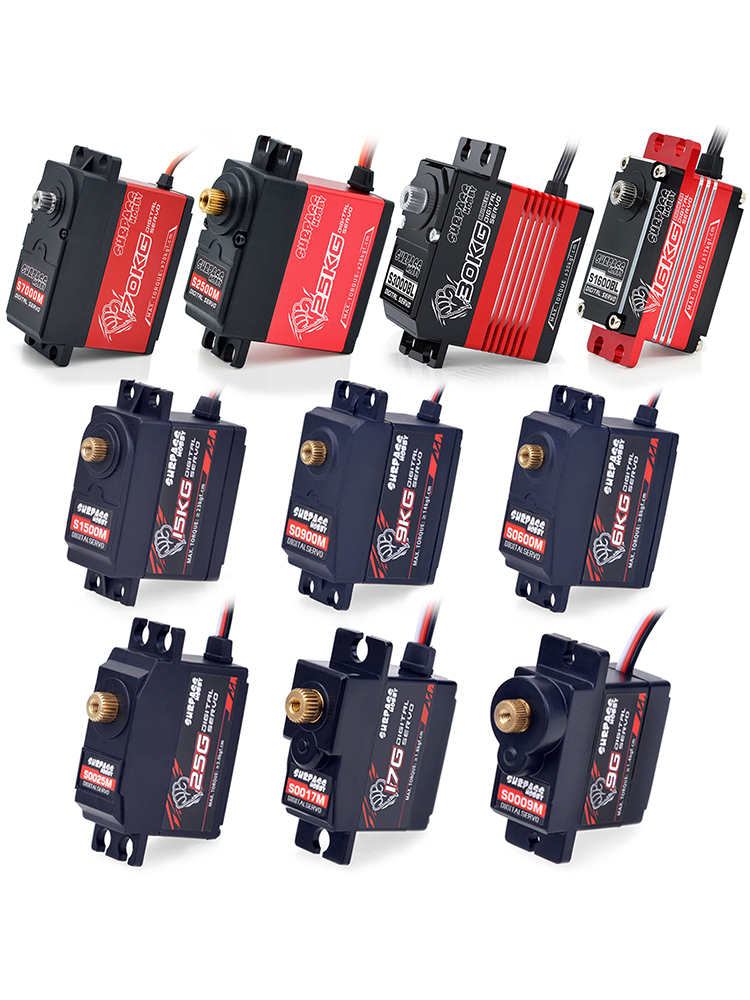

Digital Servo 9g 17g 25g 6kg 9kg 15kg 16kg 20kg 23kg 24kg 25kg 30kg 70kg for 1/24 1/18 1/16 1/12 1/10 1/8 1/7 1/5 RC Car Boat

Features:
- High precision Gears.
- High performance digital servo.
- Low noise.
- Large Torque.

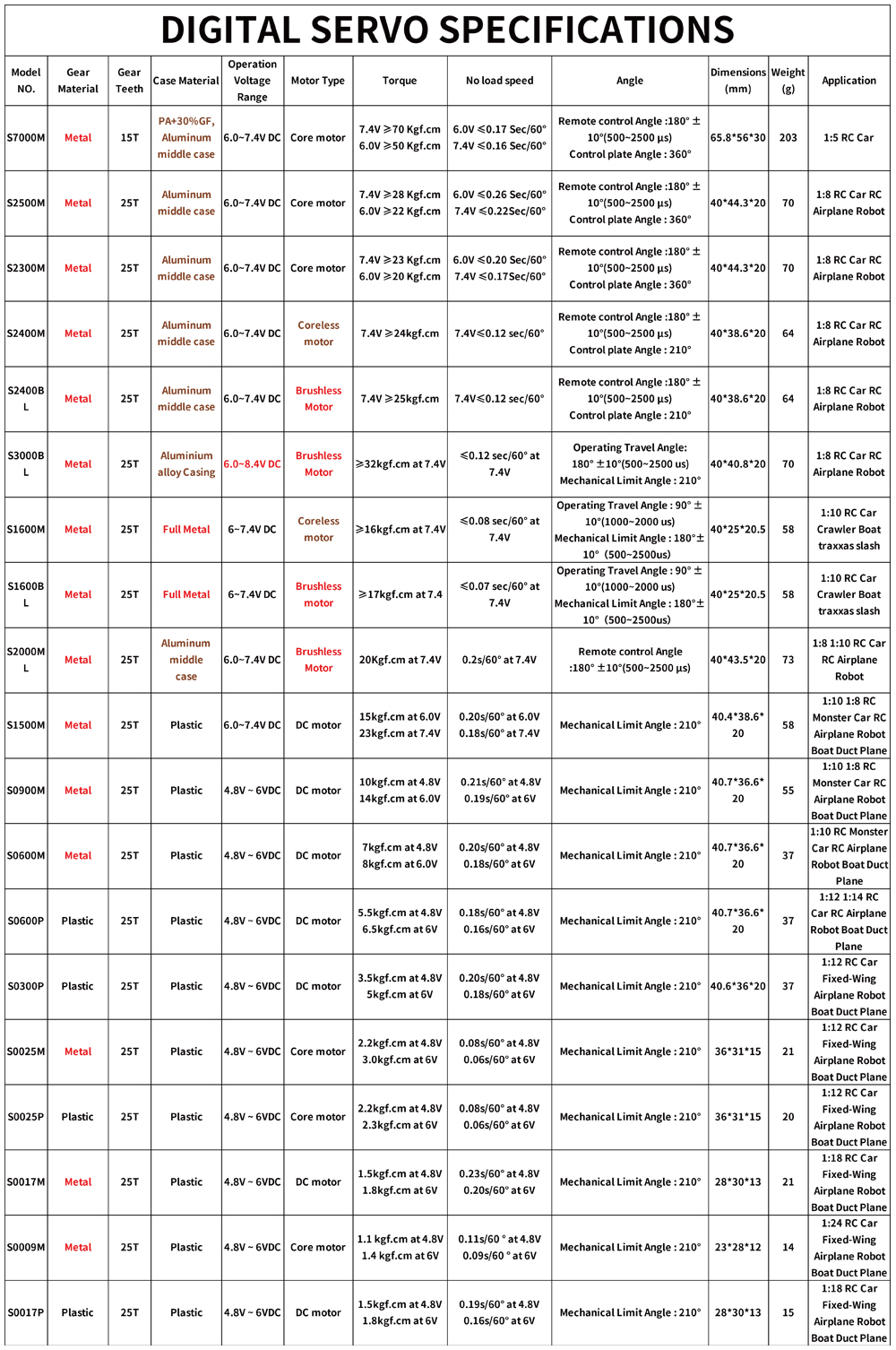

Specifications:
Brand：Surpass Hobby

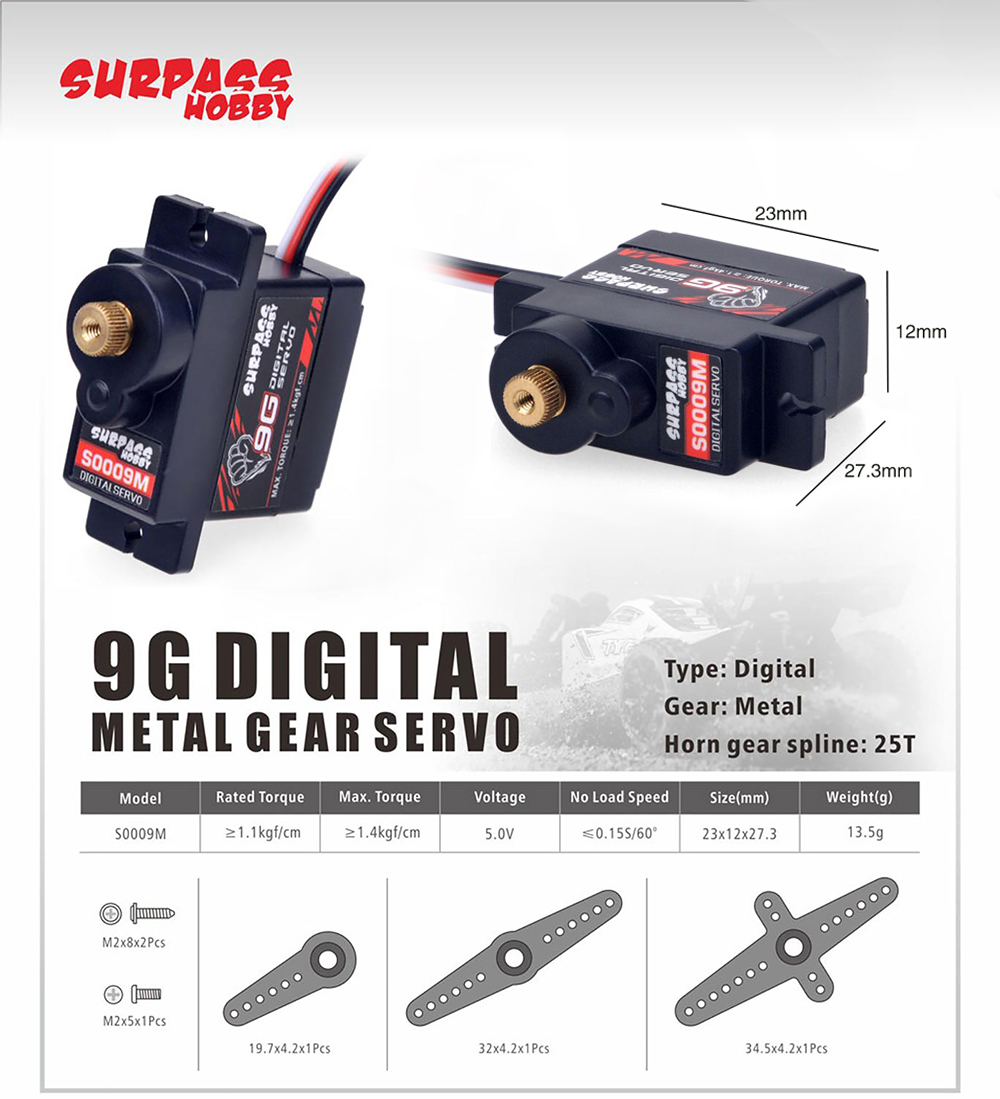

S0009M
Torque: 1.1 kgf.cm at 4.8V; 1.4 kgf.cm at 6V;
No load speed: 0.11s/60 ° at 4.8V; 0.09s/60 ° at 6V;
Product weight: 13.5g (0.47oz);
Boundary dimension: 23 * 12 * 27.3mm (0.92 * 0.48 * 1.07inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: core motor;
Gear type: metal gear;

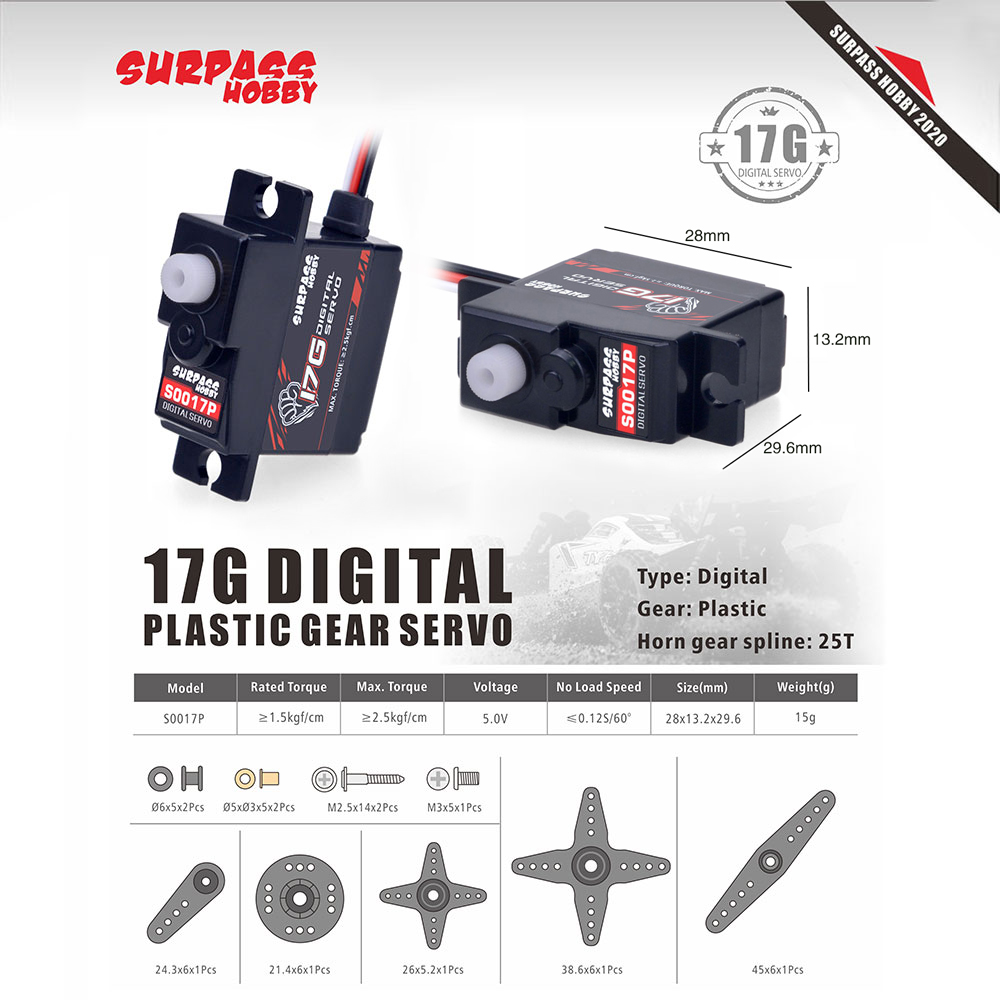

S0017P
Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;
No load speed: 0.19s/60° at 4.8V; 0.16s/60° at 6V;
Product weight: 15g(0.53oz);
Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Plastic gear;

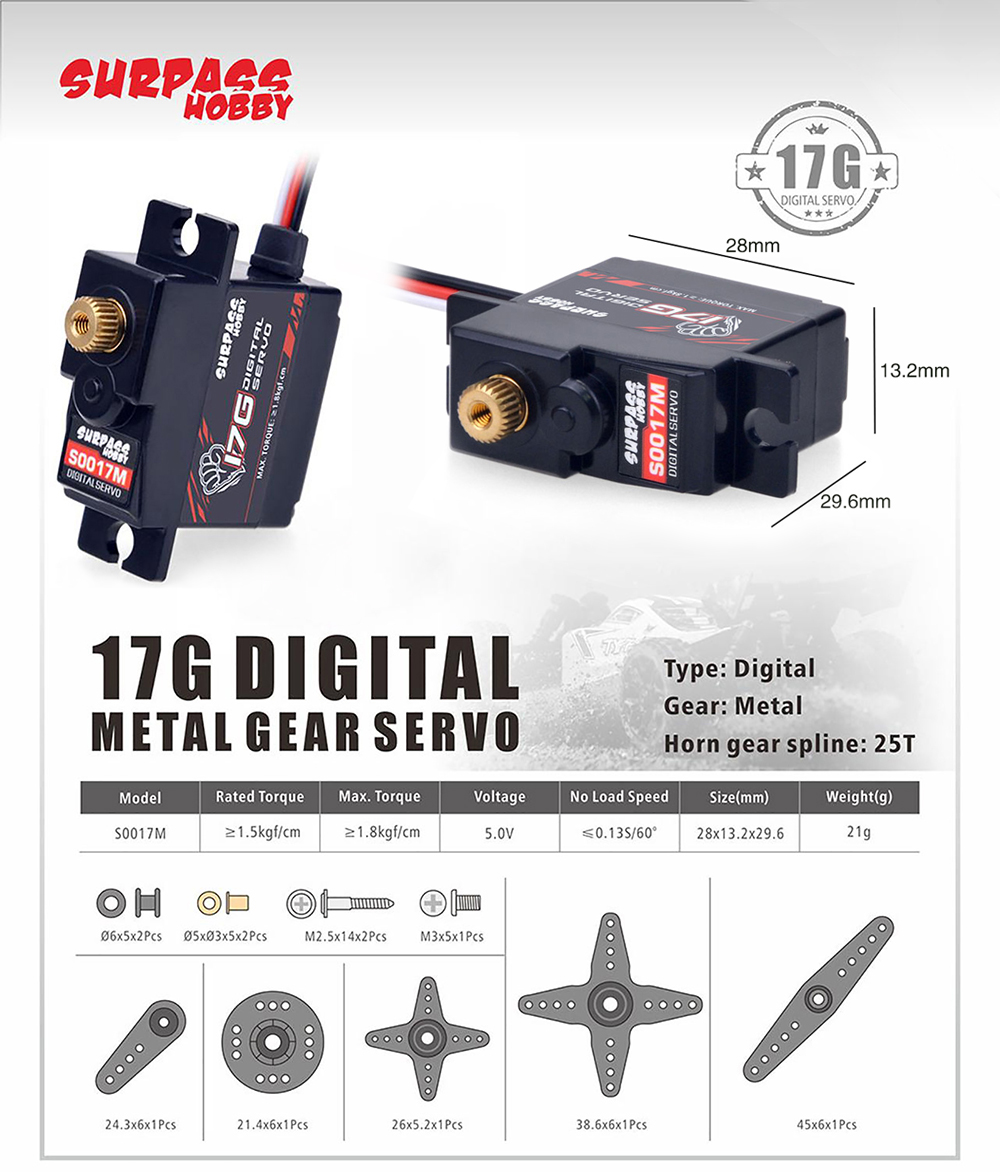

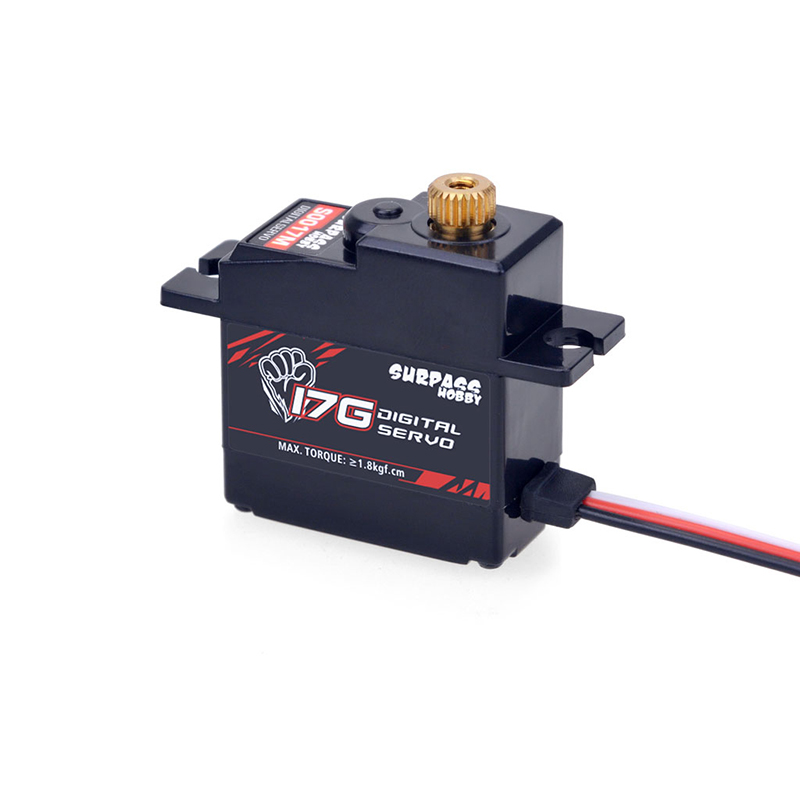

S0017M
Torque: 1.5kgf.cm at 4.8V; 1.8kgf.cm at 6V;
No load speed: 0.23s/60° at 4.8V; 0.20s/60° at 6V;
Product weight: 21g (0.74oz);
Boundary dimension: 28*13.2*29.6mm (1.1*0.52*1.2 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Metal gear;

S0025P
Torque: 2.2kgf.cm at 4.8V; 2.3kgf.cm at 6V;
No load speed: 0.08s/60° at 4.8V; 0.06s/60° at 6V;
Product weight: 20g(1.05oz);
Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: core motor;
Gear type: Plastic gear;
Bearing type: 2BB;

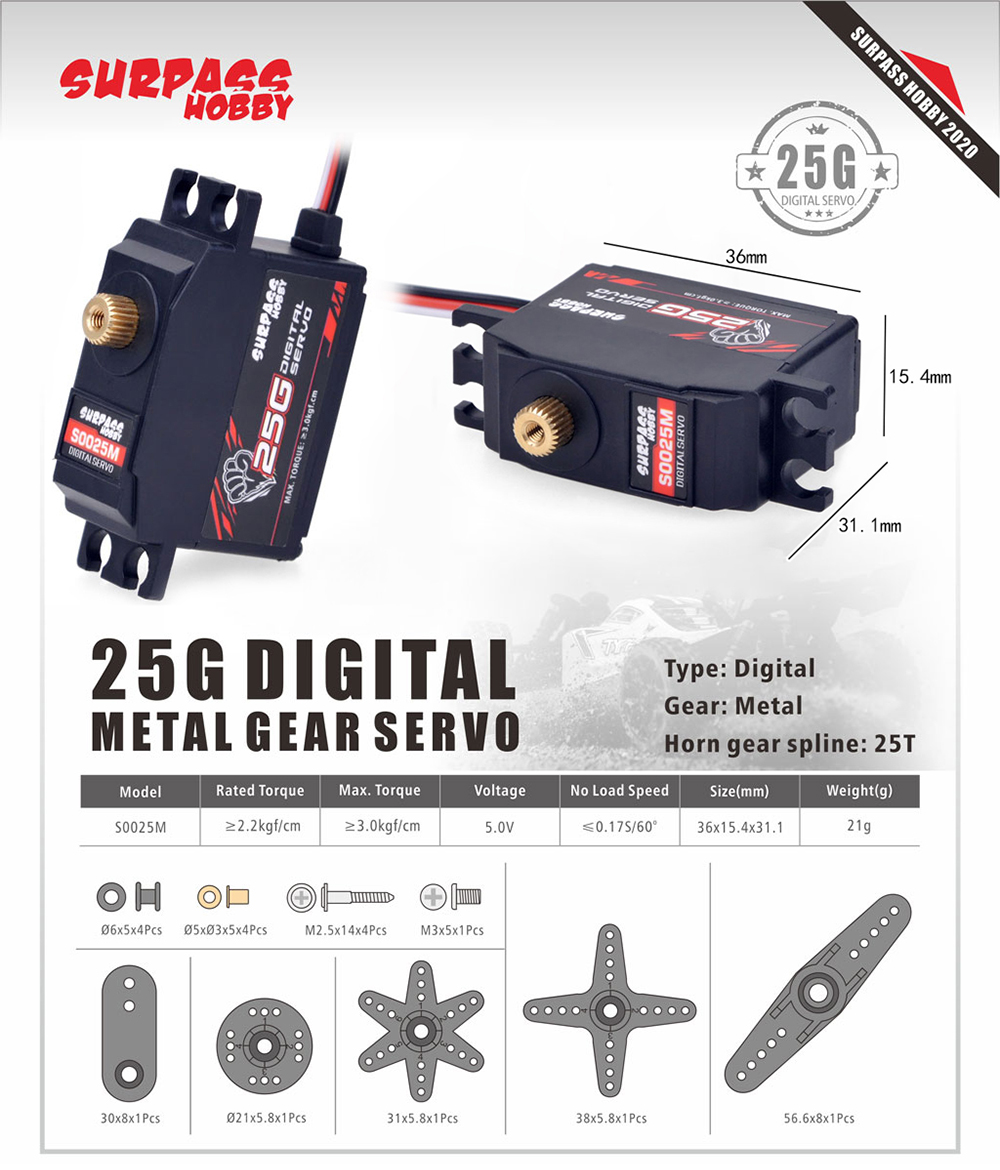

S0025M
Torque: 2.2kgf.cm at 4.8V; 3.0kgf.cm at 6V;
No load speed: 0.08s/60° at 4.8V; 0.06s/60° at 6V;
Product weight: 21g(1.05oz);
Boundary dimension: 36*15.4*31.1mm (1.41*0.60*1.22 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: core motor;
Gear type: metal gear;
Bearing type: 2BB;

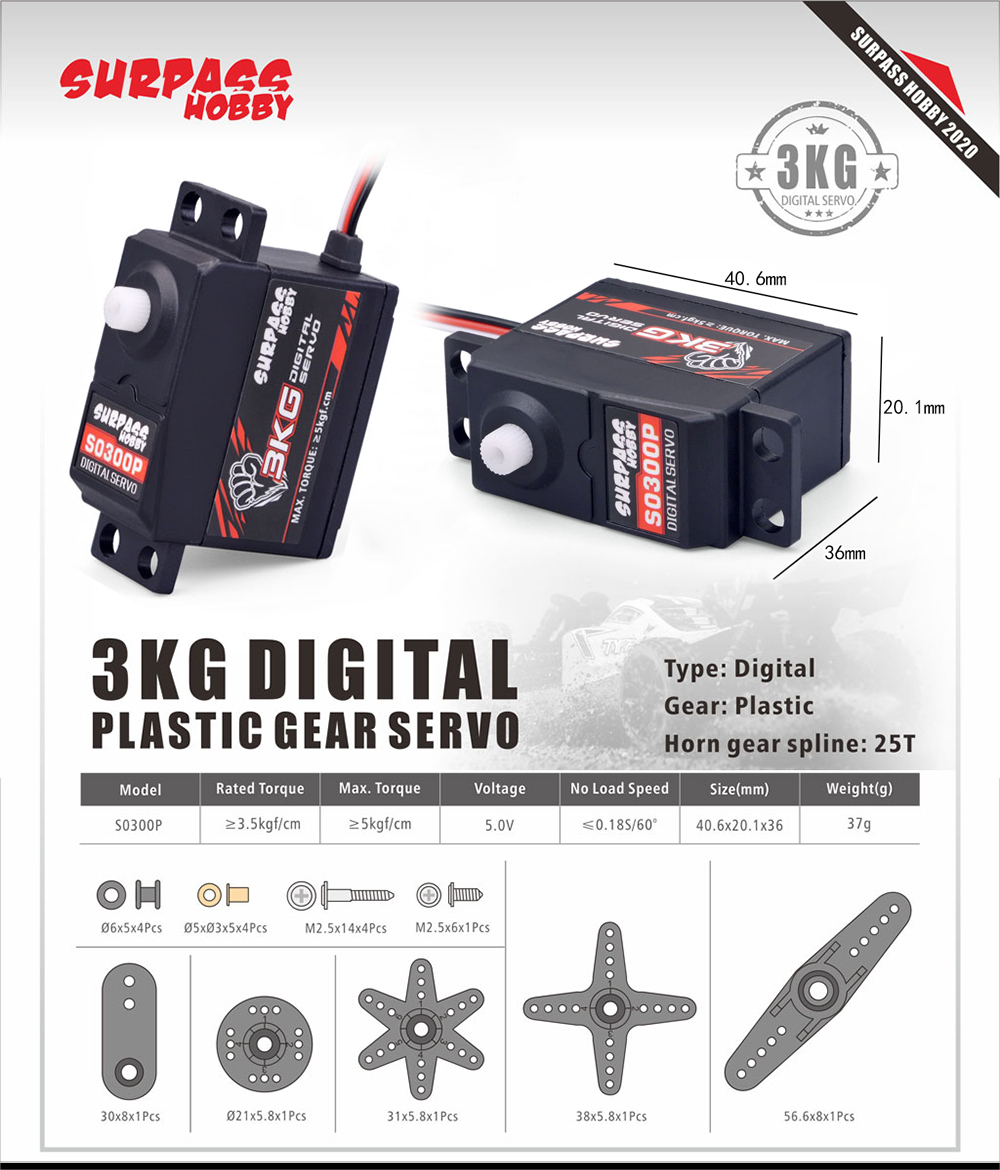

S0300P
Torque: 3.5kgf.cm at 4.8V; 5kgf.cm at 6V;
No load speed: 0.20s/60° at 4.8V; 0.18s/60° at 6V;
Product weight: 37g (1.3oz);
Boundary dimension: 40.6*20.2*36.0mm (1.60*0.78*1.42 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Plastic gear;
Bearing type: 2BB;

S0600P
Torque: 5.5kgf.cm at 4.8V; 6.5kgf.cm at 6V;
No load speed: 0.18s/60° at 4.8V; 0.16s/60° at 6V;
Product weight: 37g (1.3oz);
Boundary dimension: 40.7*20.2*36.6mm (1.60*0.79*1.44 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Plastic gear;
Bearing type: 1BB;

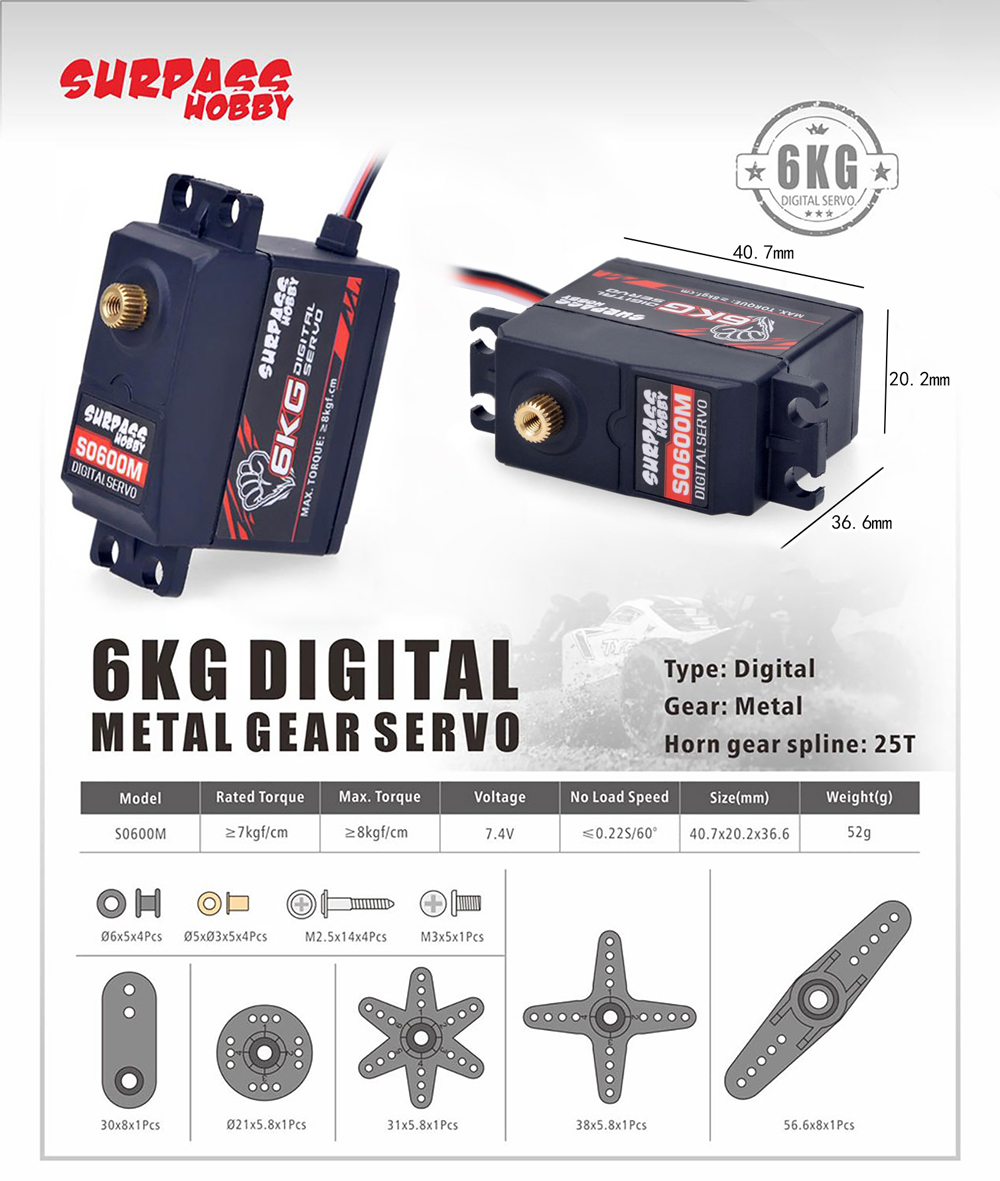

S0600M
Torque: 7kgf.cm at 4.8V; 8kgf.cm at 6.0V;
No load speed: 0.20s/60° at 4.8V; 0.18s/60° at 6V;
Product weight: 37g (1.3oz);
Boundary dimension: 40.6*20.2*36.6mm (1.60*0.78*1.44 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
Bearing type: 2BB;

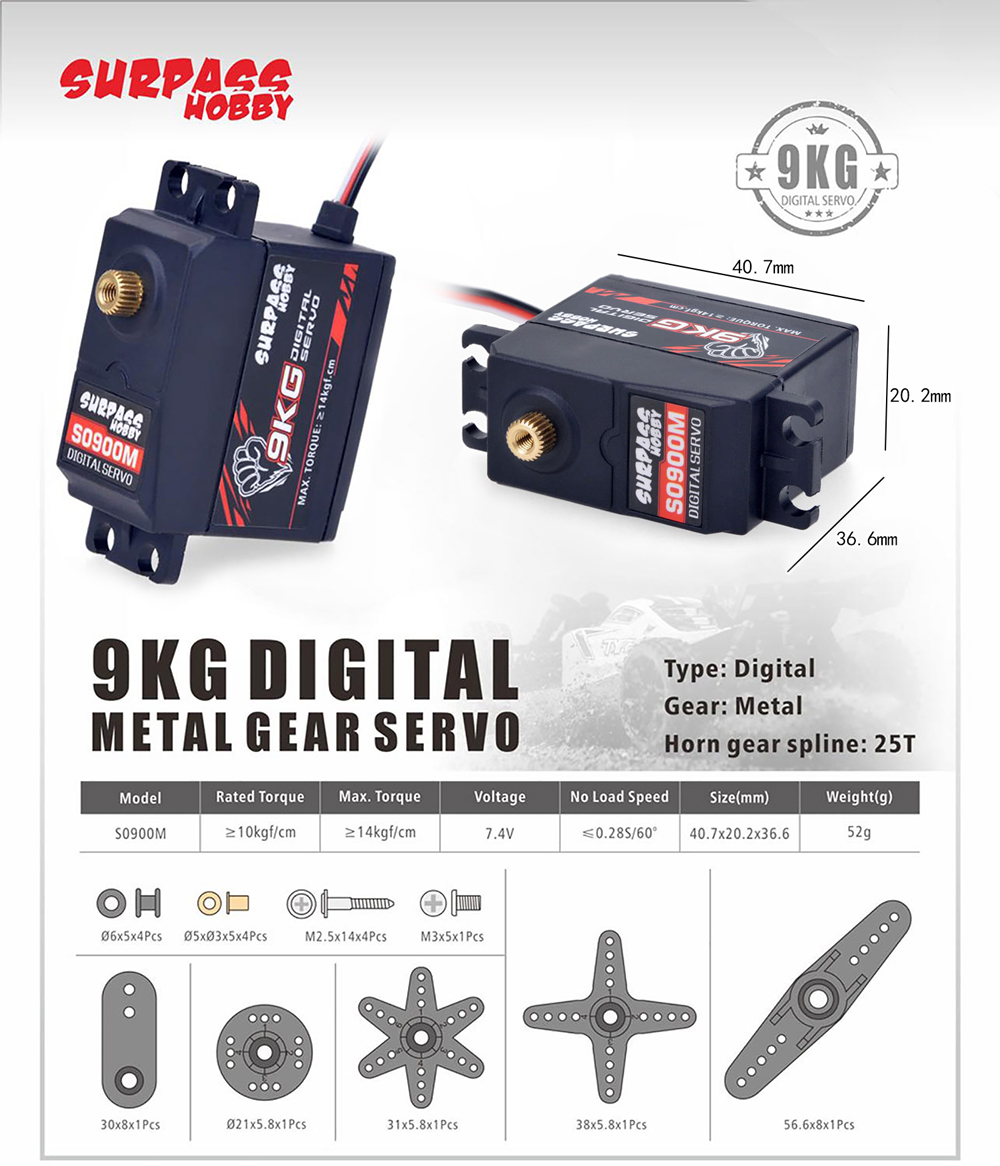

S0900M
Torque: 10kgf.cm at 4.8V; 14kgf.cm at 6.0V;
No load speed: 0.21s/60° at 4.8V; 0.19s/60° at 6V;
Product weight: 55g (1.94oz);
Boundary dimension: 36.6*20.2*40.7mm (1.44*0.79*1.60 inch);
Operating voltage: 4.8V ~ 6VDC;
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
Bearing type: 2BB;

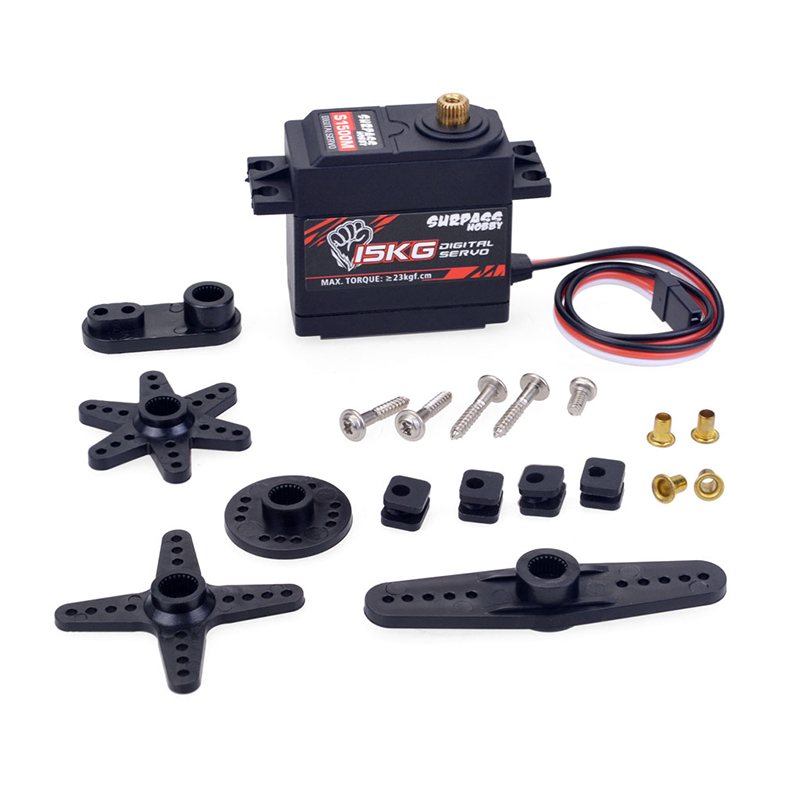

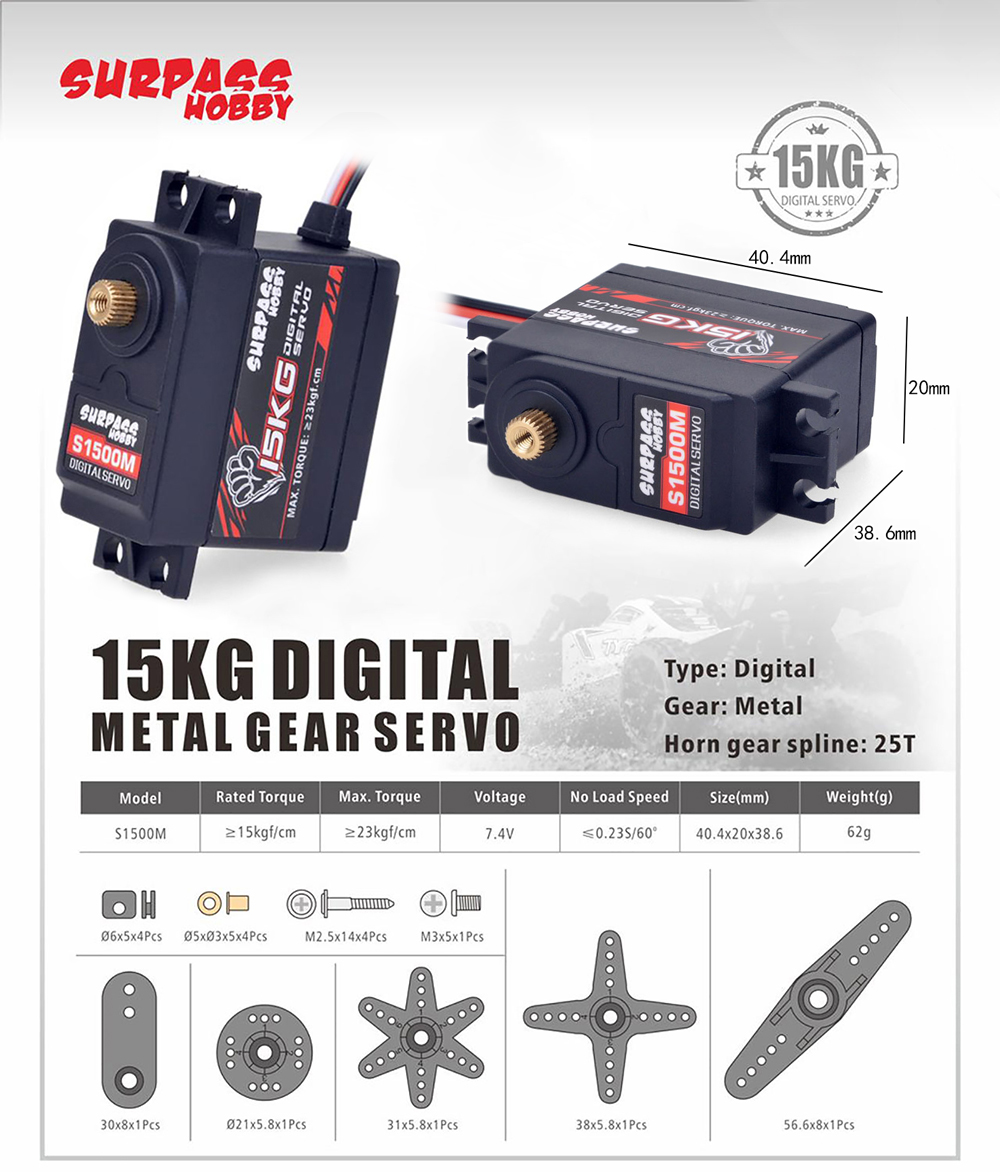

S1500M
Torque: 15kgf.cm at 6.0V; 23kgf.cm at 7.4V;
No load speed: 0.20s/60° at 6.0V；0.18s/60° at 7.4V
Product weight: 58g(2.11oz)
Boundary dimension:40.4*20.0*38.6mm（1.59*0.79*1.51 inch）
Operating voltage: 6.0~7.4VDC
Working frequency: 1520 μ s / 333hz;
Motor type: DC motor;
Gear type: Metal gear;
Bearing type: 2BB;

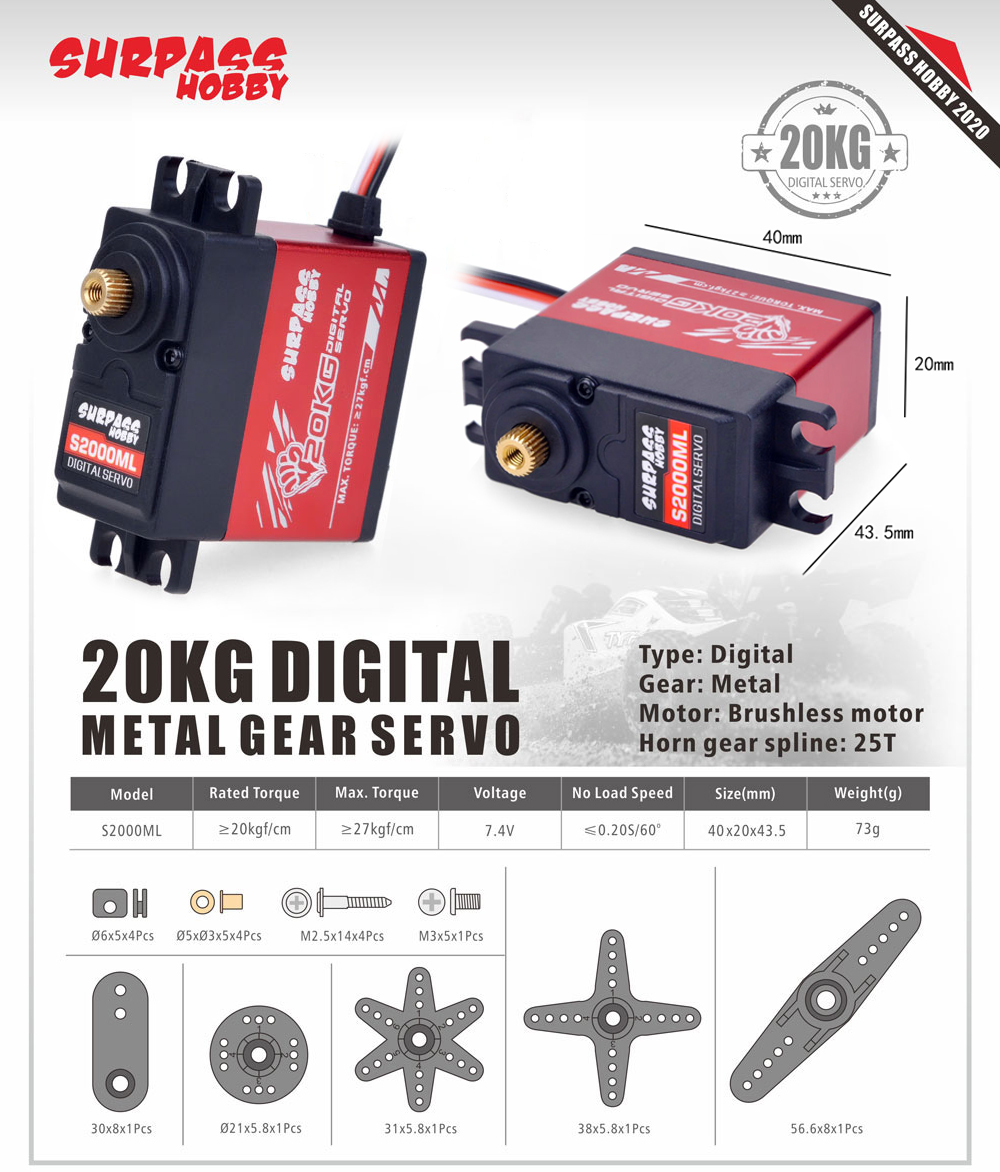

S2000ML
Stall Torque: 20Kgf.cm at 7.4V;
No Load Speed：0.2s/60° at 7.4V；
Weight : 58g(2.11oz);
Outside Dimension: 40.4*43.5*20mm;
Working Voltage: 7.4VDC;
Working Frequency:1500μs/333Hz；
Gears Type : Metal Gear
Bearing Type:2BB

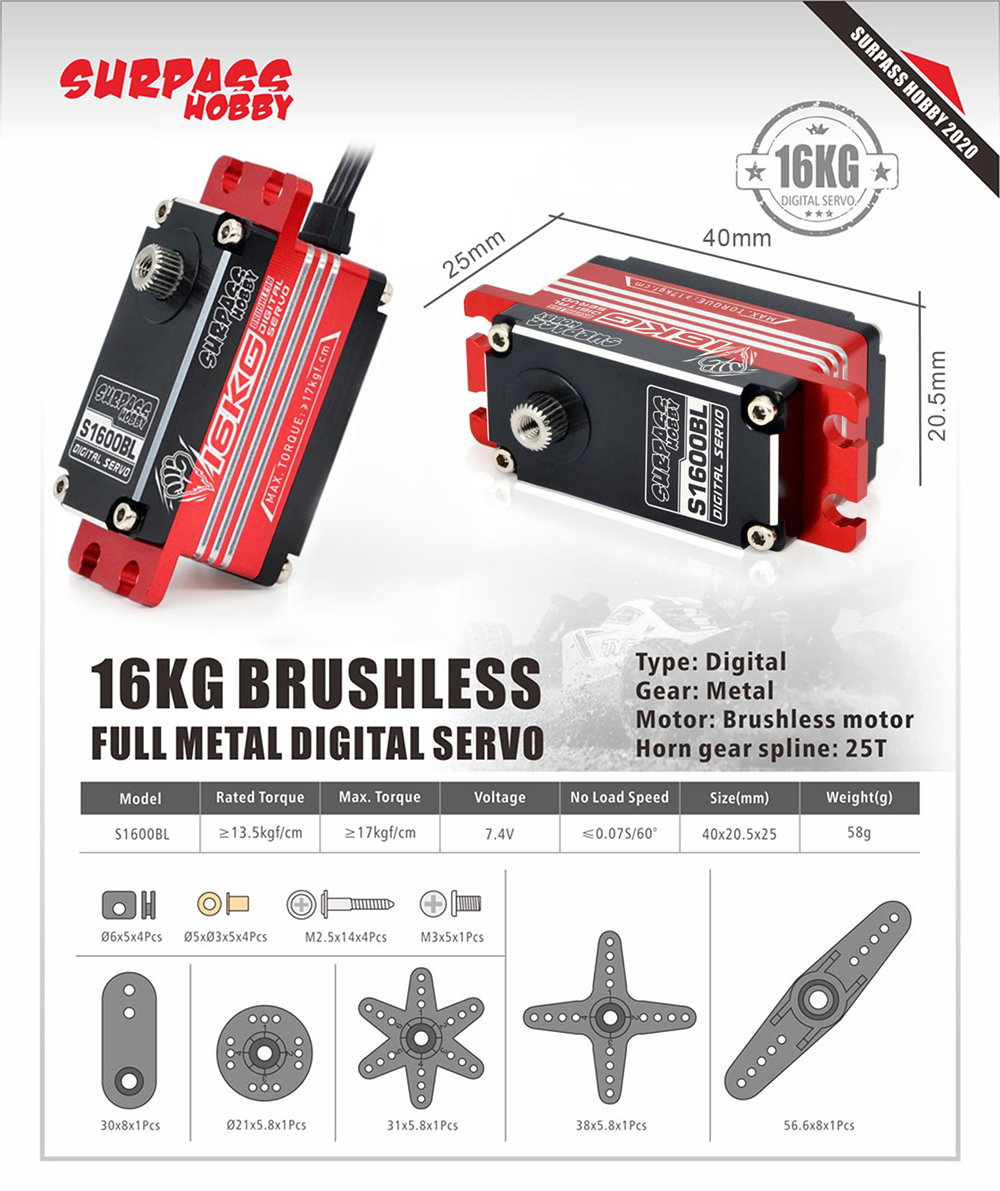

S1600BL
Stall Torque: ≥17kgf.cm at 7.4
Operating Voltage: 6~7.4V DC
No Load Speed： ≤0.07 sec/60° at 7.4
Operating Travel Angle : 90° ±10°(1000~2000 us)
Mechanical Limit Angle : 180°±10°（500~2500us）
Weight : 58±0.5 g
Case Material : Metal Casing
Gear Set Material : Metal Gears
Motor Type : Brushless motor

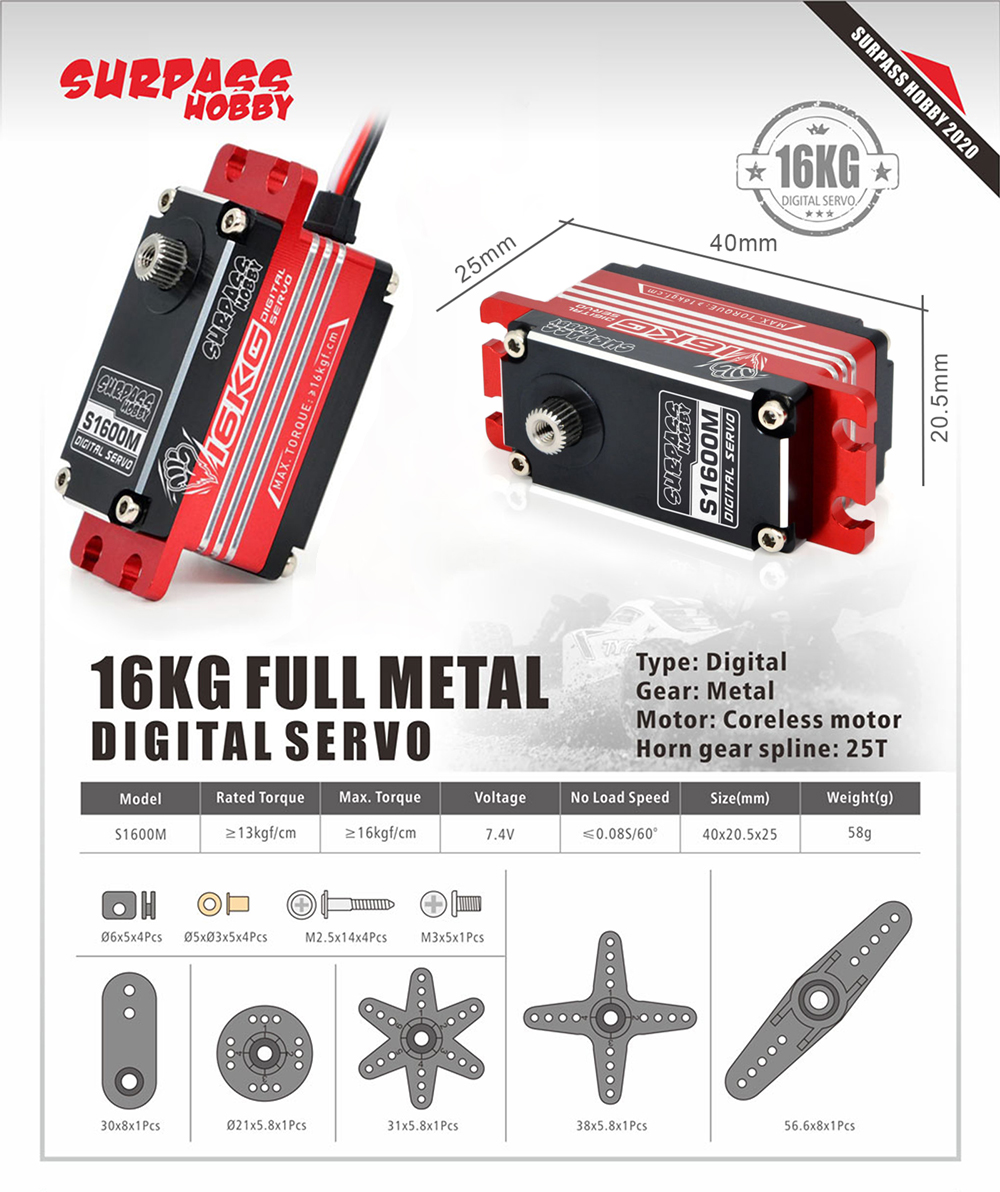

S1600M
Stall Torque: ≥16kgf.cm at 7.4V
Operating Voltage: 7~7.4V DC
No Load Speed： ≤0.08 sec/60° at 7.4V
Operating Travel Angle : 90° ±10°(1000~2000 us)
Mechanical Limit Angle : 180°±10°（500~2500us）
Weight : 58±0.5 g
Case Material : Metal Casing
Gear Set Material : Metal Gears
Motor Type : Coreless motor

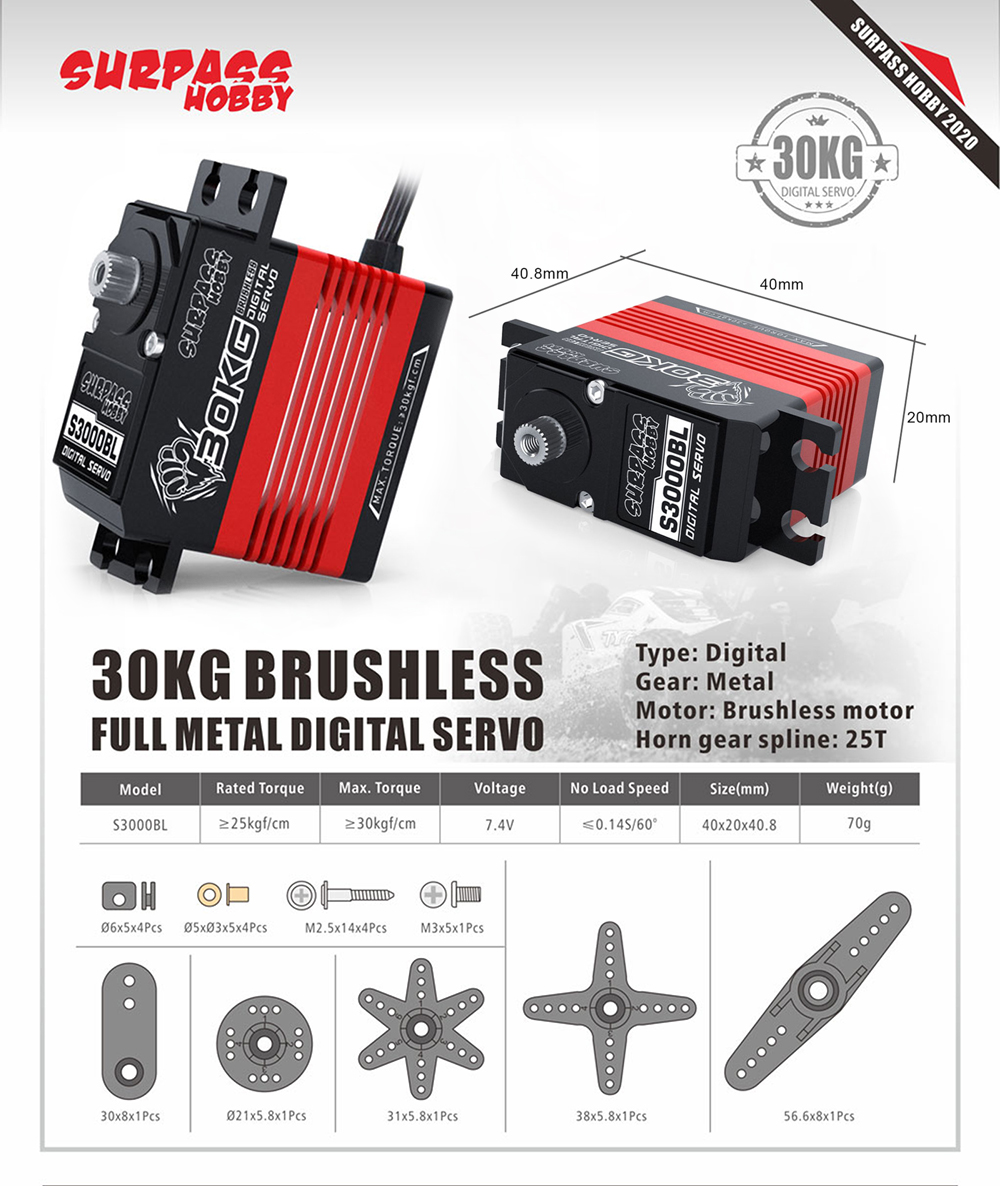

S3000BL
Stall Torque: ≥32kgf.cm at 7.4V
Operating Voltage: 6.0~8.4V DC
No Load Speed: ≤0.12 sec/60° at 7.4V
Rated Torque: 7kgf.cm at 7.4V
Operating Travel Angle : 180° ±10°(500~2500 us)
Mechanical Limit Angle : 210°
Weight : 70±0.5 g
Rotating Direction* : CCW（1000→2000μs）
Case Material : Aluminium alloy Casing
Gear Set Material : Metal Gears
Motor Type : Brushless Motor

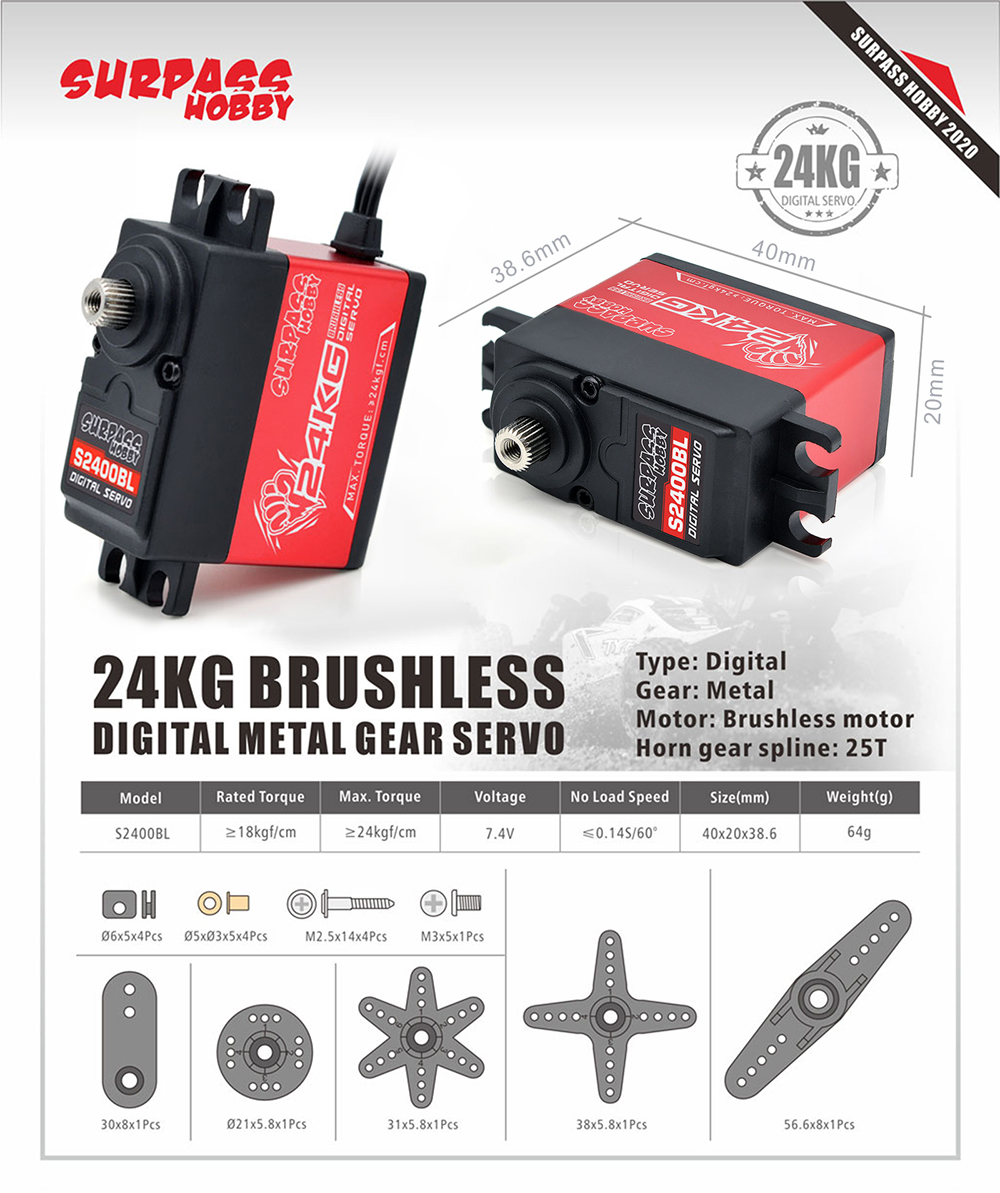

S2400BL
Stall Torque: ≥25kgf.cm at 7.4V
Operating Voltage: 6.0~7.4V DC
No Load Speed： ≤0.12 sec/60° at 7.4V
Operating Travel Angle : 180° ±10°(500~2500 us)
Mechanical Limit Angle : 210°
Weight : 64±0.5 g
Rotating Direction* : CCW（1000→2000μs）
Case Material : PA+30%GF/Aluminium alloy Casing
Gear Set Material : Metal Gears
Motor Type : Brushless Motor

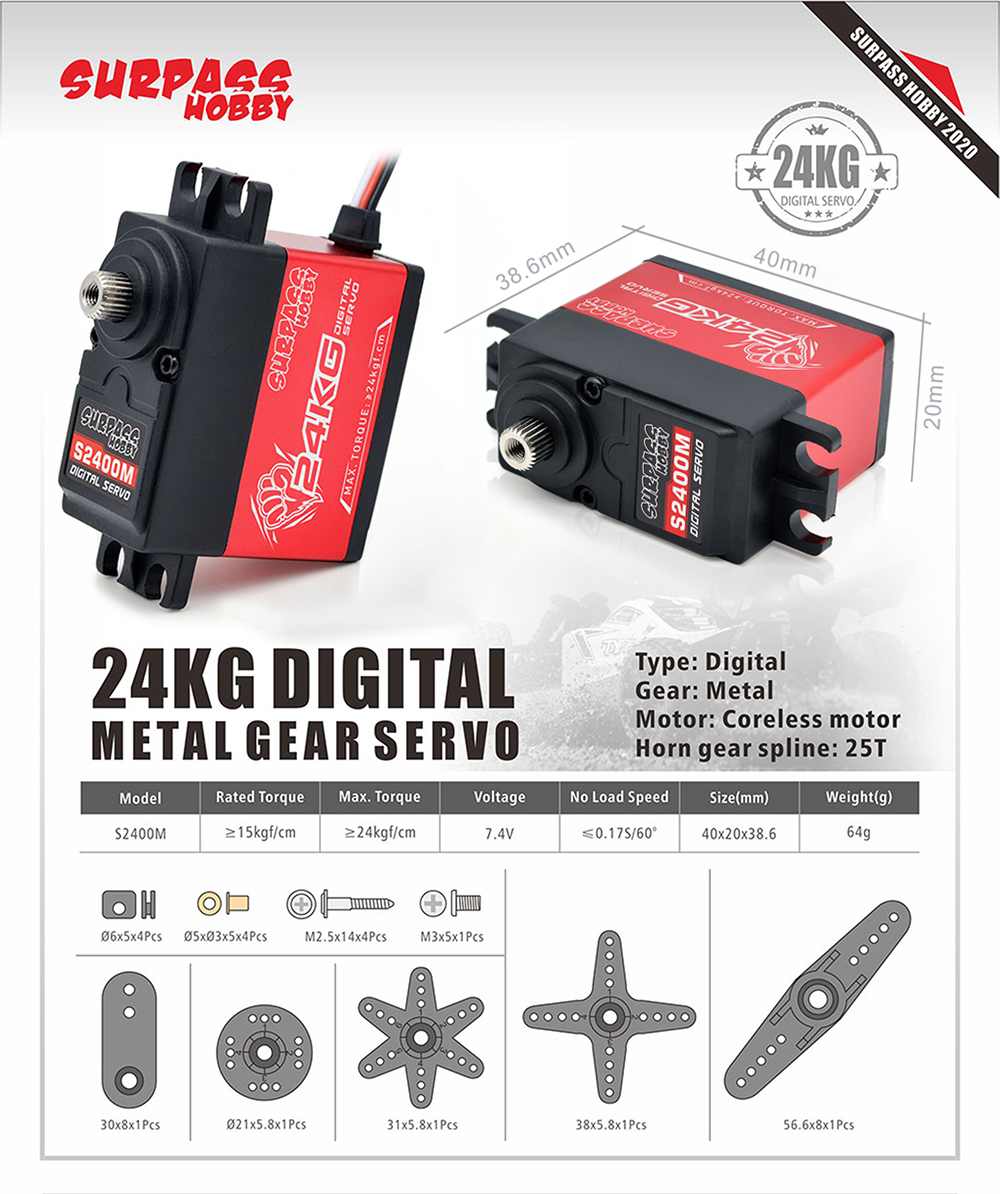

S2400M
Stall Torque: ≥24kgf.cm at 7.4
Operating Voltage: 6.0~7.4V DC
No Load Speed： ≤0.12 sec/60° at 7.4
Operating Travel Angle : 180° ±10°(500~2500 us)
Mechanical Limit Angle : 210°
Weight : 64±1 g
Rotating Direction* : CCW（1000→2000μs）
Case Material : PA+30%GF/Aluminium alloy Casing
Gear Set Material : Metal Gears
Motor Type : Coreless Motor

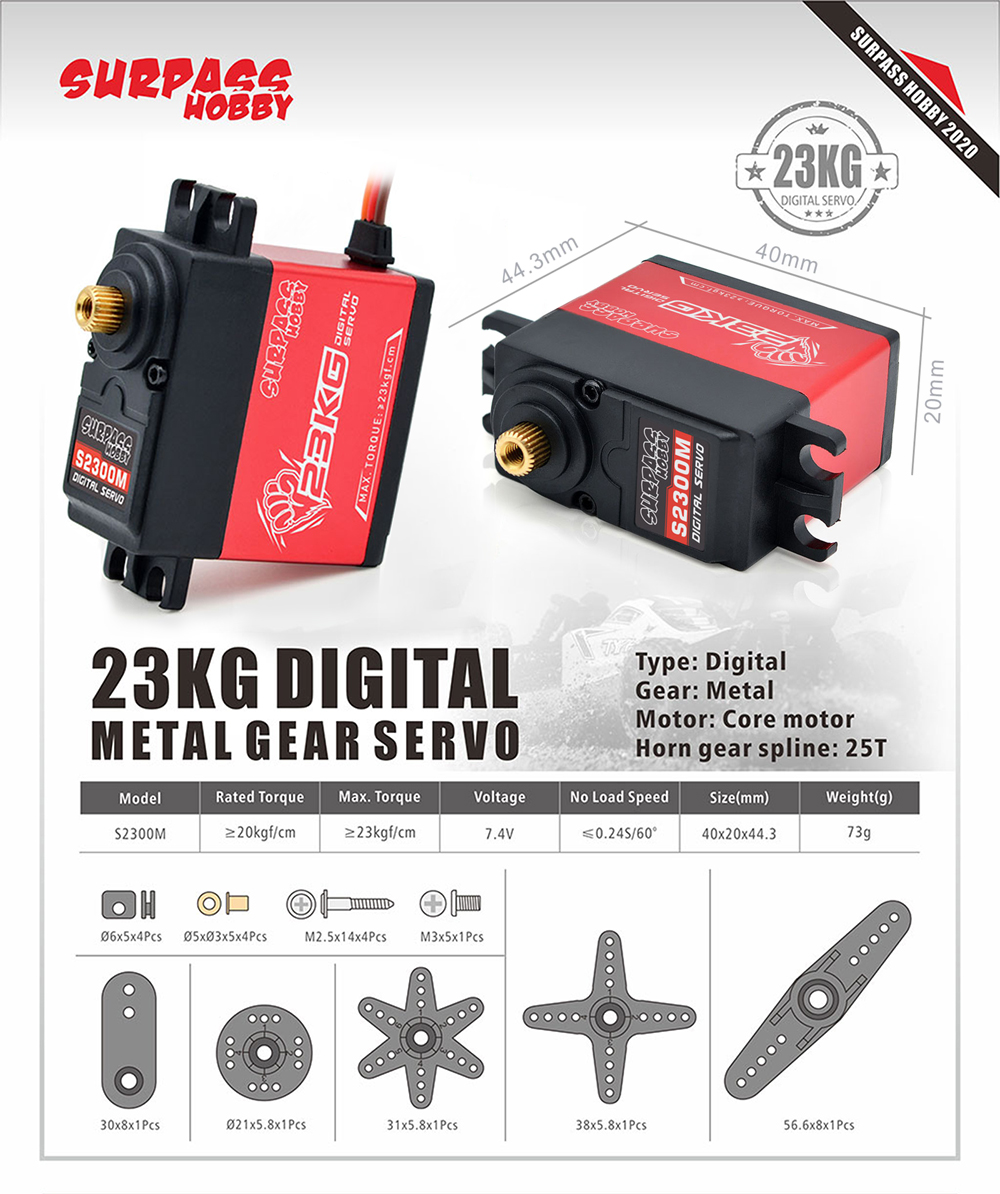

S2300M
Stall Torque*:7.4V ≥23 Kgf.cm .6.0V ≥20 Kgf.cm
Operating Voltage:6.0~7.4V DC
No Load Speed* :6.0V ≤0.20 Sec/60°; 7.4V ≤0.17Sec/60°
Operating Travel Angle :180° ±10°(500~2500 us)
Mechanical Limit Angle : 360°
Weight : 70±1 g
Case Material :PA+30%GF, Aluminium alloy Casing
Gear Set Material :Metal gear
Motor Type : DC motor

S2500M
Stall Torque: 7.4V ≥28 Kgf.cm .6.0V ≥22 Kgf.cm
Operating Voltage: 6.0~7.4V DC
No Load Speed : 6.0V ≤0.26 Sec/60°; 7.4V ≤0.22Sec/60°
Operating Travel Angle :180° ±10°(500~2500 us)
Mechanical Limit Angle : 360°
Weight : 70±1 g
Case Material :PA+30%GF, Aluminium alloy Casing
Gear Set Material :Metal gear
Motor Type : DC motor

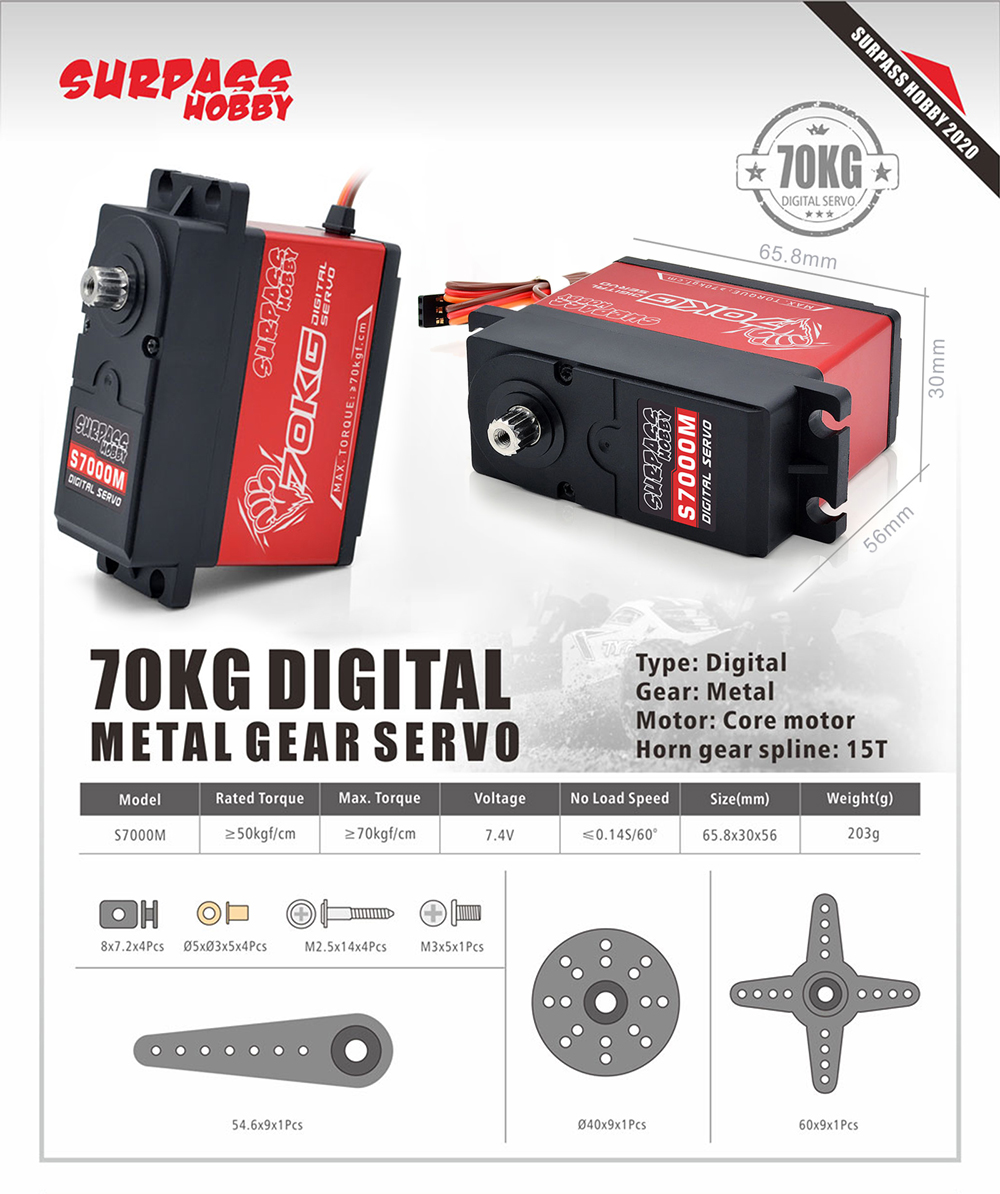

S7000M
Stall Torque: 7.4V ≥70 Kgf.cm .6.0V ≥50 Kgf.cm
Operating Voltage: 6.0~7.4V DC
No Load Speed : 6.0V ≤0.17 Sec/60°; 7.4V ≤0.16 Sec/60°
Operating Travel Angle :180° ±10°(500~2500 us)
Mechanical Limit Angle : 360°
Weight : 203±0.5 g
Case Material :PA+30%GF, Aluminum middle case
Gear Set Material :Metal gear
Motor Type : DC motor

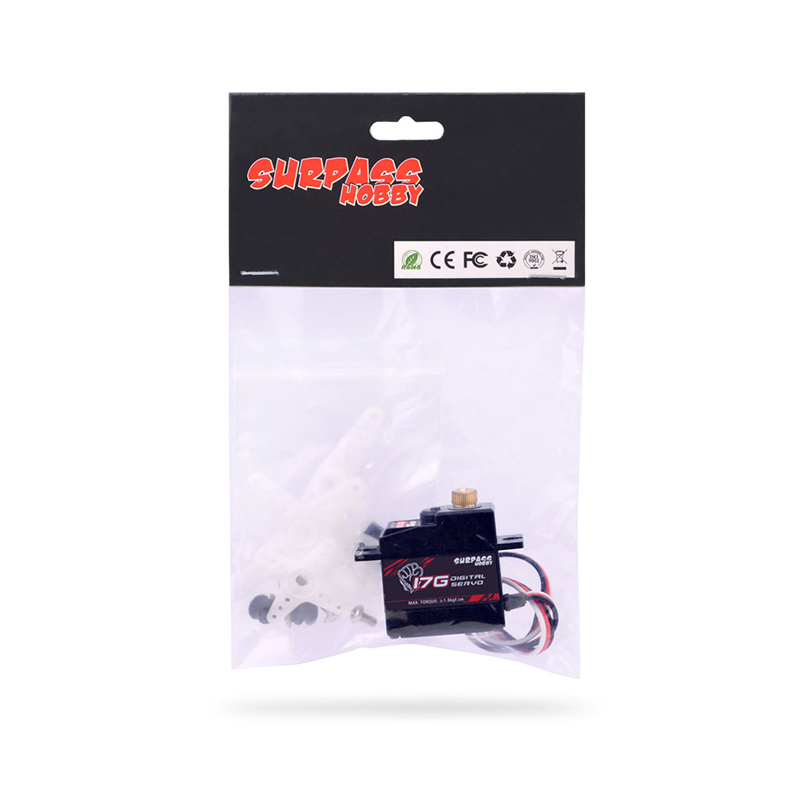

Package Included:
1 x Surpass Hobby Digital Servo

Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
