Specification:

Notice: The lower the speed is, the larger the torque is.

Voltage: DC12V, 24V

No-Load Speed: 10rpm, 20rpm, 30rpm, 50rpm, 100rpm, 150rpm, 200rpm, 300rpm, 500rpm, 600rpm

Power: 15W

Error: ±10%

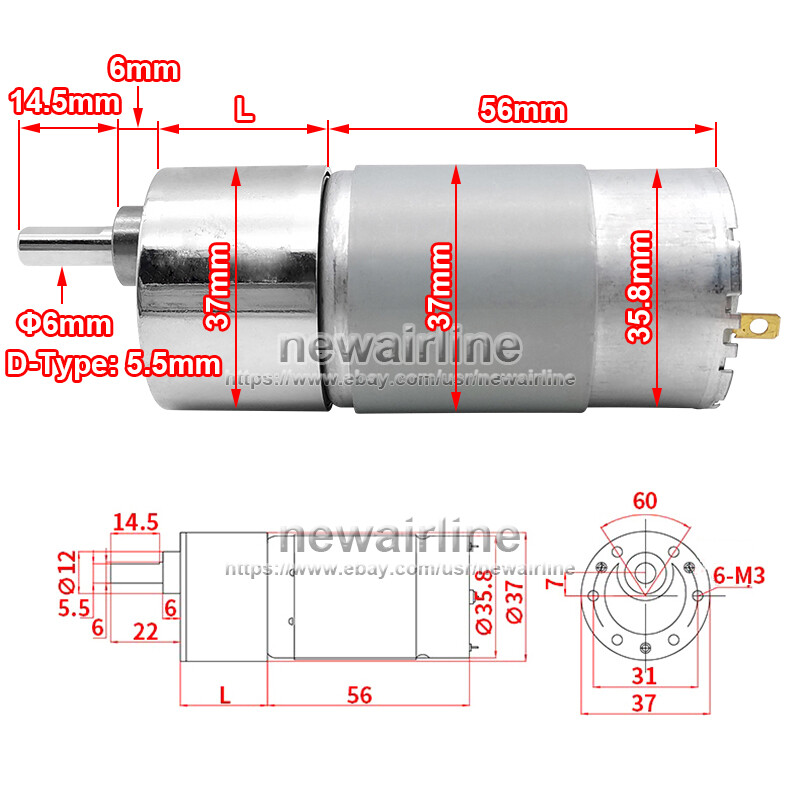

Motor Diameter: 35.8mm

Motor Body Length: 57.5mm

Output Shaft Diameter: 6mm(D-type)

Output Shaft Length: about 14.5mm

 For the gearbox length, please see the following table

Parameters Table
Rated	No Load		At Max. Efficiency				Stall		Speed Reducer
Voltage	Speed	Current	Speed	Current	Torque	Power	Torque	Current	Ratio	Size(L)
V	rpm	A	rpm	A	kg.cm	W	kg.cm	A	1:00	mm
12	10	0.12	9	0.95	30	15	100	3	500	30
	30	0.12	28	0.95	15	15	50	3	142.8	27
	50	0.12	45	0.95	10	15	35	3	100	25
	100	0.12	93	0.85	8	15	30	3	50	25
	150	0.13	128	0.85	6	15	25	3	33.3	25
	200	0.13	175	0.85	5	15	18	3	25	23
	300	0.13	245	0.85	3	15	12	3	16.6	22
	500	0.13	435	0.85	2	15	8	3	12.5	22
	600	0.13	535	0.85	1	15	4	3	10	22
24	10	0.13	9	0.85	30	15	100	3	500	30
	30	0.13	28	0.85	15	15	50	3	166.6	27
	50	0.13	45	0.85	10	15	35	3	100	25
	100	0.15	93	0.75	8	15	30	3	50	25
	150	0.15	128	0.75	6	15	25	3	33.3	25
	200	0.15	175	0.75	5	15	18	3	25	23
	300	0.15	245	0.75	3	15	12	3	16.6	22
	500	0.15	435	0.75	2	15	8	3	12.5	22
	600	0.15	535	0.75	1	15	4	3	8.3	22

Package Included:

Motor x 1
