Banana Pi BPI-PicoW-S3

Package Includes

Package 1

1 x BPI-PicoW-S3


Package 2

1 x BPI-PicoW-S3 with Pre-soldered Headers


Package 3

1 x BPI-PicoW-S3 with Pre-soldered Headers
1 x USB Cable

Product Description

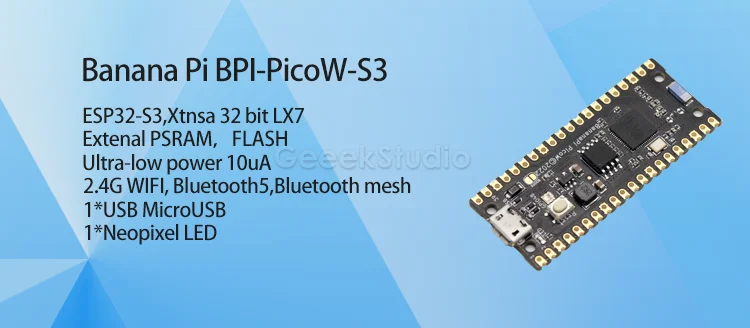

The Banana Pi BPI-PicoW-S3 is a series of low-powered microcontrollers designed for IoT development and Maker DIY board.same size as Raspberry Pi Pico board,It supports 2.4 GHz Wi-Fi and Bluetooth® LE dual-mode wireless communication, the peripheral is compatible with low-power hardware design, and the power consumption is only 10uA in deep sleep mode.In terms of programming, the PicoW-S3 supports ESP-IDF, Arduino, micropython and other methods.

Esp32-S3 is an MCU chip that integrates 2.4 GHz Wi-Fi and Bluetooth 5 (LE) and supports Long Range mode. The ESP32-S3 runs on an Xtensa® 32-bit LX7 dual-core processor with a high frequency of 240 MHz, 512 KB built-in SRAM (TCM), 45 programmable GPIO pins, and a rich communication interface. Esp32-s3 supports larger capacity of high-speed Octal SPI flash and off-chip RAM, and supports user-configured data caching and instruction caching.

Product Features

​

BPI-PicoW-S3 Spec Sheet

SoC

ESP32-S3, Xtensa® 32-bit LX7 dual core

Basic frequency

240MHz MAX

Operating temperature

-40℃~+85℃

On-chip ROM

384KB

On-chip SRAM

320KB

Onboard FLASH ROM

2MB

On-chip peripheral PSRAM

8MB

WIFI

IEEE 802.11 b/g/n, 2.4Ghz band, 150Mbps

Bluetooth

Bluetooth 5, Bluetooth mesh

GPIO

BPI-PicoW-S3 has led out 27 available GPIOs

ADC

2 × 12-bit SAR ADC supporting 18 analog channel inputs

TOUCH Capacitive Touch Sensor

14

SPI

4

I2C

2. Support master or slave mode

I2S

2, input and output of serial stereo data

LCD

1, support 8-bit ~16-bit parallel RGB, I8080, MOTO6800 interface

CAMERA

1, supports 8-bit ~16-bit DVP image sensor interface

UART

3, supports asynchronous communication (RS232 and RS485) and IrDA

PWM

8 independent channels, 14-bit precision

MCPWM

2

USB

1 × Full Speed USB 2.0 OTG, MicroUSB Female

USB Serial/JTAG Controller

1, USB full speed standard, CDC-ACM, JTAG

Temperature sensor

1, the measurement range is –20 °C to 110 °C, for monitoring the internal temperature of the chip

SD/MMC

1 × SDIO host interface, with 2 card slots, supports SD card 3.0 and 3.01, SDIO 3.0, CE-ATA 1.1, MMC 4.41, eMMC 4.5 and 4.51

TWAI® Controller

1, compatible with ISO11898-1 (CAN specification 2.0)

Generic DMA Controller

5 receive channels and 5 transmit channels

RMT

4-channel transmit, 4-channel receive, shared 384 x 32-bit RAM

Pulse Counter

4 pulse count controllers (units), each unit has 2 independent channels

Timer

4 × 54-bit general-purpose timers, 16-bit clock prescaler, 1 × 52-bit system timer, 3 × watchdog timers

External crystal

40Mhz

RTC and Low Power Management

Power Management Unit (PMU) + Ultra Low Power Coprocessor (ULP)

Low power consumption current

10uA

Working Voltage

3.3V

Input voltage

3.3V~5.5V

Maximum discharge current

2A@3.3V DC/DC

Controllable full color LED

1

Development board

BPI-PicoW-S3

Rraspberry Pi PicoW

BPI-Leaf-S3

GPIO pinout

27

27

36

3.3v pin

1

1

2

5v pin

2

2

1

GND pin

8

8

4

Full color LED

1 on GPIO48

None

1 on GPIO48

Chip directly connected to USB

MicroUSB port x1

MicroUSB port x1

Type-C USB port x1

UART TTL to USB

None

None

None

External battery socket

None

None

3.7v lithium battery power supply interface

Battery charging

None

None

500mA charging

I²C 4pin connector

None

None

1
