configuration list：
H
ost head *1
Screw transmitter/receiver antenna *2
Lithium battery charger 2
Plastic box*1
high feet*1
H6 Collector *1
Collector data line * 1
Collector bracket one*1
GPS carbon fiber rod*1
965 channels
BDS-2: B1I, B2I, B3I
BDS-3: B1I, B3I, B1C, B2a, B2b
GPS: L1C/A, L2P, L2C, L5, L1C*
GLONASS: G1,G2,G3*
Galileo: E1, E5b, E5a, E5 AltBoc*, E6c*
QZSS: L1, L2C, L5
GNSS features
Initialization time is less than 10 seconds
Initialization reliability >99.99%
positioning accuracy
static precision
Plane: ±(2.5mm+0.5×10-6D)
Elevation: ±(5mm+0.5×10-6D)
(D is the measured baseline length, in mm)
Dynamic accuracy
Plane: ±(8mm+1×10-6D)
Elevation: ±(15mm+1×10-6D)
(D is the measured baseline length, in mm)

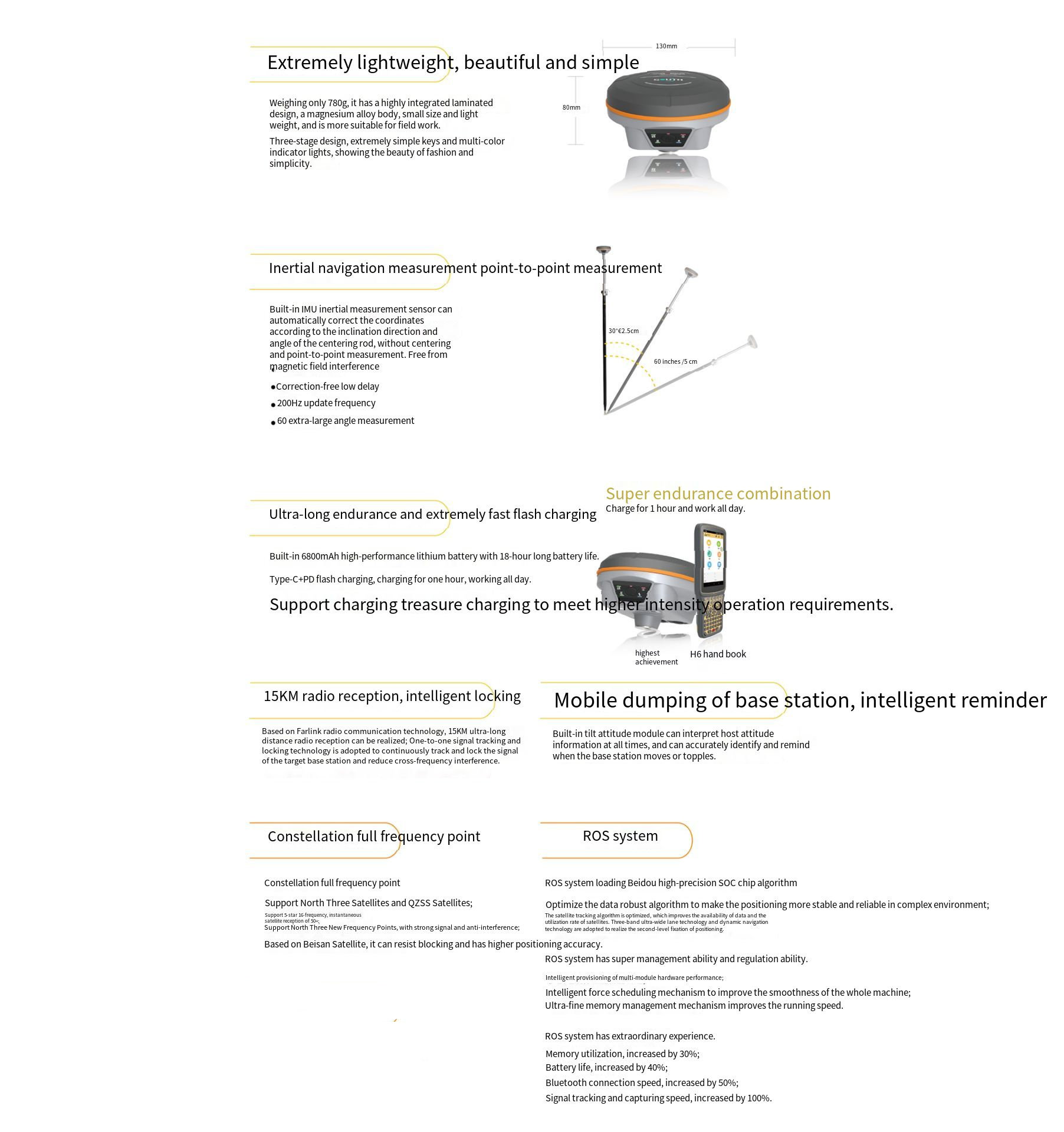

Inertial Navigation System
slope
0°～60°
Tilt compensation accuracy
1.8m pole; RMS: 10 mm + 0.7 mm/°tilt
IMU update rate
200Hz
operating system/
User interaction
operating system
Linux
button
single button
indicator light
five indicator lights
web interaction
Support WI-FI and USB mode to access the receiver's built-in Web management page
voice
Support voice broadcast
hardware
size
Diameter 130mm × Height 80mm
weight
780g
material
magnesium alloy
temperature
Operating temperature: –45°C to +75°C
Storage temperature: –55°C to +85°C
humidity
100% resistant to condensation
Protection class
IP68
shockproof
Resist 2 meters drop with the pole
electric
Battery
7.2V, 6800mAh lithium battery, 18 hours battery life
communication
I/O interface
5-pin LEMO port (external power port + RS232)
Type-C interface (charging and data transmission)
1 radio antenna interface
radio
Built-in integrated receiving radio, working frequency 410-470MHz
Communication protocol: SOUTH, Farlink, TrimTalk, ZHD, HUACE, Satel
Bluetooth
Bluetooth 3.0/4.1, Bluetooth 2.1 + EDR standard
NFC
Using NFC wireless communication technology, Bluetooth automatic pairing can be realized by touching the handbook and the host.
Wi-Fi
802.11 b/g/n standard with WiFi hotspot function
Data storage/transfer
data storage
4G built-in storage
data transmission
Support USB, FTP download, HTTP data transfer
output format
NMEA 0183, binary code
Handbook parameters
model
H6
system
Android8.1 or higher
CPU
2.0G Hz octa-core processor
storage
RAM: 4GB; ROM: 64GB; support up to 128GB expansion
battery life
20 hours of battery life
network
4G full Netcom
LCD screen
5.0 inches
button
full keyboard
Camera
Rear 13 million pixels, auto focus
Three defenses
IP68
software support
Engineering Star 5.0 Handbook Software
