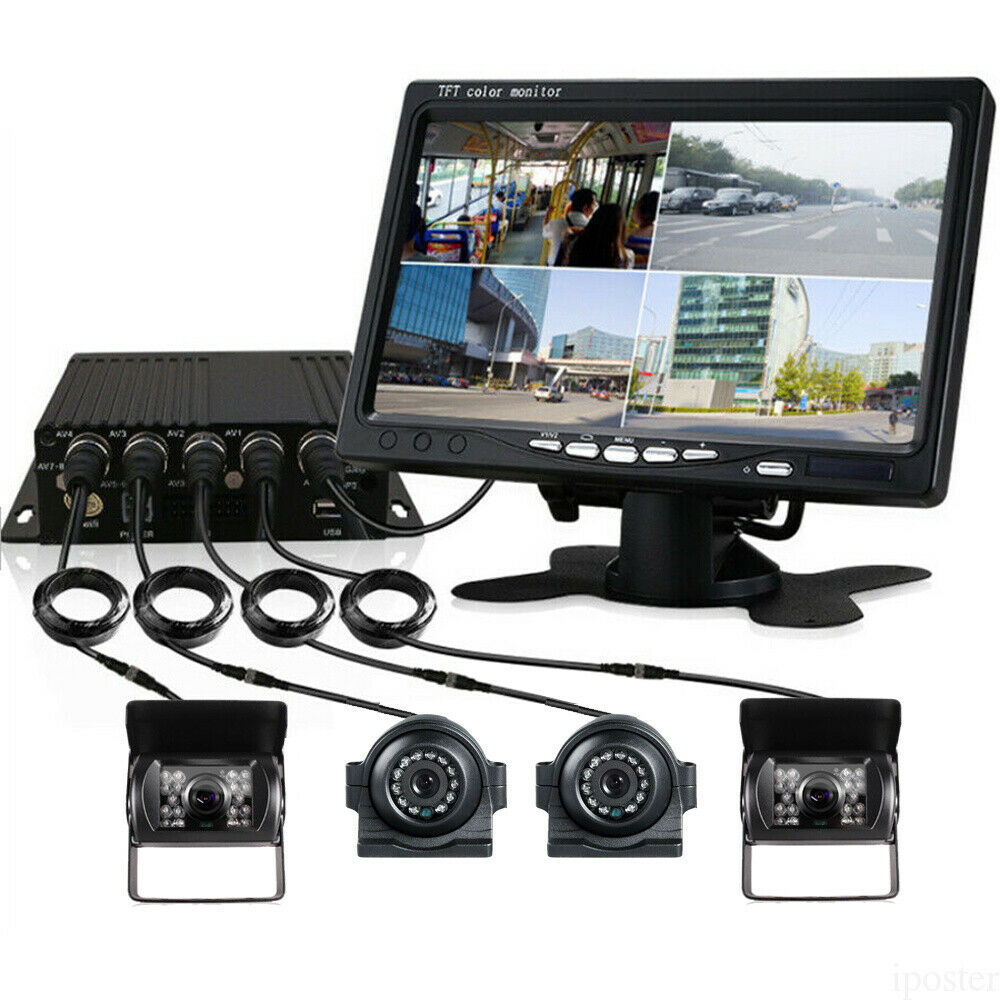

iPoster HD 720P Truck Bus DVR Video Recorder Box + 7" Quad Monitor + 4Pcs Front Rear Side Camera + 3x 5m + 1x 20m 4PIN Video Cables Kit
12-36v compatible for all kinds of heavy duty vehicles

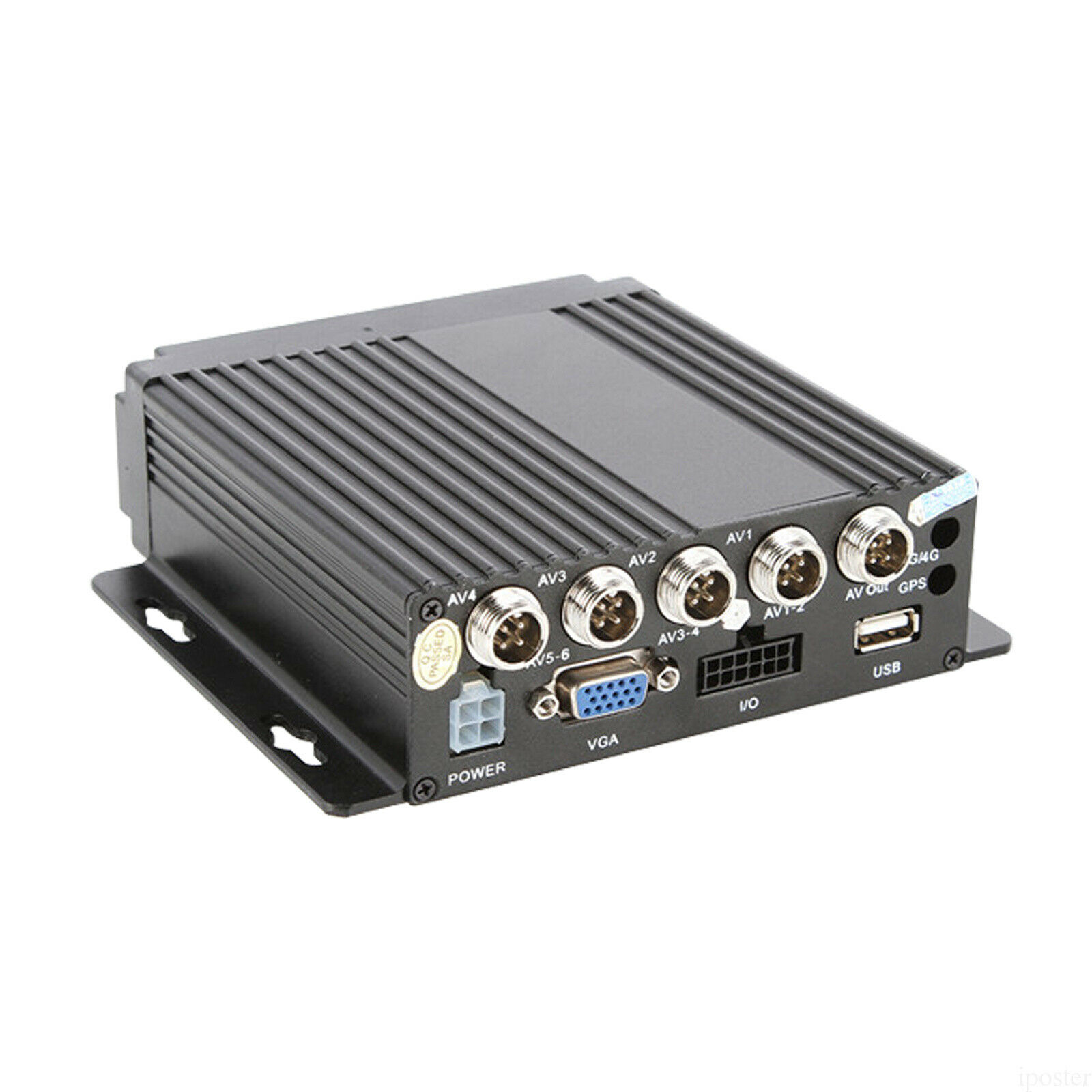

Car Truck DVR:
H.264 video compression.
4CH 720P HD AHD MDVR, It works with all AHD cameras, More Clearer.
4 Channel 720P AHD real-time recording (720P/D1/HD1/CIF for selection)
Support video searching function so that we can easily get files of a certain period.
Support realtime playback, as well as review the video on computer
Equipped with high-speed video recording at 30fps per channel.
Recording video can be overlaid with date/ time, plate number etc..
Optional file packing time to meet your real requirement.
Support wide range of voltage input from 12V to 36V.
Output 12V DC 3A for external devices.
Support 1 SD card, and (max 128GB, this item dose not come with it)
Support auto recordng , manually recording , alarm recording , fire off recording.

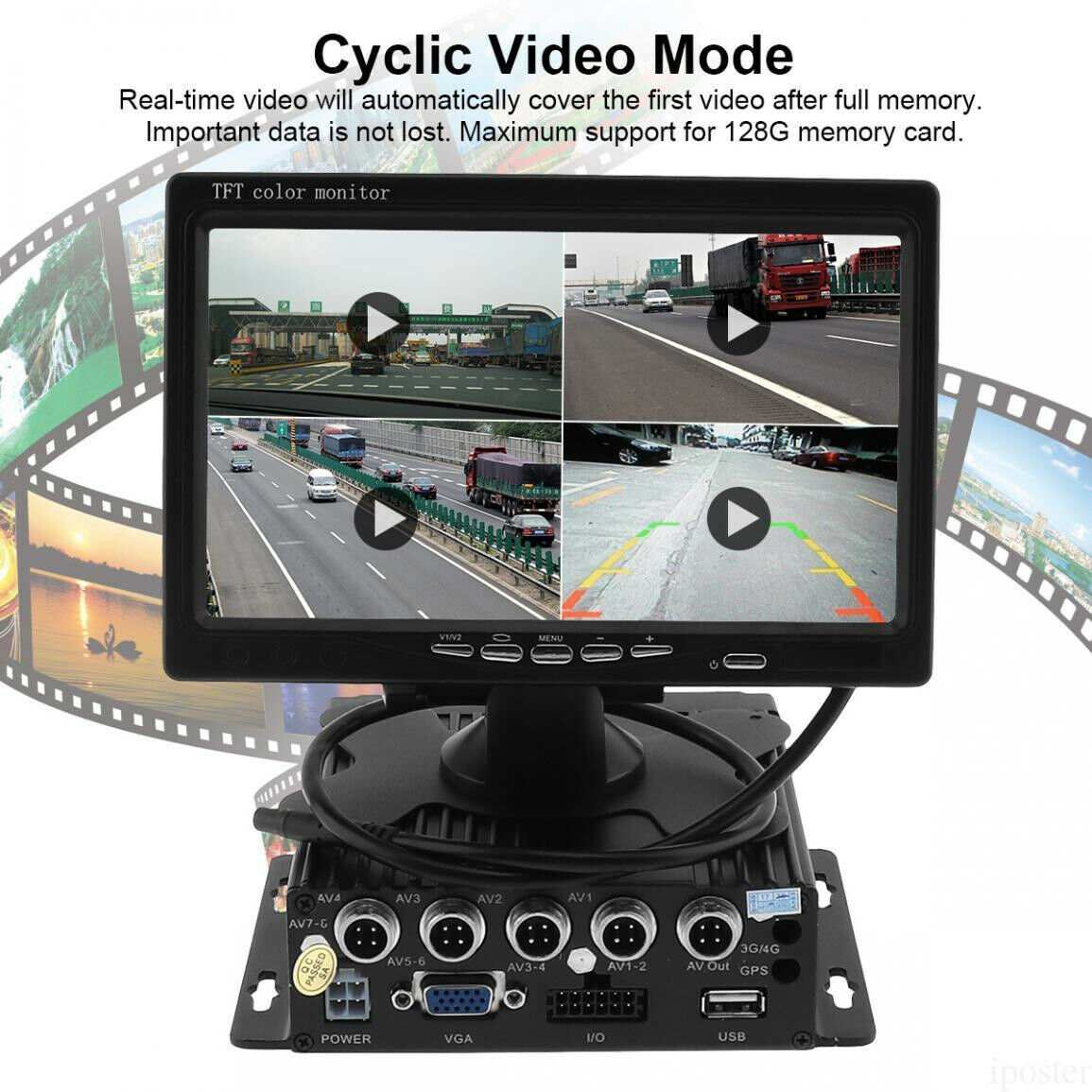

Support loop recording G-sensor
Support 4CH alarming inputs and 1CH independent alarm output (open/close door, brake, back up, motion detection etc).
Four channel 4pin connector video and audio input, one channel AV connector video and audio output.
SD card design for storage, more convenient and vibration-proof than hard disk version.

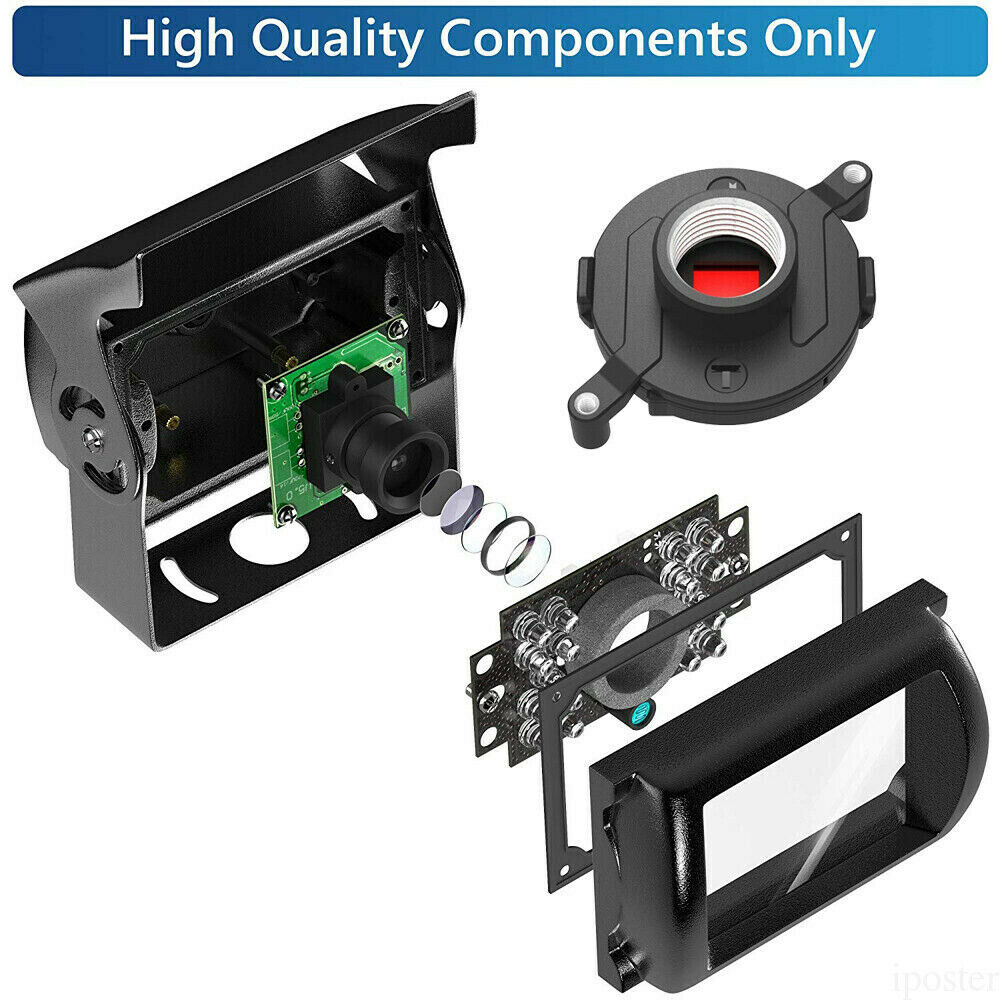

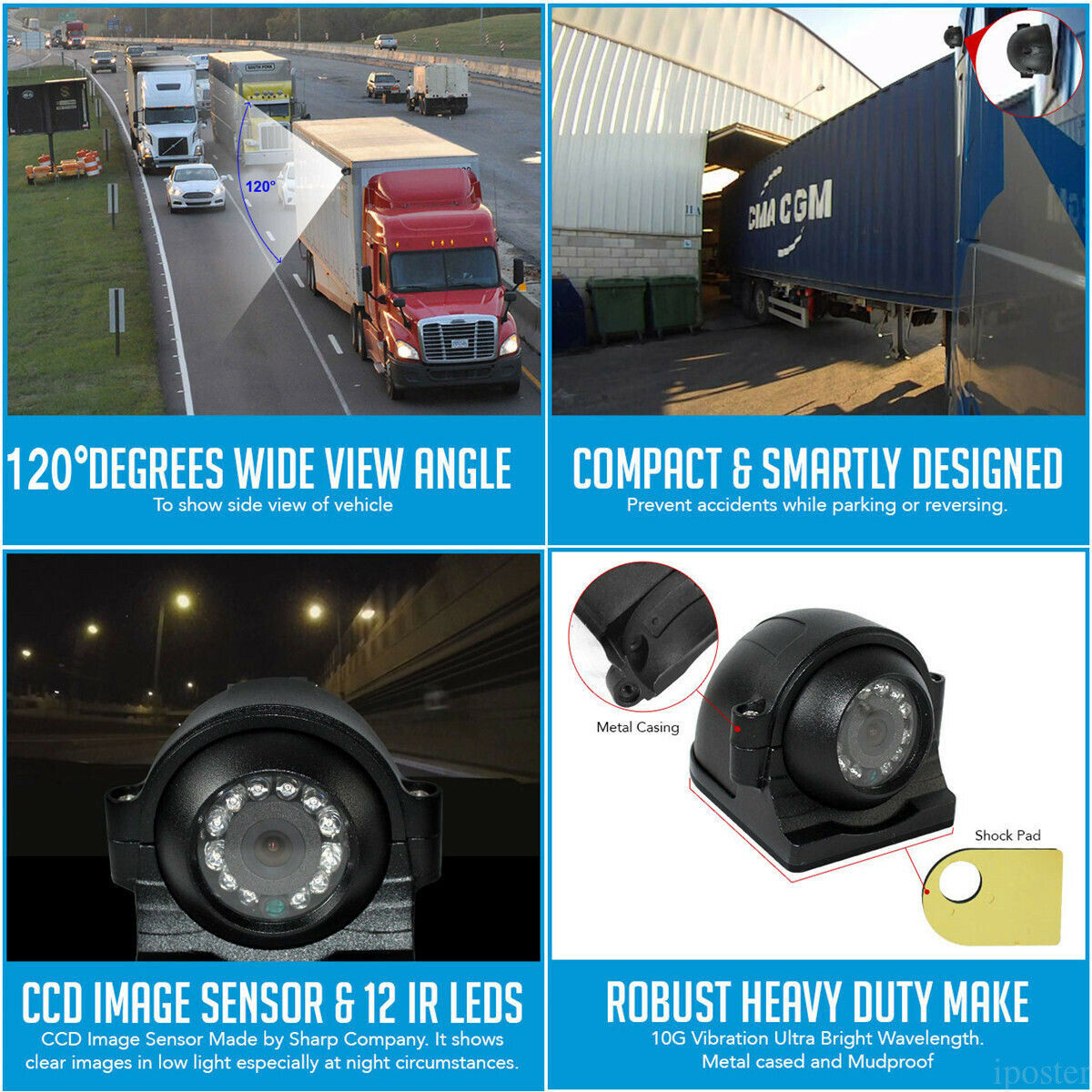

Camera Specification:
Power Voltage:DC 9V-26V
Image Sensor: 1/3" AHD 720P Camera .
Scanning System: PAL/NTSC
Night vision：Support(18 IR LED)
Effective Pixels: 1024*720
Resolution: 720P
Video Output: AHD 1.0VP.P.75ohm
AGC: AutoS/N Ratio: Better than 48db
Electronic Shutter: 1/60~1/100.000 Seconds
Operation Temperature: -40°C~80°C RH95% MAX/-10°C~50°C RH95% MAX
Storage Temperature: -40°C~105°C RH95% MAX/-20°C~60°C RH95% MAX
Waterproof Grade: IP 68
Car Truck Monitors:
Screen size:7 inch Display Format:16:9
Contrast: 500:1, Resolution: 800*480
Power Voltage:12V-30V DC, Power Consumption;<=6W
Item type:Parking Assistance Monitor .
Operate System:PAL/NTSC
Video Input: V1/V2.auto switch
Operating Voltage:DC 9V-26V

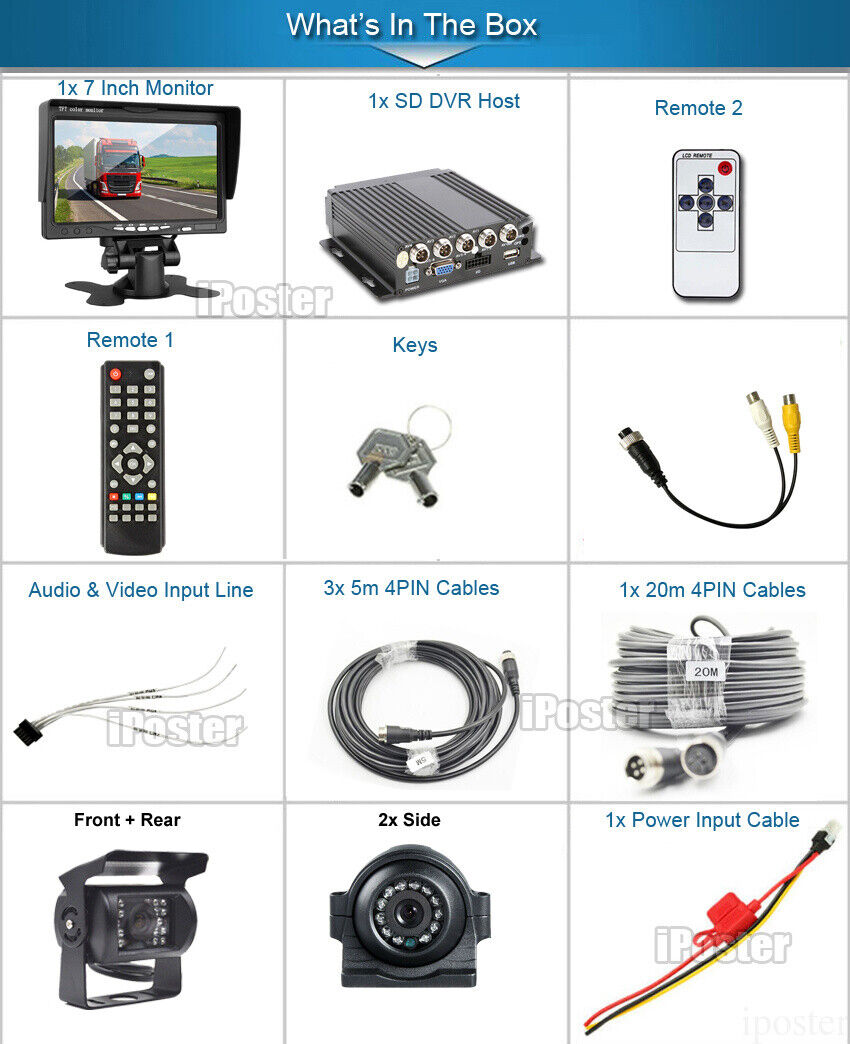

Package Included:
1x Monitor-7 Inch
1x Remote For monitor
1x Power Harness
1x Detachable Sunshade
1x Stand Bracket
1x DVR Recorder
1x Remote for Recorder
1x Power Harness for recorder
1x Converter cable
1x Keys
4x Cameras

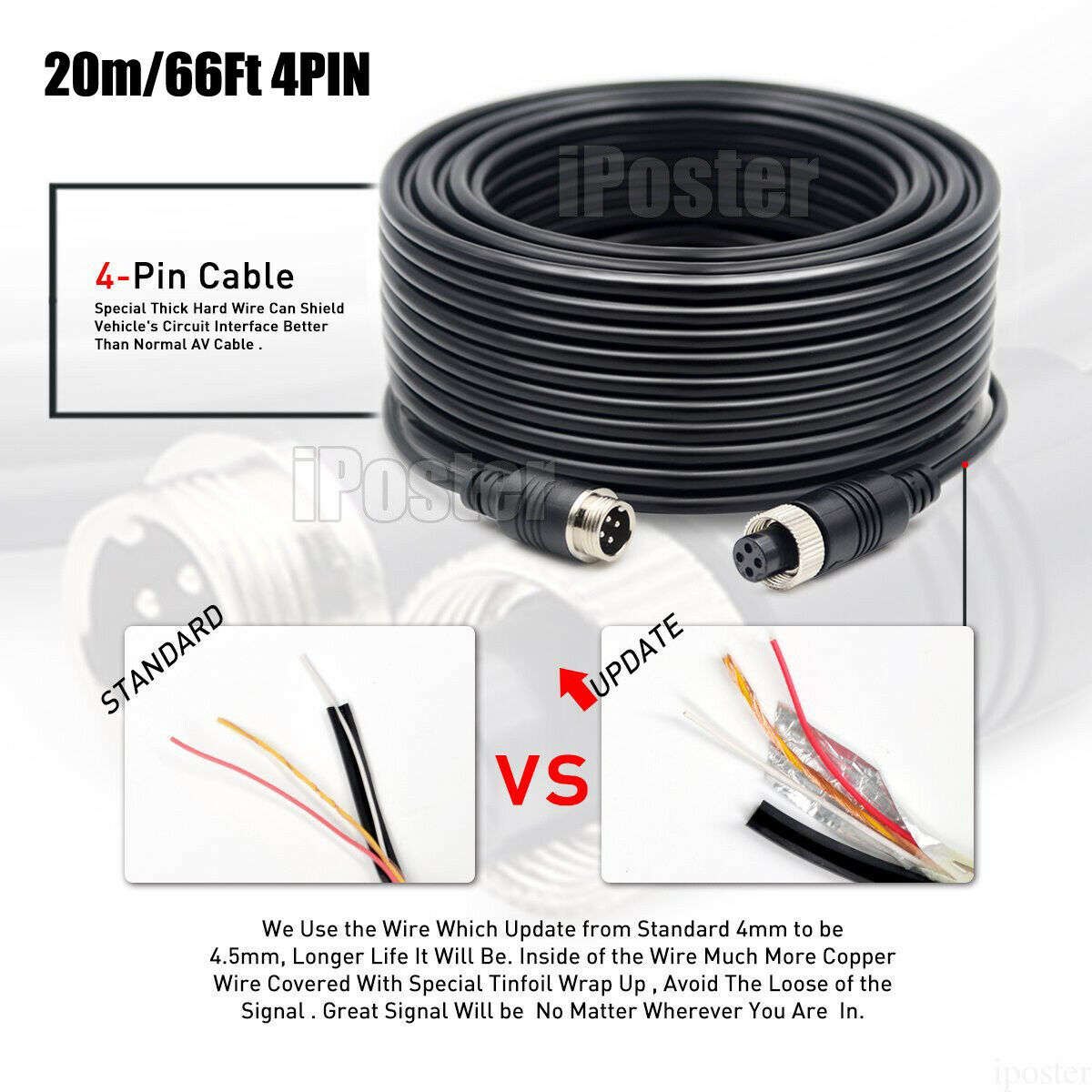

1x 20m cable
3x 5m cables
1x user Manual
Detail Image:
