Welcome To iPoster:
10.1" QUAD Monitor Backup Camera For Truck Trailer RV BUS Rear view Reversing
| Brand | IPoster |
| Item Dimensions LxWxH | 16.5 x 10 x 5.75 inches |
| Screen Size | 10.1 |
| Lux rating | 0.2 |
| Display Technology | LCD |
| Installation Type | Dashboard Mount |
| Video Capture Resolution | 800 Lines |
| Voltage | 12/24 Volts |
| Real Angle of View | 170 Degree |
About this item
- Monitor up to 4 Cameras with Quad View Control Box (Displays All Cameras at the Same Time)
- Choose Single Camera Full, Split Dual or Quad 4 Way Viewing Mode - 10.1" LCD Display (16:9)
- Includes 2 Marine Grade Weatherproof Color Cameras & 4 Pin Video Connection Cables
- IR/LED Night Vision - Easy Touch Button Controls - Widescreen Resolution: 1024 x 800 - PAL/NTSC
- Designed for Car/Truck Use 12 & 24 Volt Systems - Auto Power Switch to AV2 When Reversing
Specifications:
Monitor:
- Display size: 10.1"
- Resolution: 1024(W) x R.G.B x 600(H)
- System: PAL / NTSC
- Power supply: DC12V-24V
- Consumption: 7.5W
- Video: 4-channel video inputs
- Net wight: 1080g
- Dimensions: 285 x 183 x 74mm
- Camera:
- Image Type: 1/4'' High Performance Color CCD
- Horizontal Resolution:700TV Lines
- PAL:800(H)*782(V) ,NTSC:810(H)*792(V)
- Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark )
- Free viewing angle: Diagonal Angle 120º, Horizontal Angle 90º
- Waterproof: IP69
- Shockproof: 10G
- Video Output:1.0Vp-p75
- Power supply:DC12V-24V
Should you have any further questions,please feel free to Feedbacks.
10.1" CAR TFT LCD Monitor
Model
10.1"
Screen size
10.1 inch
Aspect ratio
16:9
Luminance
250cd/m
Resolution
1024*R.N.B*600
Audio & Video
4 ways video inputs, 1 way audio output, 4 ways trigger
System
PAL&NTSC automatically
Voltage
12V~24V
Language
Russian/English/French/Simplified Chinese/Traditional Chinese/Germany.etc.
OSD menu
Display menu, Brightness, color, contrast adjustable
Video compression format
H.264, Audio: AAC
Built-in speaker
Yes
Bracket accessories
U type bracket(stand bracket optional)
Sunshade
Removable
Mode
Full/2/3/4 image adjustable
Set up
Mirror for individual image, can set reverse delay
Color CCD Camera
Pick-up Device
1/3" Sharp CCD
TV system
Pal(CCIR) ; NTSC(EIA)
Scanning system
PAL:625 lines 50 Field ,NTSC:525 lines, 60 Field
Len
2.8mm
Number of pixels
900(H)*882(V)
Horizontal Resolution
800TV lines
Scan frequency
50HZ ; 60HZ
Electronic Shutter
1/50~1/100(sec);1/60~1/100,000(sec)
S/N Ratio
≥ 48dB(AGC OFF)
Minimun Illurnination
0.8LUX/F1.2
BLC
Open
White Balance
Auto
Gain Control (AGC)
Auto
Video Output
1.0Vp-p 75 Ω 4PIN Connector
Synchronous System
Internal Synchronous
Operating Temperature
-20°C~+80°C
Power Supply
DC12-24V
| 10.1" CAR TFT LCD Monitor | |
| Model | 10.1" |
| Screen size | 10.1 inch |
| Aspect ratio | 16:9 |
| Luminance | 250cd/m |
| Resolution | 1024*R.N.B*600 |
| Audio & Video | 4 ways video inputs, 1 way audio output, 4 ways trigger |
| System | PAL&NTSC automatically |
| Voltage | 12V~24V |
| Language | Russian/English/French/Simplified Chinese/Traditional Chinese/Germany.etc. |
| OSD menu | Display menu, Brightness, color, contrast adjustable |
| Video compression format | H.264, Audio: AAC |
| Built-in speaker | Yes |
| Bracket accessories | U type bracket(stand bracket optional) |
| Sunshade | Removable |
| Mode | Full/2/3/4 image adjustable |
| Set up | Mirror for individual image, can set reverse delay |
| Color CCD Camera | |
| Pick-up Device | 1/3" Sharp CCD |
| TV system | Pal(CCIR) ; NTSC(EIA) |
| Scanning system | PAL:625 lines 50 Field ,NTSC:525 lines, 60 Field |
| Len | 2.8mm |
| Number of pixels | 900(H)*882(V) |
| Horizontal Resolution | 800TV lines |
| Scan frequency | 50HZ ; 60HZ |
| Electronic Shutter | 1/50~1/100(sec);1/60~1/100,000(sec) |
| S/N Ratio | ≥ 48dB(AGC OFF) |
| Minimun Illurnination | 0.8LUX/F1.2 |
| BLC | Open |
| White Balance | Auto |
| Gain Control (AGC) | Auto |
| Video Output | 1.0Vp-p 75 Ω 4PIN Connector |
| Synchronous System | Internal Synchronous |
| Operating Temperature | -20°C~+80°C |
| Power Supply | DC12-24V |

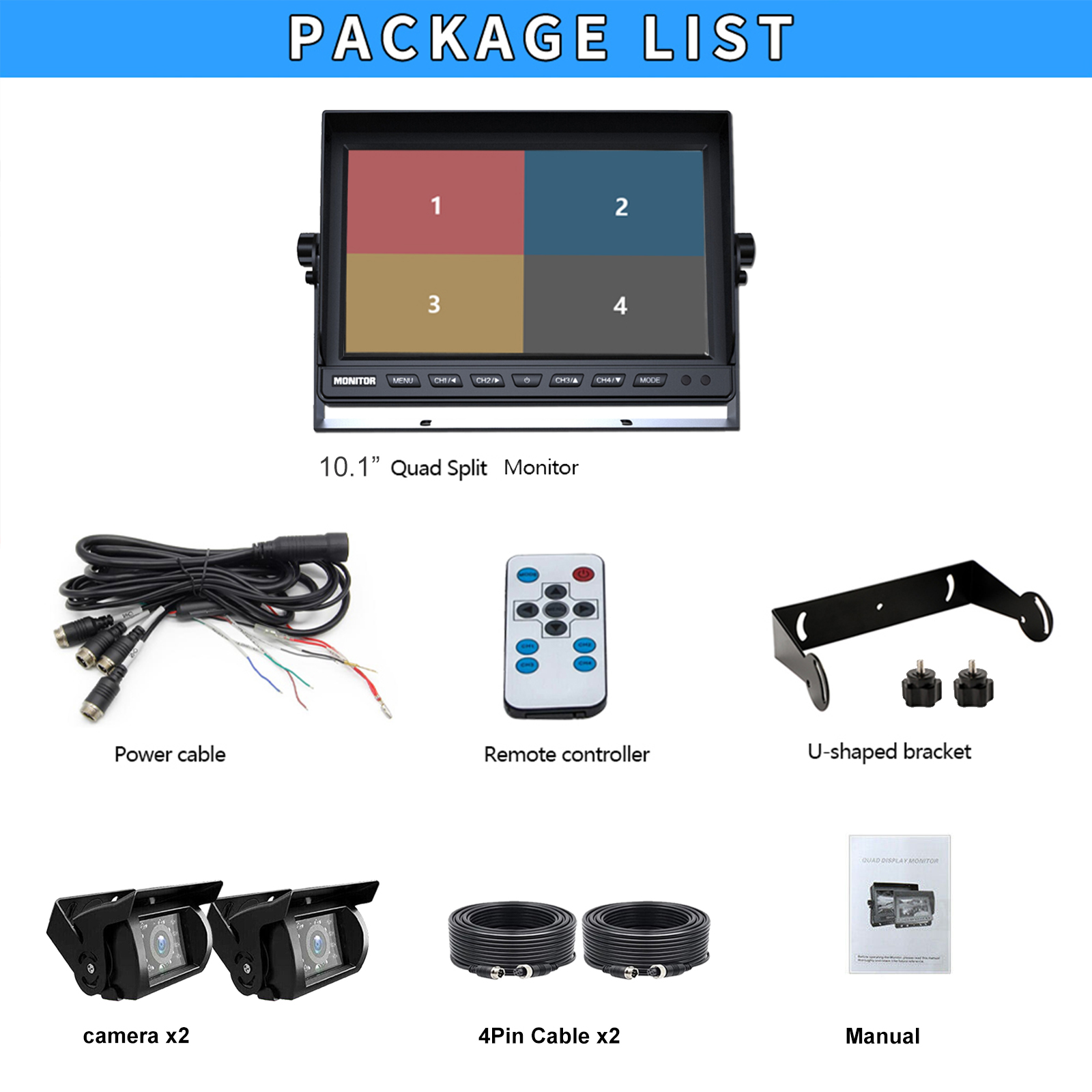

Package Include
- 1x 10.1" Quad Monitor
- 1x U Style Bracke
- 1x Wire Harness
- 1x Remote
- 2x Camera
- 2x 4pin 10M Cables
- 1x Manual
