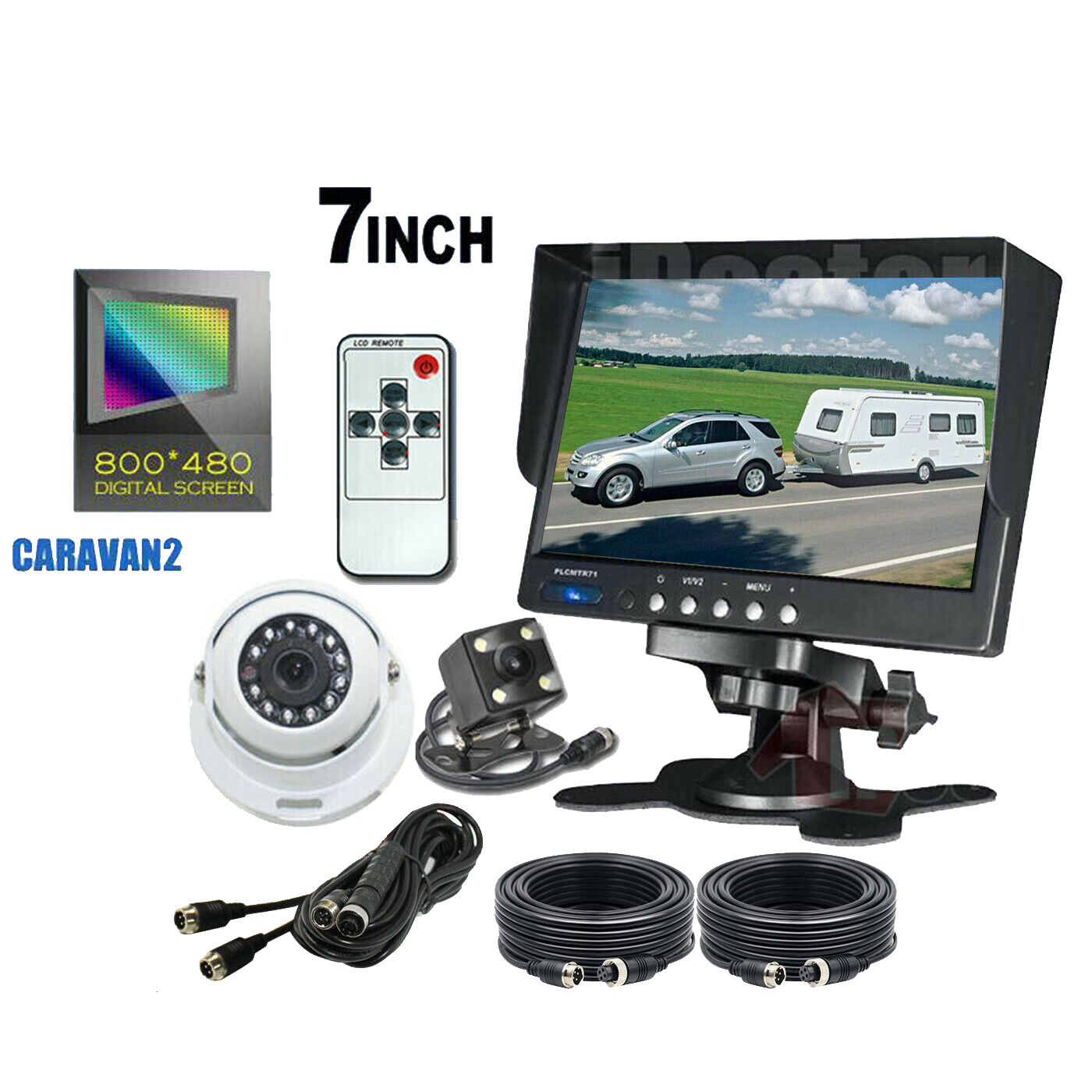

HD 7" TFT LCD Monitor with Remote Control

+ 2x Reversing CCD Camera

4PIN Monitor PowerUp Camera System

 with 2x 10M 4Pin Extention Cable

 +1x 5M 4pin Extention Cable

For Caravan Trailer Van


The advantages of 4-pin connector cable

One cable solution deals with both power and singal transmission. No power cable is needed to connect cameras. Special thick hard wire

can shield vehicle's circuit interference better than normal AV cable.

The difference between CCD and CMOS camera

CCD camera has sharper pictures. It sharpens the focus of picture, making it as real as possible.

CCD lens Makes clear night vision even in a low light environment.

18 infrared lamp used in the low light condition

You can easily adjust the angle at Multi-level

120 degree angle lens, ensure car’s rear side for effective reversing and parking operation

100% complete waterproof

12V-24V input



4-Pin Shield Cable: it comes with 2pcs 10m+1Pcs 5M 4pin cables

The advantages of 4-pin connector cable

One cable solution deals with both power and singal transmission. No power cable is needed to connect cameras. Special thick hard wire



can shield vehicle's circuit interference better than normal AV cable.






Working Range：




A luxury solution for car reverse & all sides
HD 7" High quality TFT LCD monitor
2 X channel video inputs
Easy installation

This item is 12V-24V version.


The advantages of 4-pin connector cable:

One cable solution deals with both power and singal transmission. No power cable is needed
to connect cameras. Special thick hard wire can shield vehicle's circuit interference better
than normal AV cable.



Monitor cable is approx. 2.5m (7.4ft) long.
Video cable is 10m(33ft) long.(Extra length video cable is available for purchase, please contact us for details.

Monitor
Style
 7'' TFT LCD Color Monitor
Color System PAL/NTSC (AUTO)
Display Resolution 800(H) x 480(V)
Vedio Input 2 Channel
Brightness 250(cd/m²)
Operating temperature -20°C - +70°C
Voltage DC12V-24V
Camera
Style
 4 PIN
Sensor 1/4 "SHARP Color CCD / coms 7070
Horizontal Resolution 480TV Lines
Effective pixel NTSC : 610(H) x 592(V)
PAL : 600(H) x 582(V)
Mimimum Illumination 0LUX(12 IR LEDs for night vision)&(4 Bright LEDs for night vision)
View angle 120°-150°
Video Output 1.0Vp-p75Ω
Voltage DC12V-24V
Waterproof grade IP67
Shockproof 10G
Dimension 89(W) x 53(H) x 48(D) mm
What is included:
  •
  • 1 x 7" TFT LCD Monitor
  • 1 x Holder
  • 1 x Power Cable for monitor
  • 1 x Remote Controller(None Battery due to Airline limitation)
  • 1 x Universal User Manual
  • 1 x White CCD Camera
  • 1 x Black COMS Camera
  • 2 x 10m 4Pin Cable
  • 1 x 5M 4pin cable
