Today, we offer a set of SMD capacitors for Super Nintendo/SNES consoles based on the SNSP-CPU-1CHIP-01 and SNSP-CPU-1CHIP-02 motherboards.

This kit is only intended for PAL models, indicated with the motherboard model starting with SNSP = P for PAL.

The Super Nintendo being a 90's console, most of its capacitors are at the end of their life. It's therefore important to replace them so that all the components of the system are properly powered.

This kit allows you to refurbish your console and solve the following problems:

- Screen = display problems or no image.

- Sound = sizzling sound or no sound.

- Console not turning on = power supply problem (Fuse or Power Regulator problems).

Except for rare failures (CPU, PPU etc...) it will allow you to restart the vast majority of consoles that no longer work.

This complete kit contains :

- 1 Solid capacitor of 2200µF by Nichicon

- 8 high end SMD Electrolytic Capacitors (Panasonic or Nichicon brands).

- 3 Radial Capacitors = (2 X 220µF x 6,3V) + (1 X 10µF x 50V Bipolar) by Panasonic.

- 1 Picofuse of 1.5 Ampere.

- 1 Voltage Regulator 7805 in 5 Volts by STMicroelectronics.

All the components are guaranteed :

- Excellent quality in terms of manufacturing.

- They respect the precise values of the manufacturer.

- They are all exactly dimensioned to fit perfectly.

- And have a long life.

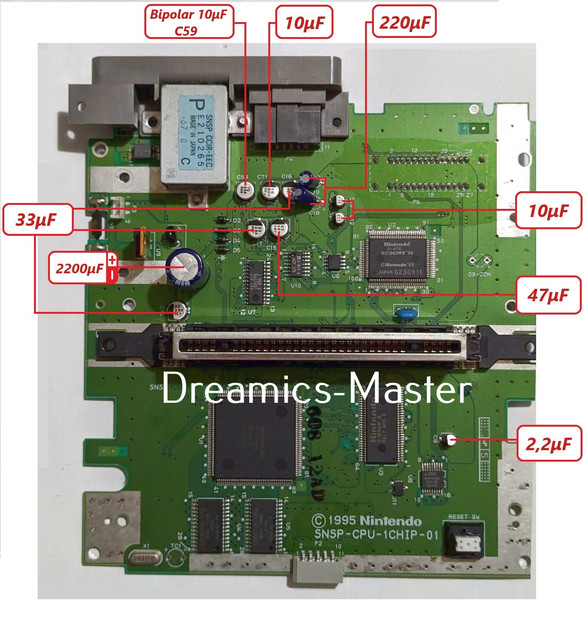

TUTORIAL
