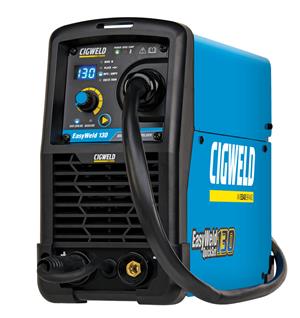

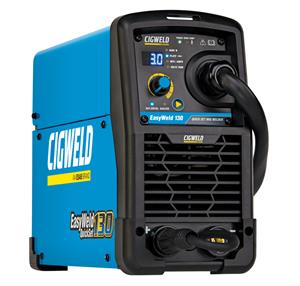

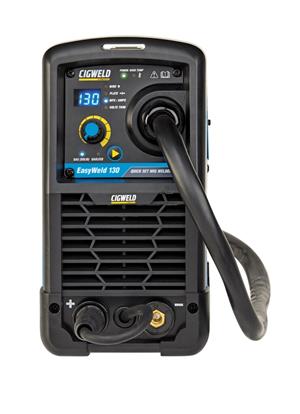

Cigweld EasyWeld 130 MIG Welder
Includes
- Cigweld EasyWeld 130 MIG Welder, W1201130 |
| - CMG13DL MIG Gun 3m- Hardwired |
| - Work Clamp with 2.5m Lead |
- 2 x Drive Rollers: 0.8/0.9mm Gasless (Fitted), 0.6/0.8mm Solid Wires |
- Contact Tips: 0.6mm, 0.8mm (Fitted), 0.9mm |
| - Shoulder Strap |
- Operating Manual |
Price: AU $410.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | Cigweld |
| Part Number: | W1201130 |
| Certification: | AS 60974.1:2020 |
| Power Input Single-Phase: | 230V/240V +/-15% |
| Supply Frequency: | 50/60 Hz |
| Supply Lead and Plug: | 10 Amp |
| Rated Input Current I1eff: | 9.4A – 240V 10A -230V |
| Rated Input Current I1max: | 21A – 240V 22A – 230V |
| Amperage Range: | 30 – 130A |
| Recommended Welding Thickness Range: | 0.6mm – 6mm |
| Duty Cycle: | 130Amps @ 20% 75Amps @ 60% 58Amps @ 100% |
| Nominal DC Open Circuit Voltage: | 78V |
| Generator Ratings: | 6.0 kVA (at 0.8 Power Factor) at Max Amps |
| Weight: | 7.6Kg |
| Size: | L:358 x W:149 x H:273mm |
| Voltage Range: | 15.5 – 20.5V |
| IP Rating: | IP21S |
| Warranty: | 1 year |
Product Details
The EasyWeld 130 is the most modern, easy-to-use small inverter MIG Welder designed to take away the guesswork when trying to decide what parameters should be set to weld differing thicknesses of metal. The Electronic QuickSet provides accurate adjustment of the welding parameters reducing the amount of time wasted in the guessing settings! Suitable for MIG with Shielding Gas and MIG Gasless Welding.
EasyWeld 130: The EasyWeld 130 is the most modern, easy-to-use small inverter MIG Welder designed to take away the guesswork when trying to decide what parameters should be set to weld differing thicknesses of metal.
QuickSet your Plate Thickness And Weld Away: Plate Thickness setting allows you to set up in no time. There is no guessing the welding parameters. The QuickSet feature enables you to set the plate thickness you are welding.
Awesome output for a small MIG: The EasyWeld 130 delivers a maximum output of 130Amps DC, and welds metals from 0.6mm up to 6mm.
QuickSet: In QuickSet mode the EasyWeld 130 is limited to 3mm thickness. To weld higher thicknesses up to 6mm, settings can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints.
CIGWELD: CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230/240V x 10A power.
Versatile: You can weld most metals including Mild Steel, Stainless Steel, Aluminum and Bronze.
Suitable For: Suitable for MIG with Shielding Gas and MIG Gasless Welding.
Weld Type: Welds most metals including Mild Steel, Stainless Steel, Aluminum and Bronze.
Electronic QuickSet: The Electronic QuickSet provides accurate adjustment of the welding parameters reducing the amount of time wasted in the guessing settings!
MIG GUN: The EasyWeld 130 MIG machine is supplied with a quality MIG Gun rated to handle in excess of the maximum output of the machine.
QuickSet your Plate Thickness And Weld Away: Plate Thickness setting allows you to set up in no time. There is no guessing the welding parameters. The QuickSet feature enables you to set the plate thickness you are welding.
Awesome output for a small MIG: The EasyWeld 130 delivers a maximum output of 130Amps DC, and welds metals from 0.6mm up to 6mm.
QuickSet: In QuickSet mode the EasyWeld 130 is limited to 3mm thickness. To weld higher thicknesses up to 6mm, settings can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints.
CIGWELD: CIGWELD have specially configured this machine to be able to produce great welding results from domestic household 230/240V x 10A power.
Versatile: You can weld most metals including Mild Steel, Stainless Steel, Aluminum and Bronze.
Suitable For: Suitable for MIG with Shielding Gas and MIG Gasless Welding.
Weld Type: Welds most metals including Mild Steel, Stainless Steel, Aluminum and Bronze.
Electronic QuickSet: The Electronic QuickSet provides accurate adjustment of the welding parameters reducing the amount of time wasted in the guessing settings!
MIG GUN: The EasyWeld 130 MIG machine is supplied with a quality MIG Gun rated to handle in excess of the maximum output of the machine.
