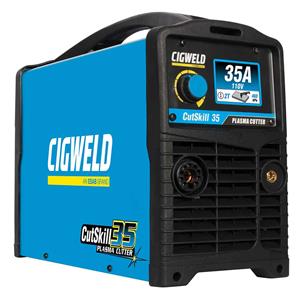

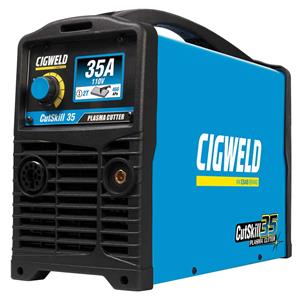

Cigweld CutSkill 35 Plasma Cutter

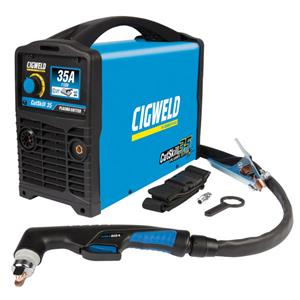

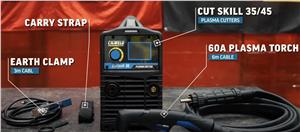

Includes
| - CutSkill 35 Plasma Cutter, 1160130 |
| - CutSkill 60A Plasma Torch |
| - Work Cable and Clamp |
| - Wrench for Air Filter |
| - 1/4" Nitto Air Line Connector |
| - Shoulder Strap |
Price: AU $979.00

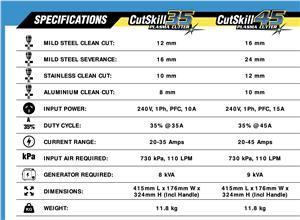

Buy Now Ask QuestionTechnical Specifications
| Brand: | Cigweld |
| MPN: | 1160130 |
| Barcode: | 9310574065567 |
| Certification: | AS 60974.1-2006 |
| Input Power: | 240V, 1Ph, PFC, 10A |
| Duty Cycle: | 35% @ 35A |
| Input Air Required: | 730kPa, 110LPM |
| Generator Required: | 8kVA |
| Supply Plug: | 10A |
| Number of Phases: | Single Phase |
| Weight: | 11.8kg |
| Product Length: | 495 mm |
| Product Width: | 165 mm |
| Product Height: | 385 mm |

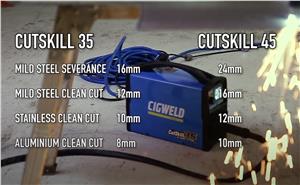

| Mild Steel Clean Cut: | 12mm |
| Mild Steel Severance: | 16mm |
| Stainless Clean Cut: | 10mm |
| Aluminium Clean Cut: | 8mm |
| Warranty: | 3 Year Limited Warranty |
Product Details
Cigweld has now officially changed plasma cutting forever, with the launch of the new range of CutSkill Manual Plasma Cutting machines. Over two years in development, the new CutSkill 35 machine from Cigweld features a user interface that not only incorporates the latest in color LCD technology. This single-phase inverter-based power source can easily and accurately cut through a range of materials including mild/stainless steel and aluminum.
Cigweld has now officially changed plasma cutting forever, with the launch of the new range of CutSkill Manual Plasma Cutting machines. Over two years in development, the new CutSkill 35 machine from Cigweld features a user interface that not only incorporates the latest in color LCD technology. This single-phase inverter-based power source can easily and accurately cut through a range of materials including mild/stainless steel and aluminum.

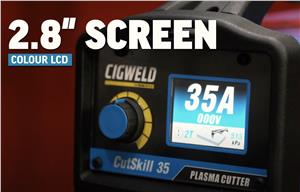

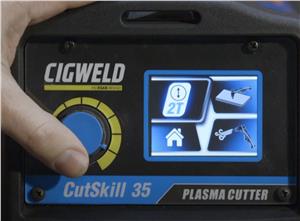

LCD Screen: 2.8" LCD screen displays all cutting setting, input voltage and input air pressure.
Control: Single control Knob adjusts all cutting settings.
Removable Air Filter With Purging Valve: Moisture in your air compressor can reduce the lifespan of the Plasma Torch consumables. The CutSkill inbuilt air filter removes this problem - The air filter can be purged at any time by using the purging valve and is also removable for cleaning. It is housed in a concave inset in order to prevent damage.
Internal Regulator: The regulator is internal and air through the torch is managed automatically by the plasma unit. This removes the need to adjust air pressure for individual cutting requirements.
Torch: Both Plasma CutSkill machines come complete with a detachable 60 amp torch with 5 meter lead designed specifically for the CutSkill plasma cutting range. The torch includes a safety latch in order to prevent risk of accidental arc.
Inline Air Filter: Designed to prevent all moisture, plus oil and dirt down to 0.85 microns from passing through your air line to the plasma unit. This offers extra protection in addition to the inbuilt air filter located in the plasma unit itself.
Compliant: Fully compliant to AS 60974.1-2006. Enclosure rated to IP23S.
Air Compressor: Recommended air compressor required: 800kPa,12 CFM.
