Home Security Camera, Motion Detection, auto Tracking, 2.4ghz WiFi IP Camera, Two Way Talk, HD 1920P pan Tile Full Color Night Vision Waterproof Outdoor Surveillance
Important: TO Turn on Auto Tracking Function, Must Using Mobile APP to Activate.
**4.0X Digital Zoom
**This camera supports 1.0-4.0X Digital Zoom.
**Press and hold the screen with both hands to Zoom in/out and see more details.
Features :
- 2 Inch Auto Tracking Super Mini Size PTZ Dome WIFI IP Camera
- 3.6mm Fixed Lens(Digital Zoom Only )
- Support HD 1920P High Quality Resolution
- Support TF/Micro SD Card, up to 128G(Don't included TF Card)
- Pan Tilt Rotation, Horizontal:355° & Vertical:90°Ø
- 6pcs Spotlight LED+4Pcs Array Infrared LEDs , 30m B/W Night Vision/20M Color Night vision
- Support P2P, View & Anywhere & Anytime
- Provide Android & IOS APP (CamHiPro) and professional CMS PC client software
- Wireless Protocols : 802.11b/g/n, 150Mbps, 10-50m
- ABS Plastic Housing Material, Outdoor Use, Waterproof IP65
- Built-in Microphone, Loud Speaker, Support Two Way Audio Talk Back
- Microphone Effective Range 15 Meters, Loud Speaker Effective Range 60 Meters
- The SD Card Slot Is Designed On The Camera's Back Cover
- Very Easy to Install the TF/Micro SD Card . (Don't included TF Card)
Cannot Connect To WIFI Successfully?
- Please make sure the WIFI Password is correct.(Our Camera Only Support 2.4Ghz Wifi)
- Please make sure the router signal is stable (place IP Camera close to your router for first connection is Recommended).The Camera will not work on a 5Ghz wireless standard at this time. If you have a dual-band router, be sure to segregate your wireless channels and connect the Camera to the 2.4ghz channel.
- If the WIFI signal is not available, You can use a network cable connect into the RJ45 port through the router for use the network.
Specifications:
| Model | HX-HD22M502M | |
| Camera | Operating system | Embedded Linux OS |
| Megapixel | 2560*1920 | |
| Lens interface type | M12 | |
| Lens | 3.6mm Fixed Lens(Support 4x Digital Zoom Only ) | |
| View angle | 75deg | |
| Min .illumination | 0.05 Lux / 0 Lux(IR on) | |
| Day & Night mode | Auto IR-CUT | |
| Night vision distance | 6pcs Spotlight LED(20M)+4Pcs Array Infrared LEDs(30M) | |
| Video | Video compression standard | H.264/H.265 Main Profile/H.264 Baseline |
| Video streaming | Dual streaming | |
| Video resolution | First stream: 2560*1920 | |
| Second stream: Q720P(640x480/640x352) | ||
| Video code rate | 32 to 8192Kbps. supports constant bitrates/variable bitrates | |
| Video frame rate | 12fps(PAL 50HZ). 12fps(NTSC 60HZ) | |
| Image settings | Brightness, saturation, contrast, Sharpness, Exposure flip, mirror | |
| Image enhancement | Backlight compensation, Automatic white balance, Digital WDR, 3D digital noise reduction | |
| Audio | Audio compression standard | G.726/G.711 |
| Audio code rate | Rate adaptive | |
| Audio Input | Support, Built-in Microphone | |
| Audio Output | Support Two Way Audio Talk , Built-in Loud Speaker | |
| Function | Motion detecting | Can set 4 independent detection region (1-100 sensitivity can be set) |
| Alarm linkage | Alarm send pictures to the specified mailbox, alarm upload pictures and videos to the FTP server, alarm write pictures and videos to Micro SD card, alarm message push | |
| Privacy mask | Maximum support 4 users to simultaneously browse | |
| OSD | Support camera name, date and time information superimposed | |
| User management | Supports user and rights management | |
| Network protocol | TCP/IP,HTTP,TCP,ICMP,UDP,ARP,IGMP,SMTP, FTP,DHCP,DNS,DDNS,NTP,UPNP,RTSP etc. | |
| Connection protocol | Support 2.1(backward compatible) | |
| Wireless | Wireless standards | IEEE802.11b. 802.11g. 802.11n Draft |
| Frequency range | 2.4 GHz to 2.4835 GHz | |
| Wireless Security | 64/128-bit WEP. WPA/WPA2. WPA-PSK/WPA2-PSK. WPS | |
| Transmission rate | 11b: 11Mbps,11g :54Mbps,11n :135Mbps | |
| PTZ | Rotation angle | Horizon:0° to 355°. Vertical: 0° to 90° |
| Horizontal speed | 1° to 40°/S | |
| Vertical speed | 1° to 20°/S | |
| Preset | N/A | |
| Interface | Power interface | 1*5.5mm power interface |
| Ethernet | 1*RJ45 & Antenna 10M/100M Adaptive Ethernet Interface | |
| TF card Slot | 1*TF card slot. up to 128G(Don't included TF Card) | |
| Reset button | Support | |
| General Specification | Power supply | DC 12V 2A |
| power | Day: 3W; Night: 12W | |
| Operating temperature | -20 to +60 degree | |
| Operating humidity | 10% to 95% | |
| Material | ABS Plastic Housing ,Outdoor Use, Waterproof IP65 | |
| Installation | Rack mounting | |
| Size(W×D×H)(mm) | 137x128x92mm | |
| Weight(kg) | 0.65kg | |

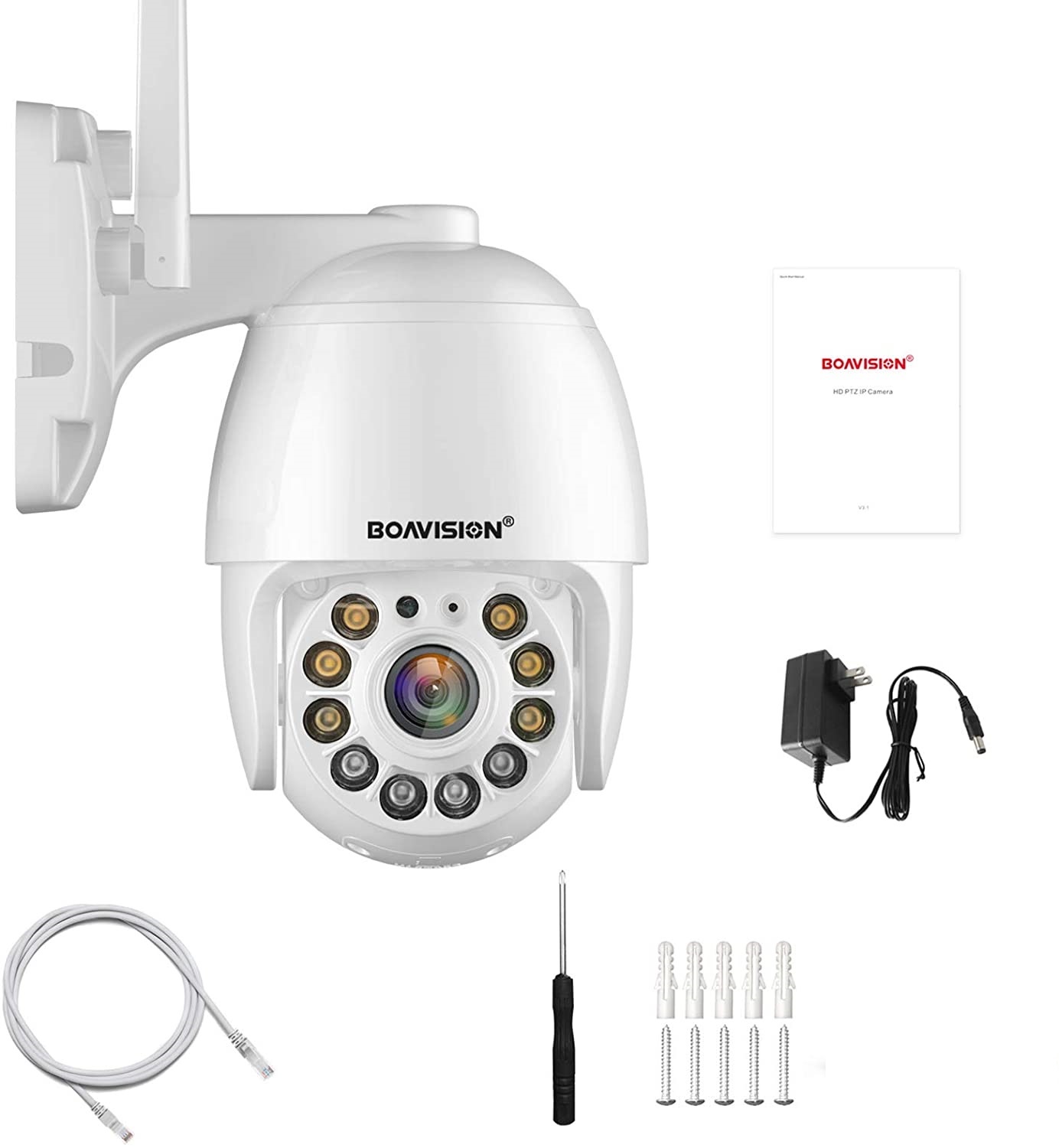

Packing List:
- 1*Auto Tracking WIFI PTZ IP Camera Built-in Microphone, Loud Speaker (Don't included TF Card)
- 1*DC 12V 2A Power Supply (US Plug)
- 1*Manual
- 1*Screws Bag
1*Network Cable
