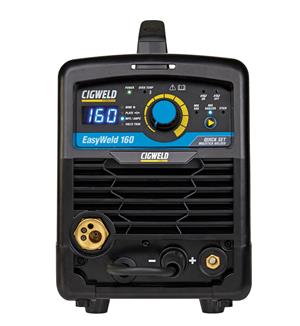

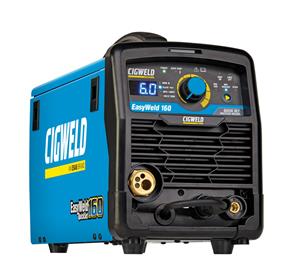

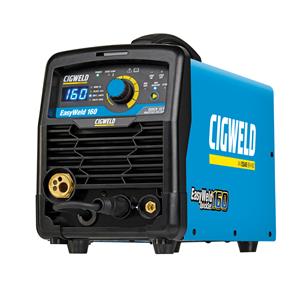

CIGWELD EasyWeld 160 MIG Stick Welder
Includes
| - EasyWeld 160 Welder W1201160 |
- CMG16EL MIG Gun 3m- Euro quick connector |
| - Work Clamp with 2.5m Lead |
- Twist Lock Electrode Holder with 2.5m Lead |
- 2 x Feed Rolls: 0.8/0.9mm Gasless (Fitted), 0.6/0.8mm Solid Wires |
- Contact Tips: 0.6mm, 0.8mm (Fitted), 0.9mm |
| - Shoulder Strap |
- Operating Manual |
Price: AU $529.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | CIGWELD |
| MPN: | W1201160 |
| Certification: | AS 60974.1:2020 |
| Power Input: | |
| Single-Phase: | 240V +/-15% |
| Supply Frequency: | 50/60 Hz |
| Supply Lead and Plug: | 10 Amp |
| Rated Input Current I1eff: | 10A |
| Rated Input Current I1max: | 27A |
| Recommended Welding Thickness Range: | 0.6mm – 10mm |
| MIG (GMAW) Duty Cycle @ 40OC, 10 minutes: | 160 Amps @ 15% 80 Amps @ 60% 62 Amps @ 100% |
| STICK (MMAW) Duty Cycle @ 40OC, 10 minutes: | 140 Amps @ 15% 70 Amps @ 60% 54 Amps @ 100% |
| Generator Ratings: | 9.0 kVA (at 0.8 Power Factor) at Max Amps |
| Weight: | 10.2Kg |
| Size: | L:440 x W:206 x H:308 |
| Nominal DC Open Circuit Voltage in MIG: | 82V |
| Amperage Range in (MIG): | 30 – 160A |
| Voltage Range in MIG: | 15.5 – 22V |
| Open Circuit Voltage (VRD On) STICK Mode: | <35V |
| Warranty: | 1 year |
| IP Rating: | IP21S |
Product Details
The CIGWELD EasyWeld 160 welding machine offers many benefits of a professional welding machine in a compact, portable, easy to use and affordable self-contained single phase welding inverter. With QuickSet Plate Thickness Pre-Sets installed the guesswork is now taken out of the set-up, to allow excellent welding results. Electronic QuickSet control for accurate adjustment of the welding parameters. Suitable for MIG with shielding gas and MIG gasless welding.
CIGWELD EasyWeld 160: The CIGWELD EasyWeld 160 welding machine offers many benefits of a professional welding machine in a compact, portable, easy to use and affordable self-contained single phase welding inverter.
Plate Thickness Pre-Sets: With QuickSet Plate Thickness Pre-Sets installed the guesswork is now taken out of the set-up, to allow excellent welding results.
QuickSet: Plate Thickness setting allows you to set up in a flash. There is no guessing the welding parameters. Use the QuickSet feature to set the machine to the correct plate thickness you are welding.
EasyWeld: The EasyWeld 160 delivers a maximum output of 160Amps DC, which means the machine is capable of welding metals from 0.6mm up to 10mm.
QuickSet Mode: In QuickSet mode the machine is limited to 6mm thickness. To reach higher thicknesses up to 10mm the machine can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints.
Versatile: You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.
Control: Electronic QuickSet control for accurate adjustment of the welding parameters.
Suitable For: Suitable for MIG with shielding gas and MIG gasless welding.
VRD: STICK Welding capability to 140 Amps, with built Voltage Reduction Device (VRD) for extra safety.
Weld Type: Welds most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.
Ideal For: The EasyWeld 160 machine is ideal for people who want to do light fabrication, maintenance and repairs or DIY around the home, workshop, worksite, or farm, without compromising on quality or safety.
Plate Thickness Pre-Sets: With QuickSet Plate Thickness Pre-Sets installed the guesswork is now taken out of the set-up, to allow excellent welding results.
QuickSet: Plate Thickness setting allows you to set up in a flash. There is no guessing the welding parameters. Use the QuickSet feature to set the machine to the correct plate thickness you are welding.
EasyWeld: The EasyWeld 160 delivers a maximum output of 160Amps DC, which means the machine is capable of welding metals from 0.6mm up to 10mm.
QuickSet Mode: In QuickSet mode the machine is limited to 6mm thickness. To reach higher thicknesses up to 10mm the machine can be manually adjusted to maximum Wire Feed Speed and Voltage which delivers exceptional welding results on larger metal joints.
Versatile: You can weld most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.
Control: Electronic QuickSet control for accurate adjustment of the welding parameters.
Suitable For: Suitable for MIG with shielding gas and MIG gasless welding.
VRD: STICK Welding capability to 140 Amps, with built Voltage Reduction Device (VRD) for extra safety.
Weld Type: Welds most metals including Mild Steel, Stainless Steel, Aluminium and Bronze.
Ideal For: The EasyWeld 160 machine is ideal for people who want to do light fabrication, maintenance and repairs or DIY around the home, workshop, worksite, or farm, without compromising on quality or safety.
