Description
TYC50/TYC49/TYJ50/50TYZ Plastic Gear Permanent Magnet Synchronous Motor D Shaft
Specification:
Note: The "0.9/1.1RPM" means the speed is 0.9RPM at 50Hz and 1.1RPM at 60Hz. The motor wire colors may differ from the picture. Please refer to the actual product. The non-directional(CW/CCW) version is shipped by default. If you need a fixed direction (CW, CCW), please leave a note.
Product Name: Synchronous Motor
Product Model: TYC-49(P)-D
Shaft Type: Single D-Flat
Optional Voltage: AC5V, AC6V, AC9V, AC12V, AC24V, AC110V (100-127V), AC220V (220-240V)
AC Frequency: 50/60Hz
Optional Speed: 0.9/1.1RPM, 1.4/1.7RPM, 2/2.4RPM, 2.5/3RPM, 4/5RPM, 5/6RPM, 8/10RPM, 10/12RPM, 15/18RPM, 20/24RPM, 30/36RPM, 48/58RPM, 60/70RPM (The slower the speed, the greater the torque.)
Speed Error: ±10%
Power: 4W
Rotation Direction: Non-Directional(CW/CCW) (Default), Clockwise(CW) (Specify), Counter-Clockwise(CCW) (Specify)
Internal Gear Material: Plastic
Features: This is a non-directional synchronous motor that automatically reverses direction when the load reaches the motor's rated torque.
Applications: Primarily used in the air guide and oscillation mechanisms of electric fans; swing mechanisms for heaters, blow heaters, and radiant heaters ("little sun"); various display racks, handicrafts, lighting fixtures, and toys; as well as air vane guide motors for various air conditioners and turntable motors for microwave ovens.

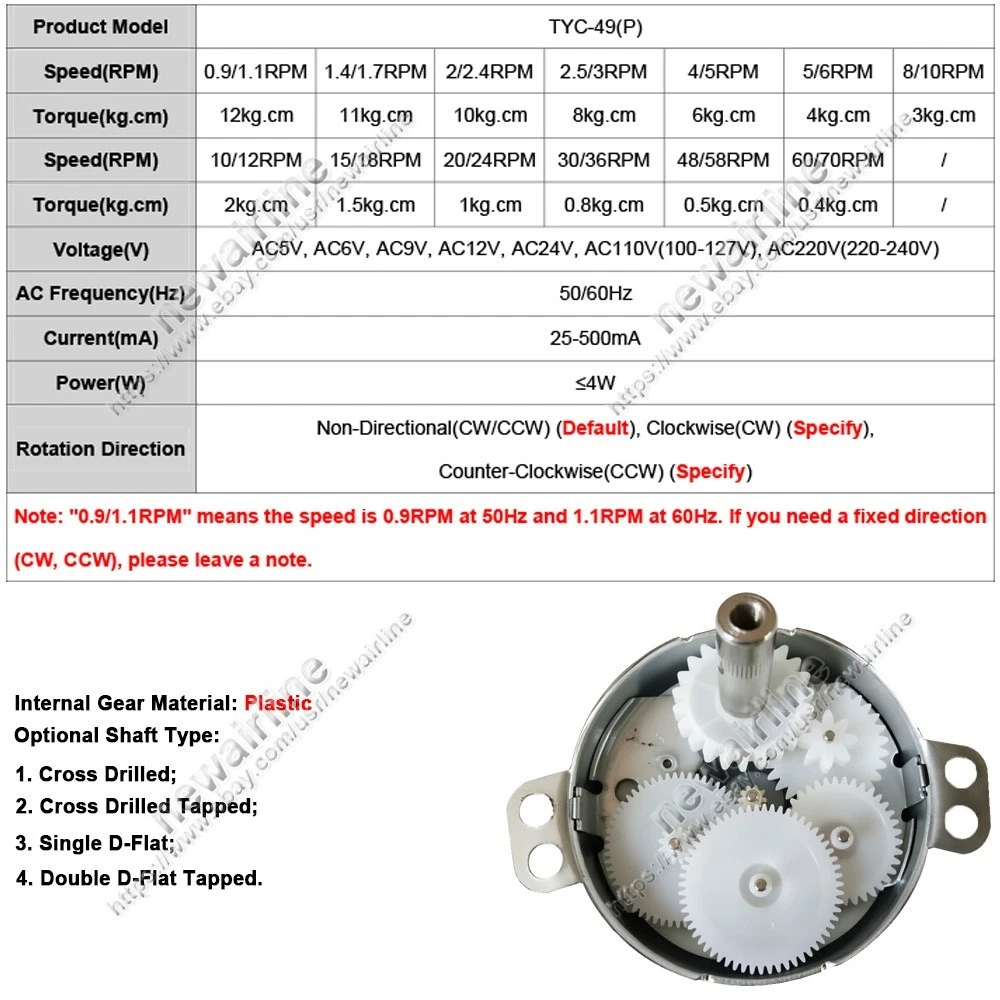

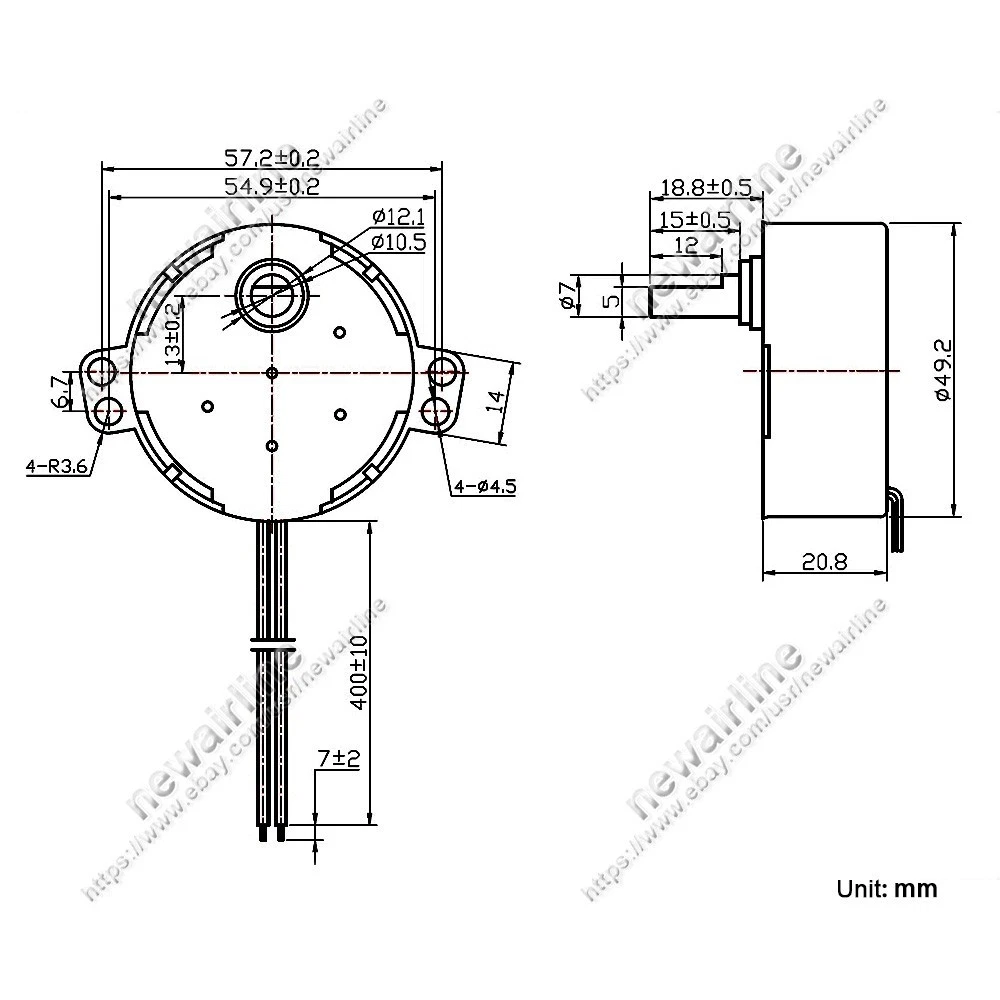

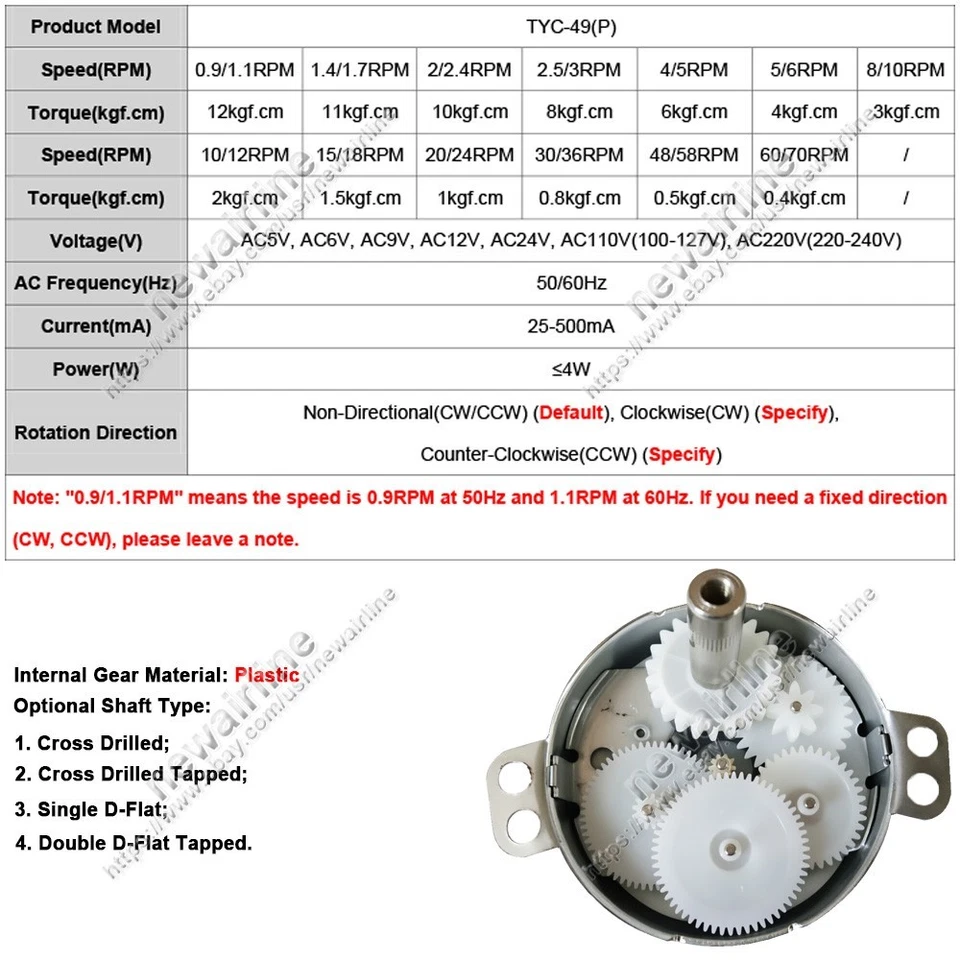

Parameters and Dimensions:
Package Included:
Motor x 1
