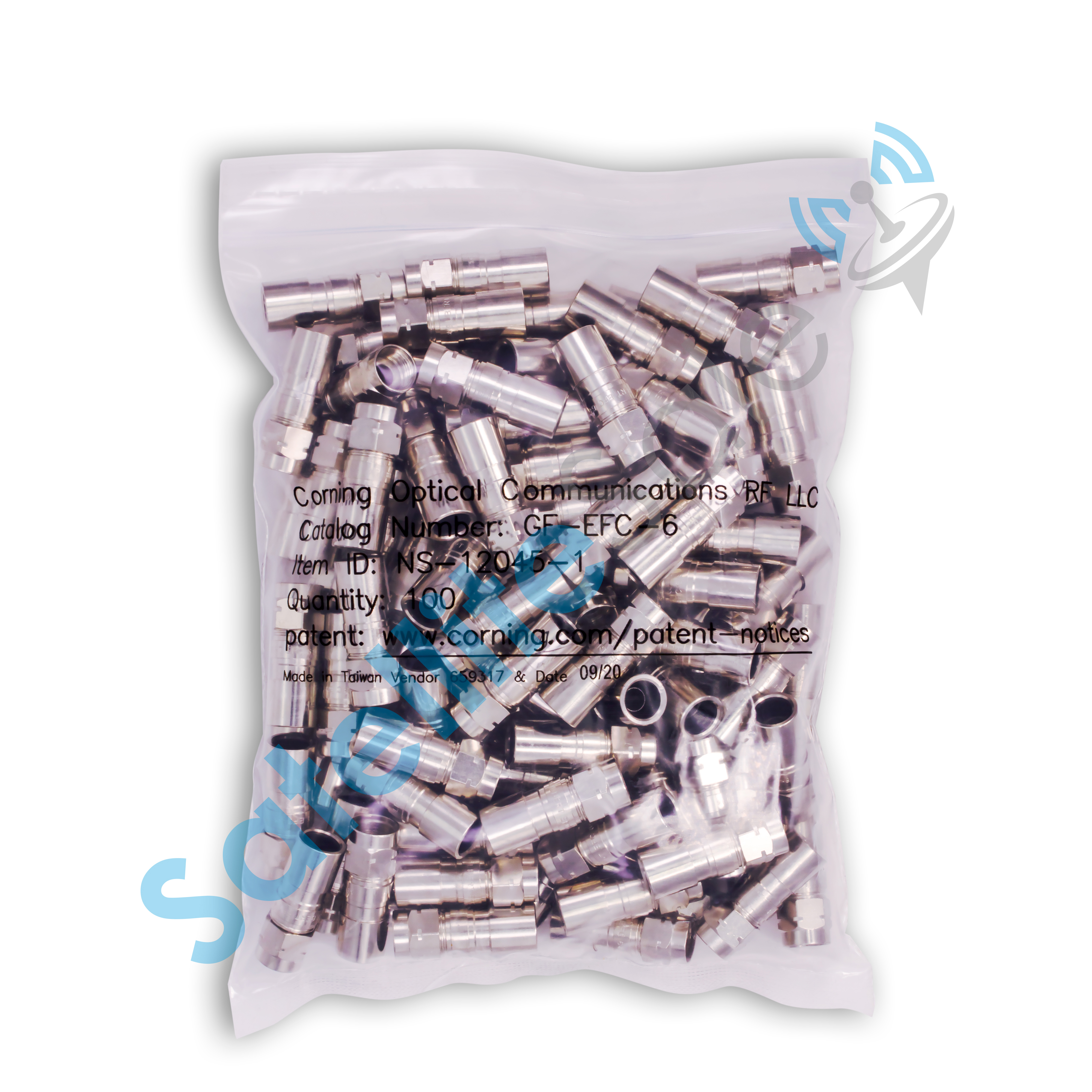

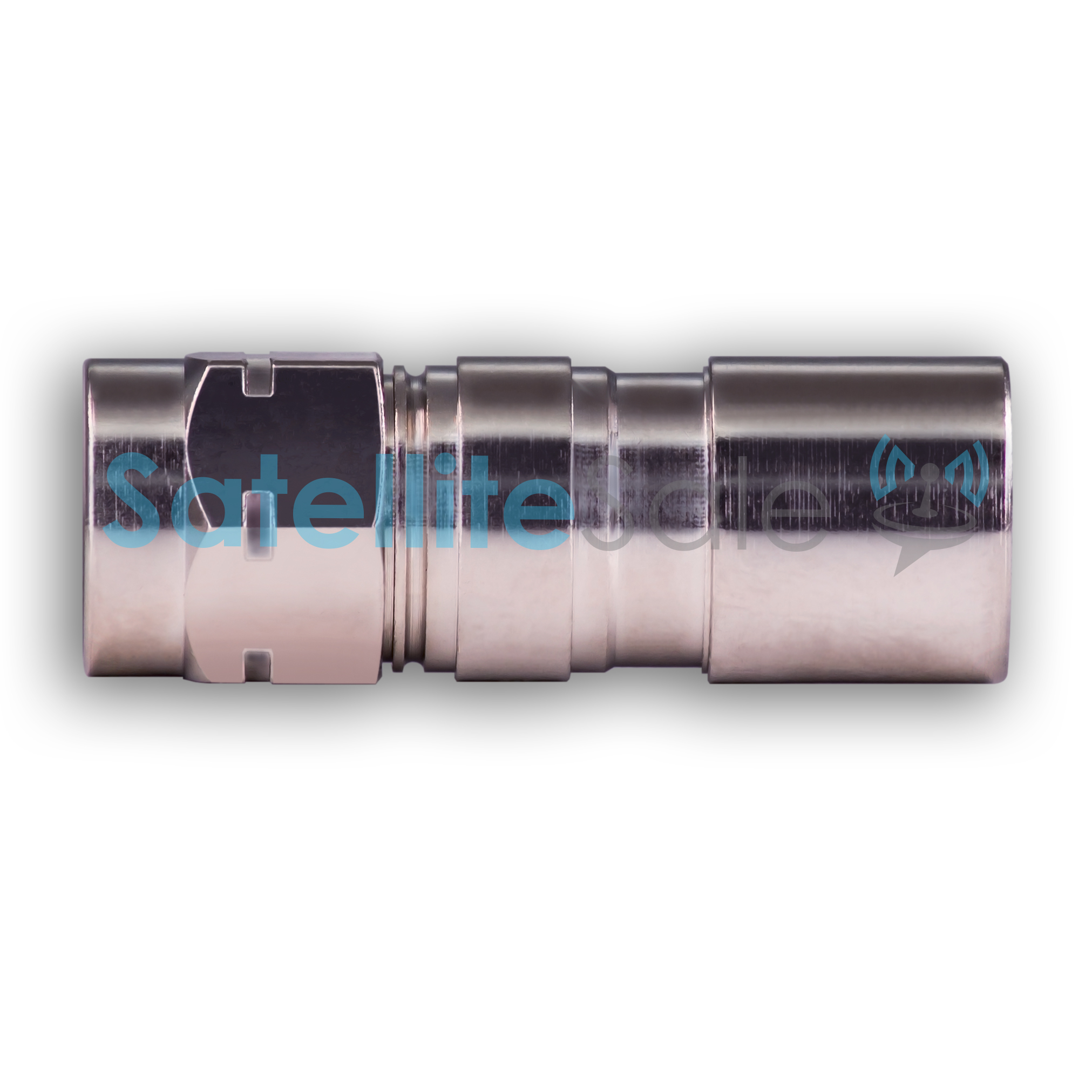

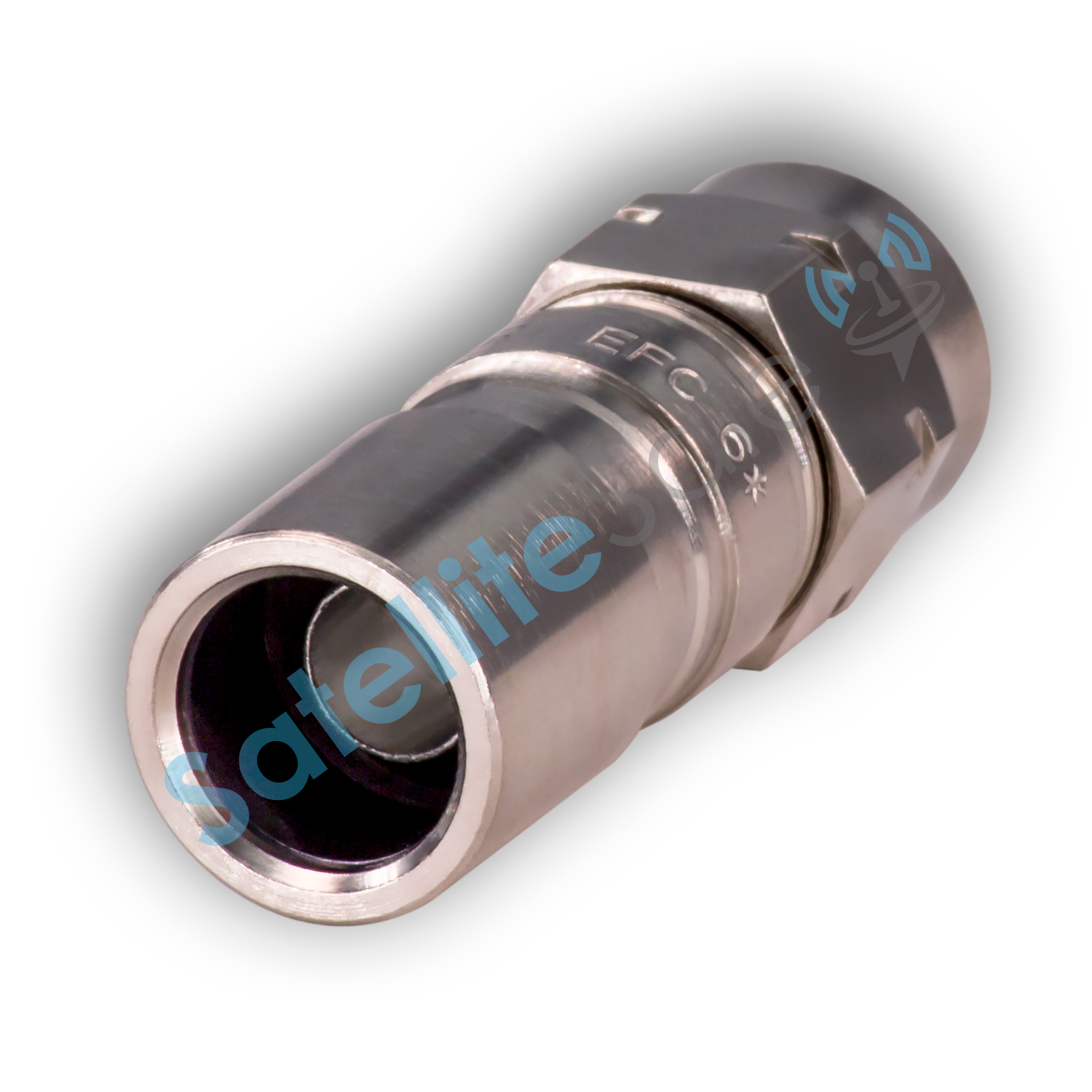

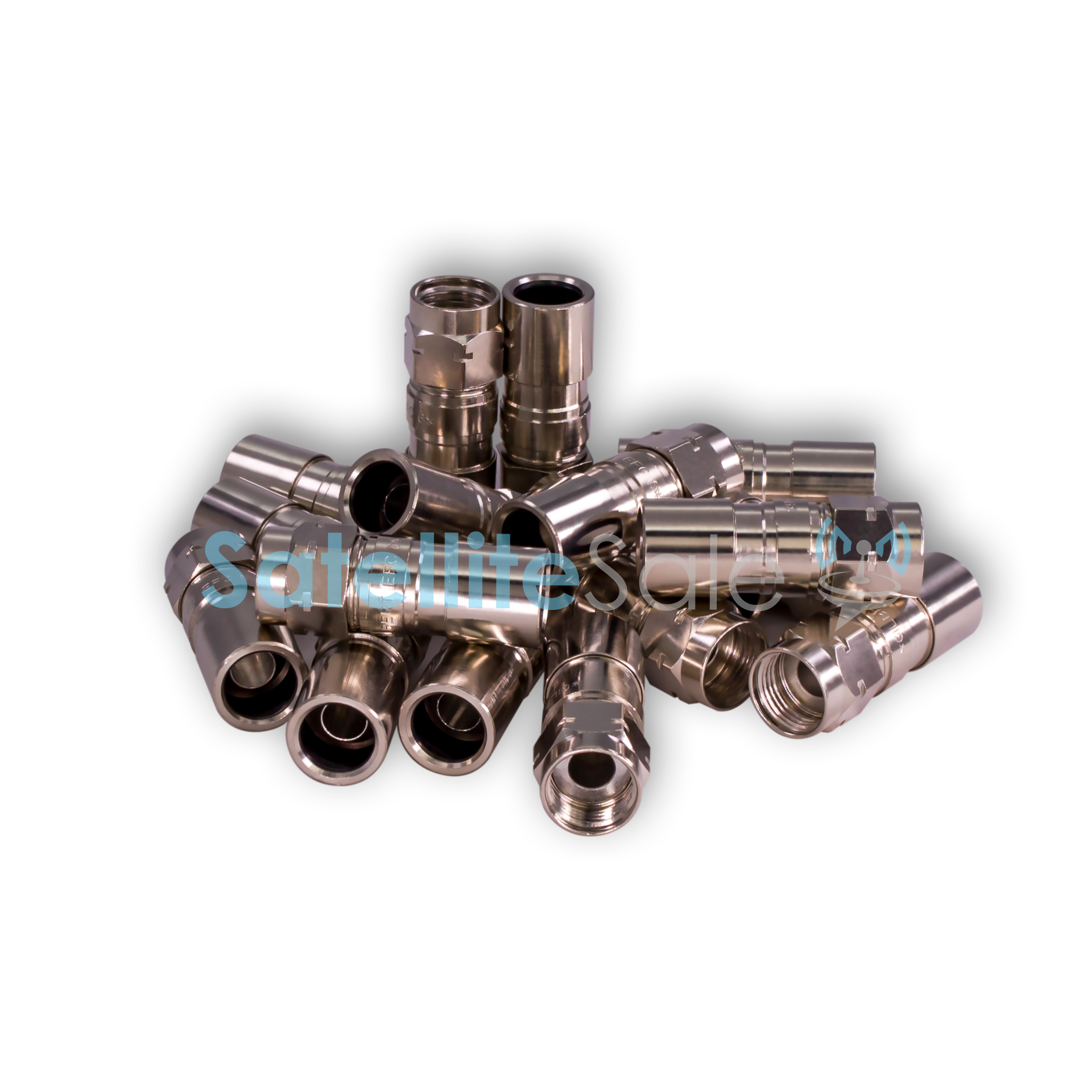

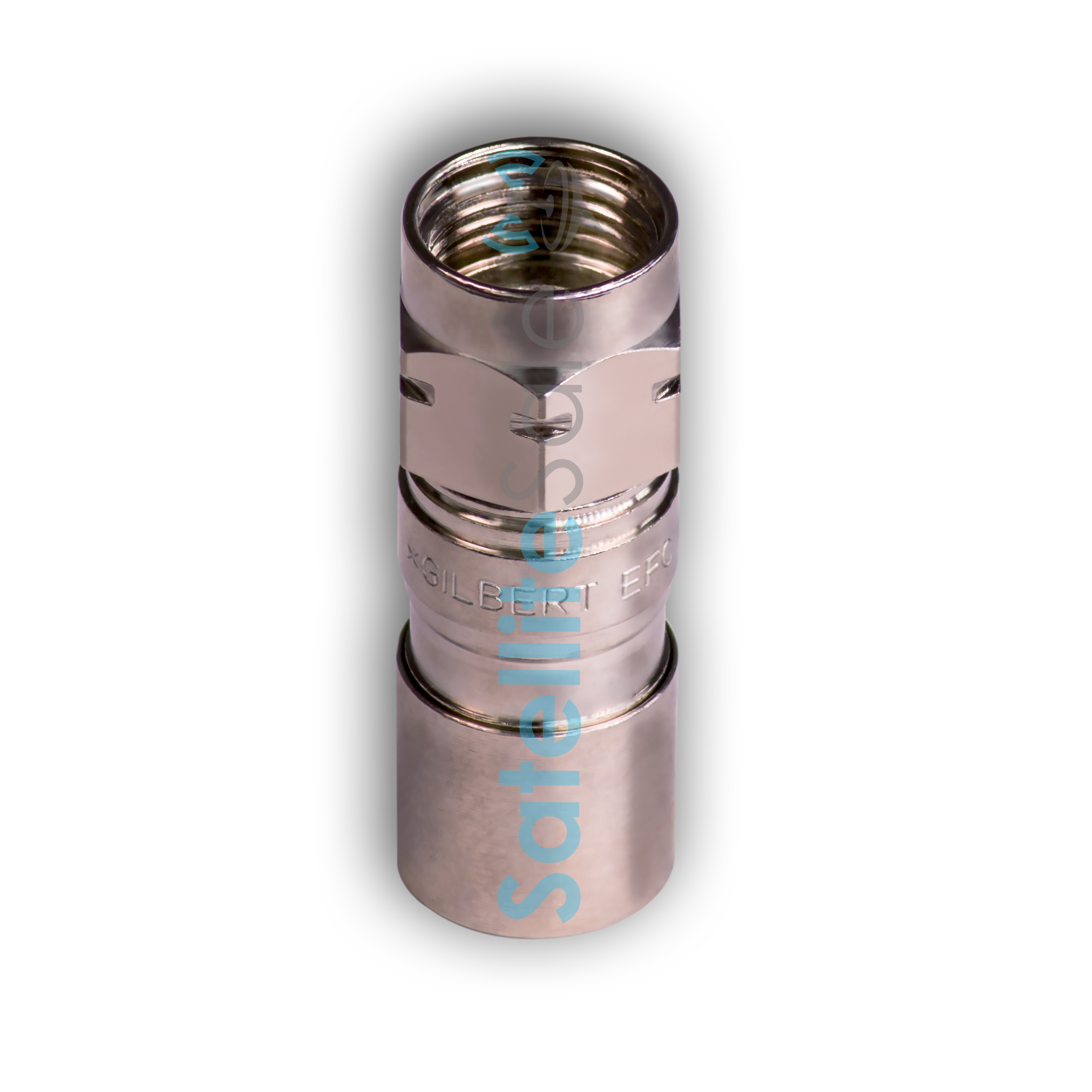

Corning EFC F Male Coaxial RG6 Compression Connectors GF-EFC-6 100-Pack

About this item

  • Continuity style; proprietary grounding technology: Maintains robust throughput signal and enhanced shielding even when coupling nut is not fully tightened.
  • Universal design: Fits all cable constructions; single-braid, tri-shield and quad-shield.
  • All metal construction: No external plastics to degrade when exposed to UV.
  • Corrosion Resistant: Indoor/Outdoor Application
  • Connector Range: 60% through Quad Shield Braid Coverage

Product Description

Corning Enhanced Continuity Connectors (EFC) incorporate high -performance features that maintain robust throughput signal and enhanced shielding under all conditions of coupling nut engagement.

All GF -EFC connectors are universal design and provide superior corrosion resistance.

Compression type, fits all Series 6 cables, hex nut.

General Specifications
Environment: Indoor/Outdoor
Cable Attachment type (crimp/compression): Compression
Cable Type: Series 6
Braid Coverage: 60% to Quad

Temperature Range
Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
Installation: -30 °C to 70 °C (-22 °F to 158 °F)
Operation: -40 °C to 70 °C (-40 °F to 158 °F)

Design - Hardware
Interface type: F Male
Body: Straight
Cable Compatibility: Series 6
Coupling nut type: Hex
Seal Ring: No

Mechanical Characteristics
Frequency Range: 0 GHz to 3 GHz

Electrical characteristics (at 20°C)
Return Loss (cable dependent): -30 dB

Chemical Characteristics
RoHS: Free of hazardous substances according to RoHS 2011/65/EU

Transmission
Shielding effectiveness (cable dependent): -80 dB (60% braid cables)
