3.7V 1A Solar Lamp Controller Solar Lantern Controller Solar Light Circuit Board

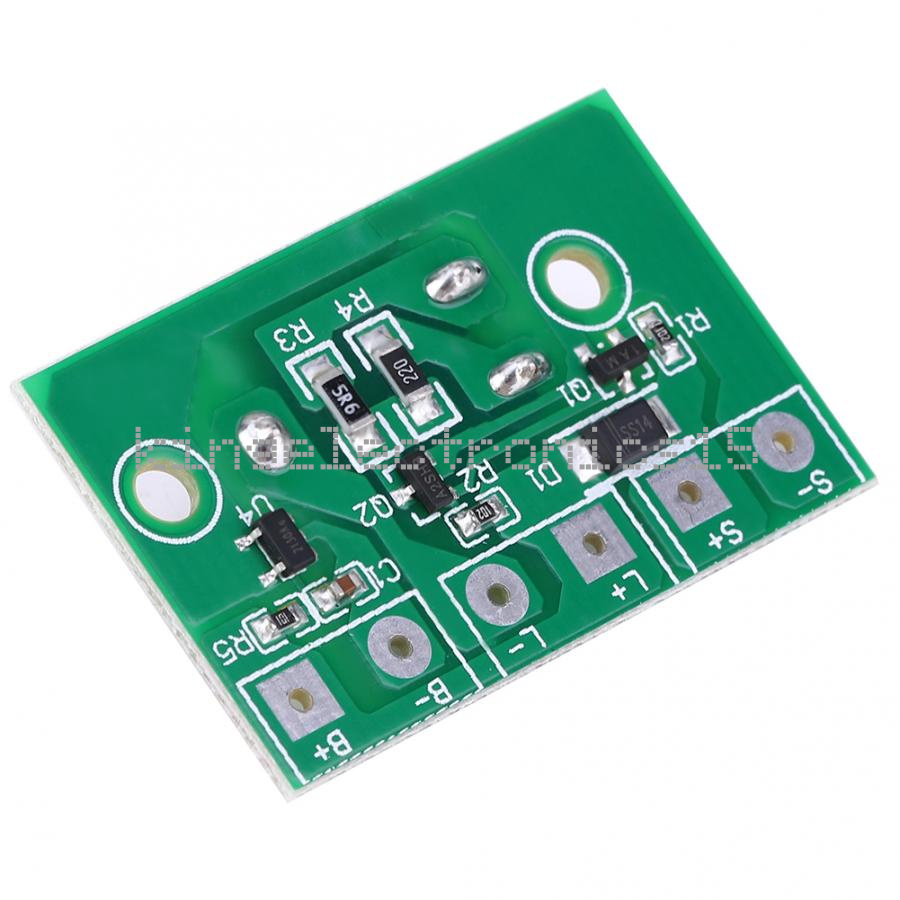

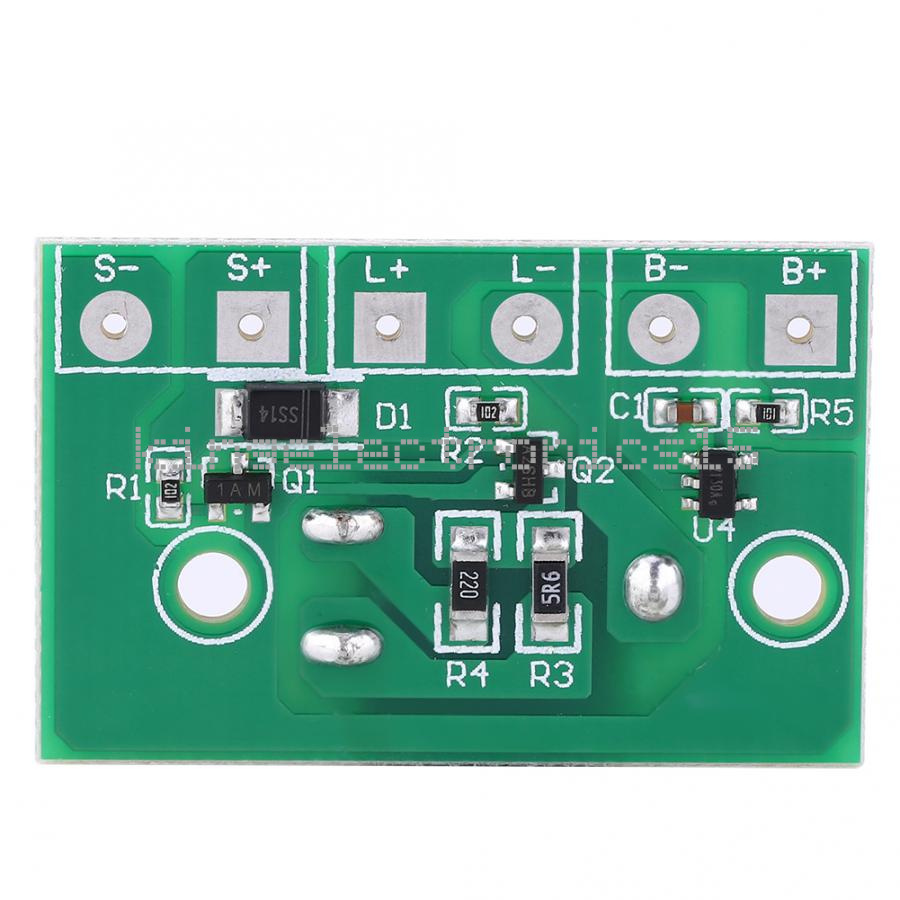

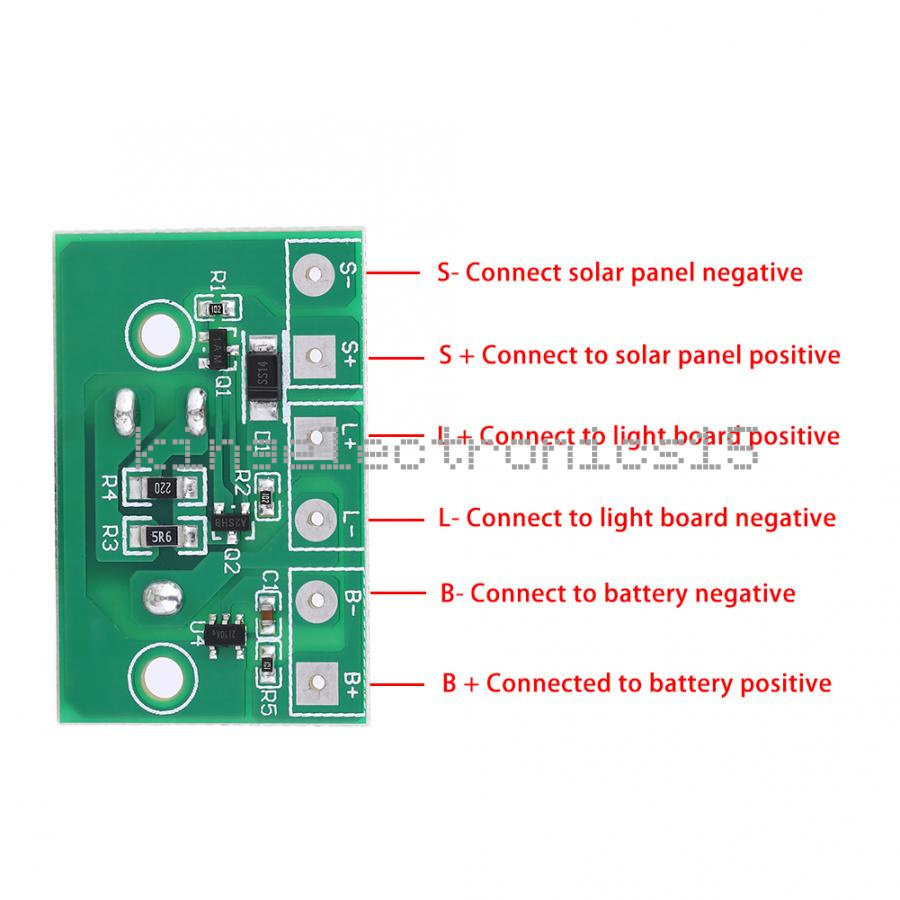

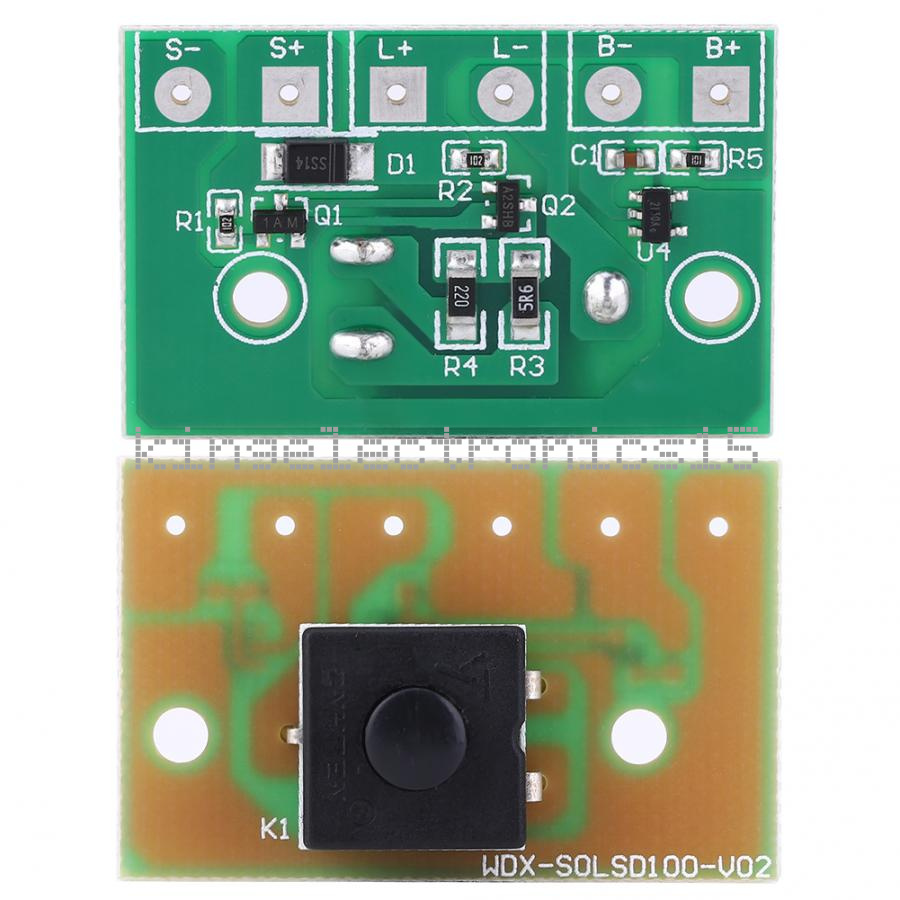

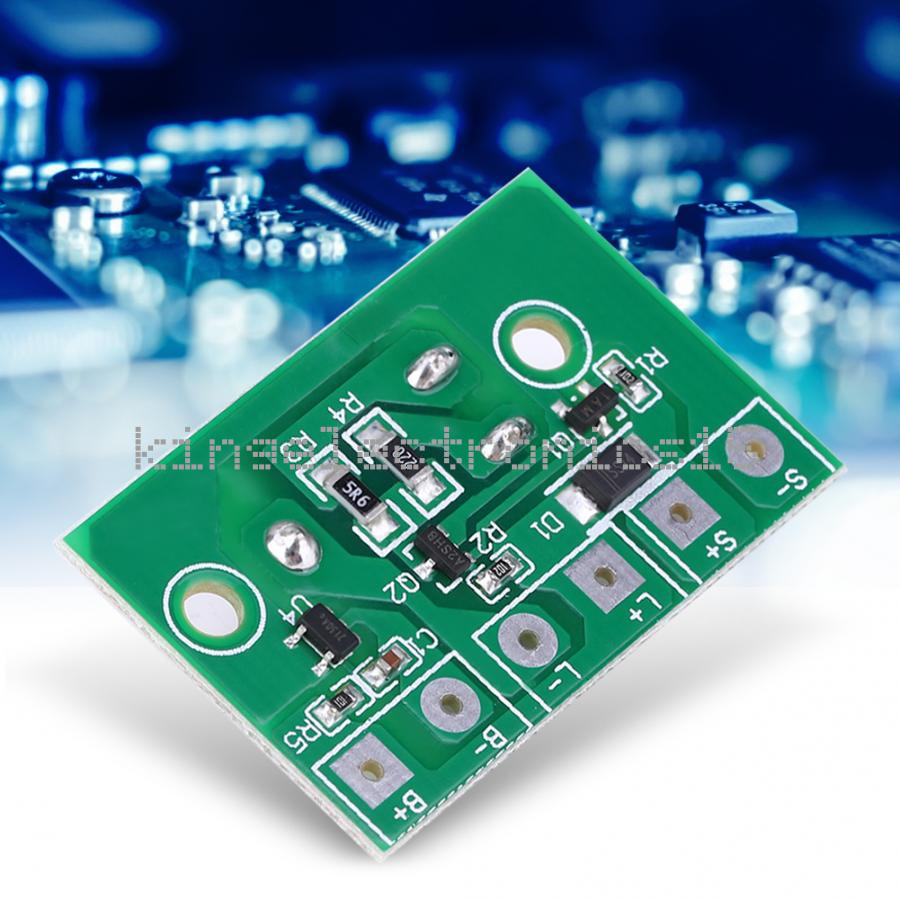

Product Image:
Product Description:

Feature:

1. Solar lawn light control panel, dedicated to 3.7V lithium battery
2. With over-charge and over-discharge protection and three-levels switch (light off, full power, low power)
3. Charging during the day can be illuminated at night, automatic circulation without human intervention
4. Great workmanship and clear connection, which can provide stable performance
5. High quality of the product can make sure the durability and stability of the control panel



Specification:

Item Type: Solar Lamp Controller Module
Working Voltage: 3.7V lithium battery
Charging Current: <1A
Overcharge Protection: 4.25V
Over Discharge Protection: 2.8V
Light Board: 3.0-3.2V lamp beads in parallel
Output Power: <1W
Solar Panel: 6V
Level: 3 Levels (light off, full power, low power)
Working State: The solar panel recharges the battery when the light is on during the day. The LED light panel does not work. When there is no sunlight in the evening, the LED light is automatically turned on, that is, the battery automatically recharges during the day and night.

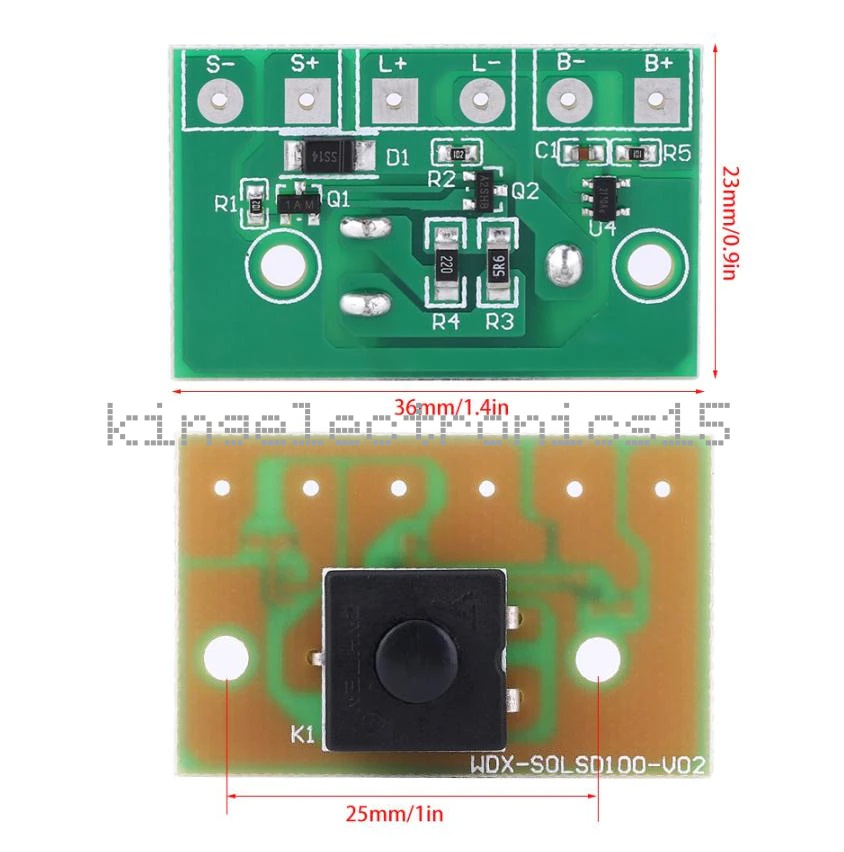

Size: Approx. 36 x 23mm / 1.4 x 0.9in
Hole Distance: Approx. 25mm / 1in





Package List:

1 x Module
