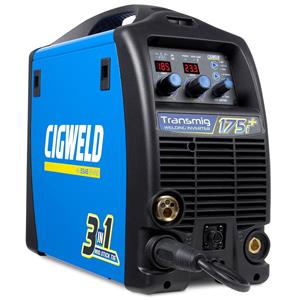

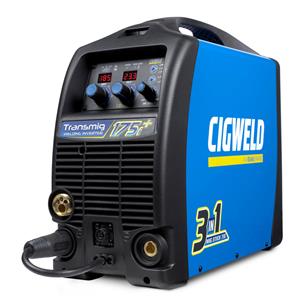

CIGWELD Transmig 175i+ Inverter Welder
Includes
| - 1 x Transmig 175i+ Inverter Welder |
- 1 x Tweco Professional Fusion 250 MIG Torch, 3m |
- 1 x COMET Professional Argon Regulator/Flowmeter |
- Feed Rolls: 0.6/0.8mm V Groove (fitted), 1.0/1.2mm U Groove, 0.8/0.9mm V Knurled |
- Contact Tips: 0.8mm (fitted), 0.6mm, 0.9mm, 1.0mm |
- 1 x Twist Lock Electrode Holder with 4m Lead |
| - 1 x Work Clamp with 4m Lead |
| - 1 x Shielding Gas Hose Assembly |
| - 1 x Shoulder Strap |

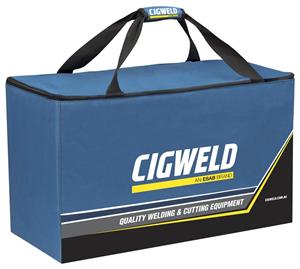

| - 1 x Product Bag |
| - 1 x Operating Manual |
Price: AU $1399.00
Buy Now Ask QuestionTechnical Specifications
| Brand: | Cigweld |
| MPN: | W1005185 |
| Certification: | AS 60974.1 |
| Primary Input Voltage: | 240V 1 Phase |
| Supply Plug: | 15 Amp |
| Generator Requirement: | 9.5 kVA (at 0.8 Power Factor) 7.8 kW (at 1.0 Power Factor) |
| Processes: | MIG (GMAW/FCAW), Stick (MMAW), Lift TIG (GTAW) |
| MIG Welding Current Range: | 10 - 185 Amps |
| MIG Duty Cycle @40ºC - MIG: | 185A @ 20%, 23.3V |
| TIG Function Type: | Lift TIG (GTAW) |
| TIG Welding Current Range: | 10 - 175 Amps |
| TIG Duty Cycle @40ºC - MIG: | 175A @ 25%, 17.0V |
| Stick Welding Current Range: | 10 - 160 Amps |
| Stick Duty Cycle @40ºC - MIG: | 175A @ 20%, 27.0V |
| Dimensions(Mm): | 410 x 210 x 450 |
| Weight: | 14.6kg |
| Warranty: | 3 Years |
Product Details
The unit is equipped with an integrated wire feed unit, voltage reduction device (VRD applicable in Stick mode only), digital voltage and amperage meters, and a host of other features in order to fully satisfy the broad operating needs of the modern welding professional.
MIG: 185A (MIG Mode) 3-in-1 MIG / Stick / Lift TIG Inverter Welder

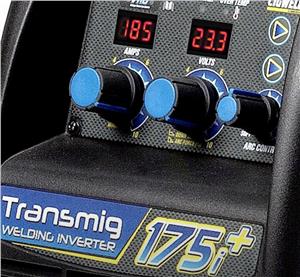

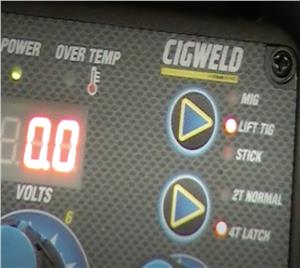

Digital Display: Digital Amperage and Voltage Meters
Portability: Highly portable with carrying handle, carry strap and under 15kg
Multi-process: Full multi-process capabilities; MIG, Stick and Lift TIG
Wire Feed: Integrated Wire Feed Unit Spools up to 5kg or 200mm
VRD: Standards compliant VRD
Standards: Fully compliant to AS 60974.1-2006. Enclosure Rated to IP23S – Designed for Indoor & Outdoor use.
ARC: Arc Control (Inductance) for adjusting the intensity of the arc
Burnback Control: Adjustable Burnback Control for controlling MIG wire stick out

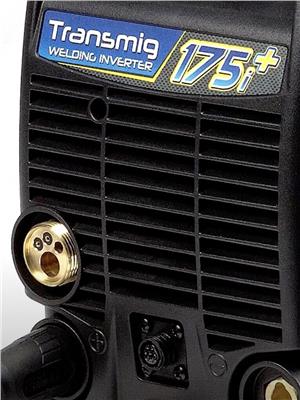

MIG Torch: Euro MIG Torch Connection
Feed Rolls: Accepts Mechafin style 2R feed rolls
Twist Lock: Robust 50mm Dinse twist lock connections.
