Flight time ultrasound distance
Sensor The TOF10120 distance sensor provides accurate and repeatable long-range measurement for high-speed autofocus (AF). The innovative time-of-flight technology enables
Performance independent of object reflection. The time-of-flight detection technology of the TOF10120 is implemented by Sharps SPAD (Single Photon Avalanche Diodes) using an inexpensive standard CMOS process. It enables a precise result on site, a higher immunity to ambient light and a better robustness against optical crosstalk of cover glass due to a special optical housing design.
940nm classified as class 1 under operating conditions
Absolute pallet size with a large range of up to 1.8 m
Within 5% accuracy
The reported area is independent of the target reflection.
Works in high infrared light environments.
Advanced optical crosstalk compensation.
High speed range: MAX. 30 ms.
Single power supply
Txd interface for device control and data transmission
High speed AF
Continuous AF for video
Laptops / tablets
Robotics (obstacle detection)
Range 100 ~ 1800mm
Color: photo color
Material: Plastic

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:

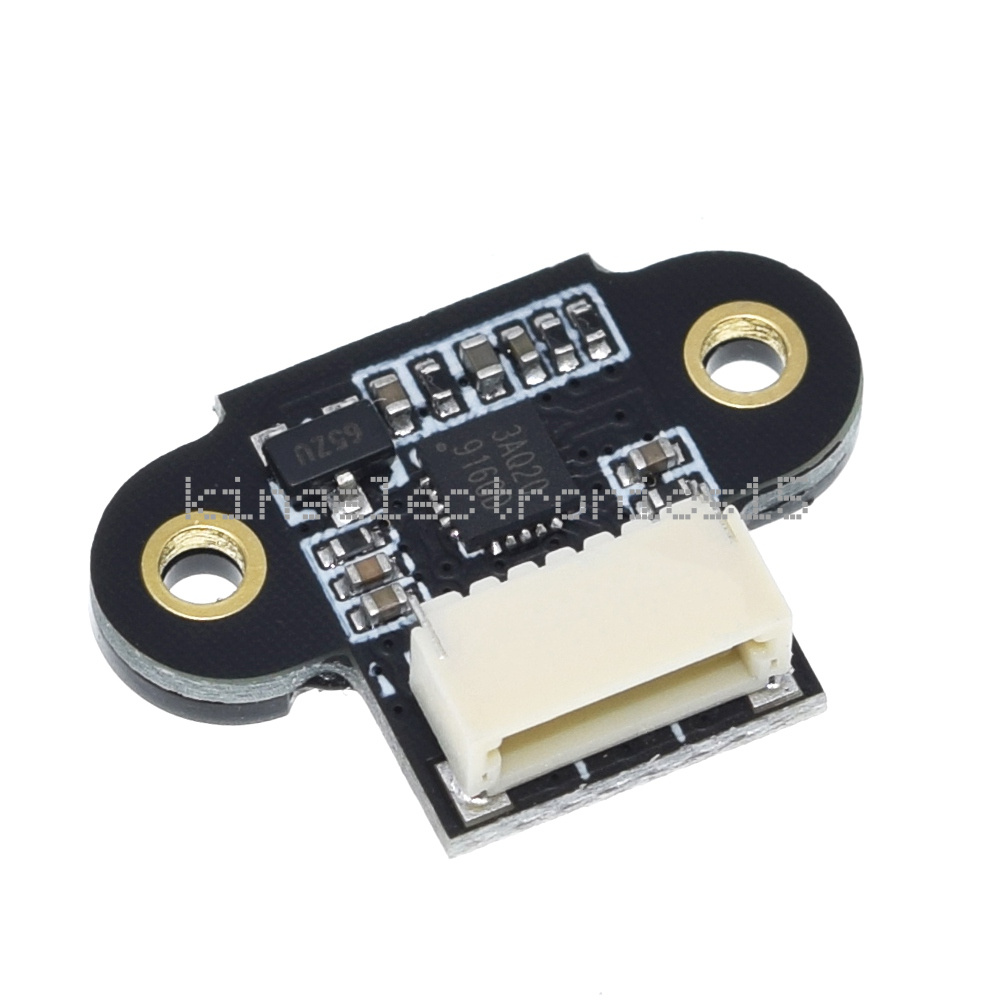

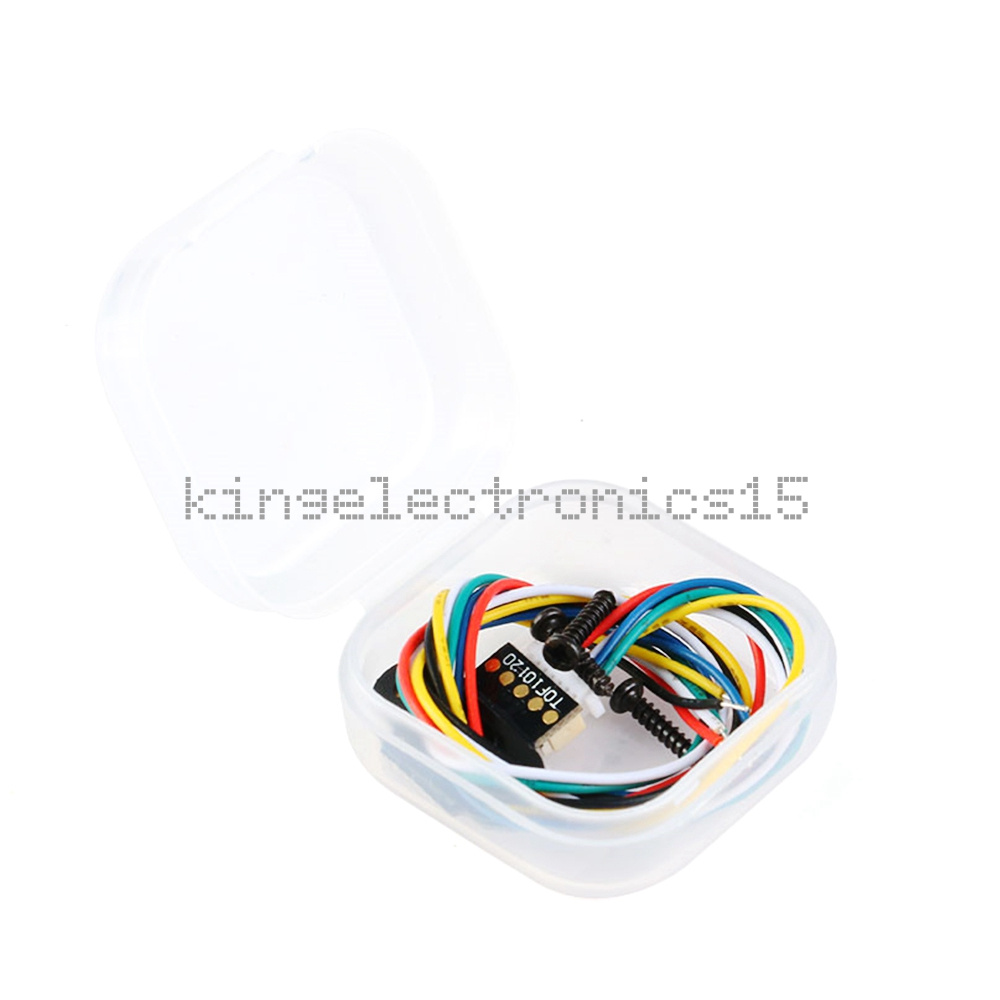

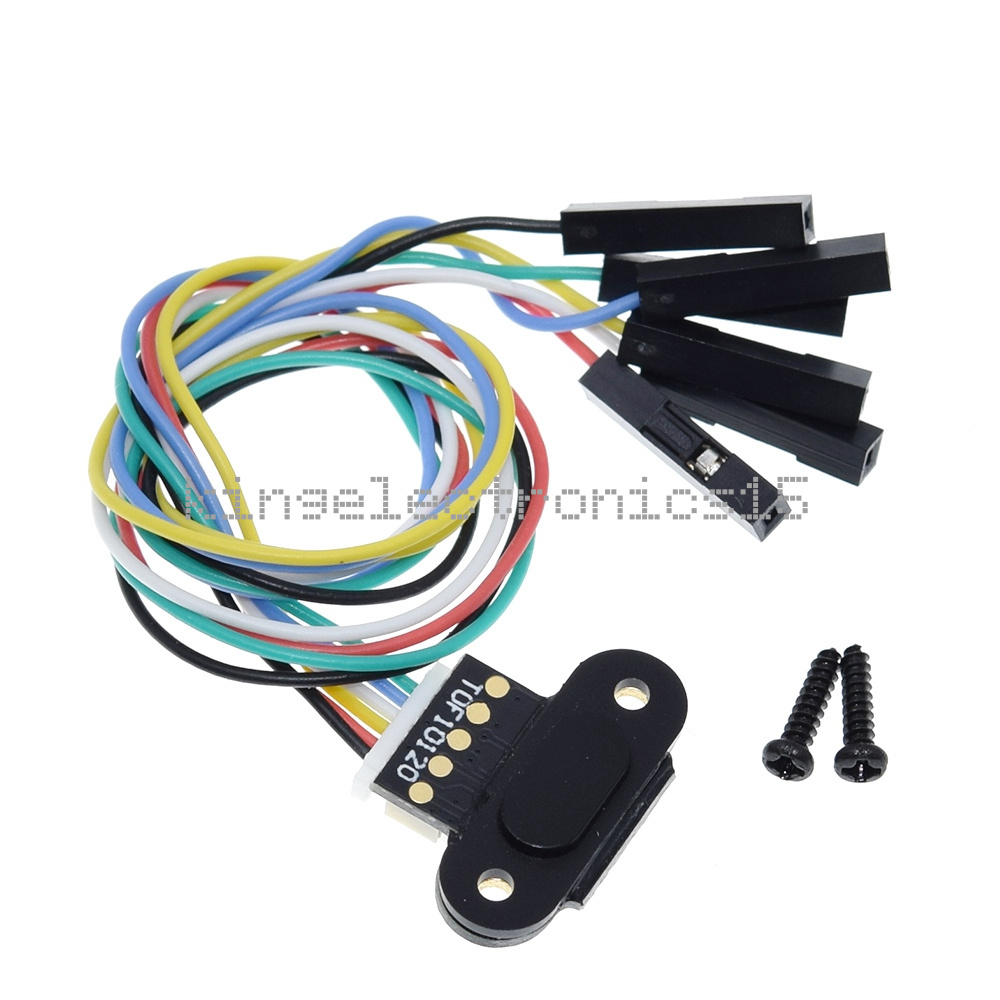

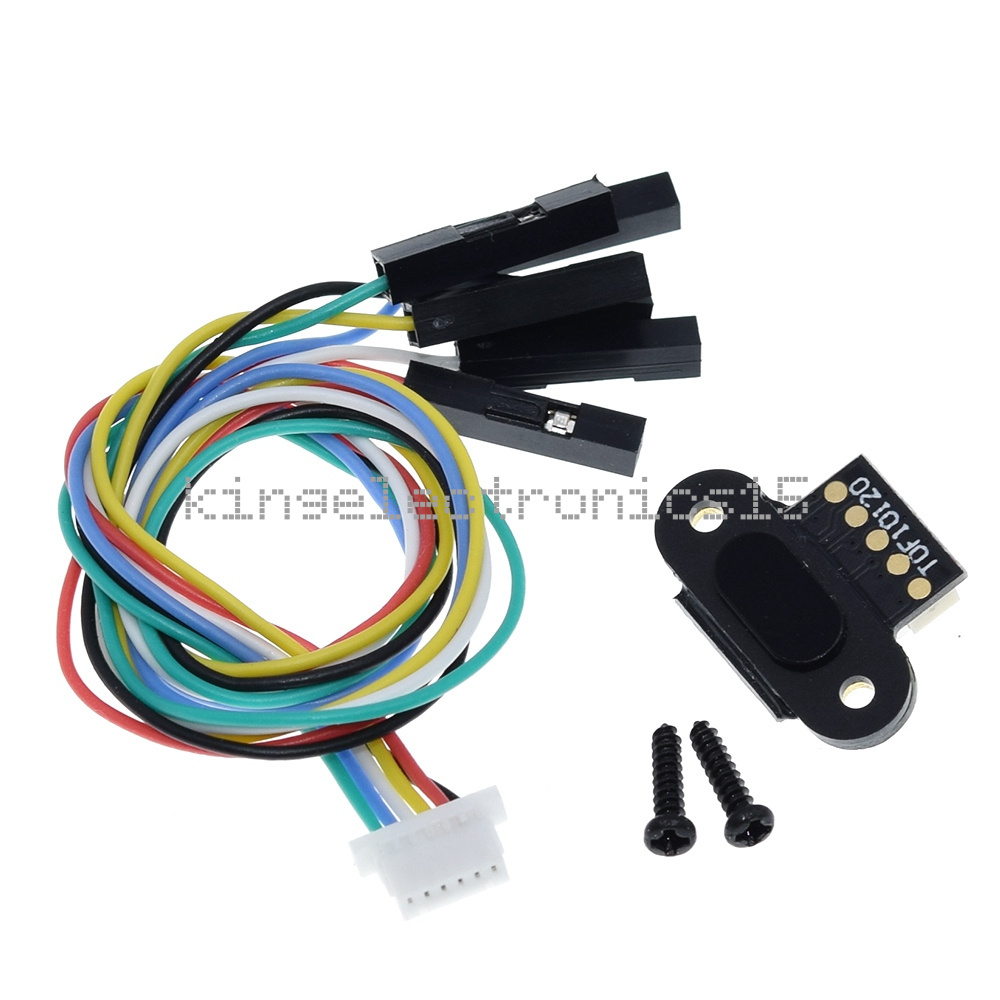

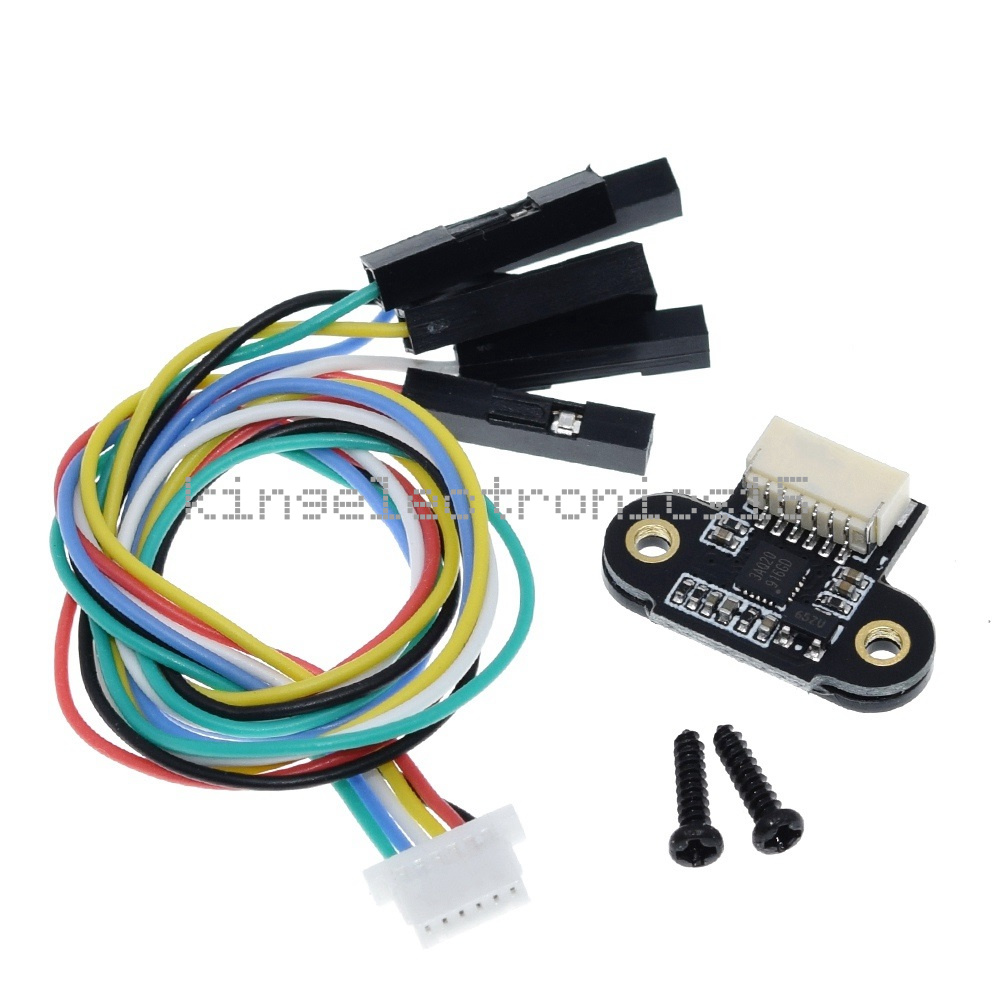

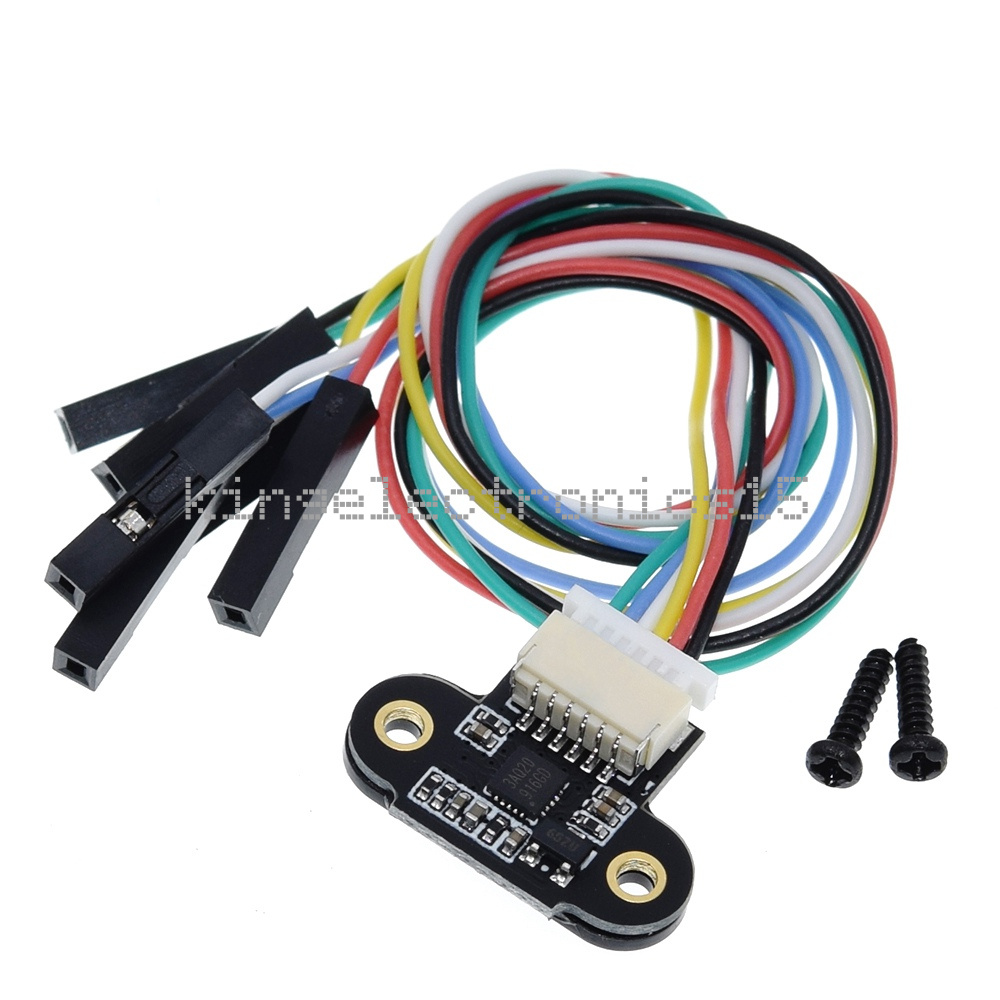

1 x TOF10120 ToF Laser Range Sensor with Cable
