The Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100% brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. Despite featuring a drastic increase in core size compared to stock.
Mishimoto eBay Listing Template created by NinjaTemplates, LLC
Click Thumbnails to Enlarge

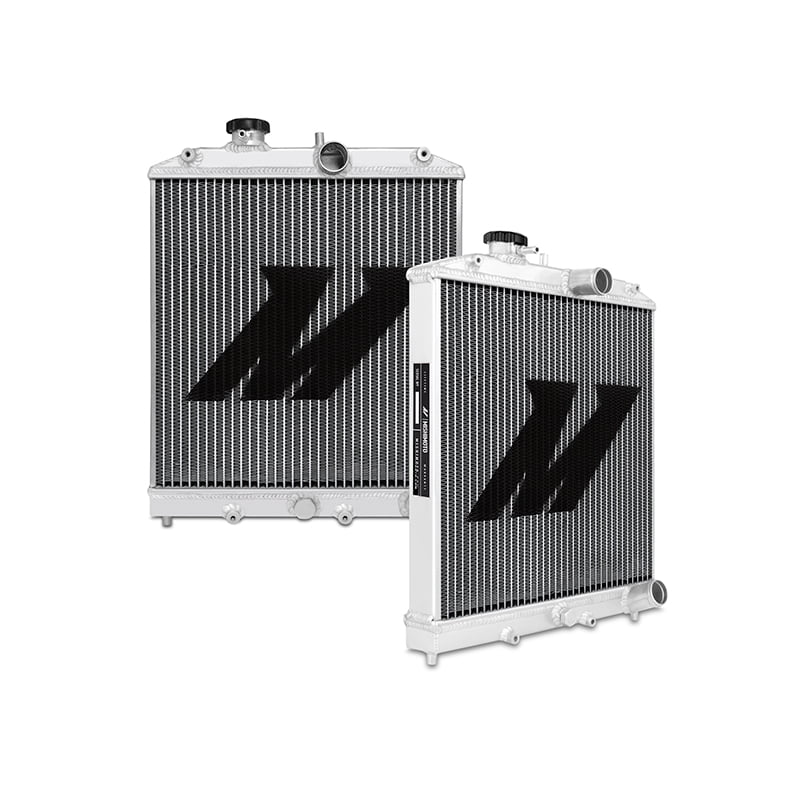

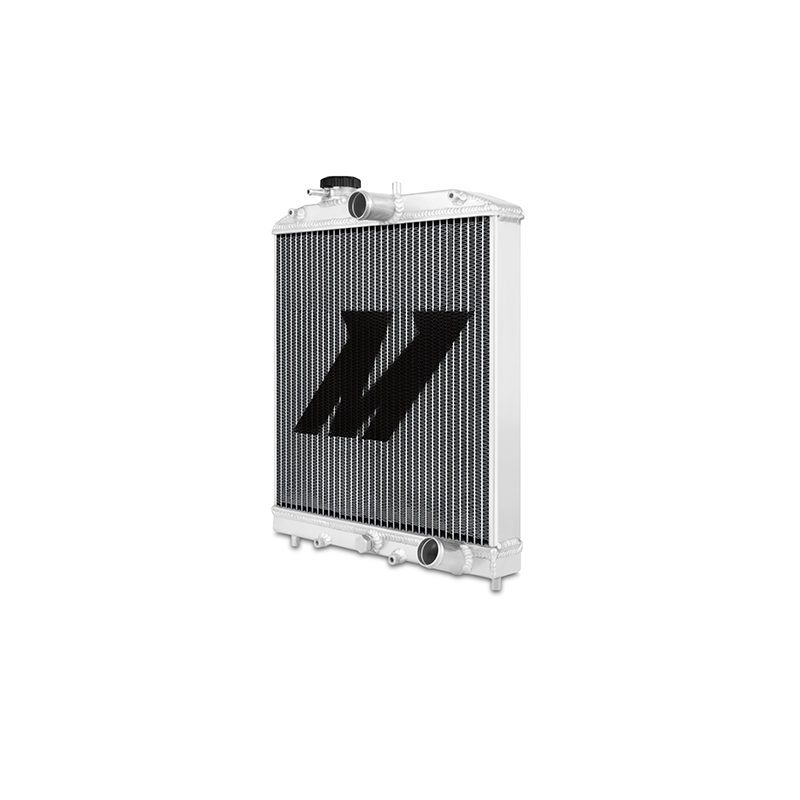

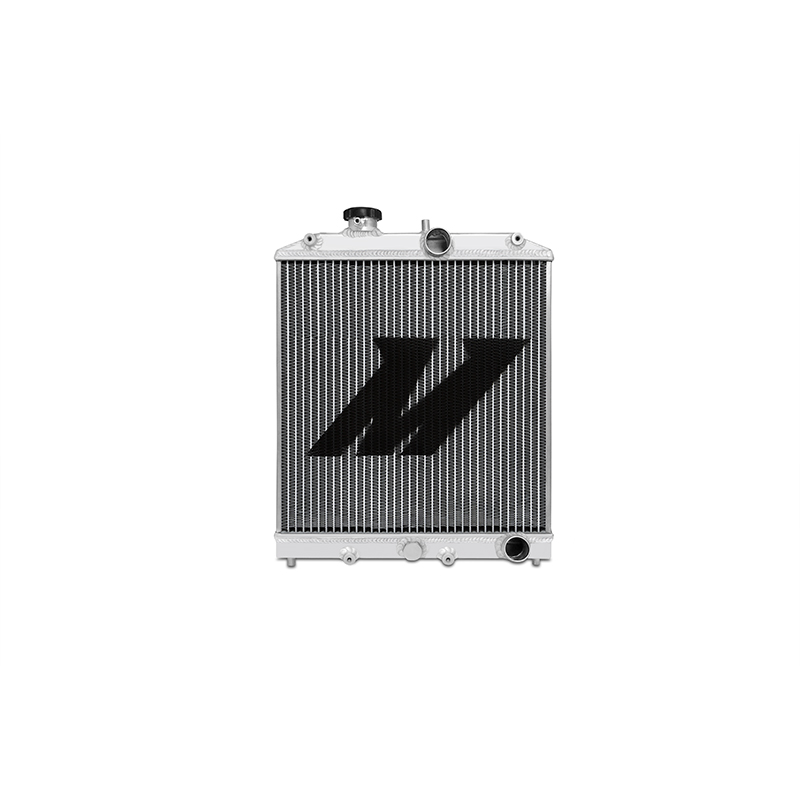

Mishimoto Performance X-Line Aluminum Radiator Fits Honda Civic 1992-2000 Silver

A high-performance Civic demands a cooling system that can keep up on the street and the track. For applications requiring the most efficient heat exchanger, the Mishimoto X-Line Honda Civic Performance Aluminum Radiator provides three cooling rows packaged in a massive 2-inch thick core. The three-row design provides additional surface contact points for higher efficiency and lower temperatures. To provide additional cooling performance this radiator is constructed using a 100% brazed aluminum core with TIG-welded aluminum end tanks for superior heat dissipation, reliability, and strength. This performance radiator includes a high-pressure 1.3 bar radiator cap that effectively raises the boiling point of coolant to create a safer and more efficient system, perfect for your time attack EG or all-motor EK. The Mishimoto Honda Civic X-line radiator features a compact yet highly efficient design, making it perfect for custom applications where space constraints limit the use of traditionally sized radiators. Despite featuring a drastic increase in core size compared to stock, this radiator is a direct fit for the 1992-2000 Honda Civic and requires no modification for installation. As with all our products, this radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.

— PRODUCT FEATURES —
Feature 1 Direct fit for 1992-2000 Honda Civic
Feature 2 Overall Size: 18.5" x 14.6" x 2.5" / Core Size: 13.78" x 14.09" / Rows: 3
Feature 3 Inlet & Outlet: 1.26" / Core Thickness: 1.2" / Tank Wall Thickness: 0.08"
Feature 4 All-aluminum construction includes high-pressure rad cap and magnetic drain plug
Feature 5 Mishimoto Lifetime Warranty
— Purchase Includes —
Includes Mishimoto Radiator

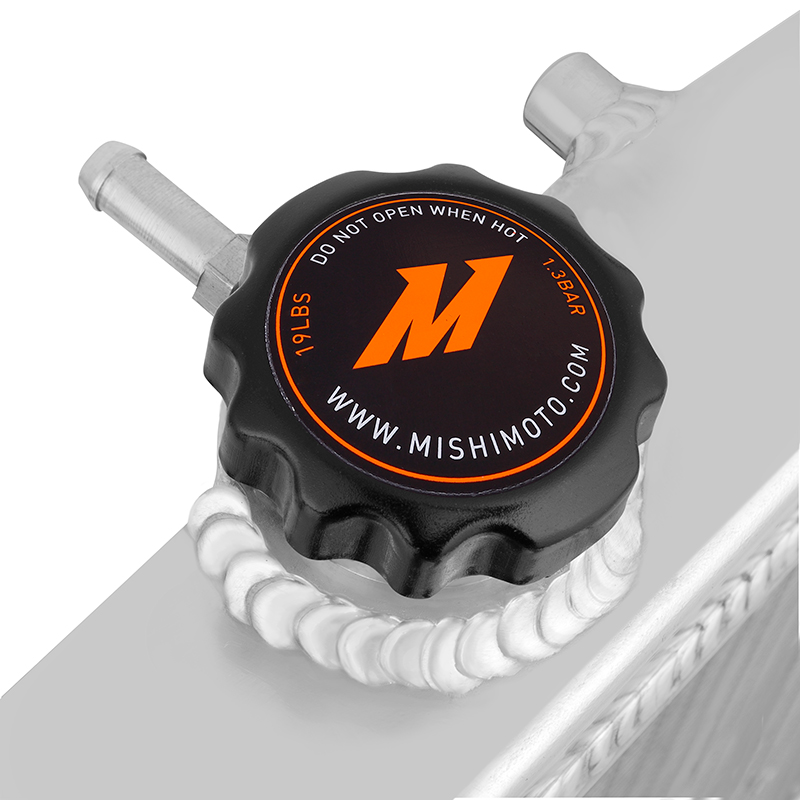

Mishimoto Radiator Cap
Magnetic Drain Plug
Mishimoto Lifetime Warranty
— ITEM SPECIFICATIONS —
Color Silver
Brand Mishimoto
Manufacturer Mishimoto
— Technical Specifications —
Tech Specs Applications: 1992-2000 Honda Civic (All)--1993-1997 Honda Civic Del Sol
Chassis Codes: EG1EH6EG2EH2EH3EH9EJ1EJ2EJ6EJ7EJ8EM1
Core Height (in): 14.09
Core Length (in): 13.78
Core Thickness (in): 2
DPI: 1290
Drain Plug Thread Size: M12 x 1.5
Engine Codes: D15b1D15b7D15b8D15z1D16z6D16y5D16y7D16y8B16a2B16a3
Fluid Capacity (gal): N/A
Includes: Mishimoto Radiator--Mishimoto Radiator Cap--Magnetic Drain Plug--Mishimoto Lifetime Warranty
Inlet (in): 1.26
Material: N/A
Note: This item is for Manual Transmission vehicles. For automatic applications, please purchase optional Mishimoto Universal Transmission Cooler Kit.
Outlet (in): 1.26
Overall Height (in): 18.5
Overall Length (in): 14.6
Overall Width (ins): 2.5
Rows: 3
