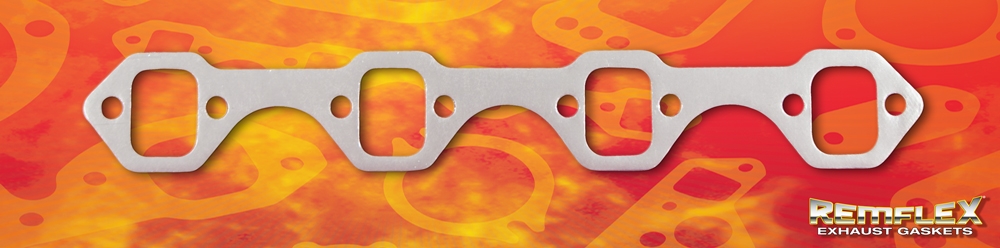

Remflex 3028 Exhaust Header Gasket Ford Small Block AFR/GT40 Head 1-1/4" x1-5/8"

Item Description

SK Speed Part Number: REM3028

1-1/4"w x 1-5/8"h Square Port

2" Bolt Hole Spacings on each port

289, 302, 351 Windsor

For use with aftermarket Cylinder Heads - Fits AFR, GT40

Cross Reference: Fel-Pro 1415

Cross Reference: Edelbrock 7227

• Seals Warped Flanges

Remflex exhaust gaskets come in a standard 1/8-inch thickness and are designed to crush 50%. This allows them to fill gaps in the flange surface up to 1/16-inch!

• Won’t Burn Out

100% flexible graphite construction means Remflex gaskets are good for up to 3,000 degrees F—far exceeding that of any vehicle’s exhaust system temperature!





INSTALLATION TIPS:  We want you to get the most from your new Remflex exhaust gaskets.  To assure your complete satisfaction, please follow these basic installation guidelines:

1.)  DO NOT BEND!  Remflex gaskets are designed to withstand clamping force and incredible heat, but not bending.

            If you bend them, they will break!

2.)  Do not over tighten.  When properly installed the flange should be tightened evenly - See the suggested torque range.

3.)  Longer bolts aren't necessary.  Though Remflex are thicker than other gaskets, standard length bolts will work fine.

4.)  Do not use sealers.  Silicone and other sealers cannot withstand the same temperature as Remflex gaskets, and can actually cause leaks.
