HomLiCon LCH3HV


Controller  Features


  • Three main modes:



  • Color Organ, Sound Activated Light Show
  • Light Sequencer
  • Lighting


  • Control of three channels with groups of the following types of lamps:


  • Incandescent lamps
  • Halogen lamps
  • Dimmable LED lamps / Dimmable LED strips


  • Control of all settings and functions through the remote control included in the kit.
  • Switch between previously saved 10 groups different levels for all channels or Light Show settings by pressing one button.
  • Easy save of 10 custom groups different levels for all channels or Light Show settings.
  • Activation of Light Show controlled by sound from microphone(1), Line-in or unsynchronized.
  • Fully automatic Color Organ with digital division of the bandwidth in 3 range:  LF 50 - 200Hz ,  MF 200Hz - 7kHz , HF 7 - 14kHz.
  • Automatic or manual switching between different programs of Light Show.
  • Adjust sensitivity AGC (Automatic gain control) for Color Organ separately for each frequency channel LF, MF, HF in 4 levels, saved separately for each audio input.
  • Equalize or adjust the light intensity for channels in Light Show.
  • Smooth change of light intensity when switching on or off each phase-controlled channel.
  • Smooth change of light intensity for all channels to reach the preset levels when selecting one of the ten preset functions.
  • Ability to set phase control for each channel or ON/OFF option.
  • Ability to choose if the channels are off or a saved function is activated when the supply voltage is applied.
  • LED on each one of the channels connected to the microcontroller pins for indication and diagnostics.
  • Full optically isolated from mains voltage.
  • Optron and TRIAC  in the output of each channel.
  • The controller can be tested via the onboard LEDs, being safely powered only by 12V.


3 Channel Multifunctional Controller with Remote Control

 HomLiCon  LCH3HV

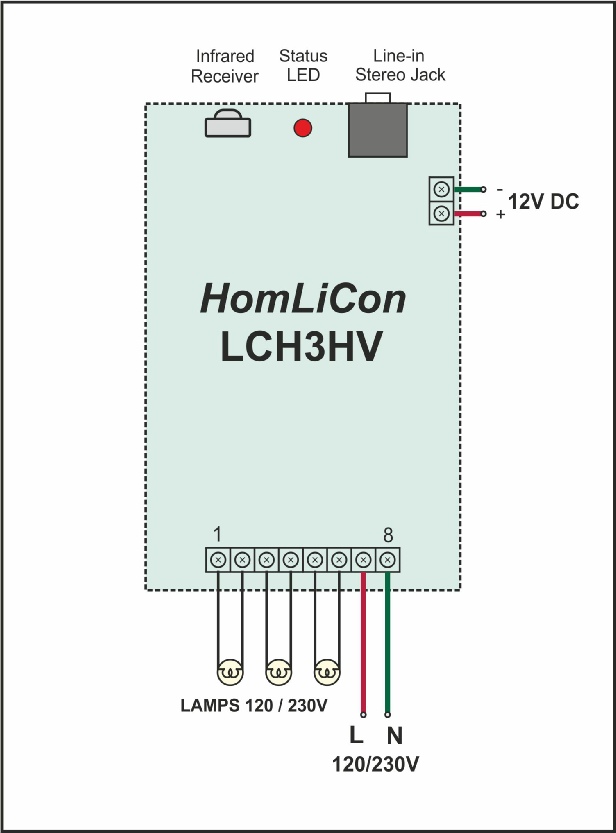

  • Designed to control groups of lamps 120V/60Hz or 230V/50Hz.. Full optically isolated from mains voltage.
  • Three main modes:    - Color Organ, Sound Activated Light Show;    - Light Sequencer;    - Lighting
  • Automatic Color Organ with digital division of the bandwidth in 3 range: LF 50 - 200Hz , MF 200Hz - 7kHz , HF 7 - 14kHz.
  • Automatic gain control (AGC) : Line-in > 9dB , Mic-in > 60dB (with module MACL - optional).
  • True high frequency channel  7 - 14kHz..
  • Switch between previously saved 10 groups different levels for all channels or Light Show settings by pressing one button.
  • Easy save of 10 custom groups different levels for all channels or Light Show settings.
  • Control groups of the following types of lamps:  Incandescent lamps,   Halogen lamps,   Dimmable LED lamps / Dimmable LED strips
  • Suitable for use / installation in Traffic Light Color Organ

DOWNLOAD USER GUIDE

User_Guide_HomLiCon_LCH3HV_EN_V1.2.pdf



Lifetime email technical support


Number of channels

3

Maximum output power total (120V mains voltage)

600 W

  Maximum output power per channel (120V / 230V mains voltage)

  200 W / 400 W

Maximum output current per channel

1.6 A

Mains supply voltage

90 – 240 VAC

Phase control steps for each channel

110

Maximum total output current

4.8 A

Supply voltage optically isolated part

12 VDC (9 – 12 VDC)

Current consumption  optically isolated part

35 mA

Number of stored levels and settings

10

Color Organ bandwidth

LF  50 - 200 Hz

MF 200 Hz - 7 kHz

HF 7 - 14 kHz

Line-in Nominal Level (set standart / high sensitivity)

0.3 V / 0.15 V RMS

Line-in Maximum Level

1.5 V RMS

Mic-in range of sound Level (with an added module MACL - not included in the kit)

60 - 120 dB

Ambient temperature

5 - 40°C

Dimensions  LCH3HV

100 / 65 / 30 mm

Dimensions Remote

85 / 40 / 7 mm

 Technical Specifications



№

Sound Activated Light Show

Light Sequencer

1

AUTO - automatic switching between programs  3 - 8  while at a low sound level - switches to program 2

AUTO - automatic switching between programs 3 - 8

2

Smooth transitions sequence  without sound control

3

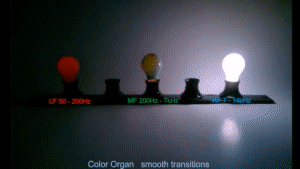

Color organ with smooth transitions

Chaser  –>

4

Color organ classic

Chaser  <–

5

Sound activated 1 - VU

Chaser  –>, <–

6

Sound activated 2

Fill  –>

7

Sound activated 3

Fill  <–

8

Sound activated 4

Fill  –>, <–

9

Sound Activated - Strobe chase

Strobe chase

10

Sound Activated - Strobe all

Strobe all

 Table Programs of 3 Channel Light Show





Package Includes:


  • LCH3HV BOARD (assembled and tested)


  • IR Remote Control

(battery CR2025 not included)









Assembled and tested kit





Shipping via Registered Air Mail.

Order processing time:  2  -  5  business days.

Estimated Delivery Time: 15 -  40 business days.



Note: Programs 9 and 10 are designed for use with dimmable LED lamps only.


Color Organ, Light Sequencer - AC 120/230V Controller HomLiCon LCH3HV - Incandescent Lamps - YouTube

Video will open in a new window
Using the eBay App? Paste link into a browser window:

Color Organ, Light Sequencer - AC 120/230V Controller HomLiCon LCH3HV - LED COB - YouTube

Video will open in a new window
Using the eBay App? Paste link into a browser window:


WARNING:

The device works with  HIGH  VOLTAGE !

Touching any of the elemets of the device when plugged in can be life threatening.

Outputs do NOT have protection from short circuit or overload. Improper connection will lead to a damaged controller.

The controller can control lamps that allow dimming :   Incandescent lamps,   Halogen lamps,   Dimmable LED lamps

Using lamps that do not allow dimming may damage the lamp and controller.

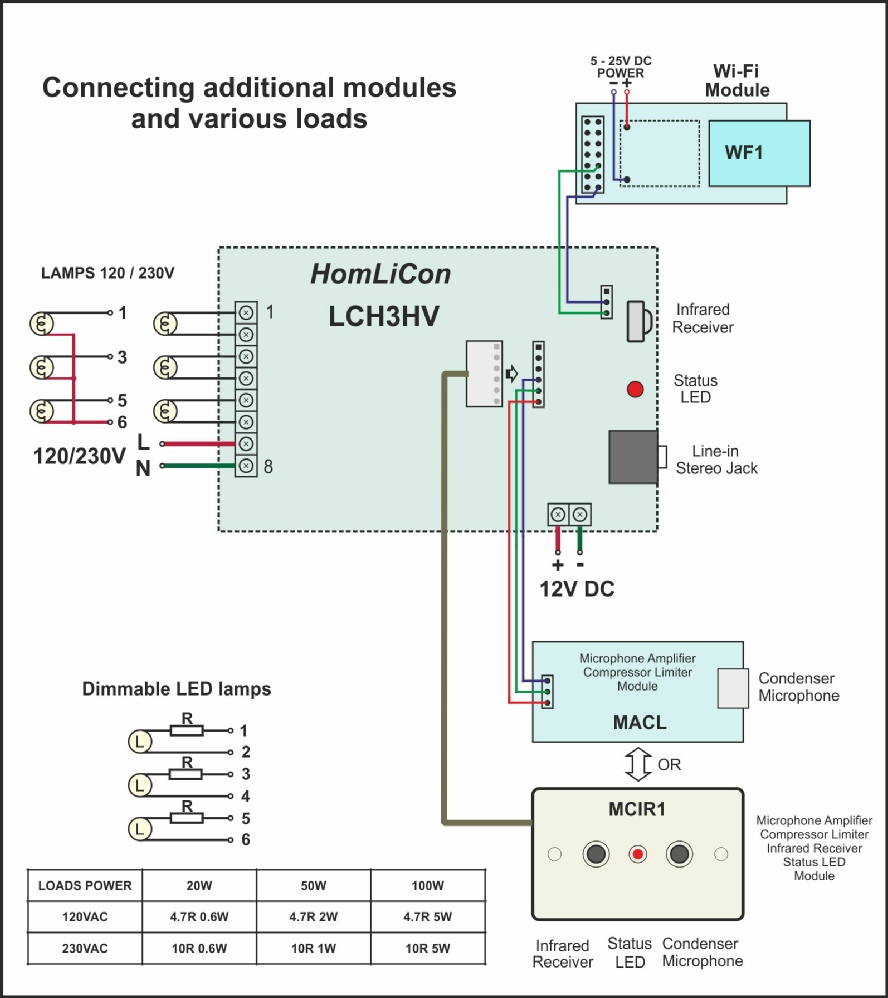

 Dimmable LED lamps is recommended to be connected via a series resistor that limits the inrush current.
