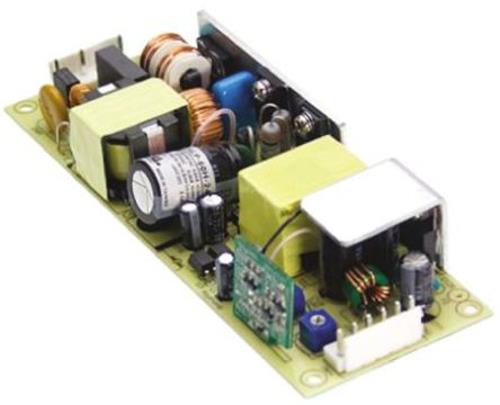

Switch Mode - Mean Well - 60W Constant Voltage LED Driver / Power Supply - HLP-60H

HLP-60H series, 60W, dimmable, constant voltage, LED driver / power supply with universal AC input. These dimmable LED drivers / power supplies have a built in 3 in 1 dimming function and built in active PFC function. Suitable applications for these dimmable LED drivers / power supplies include built-in LED lighting systems and can be used in dry or damp locations.

Full range universal AC input
Free air convection cooling
Built in active PFC function, PF>0.95
Output constant current level adjustable
100% full load burn-in test
3 in 1 dimming function (1 to 10 Vdc or PMW signal or resistance)
Short circuit, overload, over voltage and over temperature protection
Compliance to worldwide safety regulations for lighting
EMC compliance to EN55015, Class B
Harmonic current compliance to EN61000-3-2 Class C (≥60% load); EN61000-3-3

Note

For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 50°C operating temperature

Approvals

cULus, TUV

Standards

UL8750, EN61347-1, EN61347-2-13 approved, Design refer to UL60950-1, TUV EN60950-1
