* 3.95-inch color screen, support RGB 65K color display, display rich colors
* 320x480 resolution for clear display
* Supports 8-bit and 16-bit parallel bus transmission with fast transfer speed
* On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
* Support touch function
* Provides an Arduino library with a rich sample program
* Available on C51 and STM32 platforms with a rich sample program
* Easy to expand the experiment with SD card slot
* Military-grade process standards, long-term stable work
* Provide underlying driver technical support
Screen Size 3.95 inch
Type TFT
Driver IC ILI9488
Resolution 480*320 (Pixel)
Module Interface 8Bit or 16Bit parallel interface
Active Area 83.52x55.68(mm)

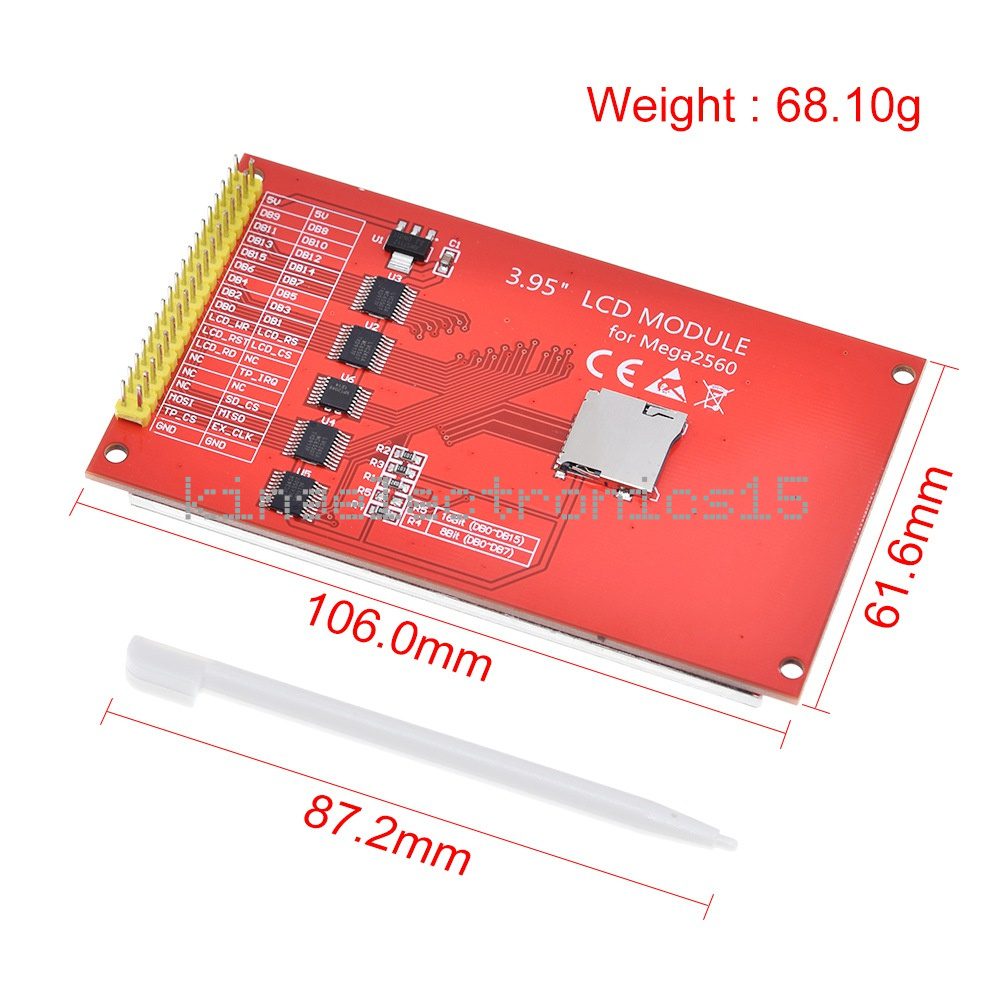

Module PCB Size 61.54x105.69 (mm)
Back light 6 chip HighLight white LEDs
Operating Temperature -20°~60°
Storage Temperature -30°~70°
Operating Voltage 5V/3.3V
Power Consumption TBD
Product Weight(Package containing) 68g
