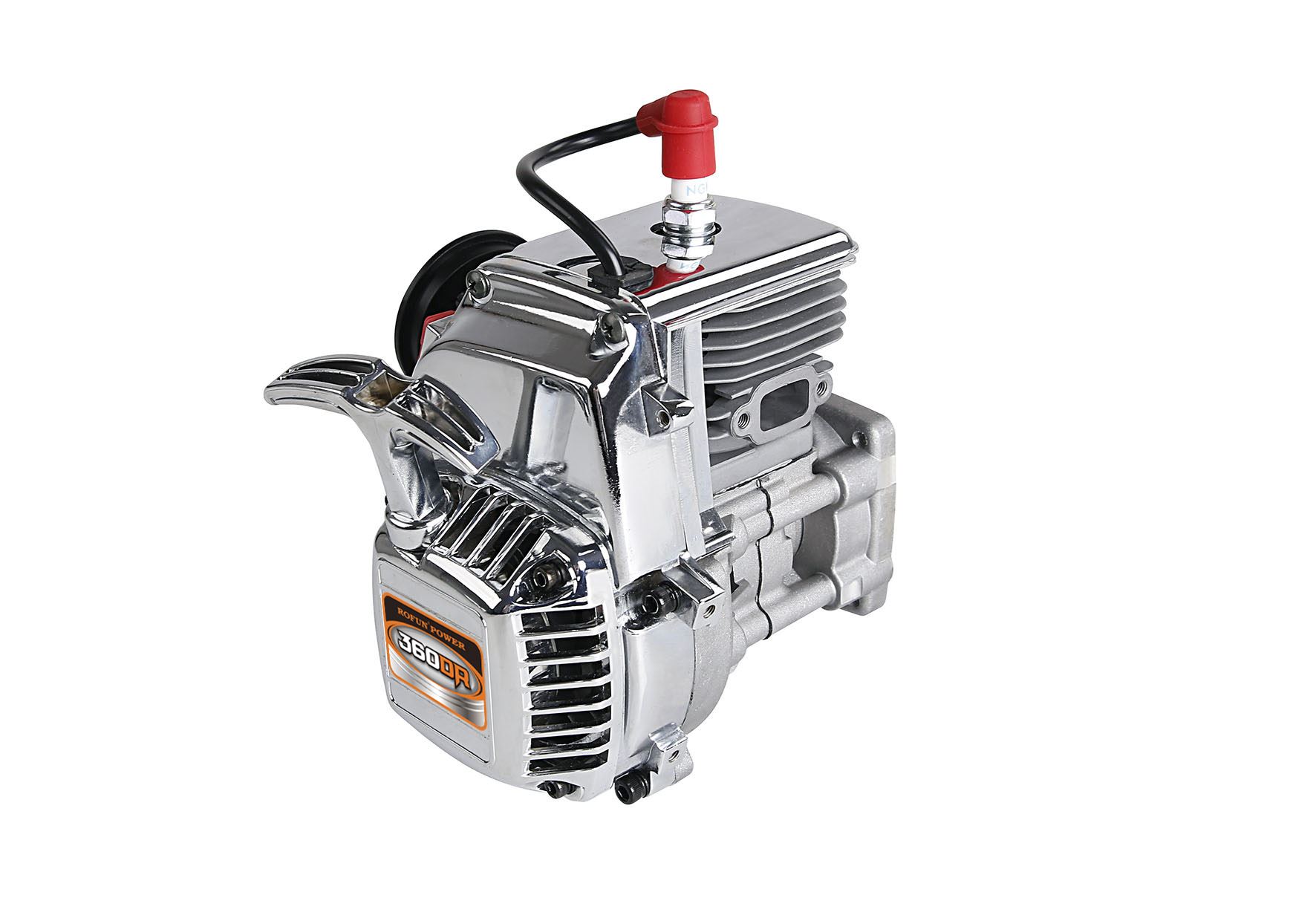

Rovan Chrome 36cc Twin Ring 4 Bolt Engine Baja 1/5th Scale Petrol RC Cars

allow the Longer stroke for a true 36cc.

These include a new cylinder design with closed deck transfer ported head with chromed fan cover, Pull starter and engine cover. Also the Walbro 1107 Carb already fitted. It also has the Rovan easy start setup and an angle air filter plate.

This is a Double ring piston which will

Improved heat transfer due to the addition of the second ring
Engine performance durability due to 2nd ring’s ability to seal if first ring’s seal becomes compromised

And it's ready to drop into your application of choice to give you a Huge step up in engine size, while keeping your usual engine placement and spacing.

Engine Specification

Cylinder displacement: 35.838 cm³ / 2.187 cu.inch
Cylinder bore: 39 mm / 1.5 inch
Cylinder stroke: 30 mm / 1.8 inch
Carburettor: Walbro
Carburettor model name: WT-1107
Ignition system: TCI
Spark plug: NGK CMR7H
Start system: Easy starter

Size

LxWxH 16.7x17.8x19.6 cm / 6.57x7x7.72 inch

Fitment Guide:

HPI Baja 5B/5T/5SC

No changes required, straight fit.

Losi 5IVE T , DBXL and Redcat Models

The supplied Clutch Housing must be machined to the same thickness as the original Losi version And you must fit the original CY fan cover (This is the one supplied with your Losi engine).

FID Dragon Hammer

No changes required, straight fit.

(You May have to use the spacers included with the Dragon, but Not always

MCD Racing Cars

Straight fit into the RR5 models.

Due to the larger crankcase, we do not recommend using the Rovan 36cc Engine in the older V4,EVO3,EVO2 and Pro-Line Models.

FG Modelsport / Smartec Cars

The larger crankcase interferes with the input shaft into the transmission,

We do not recommed the Rovan 36cc Engine for these models.

GoPed Scooters

Straight fit to 54mm clutch models.

Note: New Engines require running in and setting up they are not ready to drop in, the Starter Guide needs to be followed & carb needles need to be set to prevent damage to the Engine, If you are unsure contact us before running the engine and we can help further

Colour: Chrome

Position: Engine

Compatible with: HPI Baja 5B, KM Buggy, Rovan Buggy, KM Blade, Q-Baja, KM T1000, HPI Baja 5T, HPI Baja 5SC, Losi 5ive-T, TLR 5ive-B,Losi Mini WRC,King Motor X2,30 Degree North Truck,30 Degree North Buggy,FID Dragon Hammer,FID Dragon Hammer V2,VEKTA.5,VEKTA.5TT,
