5 Bit Bevel Edge Forming Router Bit Set - 1/2" Shank - Yonico 13508
Chamfer Angles: 11.25°, 15°, 22.5°, 30° & 45°
Click images below to enlarge
| Brand: Yonico | Brand New |
| Item#: 13508 | Ships Fast |

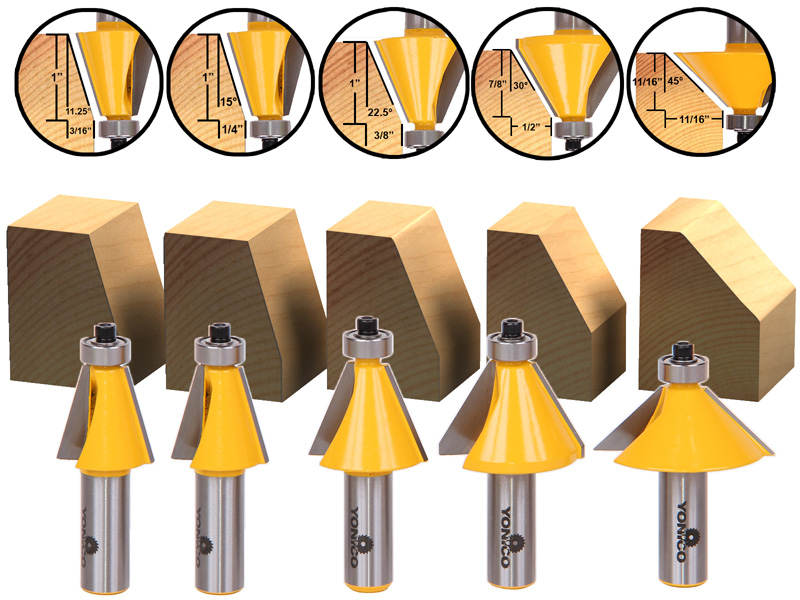

Own this practical 5 bit chamfer Router bit set complete with the following 5 chamfer sizes; 11.25°, 15°, 22.5°, 30° and 45°. Router bit dimensions are as follows: • 11.25° Chamfer - 7/8" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 3/16" Cutter Depth • 15° Chamfer - 1" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/4" Cutter Depth • 22.5° Chamfer - 1-1/4" Diameter, 1" Cutter Height, 2-13/16" Overall Height, 3/8" Cutter Depth • 30° Chamfer - 1-1/2" Diameter, 1" Cutter Height, 2-3/4" Overall Height, 1/2" Cutter Depth • 45° Chamfer - 1-7/8" Diameter, 23/32" Cutter Height, 2-1/2" Overall Height, 11/16" Cutter Depth The Yonico 13508 router bit set comes in a solid wood storage case. Two flute carbide cutters and 1/2" shanks.
| Number of Bits | 5 |
| Shank Diameter | 1/2" |
| Radius | |
| Degrees | Multi |
| Cutting Diameter | |
| Cutting Depth | Multi |
| Cutting Length | Multi |
| Largest Diameter | |
| Overall Length | |
| Number of Flutes | 2 |
| Bit Construction | Tungsten Carbide |
| Design | Chamfer |
| Application | |
| Coating | |
| Flute Angle | |
| Mortising Height | |
| Minimum Stock Thickness | |
| Maximum Stock Thickness | |
| Bearing Height | 3/16" |
| Bearing Inner Diameter | 3/16" |
| Bearing Outer Diameter | 1/2" |
Description
While bevel bits are mostly used for edging, these bits can also be used to create miter joints of various angles. Some of the available angle degrees are 11.25°, 15°, 22.5°, 30° & 45°. Cutting these angles into 2 adjoining pieces of wood will create miter joints of 22.5°, 30°, 45°, 60° & 90° degrees respectively.
