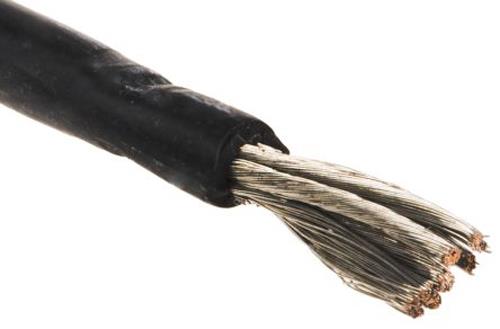

RS PRO Unshielded Test Lead Wire 2.5 mm² CSA 500 V Black Silicone Rubber, 462 Strands 5m
- BMUK Stock No.748-1998
- Brand
Product Details
High Performance PVC and Silicone Rubber
Insulated test leads supplied in 5m lengths enables high quality 4mm test leads to be assembled to any desired length.
• Uses silicon for flexibility and high temperature
• Ideal for use with high currents
| Lead Insulation | PVC | Silicone |
| Working voltage | 1500V | 600V |
| Test voltage | 5000V | 2000V |
| Temp. range | -10°C to +70°C | -50°C to +180°C |
| Insulation Material | Conductor Strands | Cable O/D (mm) | Current Rating (A) |
| PVC | 259 / 0.07 | 3.9 | 19 |
| Silicone Rubber | 332 / 0.06 | 3.3 | 19 |
| PVC | 651 / 0.07 | 3.9 | 32 |
| Silicone Rubber | 462 / 0.08 | 3.9 | 32 |
Approvals
7777
Specifications
Shield Type
Unshielded
Insulation Wall Thickness
0.95mm
Insulation material
Silicone Rubber
Minimum Operating Temperature
-55°C
Brand
RS Pro
Length
5m
Maximum Operating Temperature
+200°C
Outer Diameter
3.9mm
Number of Strands
462
American Wire Gauge
13 AWG
Core Strands
462/0.08 mm
Size of Strands
0.08 mm
Conductor Material
Tinned Copper
Cable Shape
Single Core
Voltage Rating
500 V
Sheath Colour
Black
Cross Sectional Area
2.5 mm²
