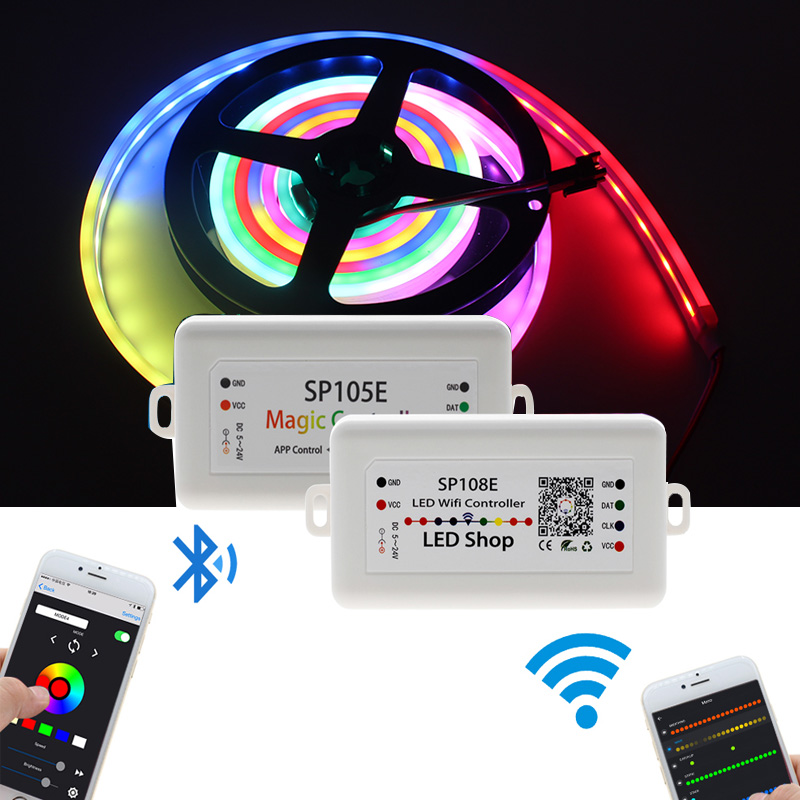

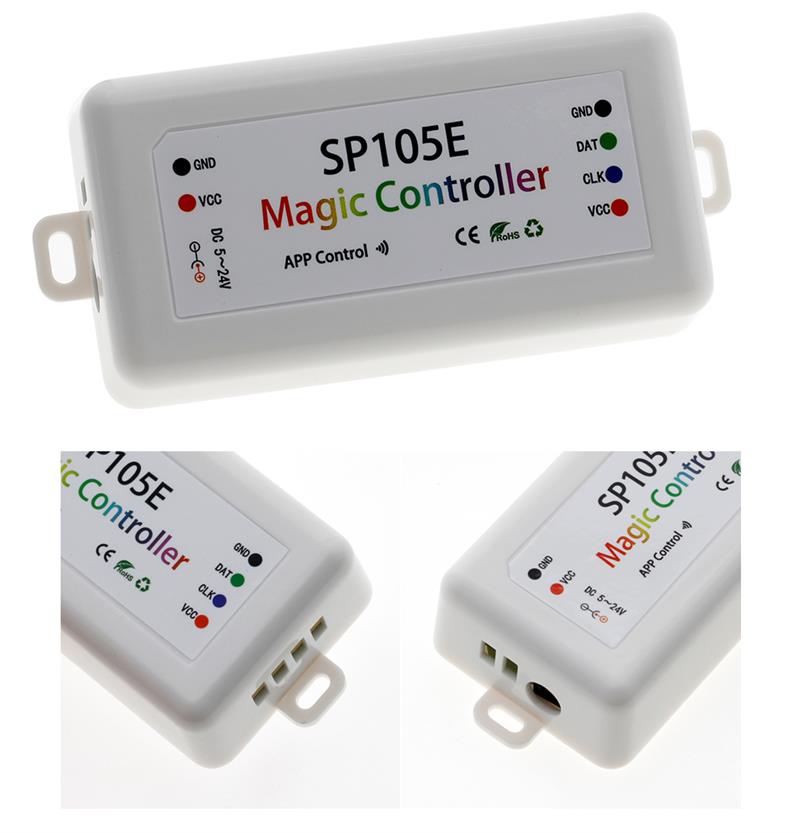

SP105E WS2812B Bluetooth SPI controller
Features:
1. App Control via Bluetooth 4.0,long Control distance,convenient to use;
2. Support almost every kind of one-wire or two-wire LED driver IC ;
3. Brightness adjustable,With 200 kinds of patterns,which are vivid and beautiful;
4. Support setting total pixel number,able to control up to 2048 pixels;
5. DC5V~24V wide working voltage,preventing reverse connection of power supply;
6. User setting saving;
2. App:
The specialized App is available on both IOS and Android OS. (hardware should support Bluetooth 4.0)
•Apple Device:iPhone4S | iPhone5/5S/5C | iPhone6S/6s Plus | iPhone6 / 6 Plus,supported IOS 8.0 version or later;
•Android OS version should be Android 4.4 or later.
•Search”Magic-LED” or scan the QR code below to download and install the App:
SP108E LED Wifi Magic Controller
Features:
1) Long distance APP remote control via WIFI;
2) Support routing mode (AP) and LAN connection mode (STA);
3) Support almost every kind of one-wire or two-wire LED driver IC;
4) Brightness adjustable, with 180 kinds of patterns and 8 kind of color adjustable patterns;
5) Creatively using from-image-to-effect method for user to DIY any effect;
6) Support setting pixel number and segments number, able to control up to 2048 pixels;
7) DC5V~24V wide range working voltage, preventing reverse connection of power supply;
8) User setting saving;
Specifications:
Working Temperature: -20~60 Degrees Celsius
Working Voltage: DC5V~24V;
Working Current: 20mA~130mA;
Remote Distance: 30 Meters;
Product Size: 85mm*45mm*22mm;
Product Weight: 40g;
Certificates: CE, RoHS;

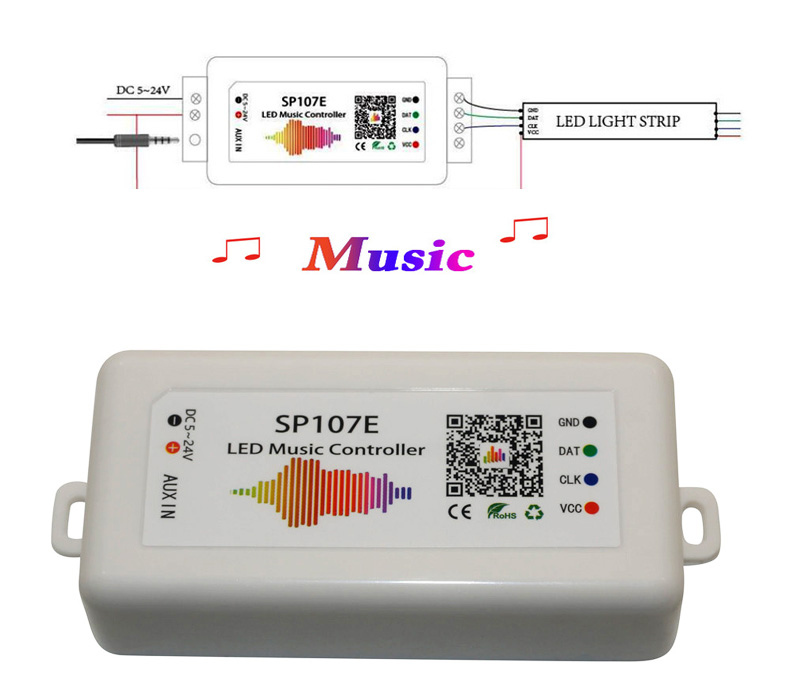

SP107E Music Bluetooth LED Controller
1. Features:
1) Long distance APP remote control via Bluetooth;
2) Support almost every kind of one-wire or two-wire LED driver IC ;
3) Brightness adjustable, With 180 kinds of patterns and 8 kind of color adjustable patterns;
4) Creatively usingfrom-image-to-effect method for user toDIYany effect;
5) Support setting pixel number and segments number, able to control up to 2048pixels;
6) DC5V~24V widerangeworking voltage, preventing reverse connection of power supply;
7) User setting saving;
2. App control:
Both IOS version and Android OS version are available.
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search”Led Chord”in App Store or Google pay or scan this QR code to download and install the App:
3. Specifications:
Working temperature : -20~60 Degrees Celsius
Working Voltage : DC5V~24V;
Working Current :20mA~130mA;
Remote distance :30 Meters;
Product size : 85mm*45mm*22mm;
Product weight : 40g ;
Certificates : CE, RoHS;
4. Instructions:
APP Operations:
1. Make sure you have turned on Bluetooth on your phone;
2. Open the APP, drag to refresh the device list, select device name “SP107E” to connect the controller, once connected you will able to rename your controller;
3. Select RGB order and IC type;
4. Adjust the pixel number;
5.Press ENTER.
Audio Input:
There are two ways to input the audio signal on SP107E, AUX IN, and Build-IN microphone;
•AUX IN: Plug the supplied audio split cable into the “AUX IN” jack, connect the audio output source(MP3, Phone or tablet…)and the speaker(or headset), the controller will automatically switch into AUX input mode;
•MIC: Disconnect the audio cable, the controller will automatically switch into microphone input mode.
SP110E DC5-12V Bluetooth Pixel LED Controller
1. Features:
1. App Control via Bluetooth 4.0, long Control distance, convenient to use;
2. Support almost every kind of one-wire or two-wire LED driver IC ;
3. Brightness adjustable, With 120kinds of patterns, which are vivid and beautiful;
4. Support setting total pixel number, able to control up to 1024pixels;
5. DC5V~12V wide working voltage, preventing reverse connection of power supply;
6. User setting saving;
2. App:
Both IOS version and Android OS version are available.
•Requires IOS version 10.0 or later;
•Requires Android OS version 4.4 or later;
•Search”LEDHue” in App Store or Google pay or scan this QR code to download and install the App:
Bluetooth Pixel LED Controller For WS2812B SK6812 LPD8806 DMX512 1903 RGB/RGBW DC5-12V
3. Specifications:
Working temperature: 20℃~60℃;
Working Voltage: DC5V~12V;
Working Current : 20mA~40mA;
Remote distance: 20 Meters;
Product size: 85mm*45mm*22mm;
Product weight: 40g ;
Certificates: CE, RoHS;
|
