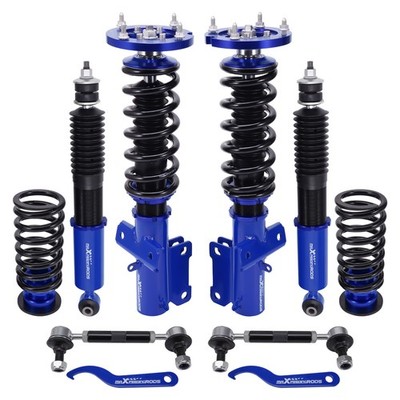

Coilovers Suspension Set For Ford Mustang 2005-2014 Adj. Height Struts Shocks

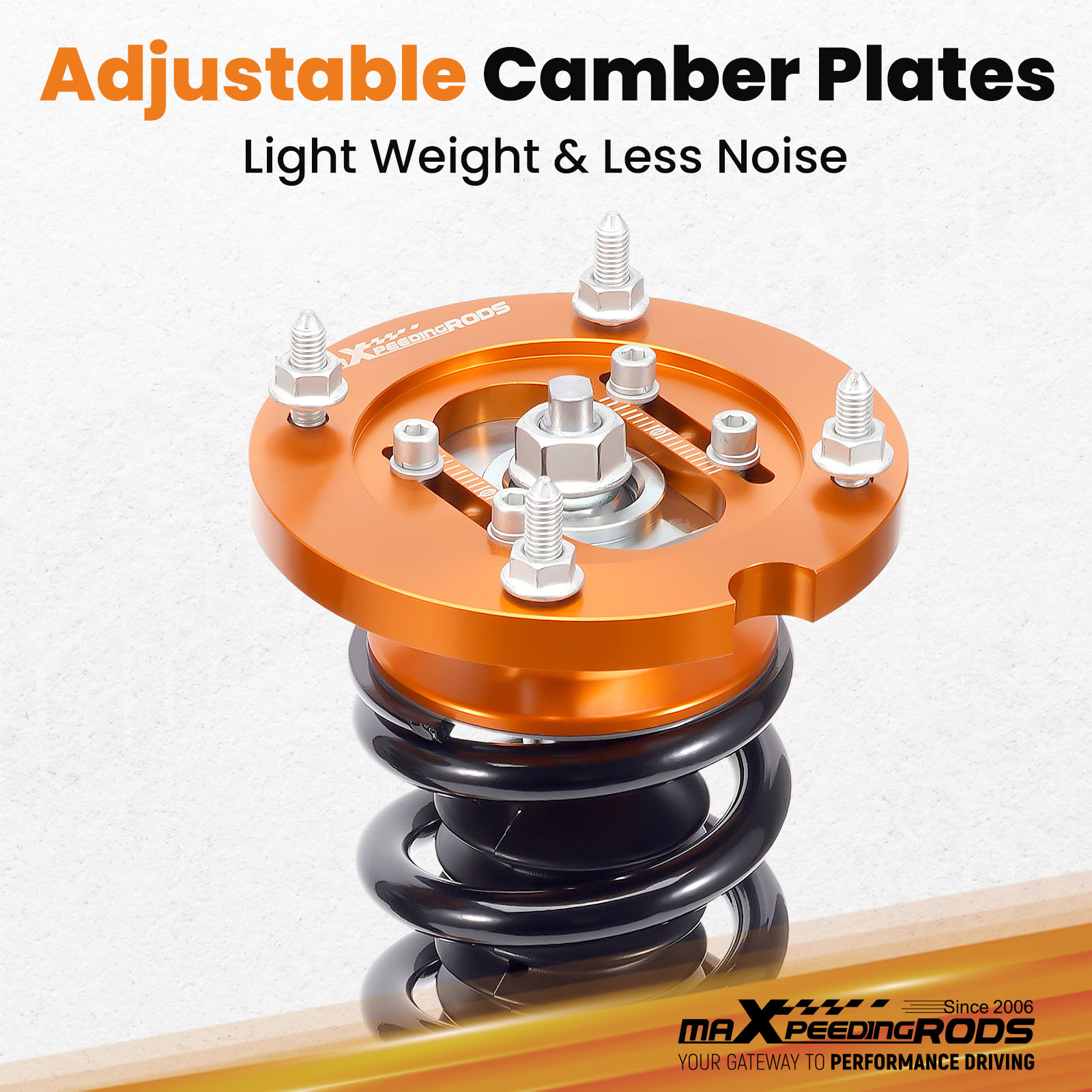

Aluminum Camber Plate with Pillow Ball Mount

Aluminum Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering.

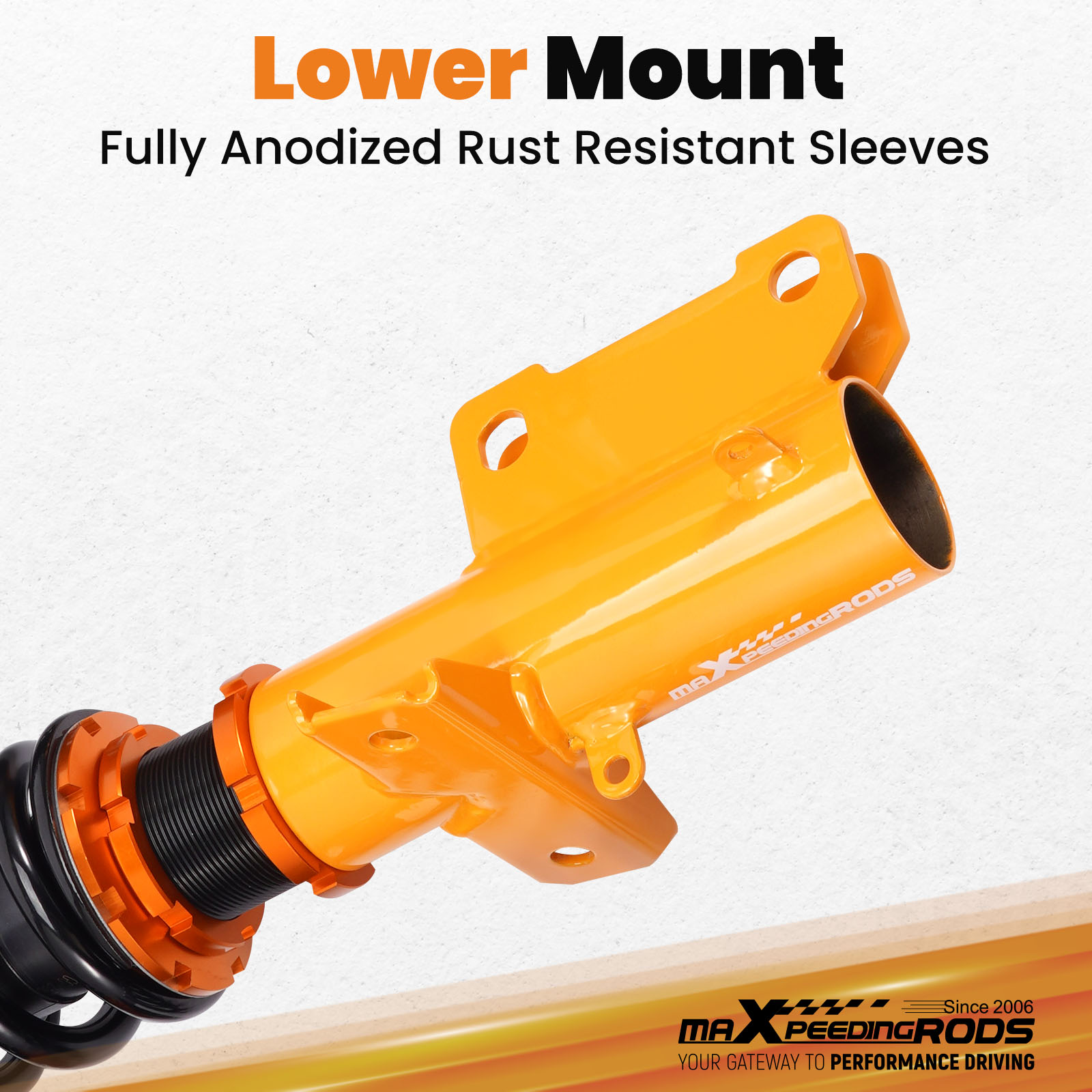

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

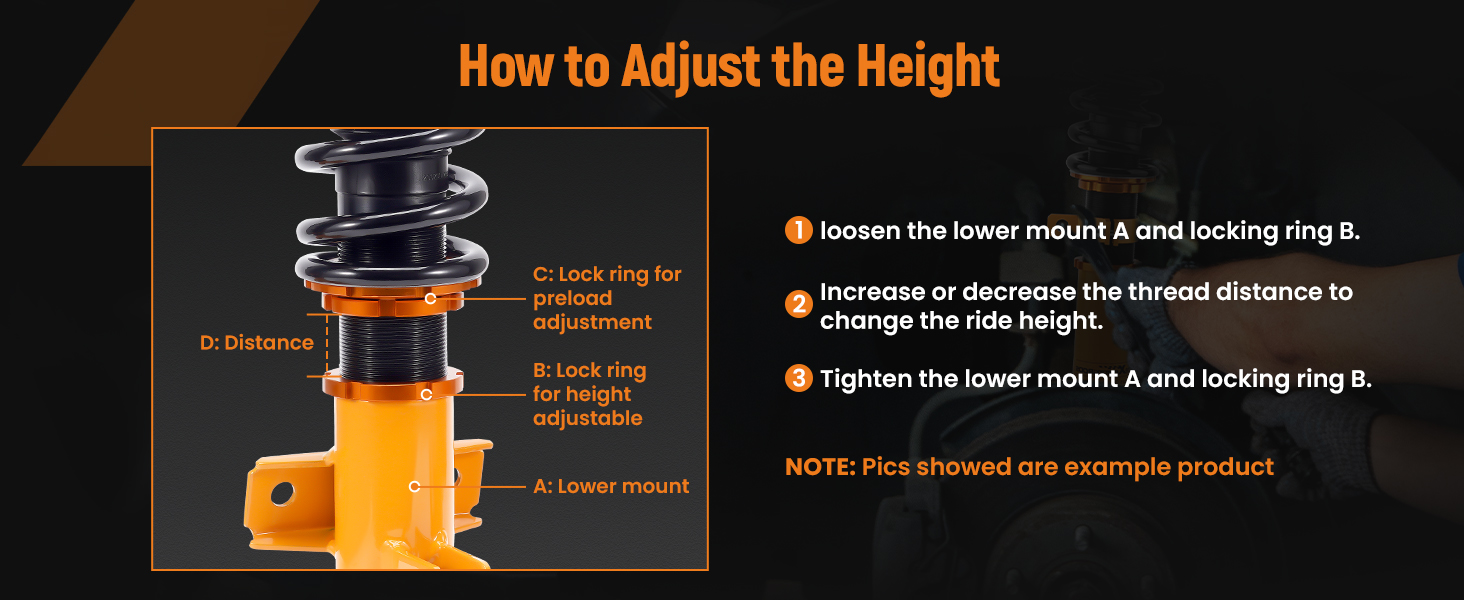

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

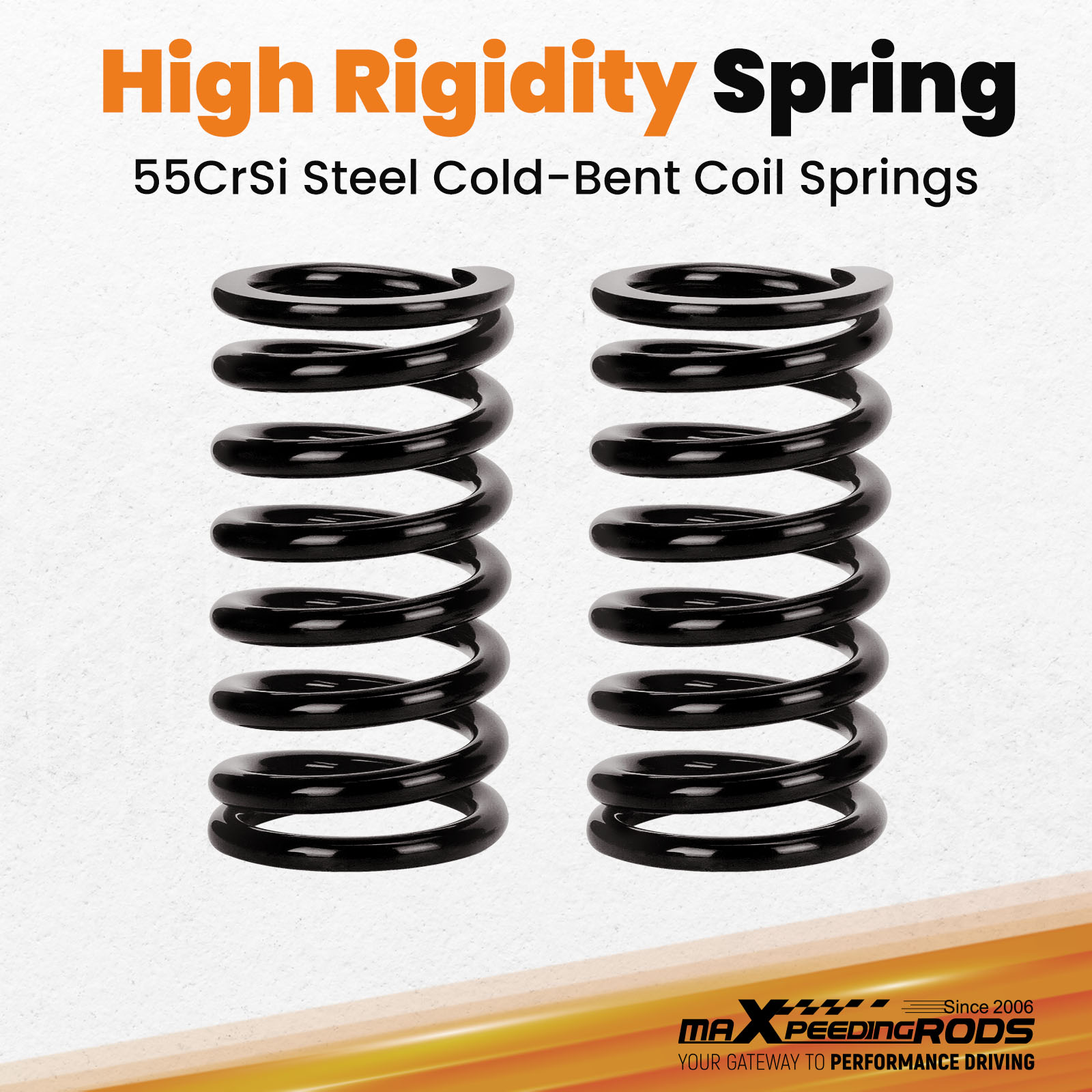

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications

Adjustable height	Yes, lowering 25-75mm depending on the vehicle models
Front Spring Rate	8 kg/mm (448 lbs/in)
Rear Spring Rate	6 kg/mm (336 lbs/in)
Spring length Front	230 mm
Front top mounts	Pillow ball with camber plate
Rear spring inner diameter	70.5 mm
Front spring inner diameter	70.5 mm
Warranty	1 Year
Package Including	2x Front Coilovers

Features

Lower ride height between 1 and 3 inches, will not keep OE height

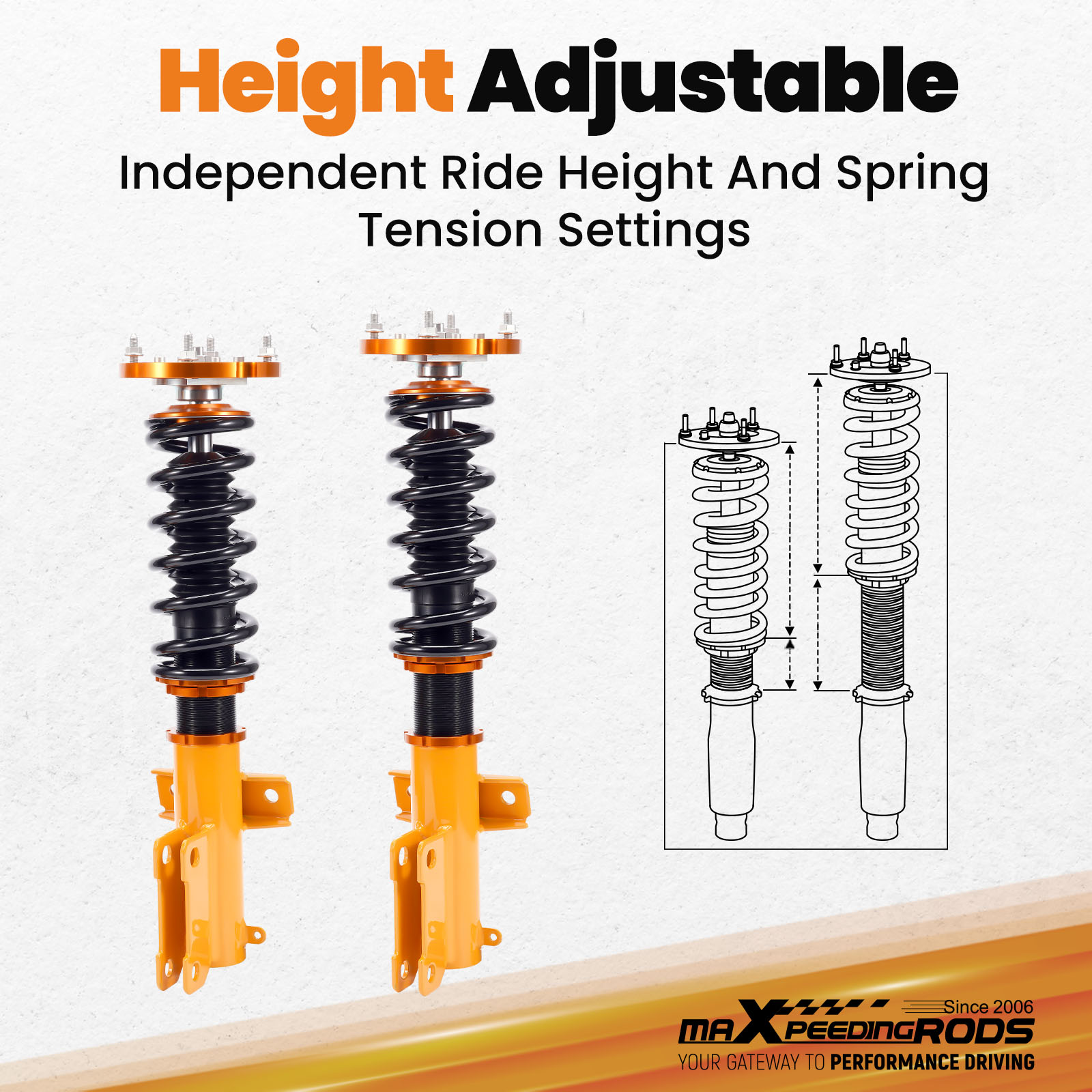

Independent Ride Height And Spring Tension Settings
Top Camber Plate Allows Camber Angle Adjustment
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Anodized Shock Body With Anti-Corrosion Coating
CNC Billet Aluminum Parts/Hardware
Full 1 Year Warranty From Date Of Purchase

Application

For Ford Mustang S-197 2005-2014
For Ford Mustang GT S-197 2005-2014

Specification

- Front top mount: Pillow ball with camber plate
- Damping adjustable: Not available
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 8 kg/mm (448 lbs/in)
- Spring Rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 230 mm
- Spring length Rear: 180 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring

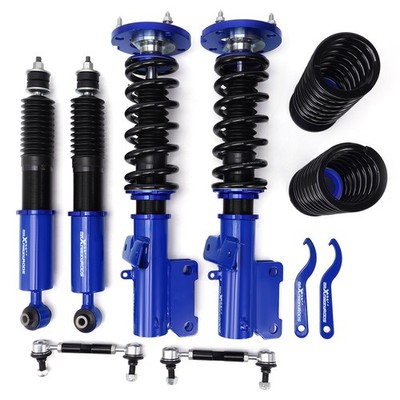

Package included

2x Front coil-overs
2x Rear coil-overs
2x C spanners

★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.
