6G Digital Attenuator Programmable OLED 60DB Step 0.25DB RF Module Aluminum Case
Features:
Digital attenuator can be without interruption circuit in the form of 0.25 dB stepper control circuit of signal level.
Can also be used as a device inside the machine of attenuator, is used to adjust power level in the test system.
With characteristics of small volume, high precision, stable and reliable.
With OLED display attenuation quantity.
With CNC aluminum alloy case
Technical indicators:
1, the operating frequency: LF-6GHz
2, attenuation adjustment range: 0-60dB
3, attenuation step: 0.25 (dB)
4, insertion loss: ≤ 1.5dB (high-frequency side of the insertion will be larger)
5, standing wave ratio: ≤ 1.4
6. attenuation accuracy: ± 0.25dB Max
7. Rated power: ≤ 1W
8. Connector form: SMA (female, female screw hole)
9. Temperature range: -10 ℃ ~ +50 ℃ (running)
-40 ℃ ~ + 70 ℃ (not running)
10. Dimension: 55 x 40 x 16.5mm /2.17 x1.57 x 0.65inch(excluding SMA interface protruding part, SMA protruding part 9mm)
11. Weight: 57g
12. Input and output impedance: 50 ohms
Digital attenuator can be without interruption circuit in the form of 0.25 dB stepper control circuit of signal level.
Can also be used as a device inside the machine of attenuator, is used to adjust power level in the test system.
With characteristics of small volume, high precision, stable and reliable.
With OLED display attenuation quantity.
With CNC aluminum alloy case
Technical indicators:
1, the operating frequency: LF-6GHz
2, attenuation adjustment range: 0-60dB
3, attenuation step: 0.25 (dB)
4, insertion loss: ≤ 1.5dB (high-frequency side of the insertion will be larger)
5, standing wave ratio: ≤ 1.4
6. attenuation accuracy: ± 0.25dB Max
7. Rated power: ≤ 1W
8. Connector form: SMA (female, female screw hole)
9. Temperature range: -10 ℃ ~ +50 ℃ (running)
-40 ℃ ~ + 70 ℃ (not running)
10. Dimension: 55 x 40 x 16.5mm /2.17 x1.57 x 0.65inch(excluding SMA interface protruding part, SMA protruding part 9mm)
11. Weight: 57g
12. Input and output impedance: 50 ohms

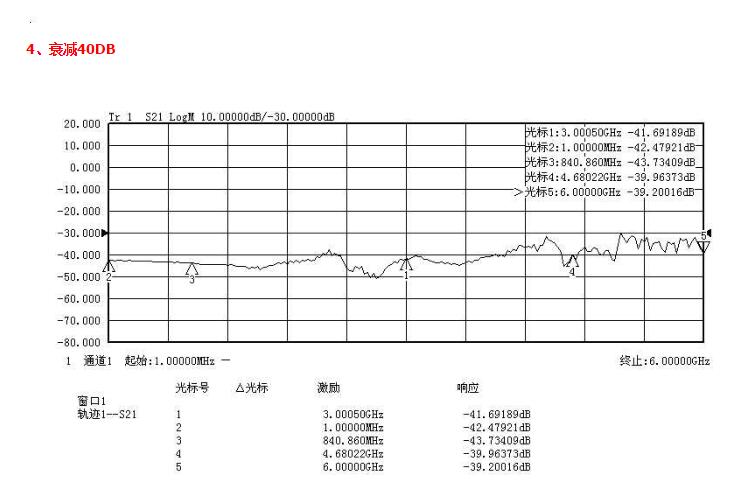

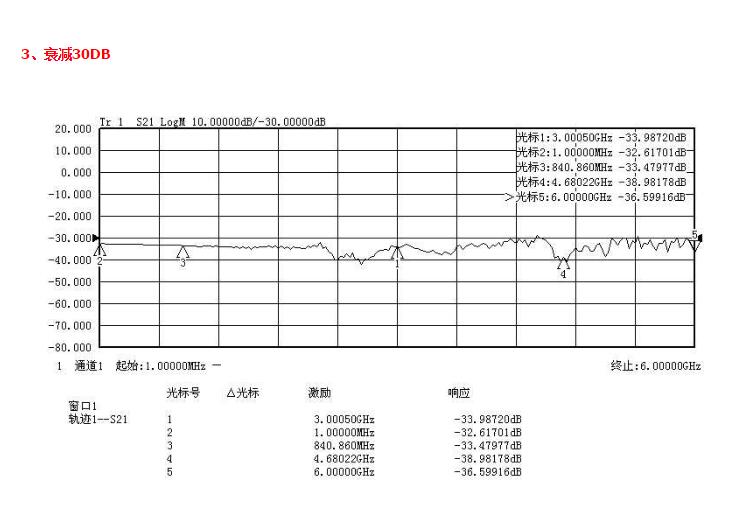

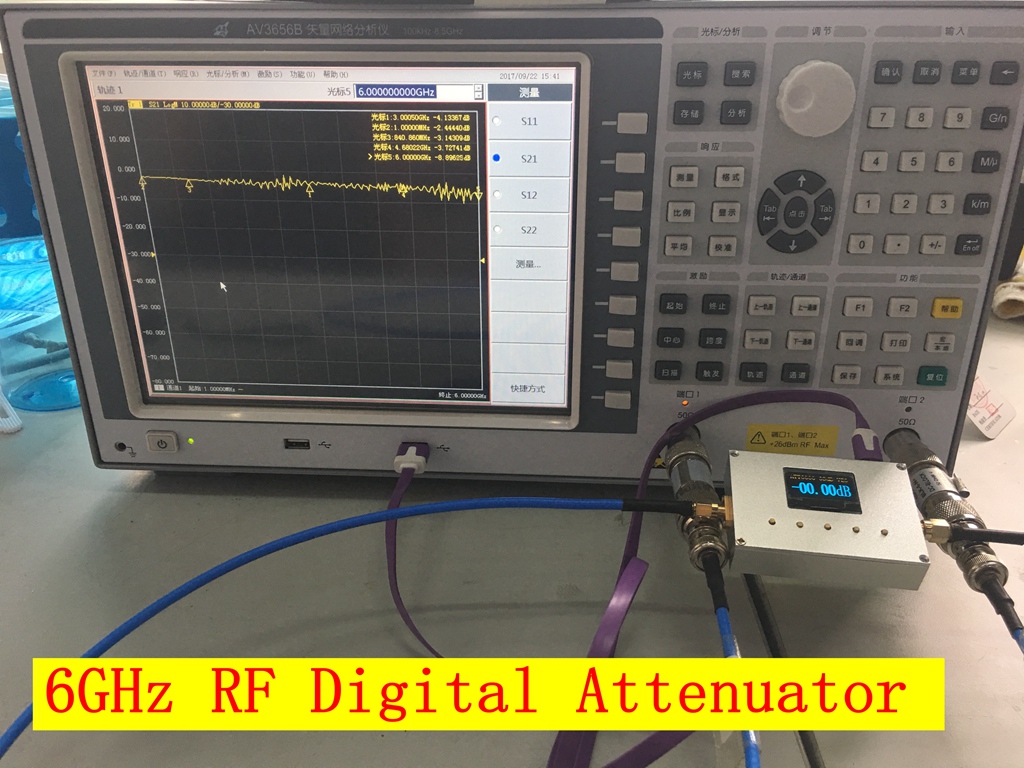

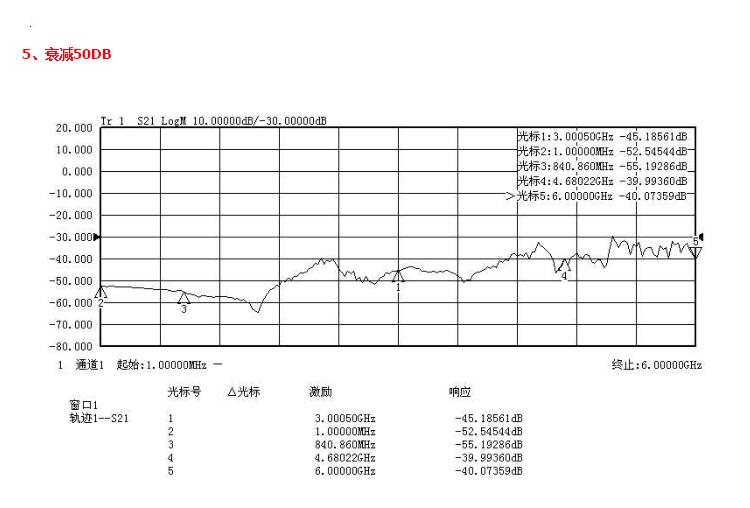

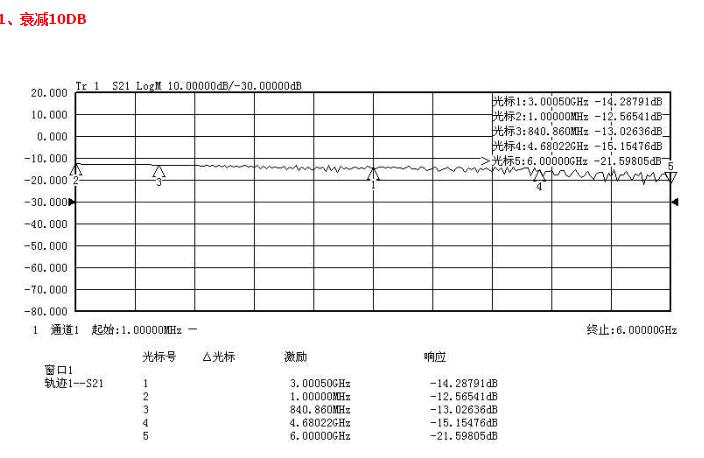

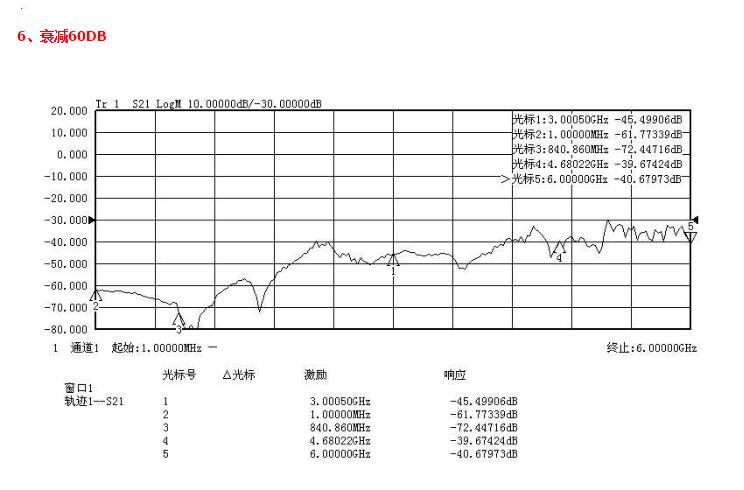

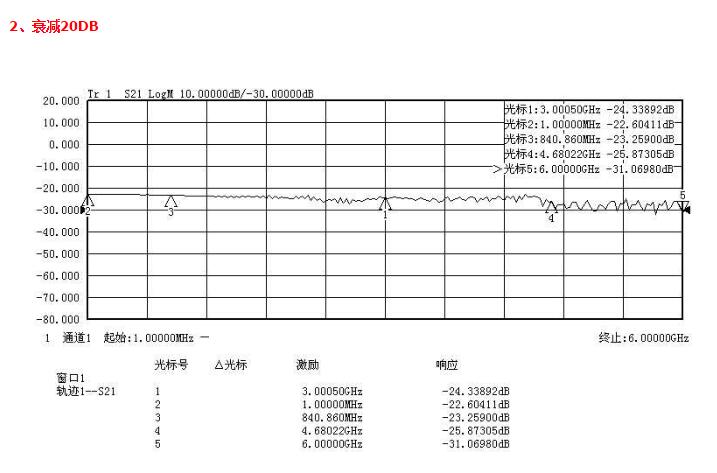

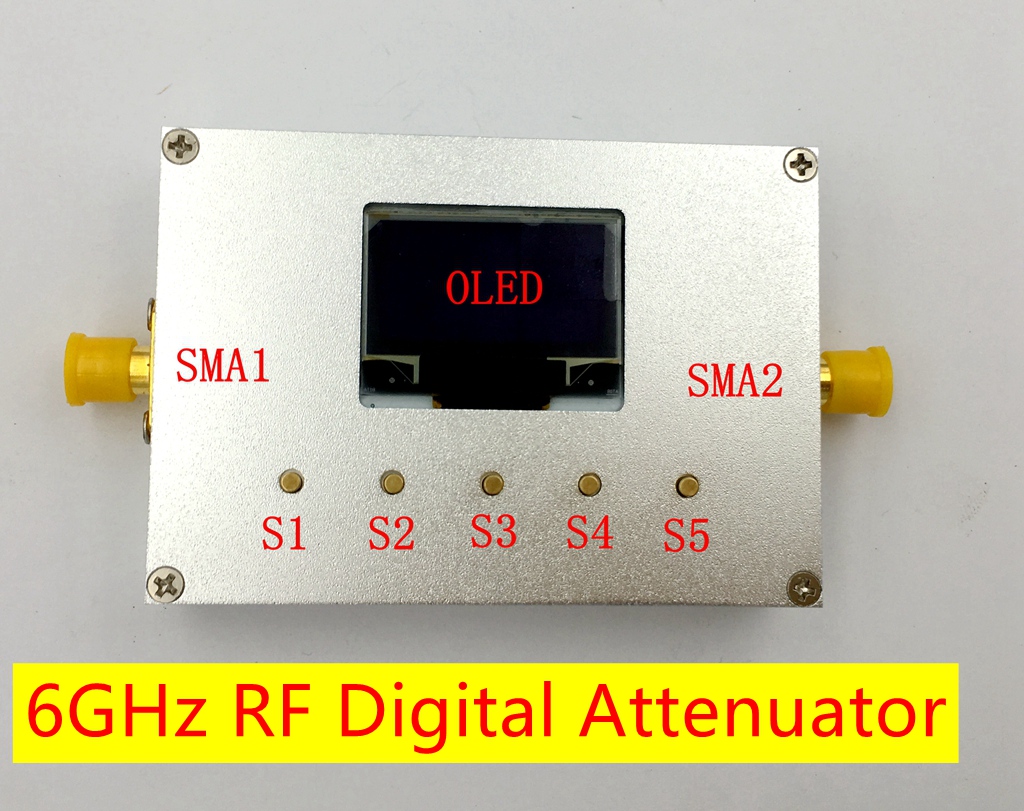

Key function:
1. Power supply: Connect the power supply via micro-USB (signal source, computer, charging treasure, etc.).
2, the power switch: USB next to
3, SMA1 RF input, SMA2 RF output.
4. After powering on, press the "OK S3" key to initialize the power meter.
5, press S1 to change the cursor position (left)
Press key S5 to change the position of the cursor (right shift)
Press button S2 to change the data of the cursor
Press key S4 to change the data of the cursor
Communication interface, can be secondary development
1, USB interface (power supply, can communicate via USB)
2, serial communication protocol analysis
The overall structure of CNC attenuator ATT-6000 protocol adopts the command line method. The communication baud rate is 115200bps. It is issued by the PC and executed by the local machine. Then the result is returned to the PC. The command is limited to the lowercase letters a~z, the number 0. ~9, the end of each command is a newline character (hexadecimal expression is "0x0a" or '/n')
Communication commands include two types of commands: the w command and the r command.
Rid command: read the version number
The PC sends "rid + 0x0a", the machine returns the model number of the machine, and the result is: ATT-6000 (The format of the returned machine model data is ASCII character format. Note that there is a line feed "0x0a" or '/n').
Wv0 command: Set the attenuation value
The format is: wv0xxxx + 0x0a, a total of 8 bytes;
Where "xxxx" is the attenuation value represented by 4 numbers, for example:
Wv01150+0x0a: indicates that the write attenuation is: 11.5DB (the maximum attenuation is 0-6000 and the step is 25)
Convert to Hexadecimal: Yes 0X77 0X76 0X30 0X31 0X31 0X35 0X31 0X0a
Package Include:
1 x New OLED 6G Digital Programmable Attenuator 60DB step 0.25 RF Module + Case
1 x Micro USB cable
