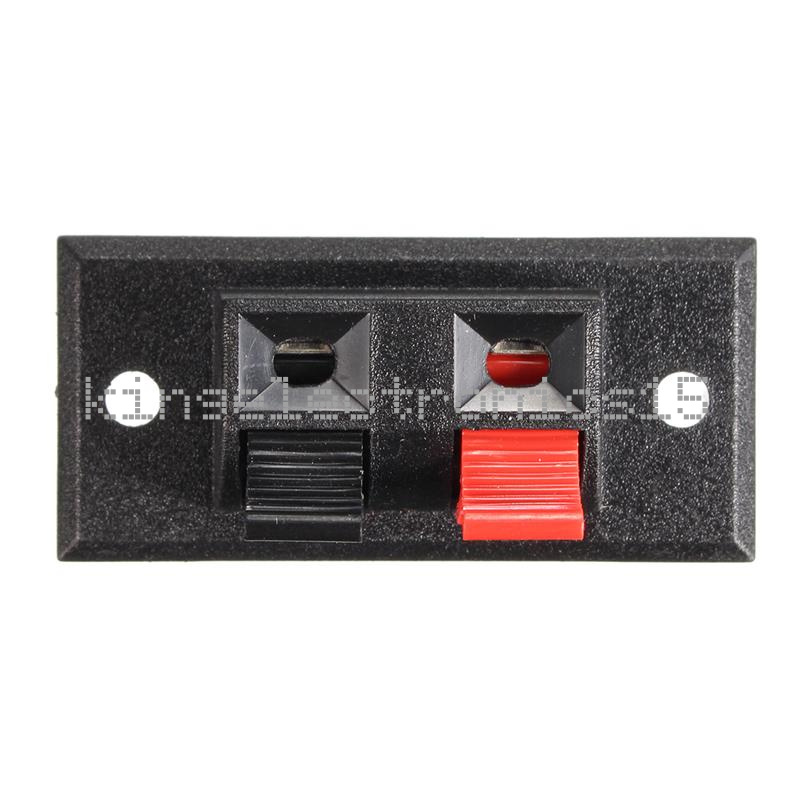

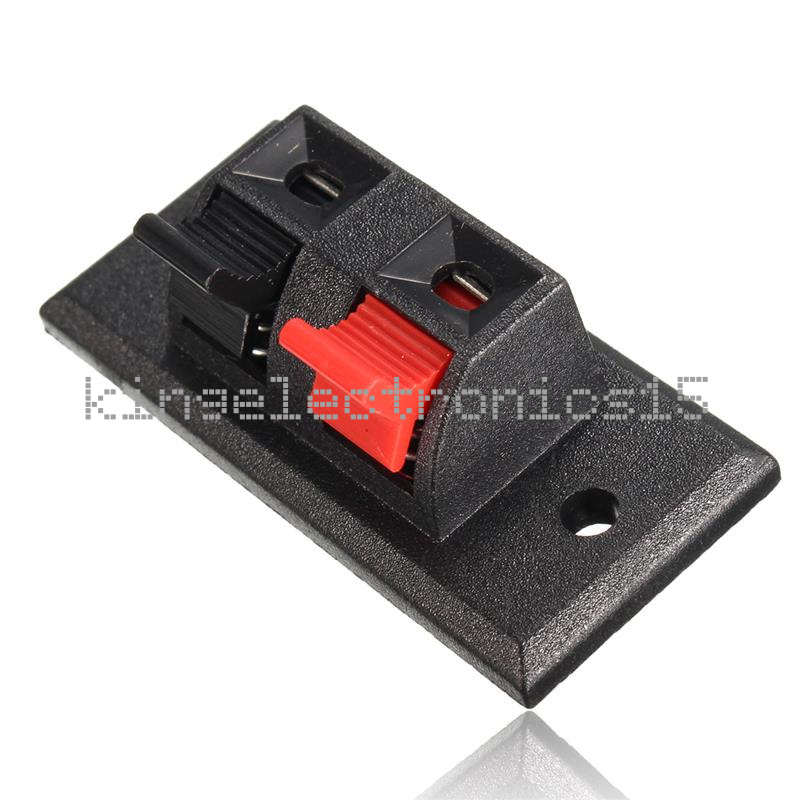

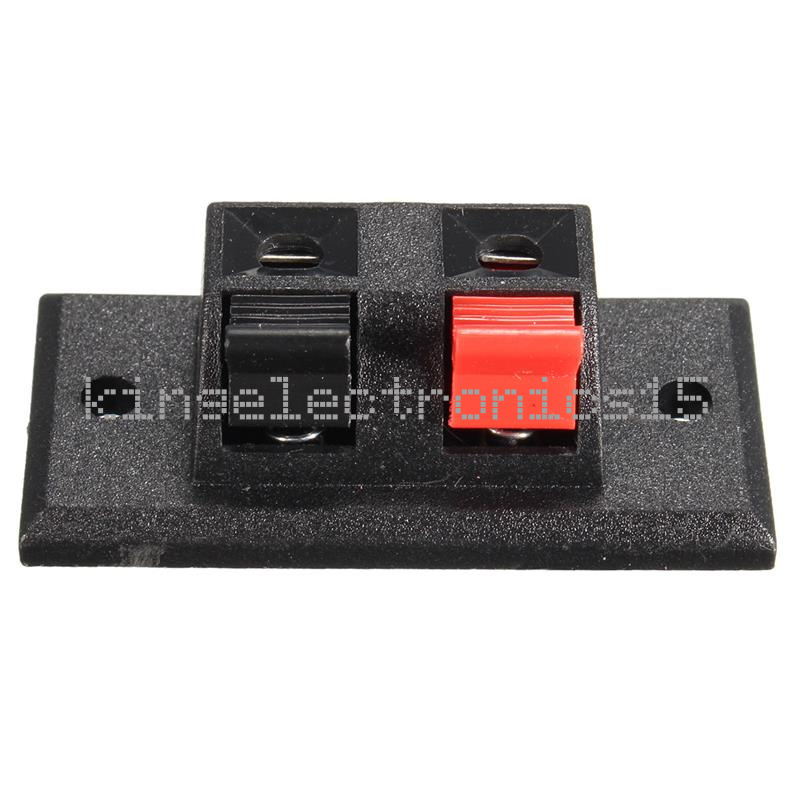

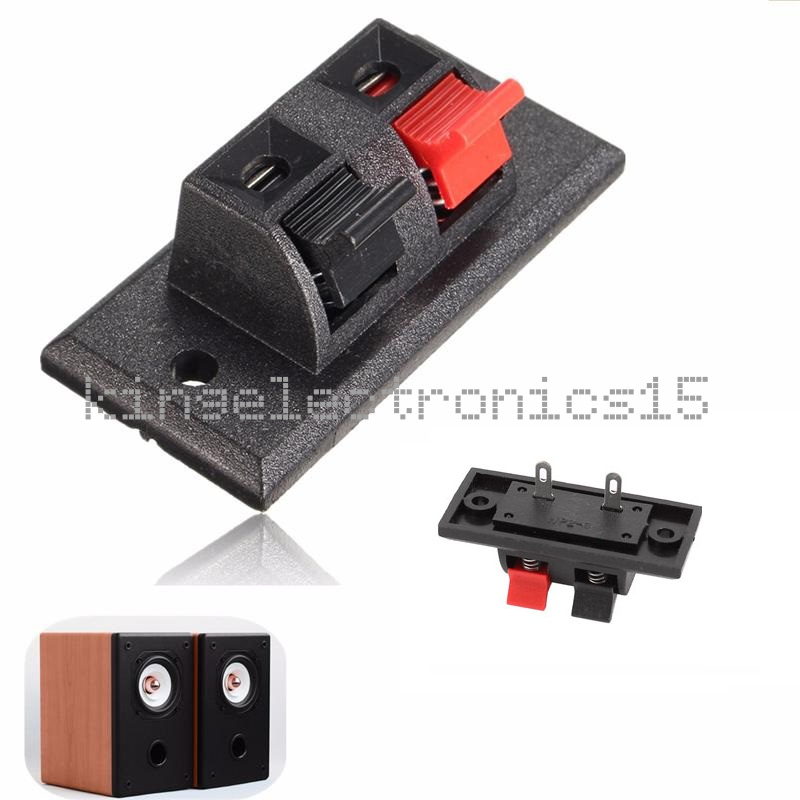

1. 2 pins, 2 positions, spring load design, push type speaker terminal board.
2.This spring loaded terminals ensure a solid connection and make wire hookups a Put.
3. Specilized design to your custom speakers or speaker upgrades for speaker cable connecting.
Specification:
1.Product: 2 Terminal Speaker Connector Plate
2.Type: Push Release Type
3.RoHS: Yes
4.Rated Load: AC 50V 3A
5.Wire Range: AWG 24-16
6.Temperature: -40 to 55 C
7.Contact Resistance: <= 0.03 Ohm
8.Insulation Resistance: >= 100M Ohm
9.Withstand Voltage: AC 500V 1 Minute
10.Actuating Force: 1 Kgf
11.Color Polarity Coding: Red/Black
12.Life: >10000 Times
13.Pin Quantity: 2 pin
14.Mounting Hole Center Distance : 35mm/ 1.4inch
15.Position: 2 Way (1 row)
16.Mounting Hole Dia: 3mm/ 0.12inch

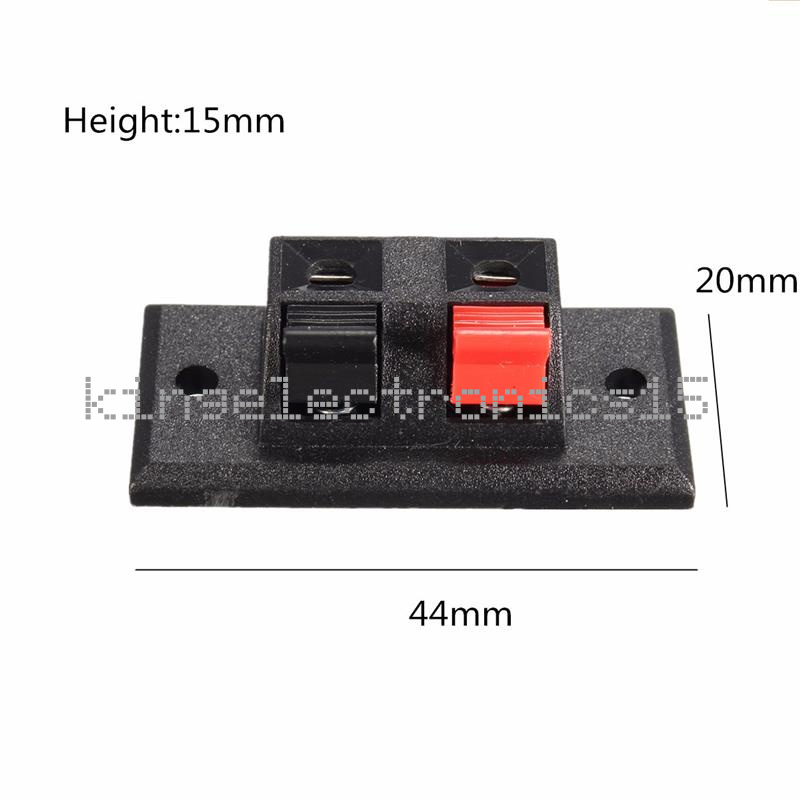

17.Size: 44*20*15mm
Package Included:
5 PCS 2 Terminal Speaker Connector Plate
