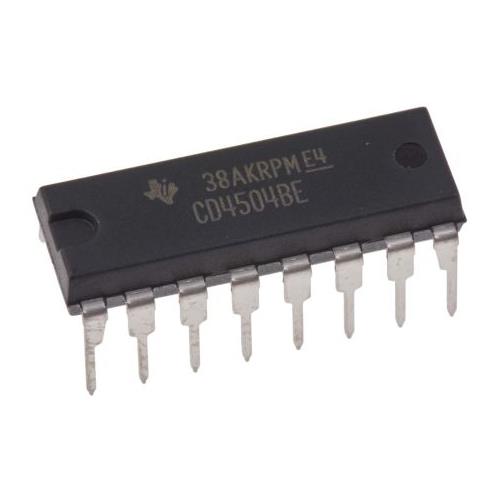

Texas Instruments CD4504BEE4, Voltage Level Shifter, 5 → 18 V, 16-Pin PDIP
- BMUK Part # :-709-2545
- BrandTexas Instruments
- Mfr. Part No.CD4504BEE4y
- You will get a pack of 5 ICs
Product Details
4000 Series Inverters & Buffers, Texas Instruments
Texas Instruments range of Inverters and Buffers from the 4000 Series CMOS Logic Family
4000 CMOS Logic Family, Texas Instruments
CMOS Family devices
Wide operating voltage range: 3 to 18V
Specifications
| Logic Family | 4000 | |
| Logic Function | Voltage Level Shifter | |
| Translation | CMOS, TTL to CMOS | |
| Maximum High Level Output Current | -4.2mA | |
| Maximum Low Level Output Current | 4.2mA | |
| Maximum Propagation Delay Time @ Maximum CL | 550 ns @ 15 V | |
| Mounting Type | Through Hole | |
| Package Type | PDIP | |
| Pin Count | 16 | |
| Dimensions | 19.3 x 6.35 x 4.57mm | |
| Height | 4.57mm | |
| Length | 19.3mm | |
| Maximum Operating Temperature | +125 °C | |
| Maximum Operating Supply Voltage | 18 V | |
| Minimum Operating Supply Voltage | 5 V | |
| Minimum Operating Temperature | -55 °C | |
| Width | 6.35mm |
