Supporto a Flangia con Cuscinetto UCF 206
Diametro 30 mm
Risparmia sulle spedizioni acquistando più pezzi,
pagherai solo € 1.00 per ogni pezzo aggiuntivo

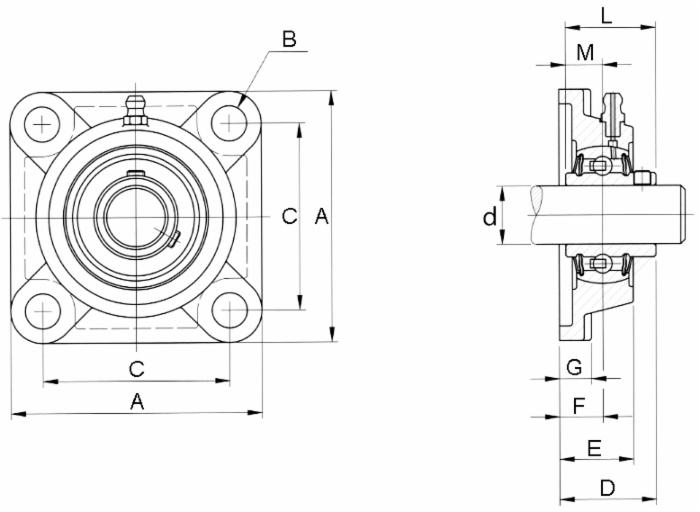

Tabella di Riferimento Codice e relative dimensioni
Codice Articolo | Tipo | Diametro albero | A mm | B mm | C mm | D mm | E mm | F mm | G mm | L mm | M mm | Dimensioni bullone | Marchio | Ricambio |
07459 | UCF204 | 20.0 | 86.0 | 12.0 | 64.0 | 33.3 | 25.5 | 15.0 | 11.0 | 31.0 | 12.7 | M10 | A.M.A. | 34629 |
07460 | UCF205 | 25.0 | 95.0 | 12.0 | 70.0 | 35.7 | 27.0 | 16.0 | 13.0 | 34.0 | 14.3 | M10 | A.M.A. | 34630 |
07461 | UCF206 | 30.0 | 108.0 | 12.0 | 83.0 | 40.2 | 31.0 | 18.0 | 13.0 | 38.1 | 15.9 | M10 | A.M.A. | 34631 |
07462 | UCF207 | 35.0 | 117.0 | 14.0 | 92.0 | 44.4 | 34.0 | 19.0 | 15.0 | 42.9 | 17.5 | M12 | A.M.A. | 34632 |
07463 | UCF208 | 40.0 | 130.0 | 16.0 | 102.0 | 51.2 | 36.0 | 21.0 | 15.0 | 49.2 | 19.0 | M14 | A.M.A. | 34633 |
07464 | UCF209 | 45.0 | 137.0 | 16.0 | 105.0 | 52.2 | 38.0 | 22.0 | 16.0 | 49.2 | 19.0 | M14 | A.M.A. | 34634 |
07465 | UCF210 | 50.0 | 143.0 | 16.0 | 111.0 | 54.6 | 40.0 | 22.0 | 16.0 | 51.6 | 19.0 | M14 | A.M.A. | 34635 |
07466 | UCF211 | 55.0 | 162.0 | 19.0 | 130.0 | 58.4 | 43.0 | 25.0 | 18.0 | 55.6 | 22.2 | M16 | A.M.A. | 34636 |
07467 | UCF212 | 60.0 | 175.0 | 19.0 | 143.0 | 68.7 | 48.0 | 29.0 | 18.0 | 65.1 | 25.4 | M16 | A.M.A. | 34637 |
