0-30VDC 0-3A Switch Mode Bench Power Supply with Digital Display

Applications

0-30V, 0-3A Switch Mode Bench Power Supply with Digital Display

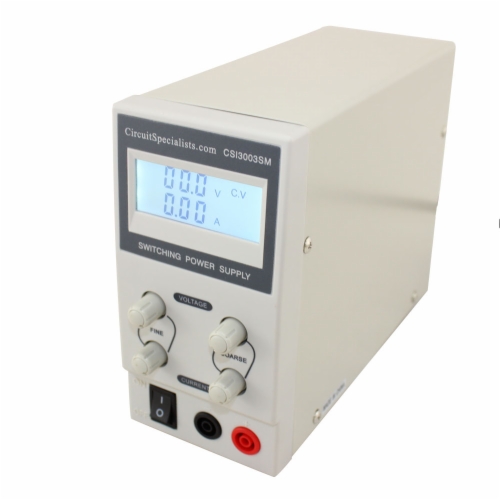

The CSI3003SM bench power supply is a DC Switch Mode power supply with highly accurate LCD digital meters. The output voltage can be adjusted from 0 to 30 VDC and the output current may be adjusted from 0 to 3A (CSI3003SM) . The controls feature knobs for "fine" adjustment of the outputs or "course adjustment of the outputs.

Specifications

Input Voltage: AC110V 60Hz ±2Hz *
Output Voltage: 0~30VDC ( Adjustable.)
Output Current: 0~3A
Supply Regulation: CV≤1%+10mV
Load Regulation: CV≤1%+5mV
Ripple: 200mVp-p
Protection: Current Limiting
Meter Display Accuracy: 3 digits:
Voltmeter: LCD +/-1%+2Digits
Ammeter: LCD +/-1%+2Digits
Operational Environment:
Temperature: 0°~40°C
Humidity:<RH 80%
Atmospheric Pressure: 86kPa~104kPa
Operating Time: 8hr. continuous
Size: 85x160x205mm

* Please Note: This power supply uses standard 110 Volt 60 Hz AC power. and is supplied with a grounded power cable compatible with 110 volt power outlets as used in the United States. It is not compatible with the 220~240 volt 50 Hz power system used in other countries unless a proper power adapter/converter is used (not included).

Circuit Specialists does not stock power adapters/converters at this time.
