New 12V 12Channel Relay Wireless Remote Control Switch Transmitter + Receiver

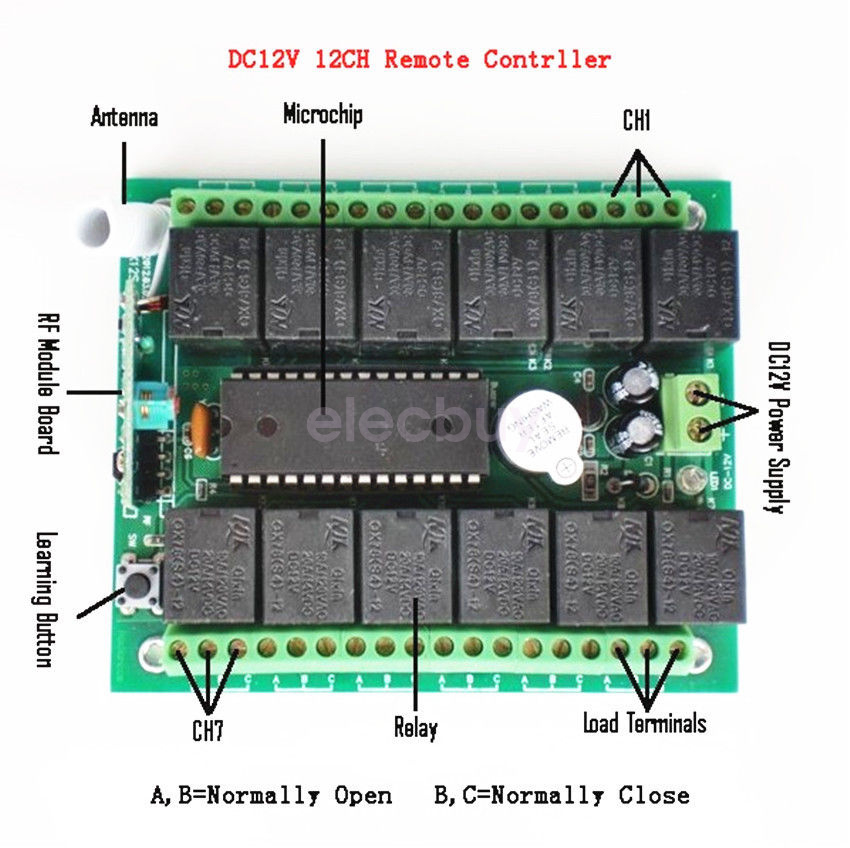

Specification:
Radio frequency: 315MHz
Operating Voltage : 12V DC
Decode: Learning Code
Operating Type : Momentary/Toggle/Latch selectable
Relay : 10A 120VAC, 20A/14V DC

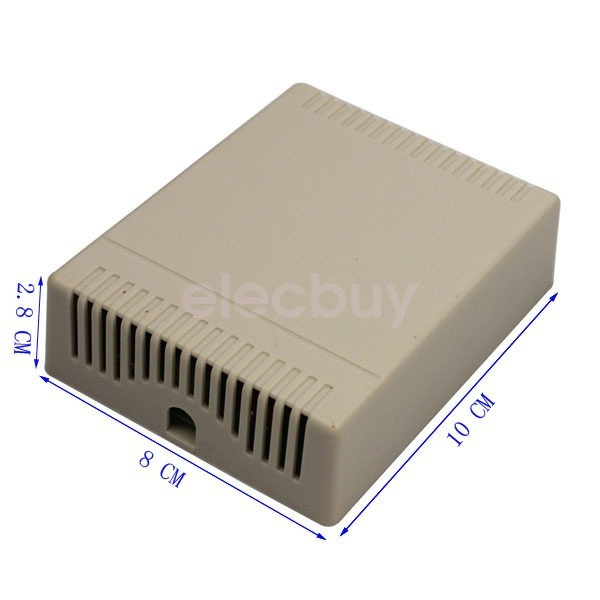

Size : 92mm x 78mm x 27mm

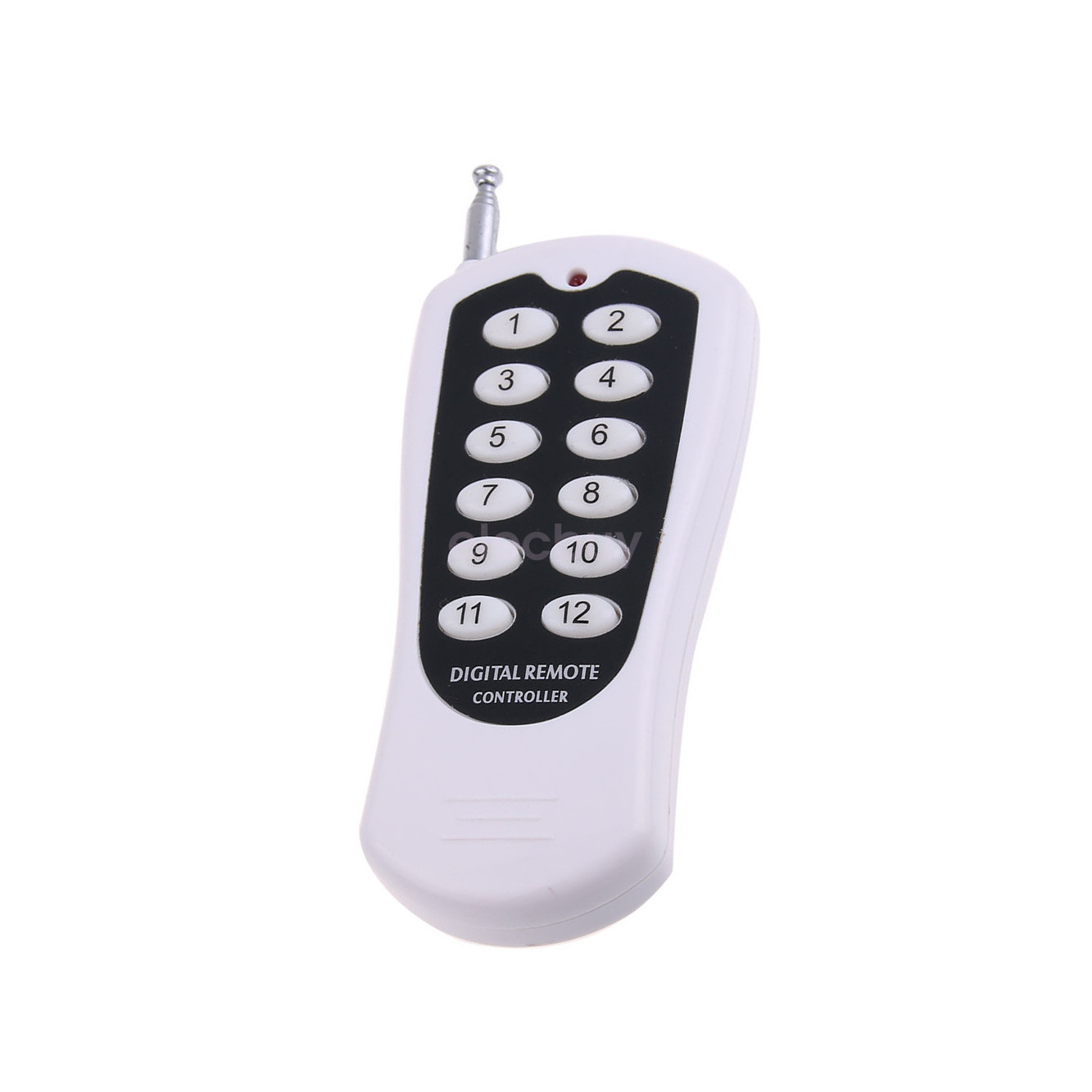

12CH Transmitter :
Radio frequency : 315 MHz

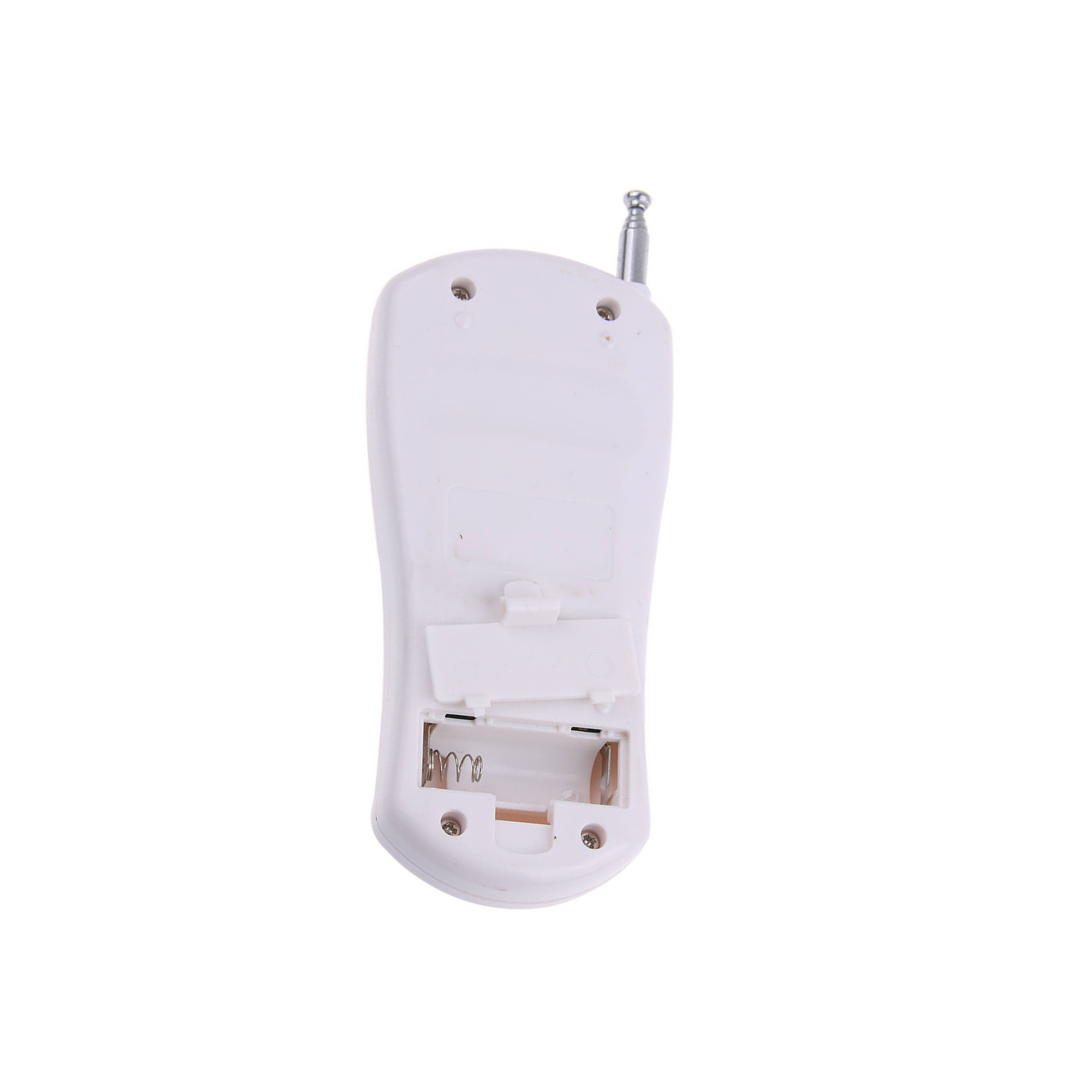

Operating Voltage : 23A 12VDC Battery
Decode : Fixed code, Soldering
Transmitting Distance : 800m
how to learn:
press the button on the control board first,after the buzzer sound "bi",
press the remote control button at once, if the buzzer sound " bi" again, everything ok.
there are 3 mode,Jog,Interlock,Self-locking
Jog, press the button 3 to learn.
Interlock,press the button 6 to learn,
Self-locking,press the button 9 to learn.
how to quit, press the switch on the board,the LED will turn on,hold it,release it after the LED turn out.
Package include:

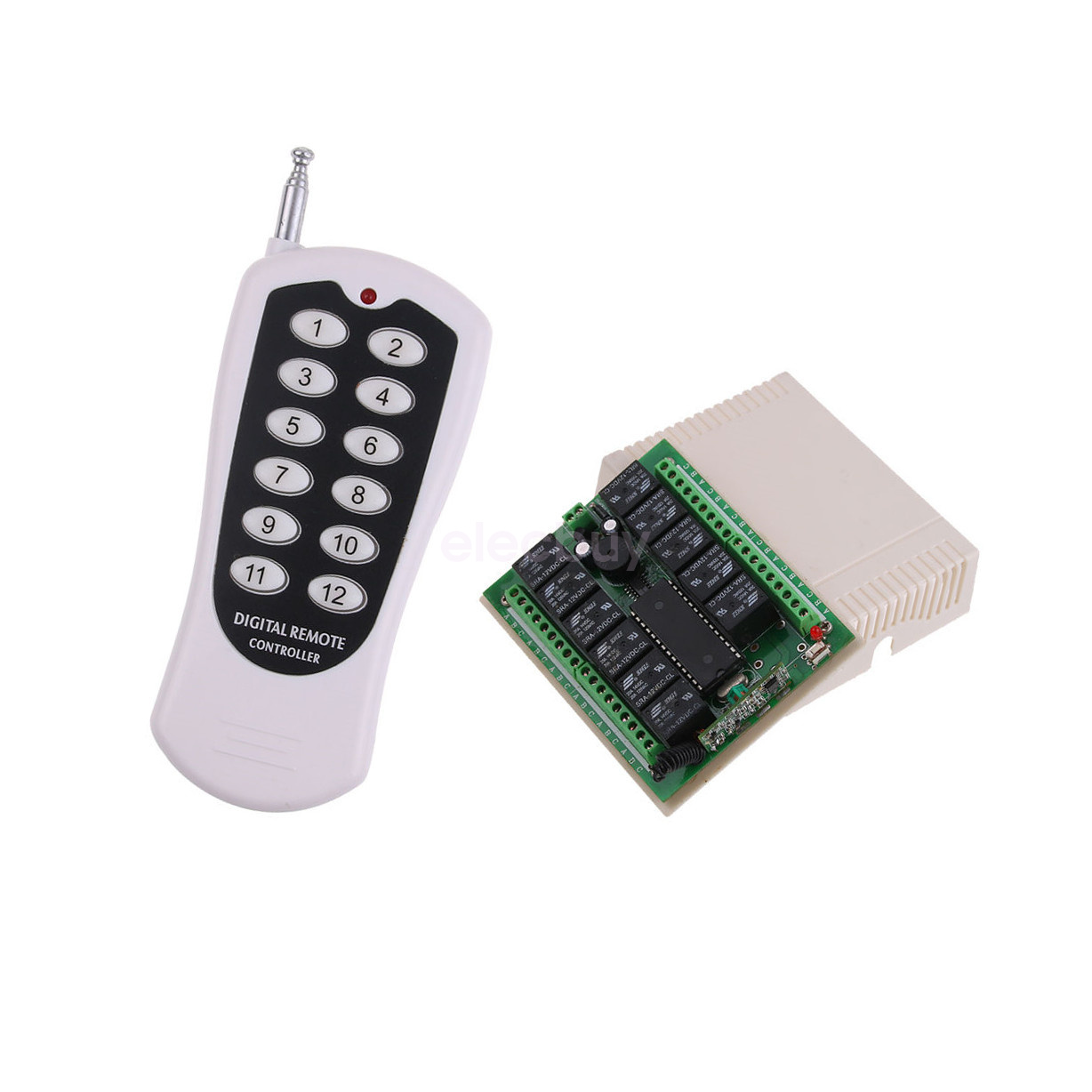

1 x 12V 12Channel Relay RF Switch 1000m Remote Control Transmitter + Receiver 315MHz（not include the battery)
