New 8 Inch LCD Display 800x480 + HDMI+VGA+2AV Controller Board for Raspberry Pi

Operating voltage: 12V 1A power supply current requirements less than 2A, as with the best car power plus a regulator to prevent interference
Rated power: 6-7W
Signal Input: 2 AV + VGA
System format: PAL / NTSC
VGA input: 800 * 480 physical resolution
AV1 video input (DVD devices can be linked or front camera)
AV2 video input (to the car automatically switches to the camera screen)


LCD Screen Parameters:
Display size: 8 inch
Dimensions: 192.8 (W) * 116.9 (H)mm
Viewing area: 180.1 (H) * 103.4(V)
Resolution: 800 * 3 (RGB) *480
Dot pitch: 0.0675 (W) * 0.2025 (H) mm
Viewing Angle:  L70 ° R70 ° U50 ° D60
Panel Type: TFT
Display Color: 262K
Contrast Ratio: 500:1
Brightness: 240cd/m2
Interface Type: Digital
Wiring Number: 40 PIN Digital (TTL) TCON

LED Backlight
20ms response time
Operating temperature  -20 c ~ 80 c
Applications Mobile DVD, digital photo frame, car systems, multimedia applications and other audio-visual systems

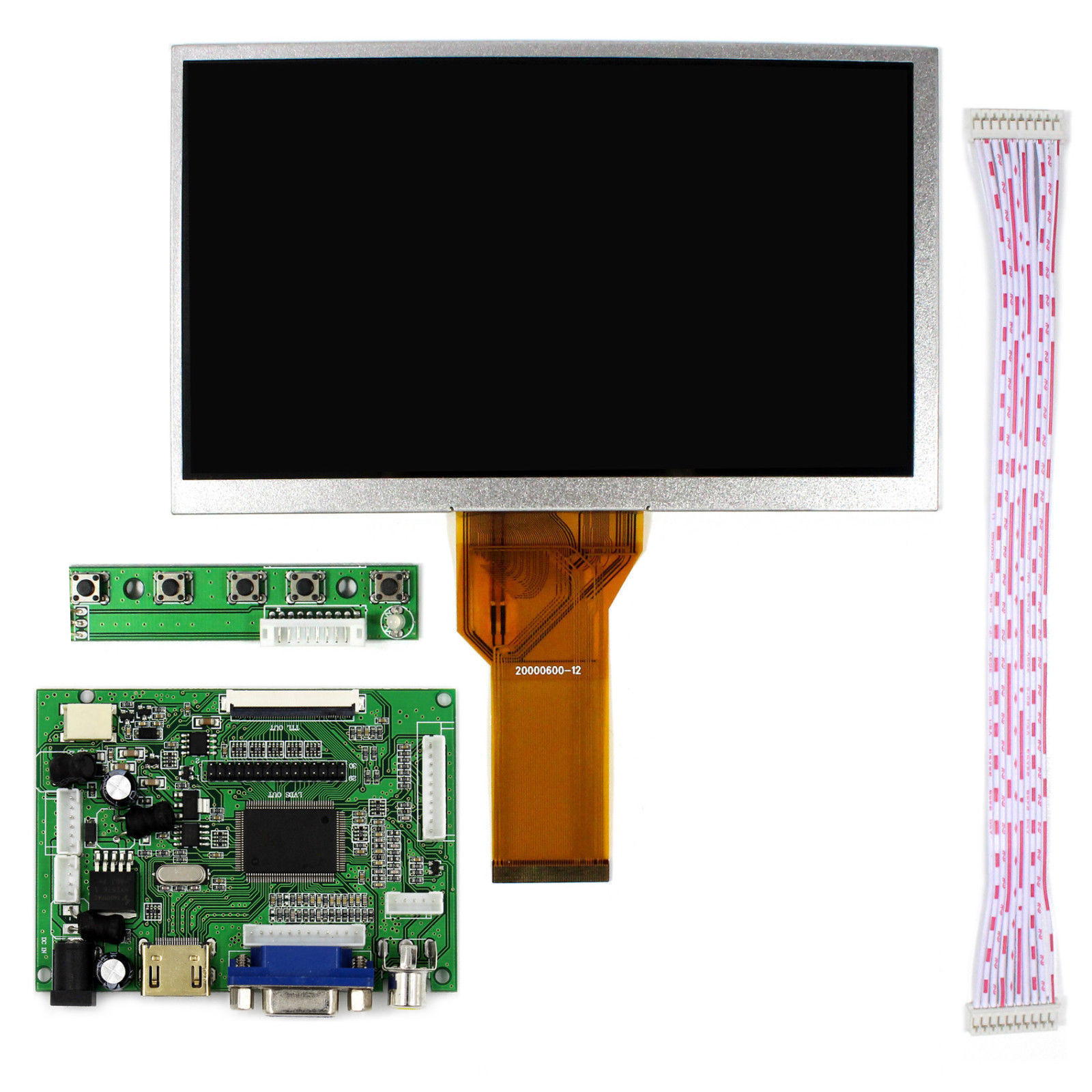

Package included:
1 x LCD Screen

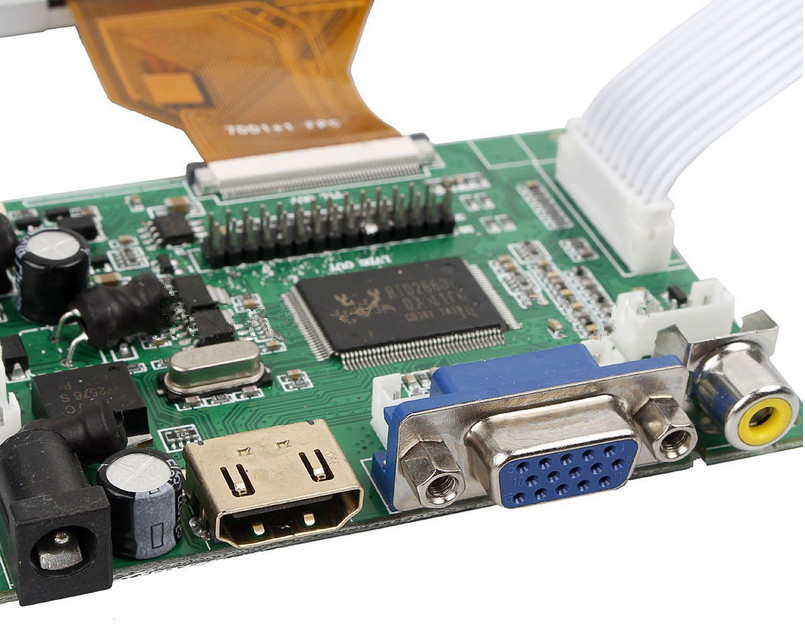

1 x Driver Board

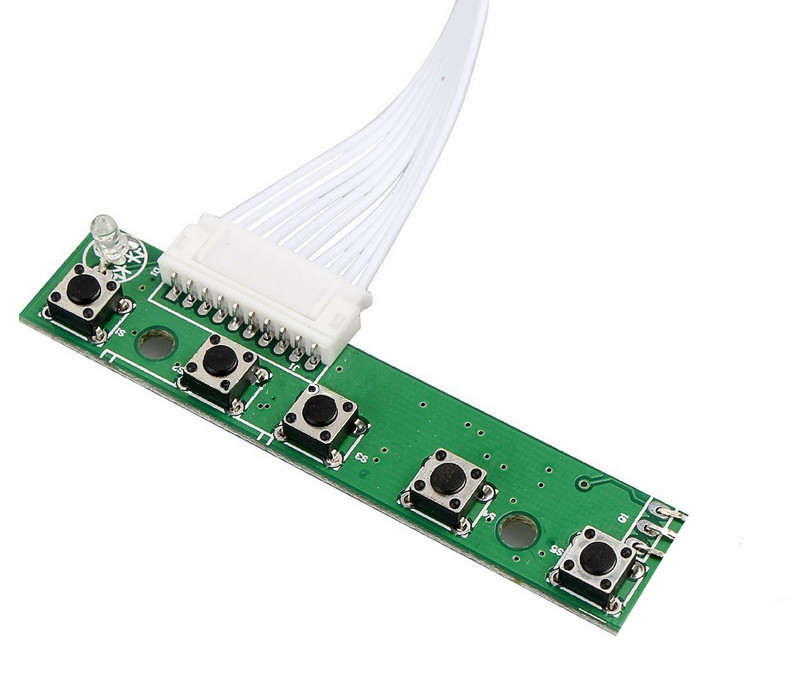

1 x Key Board
